5-10 — CAB MOUNTING; FRAME SIDE (#81278) — 39 parça

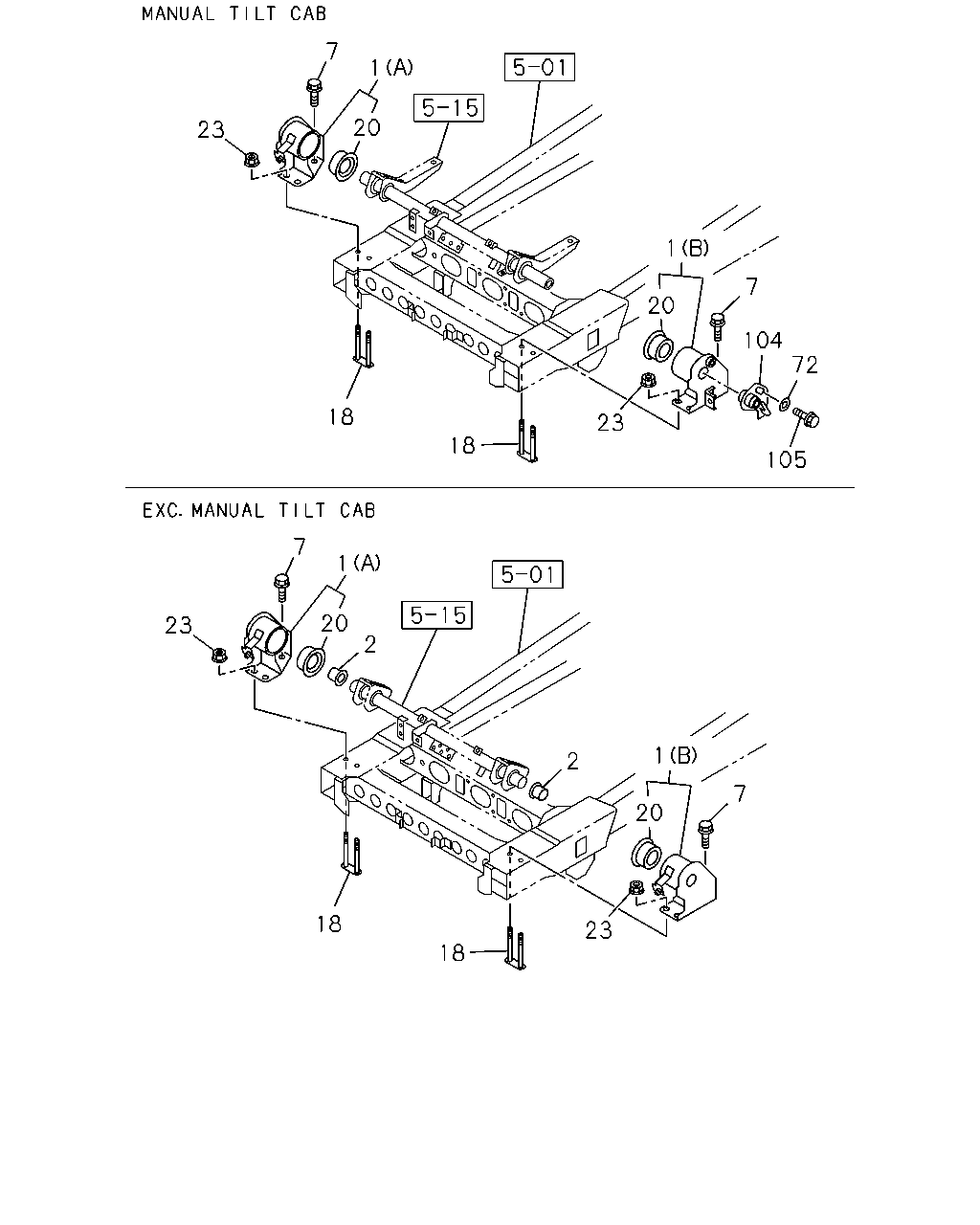

7 1 20 23 1 7 20 104 72 18 23 18 105 7 1 20 23 2 1 2 7 20 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (B)	8-98021-410-3	01	1	0804-	●	●
1	09.003 BRACKET; CAB MTG 16.545 (A)	8-98021-407-4	01	1	0804-	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98021-408-3	01	1	0804-	●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ> IDN	8-97061-514-0	02	1	0804-	●	●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE IDN	0-28661-440-0	02	1	0804-	●	●
18	09.003 PLATE; MTG BRKT FIX	8-98029-285-1	02	1	0804-	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0804-	●	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	0804-	●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0804-	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	0804-	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0804-	●	●

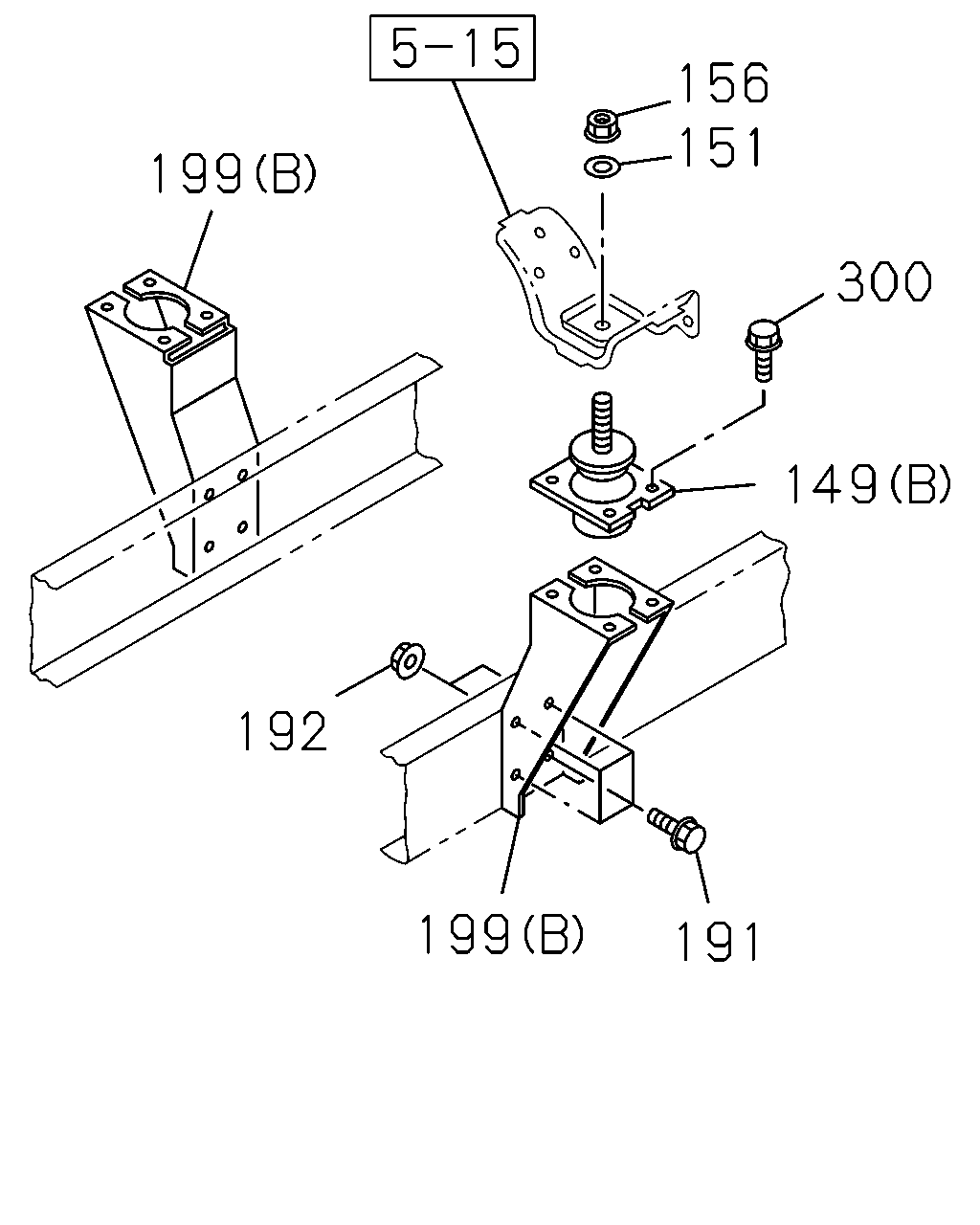

156 151 199 300 149 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 IDN	8-98021-561-1	02	1	0804-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94 IDN	8-98038-868-0	02	1	0804-	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58 IDN	8-97359-040-1	02	1	0804-	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16 IDN	0-91111-516-0	02	1	0804-	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE IDN	0-91180-114-0	02	1	0804-	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0804-	●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE IDN	0-91180-112-0	04	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-443-4	01	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-444-2	01	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98001-443-4	02	1	0804-	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE IDN	0-28651-020-0	08	1	0804-	●	●

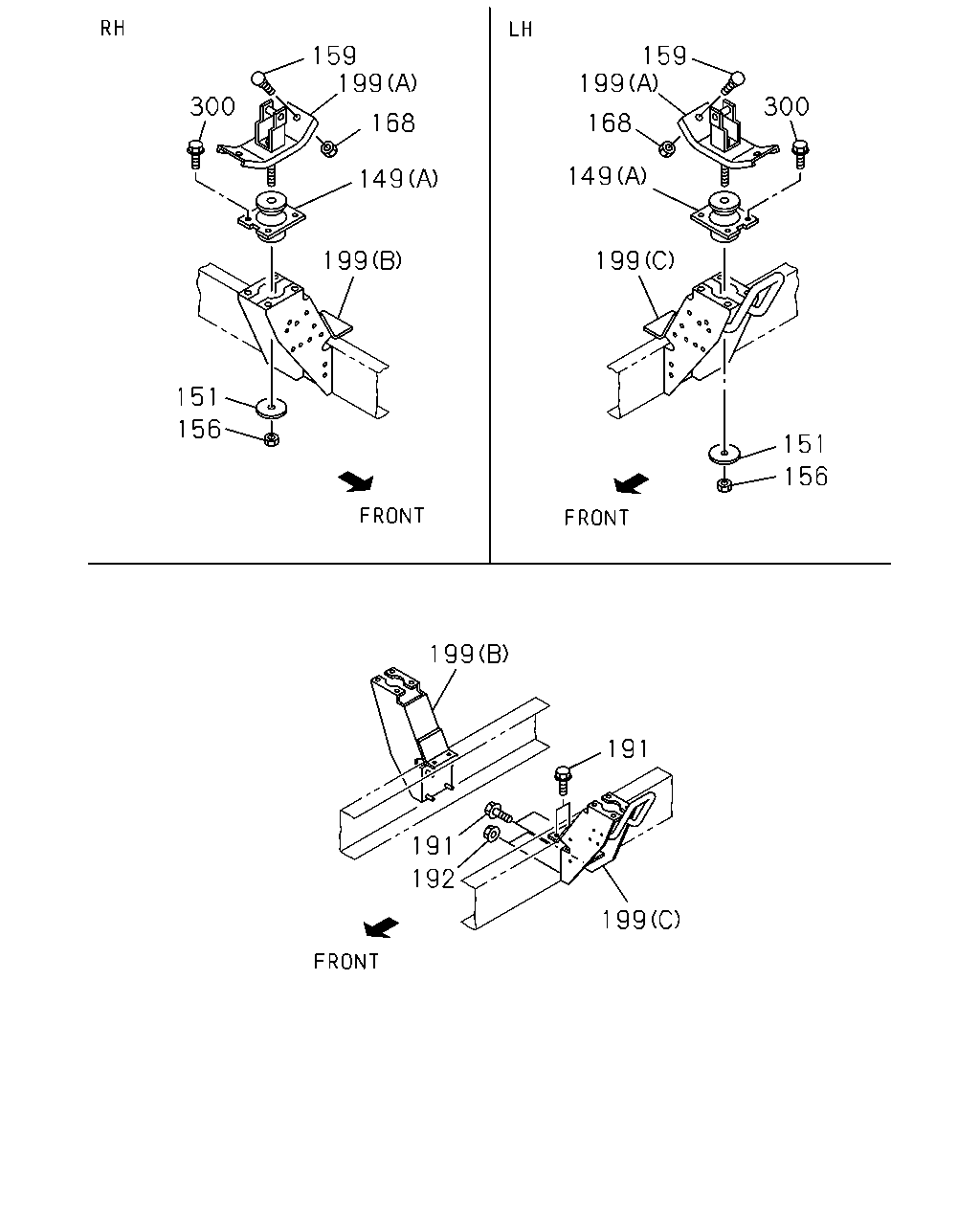

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 IDN	8-98021-561-1	02	1	0804-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94 IDN	8-98038-868-0	02	1	0804-	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58 IDN	8-97359-040-1	02	1	0804-	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16 IDN	0-91111-516-0	02	1	0804-	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE IDN	0-91180-114-0	02	1	0804-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0804-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0804-	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0804-	●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE IDN	0-91180-112-0	04	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-443-4	01	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-444-2	01	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0804-	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98001-443-4	02	1	0804-	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE IDN	0-28651-020-0	08	1	0804-	●	●
