4-80 — ROAD WHEEL (#81276) — 124 parça

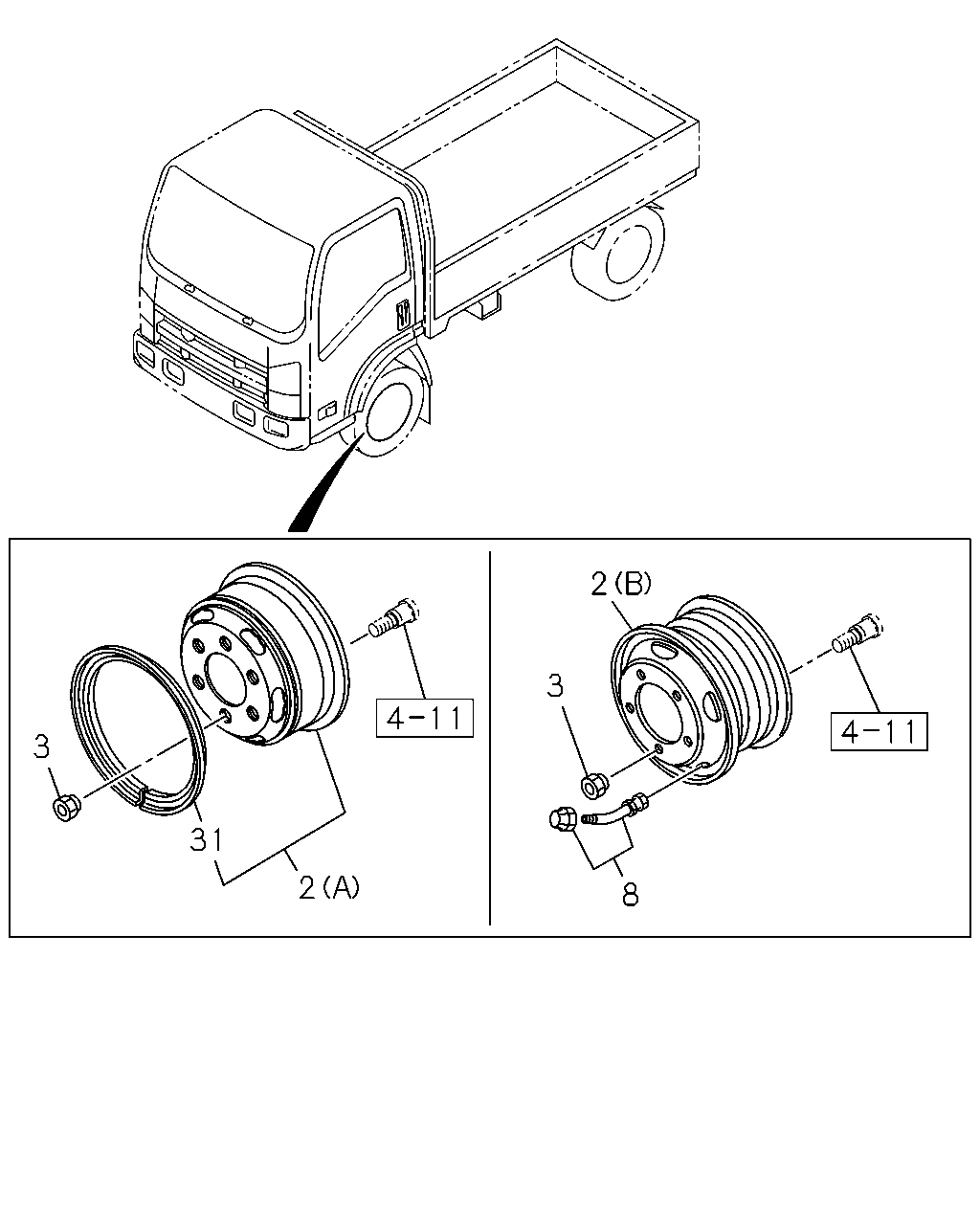

çizim 125241
3 31 2 2 3 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 01 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) (A) FRONT.REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 0804- ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 02 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 02 1 0810-0810 ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0810- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0804- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) SPARE IDN 		8-98221-106-0 01 1 0804- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) FRONT,REAR IDN 		8-98221-106-0 06 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 01 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 02 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 02 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 04 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 04 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 06 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 06 1 0810- ●

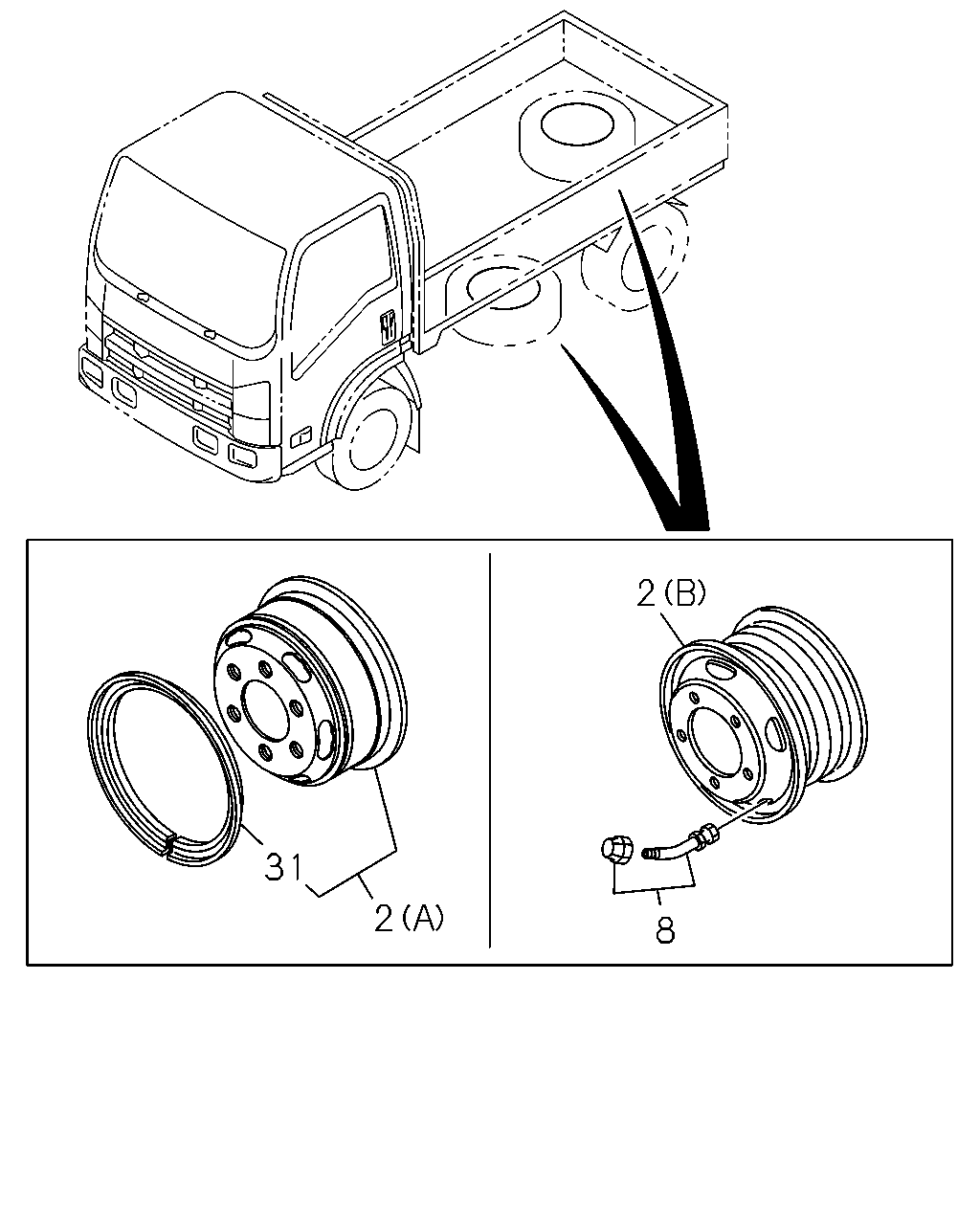

çizim 183496
31 2 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 01 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) (A) FRONT.REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 0804- ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 02 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 02 1 0810-0810 ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0810- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) SPARE IDN 		8-98221-106-0 01 1 0804- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) FRONT,REAR IDN 		8-98221-106-0 06 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 01 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 02 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 02 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 04 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 04 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 06 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 06 1 0810- ●

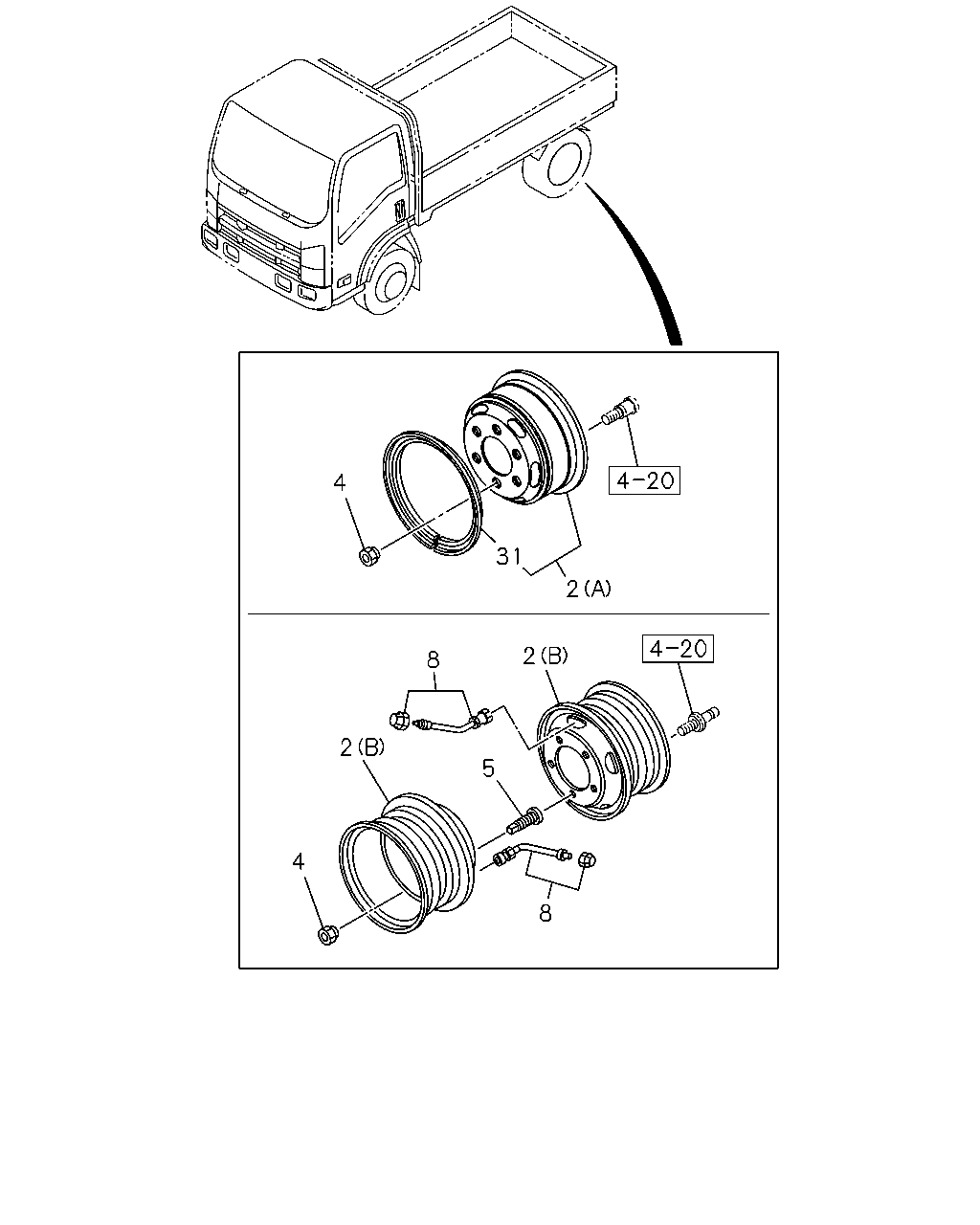

çizim 183502
4 31 2 2 8 2 4 5 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 01 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0804- ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) (A) FRONT.REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 0804- ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 02 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 02 1 0810-0810 ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0810- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0804- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) SPARE IDN 		8-98221-106-0 01 1 0804- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) FRONT,REAR IDN 		8-98221-106-0 06 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 01 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 02 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 02 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 04 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 04 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 06 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK IDN 		8-94135-601-0 06 1 0810- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
