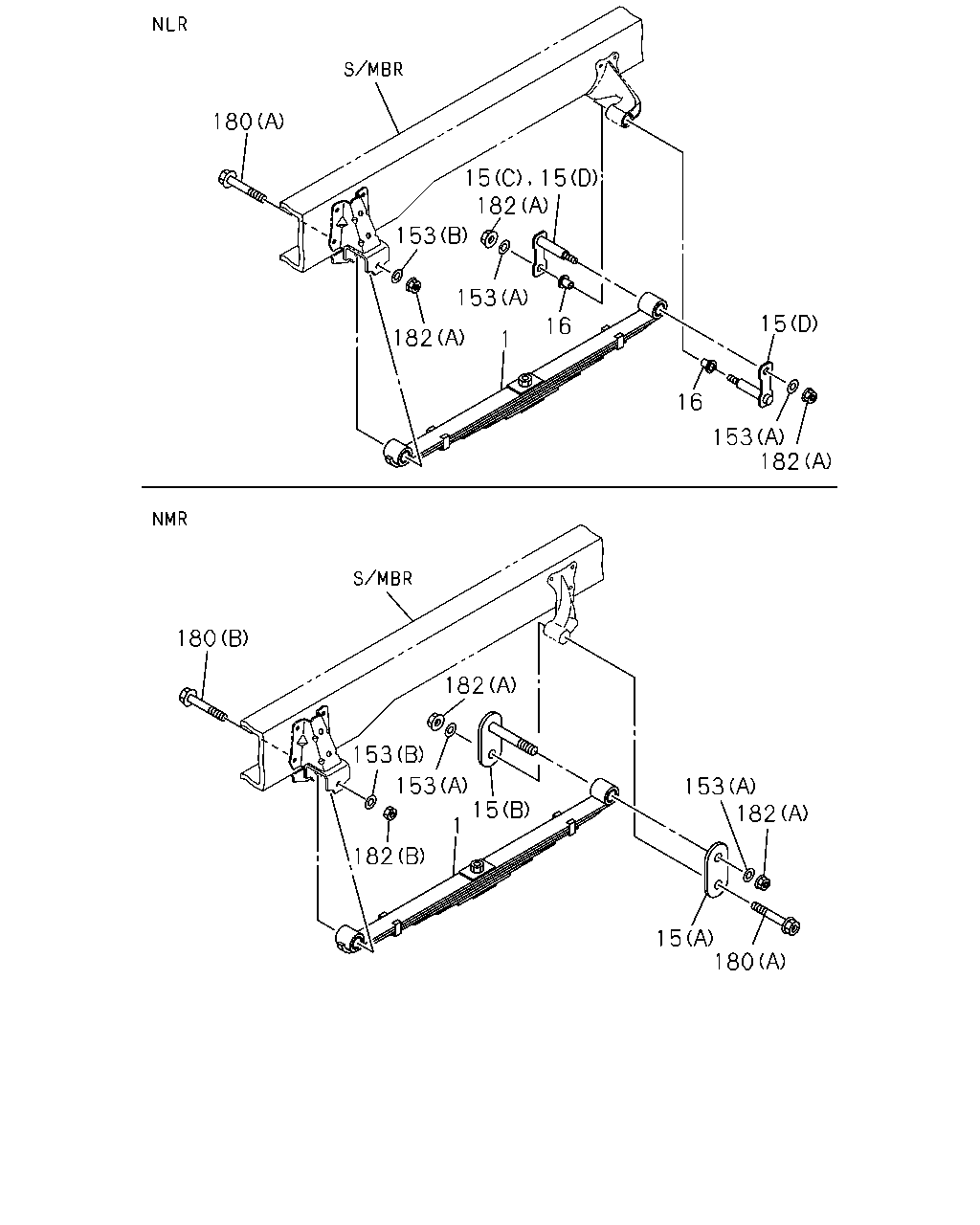

4-60 — REAR SUSPENSION (#81271) — 46 parça

180 15 182 15 153 153 15 16 182 1 16 153 182 180 182 153 153 15 153 182 1 182 15 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) 3-LEAF	8-98001-543-1	02	1	0804-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-98001-551-1	02	1	0804-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 10-LEAF	8-98022-373-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF	8-98022-374-0	02	1	0804-		●
15	07.523 SHACKLE; RR SPR (D) IDN	8-94113-322-3	02	1	0804-	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) (D) IDN	8-94113-322-3	02	1	0804-	●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) (C) IDN	8-97033-966-1	02	1	0804-	●
15	07.523 SHACKLE; RR SPR (A) IDN	8-94118-511-3	02	1	0804-		●
15	07.523 SHACKLE; RR SPR (B) IDN	8-97360-011-0	02	1	0804-		●
16	07.524 BUSHING; SHACKLE,RR SPR IDN	8-94113-323-2	04	1	0804-	●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) IDN	8-94113-323-2	04	1	0804-	●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS IDN	5-87610-160-0	04	1	0804-	●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) BEST VALUE PARTS IDN	5-87610-160-0	04	1	0804-	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 IDN	8-98011-489-0	02	1	0804-	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 IDN	8-98011-489-0	04	1	0804-	●	●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19 IDN	8-97360-119-0	02	1	0804-		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 IDN	8-98011-487-0	02	1	0804-	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0804-	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130 IDN	8-98011-488-0	02	1	0804-		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0804-		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN	0-91110-516-0	02	1	0804-	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN	0-91110-516-0	04	1	0804-	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	0804-	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	0804-	●	●
182	07.529 NUT; PIN,RR SPR (B) M18 IDN	0-91110-518-0	02	1	0804-		●

227 230 225 4 502 1 465 155 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) 3-LEAF	8-98001-543-1	02	1	0804-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-98001-551-1	02	1	0804-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 10-LEAF	8-98022-373-0	02	1	0804-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF	8-98022-374-0	02	1	0804-		●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP) L=205 IDN	8-94127-917-3	04	1	0804-	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) L=245	8-94127-921-3	04	1	0804-	●
4	07.516 U-BOLT; RR SPR G.V.W. 5.5-6.0TON(RPU) L=265 IDN	8-94127-923-3	04	1	0804-		●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW) L=285	8-97141-874-0	04	1	0804-		●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0804-	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0804-	●	●
155	07.380 BRACKET; S/ABS	8-94128-360-4	01	1	0804-	●
155	07.380 BRACKET; S/ABS	8-94128-361-4	01	1	0804-	●
225	07.535 RUBBER; CUSHION,RR SPR	8-98002-085-1	02	1	0804-	●
225	07.535 RUBBER; CUSHION,RR SPR	8-98021-554-0	02	1	0804-		●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE IDN	0-91180-112-0	02	1	0804-	●	●
230	07.518 SPACER; CUSHION RUBBER G.V.W. 4.0-4.5TON(RPR)	8-97136-853-0	02	1	0804-	●
230	07.518 SPACER; CUSHION RUBBER	8-97136-852-0	02	1	0804-		●
465	07.518 SHIM; ADJ RR BODY FLAT BED(RS6)	8-97072-589-0	AR	1	0804-	●
502	07.506 CLAMP; RR LEAF SPR 07.518 L=130 T=4.5 IDN	8-94119-069-2	02	1	0804-	●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) 07.518 L=130 T=4.5 IDN	8-94119-069-2	02	1	0804-		●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 320MM(6CP) 07.518 L=140 T=4.5	8-94118-509-1	02	1	0804-		●
