Sayfa 2-26 - Isuzu EPC

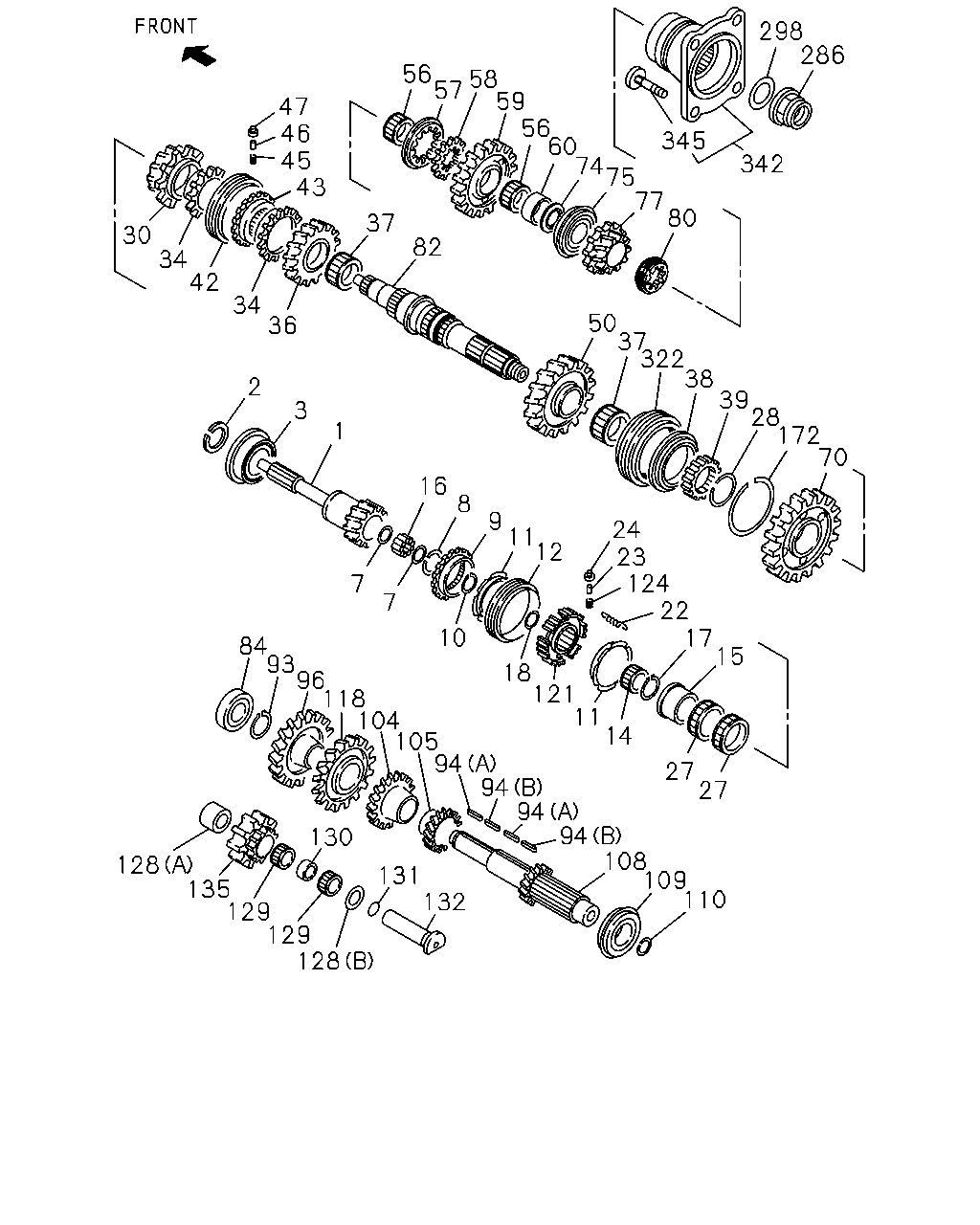

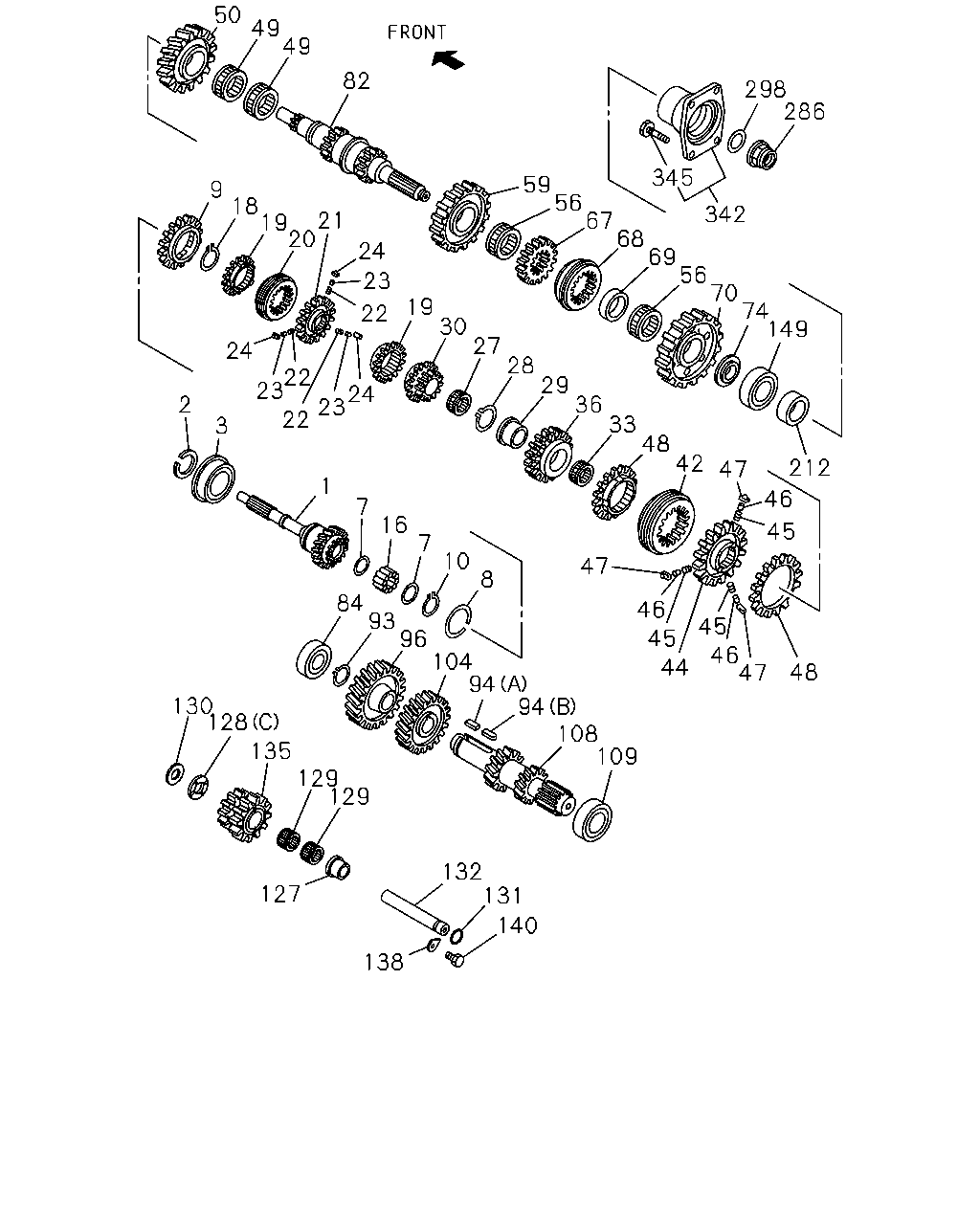

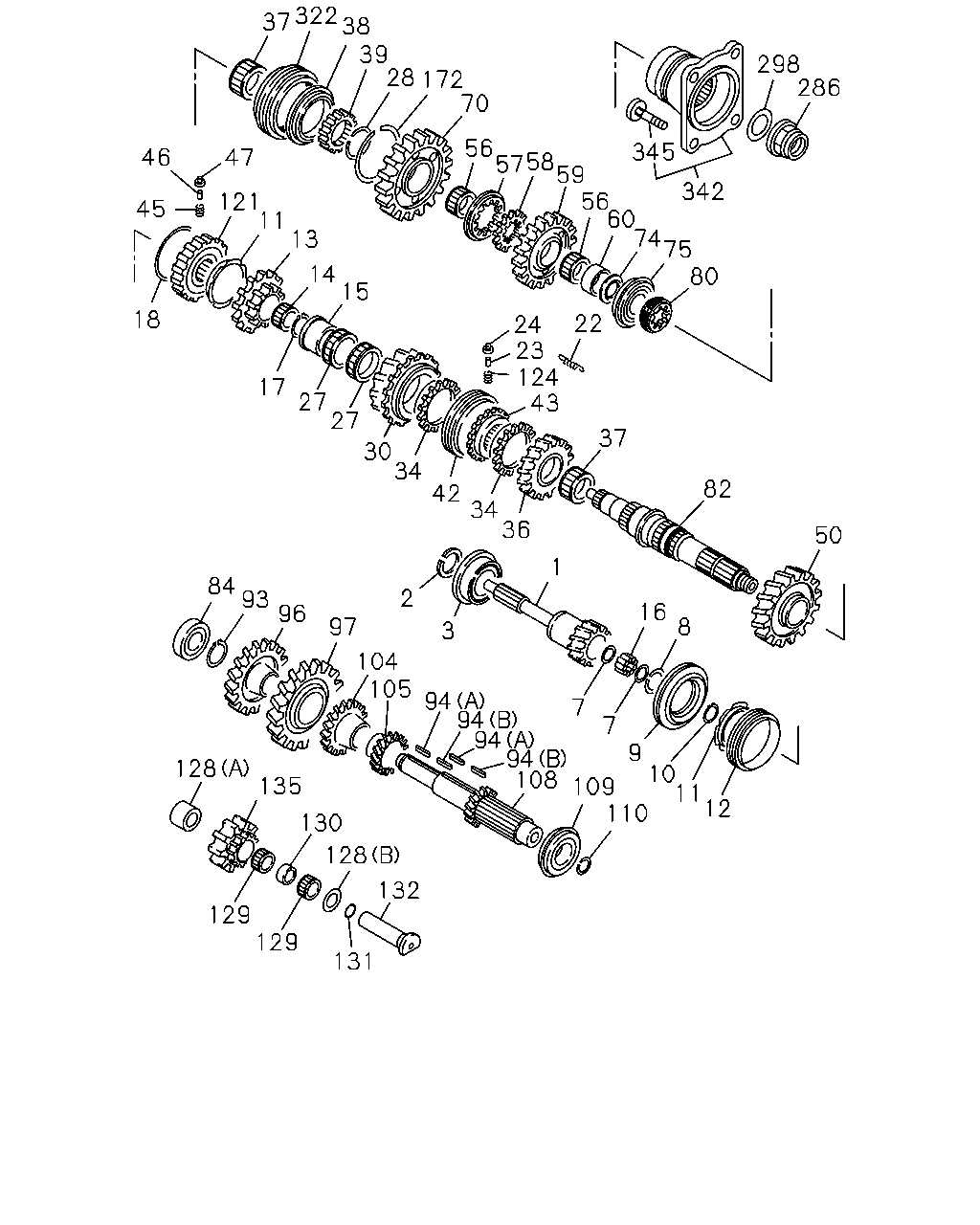

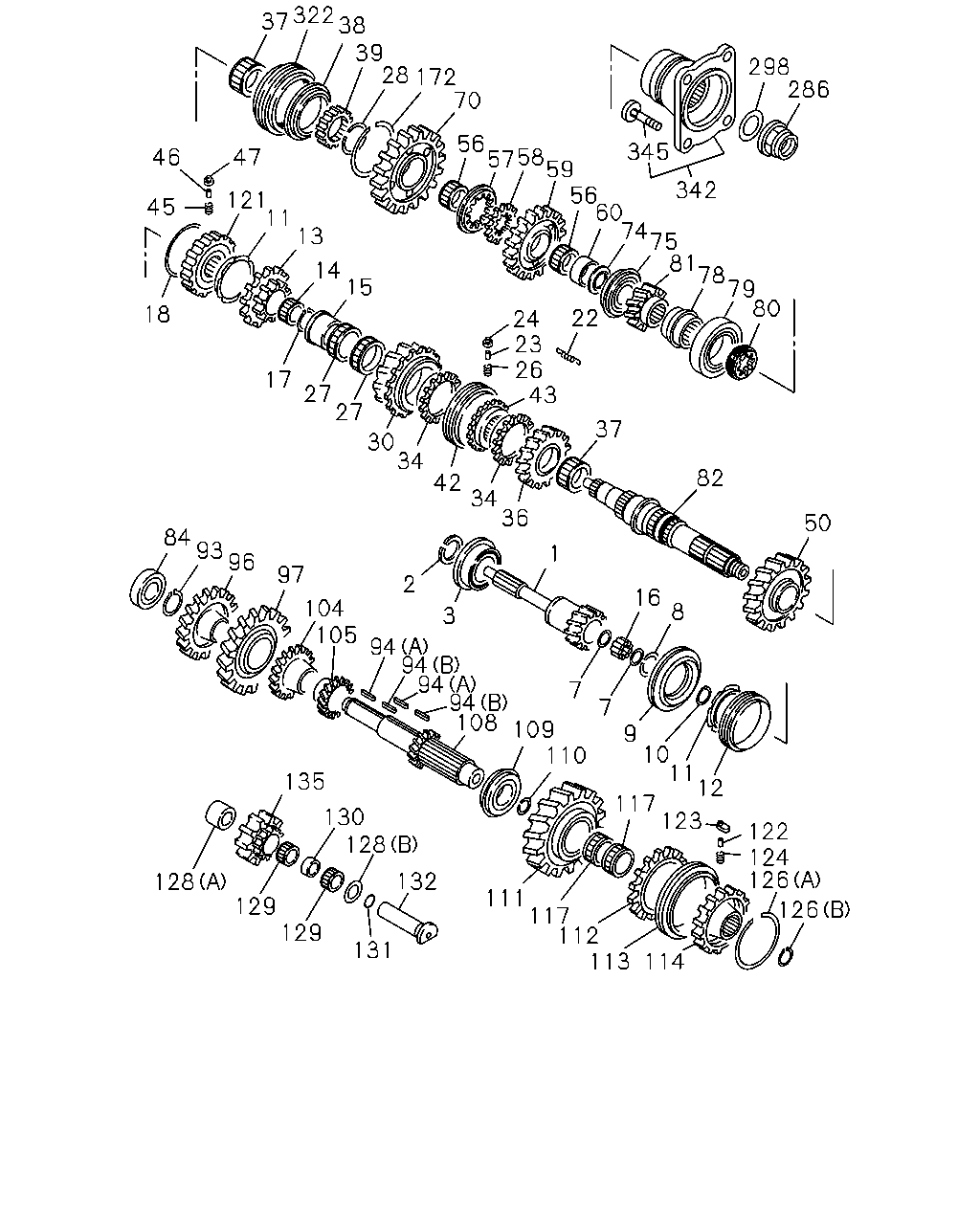

2-26 — MANUAL TRANSMISSION GEAR (#8127) — 817 parça

322 37 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 81 78 79 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 26 43 17 27 27 37 30 34 42 34 36 82 50 84 93 96 1 97 2 16 104 105 8 3 94 94 94 94 108 109 110 7 7 9 10 11 12 135 117 123 130 128 122 124 126 132 128 111 117 112 113 129 129 126 131 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-0210	●
1	SHAFT; TOP GEAR,TRANS FSS ALL(FS****) Z=25	1-33211-989-0	01	1	0211-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	0005-0006			●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0210			●	●
1	SHAFT; TOP GEAR,TRANS FTS ALL(FT****) Z=25	1-33211-785-0	01	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0211-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0005-0210			●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0211-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-0210	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0005-0210			●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0211-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-0210	●		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0211-		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-0210	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0005-0210			●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0211-		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-0210	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0005-0210			●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0211-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0005-0210			●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0211-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0005-0210			●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0211-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0005-0210			●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0005-0210			●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0211-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0005-0210			●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0211-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0005-0210			●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0211-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0005-0210			●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0211-		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-0210	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0005-0210			●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0211-		●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0005-0210			●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0211-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0211-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0211-		●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-0210			●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0005-0210			●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0211-		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-0210	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0005-0210			●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0211-		●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-0210	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0211-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0005-0210			●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0005-0210			●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0211-0312		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-0210	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0211-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0211-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0005-0210			●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0211-0312		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0005-0210			●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0211-		●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-0210	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0005-0210			●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0211-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0005-0210			●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0005-0210			●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0211-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-0210			●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0211-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-0210	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0211-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0005-0210			●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0211-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0005-0210			●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0211-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0005-0210			●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0211-		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-0210	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0005-0210			●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0211-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	0005-0009			●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0210			●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0211-		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-0210	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0005-0210			●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0211-		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-0210	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0005-0210			●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0211-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0005-0210			●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0211-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0005-0210			●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0211-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	0005-0210			●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-150-0	01	1	0005-0210			●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	0005-0210			●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0005-0210			●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0211-		●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	0005-0210			●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-0210	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0005-0210				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	0005-0210			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0005-0210			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0211-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-0210	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0005-0210			●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0211-		●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	0005-0210	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0211-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	0005-0210			●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0005-0210			●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-0210	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0211-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0005-0210			●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0005-0210			●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0211-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-0210	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	0005-0210				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0211-		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	0005-0210			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0211-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0211-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0005-0210			●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0211-		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	0005-0210			●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	0005-0210			●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	0005-0210			●
114	HUB; CLU,7TH	1-33261-159-1	01	1	0005-0210			●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	0005-0210			●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0005-0210			●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0211-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210			●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210			●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0005-0210			●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0211-		●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	0005-0210			●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	0005-0210			●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-0210	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0211-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0211-		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0211-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0211-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-0210	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0005-0210			●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0211-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-0210	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0005-0210			●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0211-		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-0210	●
132	SHAFT; REV	1-33351-017-0	01	1	0005-0210			●	●
132	SHAFT; REV	1-33351-017-0	01	1	0211-		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-0210	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0005-0210			●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0211-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0005-0210			●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0211-		●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	0005-0210	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0210			●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0211-0805		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0005-0210	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-0210			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0211-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0005-0210			●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0211-		●
342	FLANGE; OUTPUT	1-37243-355-0	01	1	0005-0210	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	0005-0210			●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0211-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0005-0210	●		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0211-0707		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-		●

322 37 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 8 97 3 104 105 94 94 94 94 108 109 110 7 7 9 10 11 12 128 135 130 128 132 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-0210	●
1	SHAFT; TOP GEAR,TRANS FSS ALL(FS****) Z=25	1-33211-989-0	01	1	0211-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	0005-0006			●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0210			●	●
1	SHAFT; TOP GEAR,TRANS FTS ALL(FT****) Z=25	1-33211-785-0	01	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0211-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0005-0210			●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0211-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-0210	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0005-0210			●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0211-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-0210	●		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0211-		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-0210	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0005-0210			●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0211-		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-0210	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0005-0210			●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0211-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0005-0210			●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0211-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0005-0210			●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0211-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0005-0210			●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0005-0210			●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0211-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0005-0210			●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0211-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0005-0210			●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0211-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0005-0210			●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0211-		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-0210	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0005-0210			●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0211-		●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0005-0210			●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0211-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0211-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0211-		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0005-0210			●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0211-		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-0210	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0005-0210			●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0211-		●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-0210	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0211-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0005-0210			●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0005-0210			●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0211-0312		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-0210	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0211-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0211-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0005-0210			●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0211-0312		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0005-0210			●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0211-		●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-0210	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0005-0210			●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0211-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0005-0210			●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0005-0210			●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0211-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-0210			●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0211-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-0210	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0211-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0005-0210			●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0211-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0005-0210			●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0211-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0005-0210			●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0211-		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-0210	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0005-0210			●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0211-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	0005-0009			●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0210			●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0211-		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-0210	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0005-0210			●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0211-		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-0210	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0005-0210			●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0211-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0005-0210			●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0211-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0005-0210			●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0211-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0005-0210			●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-0210	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0005-0210				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	0005-0210			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0005-0210			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0211-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-0210	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0005-0210			●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0211-		●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	0005-0210	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0211-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	0005-0210			●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0005-0210			●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-0210	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0211-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0005-0210			●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0005-0210			●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0211-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-0210	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	0005-0210				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0211-		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	0005-0210			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0211-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0211-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0005-0210			●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0211-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0005-0210			●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0211-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0005-0210			●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0211-		●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-0210	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0211-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0211-		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0211-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0211-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-0210	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0005-0210			●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0211-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-0210	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0005-0210			●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0211-		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-0210	●
132	SHAFT; REV	1-33351-017-0	01	1	0005-0210			●	●
132	SHAFT; REV	1-33351-017-0	01	1	0211-		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-0210	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0005-0210			●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0211-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0005-0210			●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0211-		●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	0005-0210	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0210			●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0211-0805		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0005-0210	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-0210			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0211-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0005-0210			●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0211-		●
342	FLANGE; OUTPUT	1-37243-355-0	01	1	0005-0210	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	0005-0210			●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0211-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0005-0210	●		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0211-0707		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-		●

50 49 49 82 298 286 345 59 56 67 68 69 56 70 74 149 9 18 19 21 20 342 24 23 19 30 27 28 29 36 33 48 42 22 24 22 23 24 23 22 2 3 212 47 1 46 7 16 45 7 10 47 8 84 93 96 104 94 46 45 45 46 47 44 48 94 108 109 130 128 135 129 129 132 131 127 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-0210	●
1	SHAFT; TOP GEAR,TRANS FSS ALL(FS****) Z=25	1-33211-989-0	01	1	0211-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	0005-0006			●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0210			●	●
1	SHAFT; TOP GEAR,TRANS FTS ALL(FT****) Z=25	1-33211-785-0	01	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0211-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0005-0210			●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0211-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-0210	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0005-0210			●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0211-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-0210	●		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0211-		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-0210	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0005-0210			●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0211-		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-0210	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0005-0210			●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0211-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0005-0210			●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0211-		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-0210	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0005-0210			●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0211-		●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	0005-0210	●
20	SLEEVE	1-33262-167-0	01	1	0005-0210	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	0005-0210	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0005-0210			●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0211-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0211-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0211-		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0005-0210			●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0211-		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-0210	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0005-0210			●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0211-		●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	0005-0210	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-0210	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0211-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0005-0210			●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	0005-0210	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-387-1	01	1	0005-0210	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	0005-0210	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-0210	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0211-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0005-0210			●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-0210	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0005-0210			●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0211-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	0005-0210	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0005-0210			●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0211-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-0210			●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0211-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-0210			●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0005-0210	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	0005-0210	●
49	BEARING; NEEDLE,2ND GEAR KOYO	1-09811-373-0	02	1	0005-0210	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-0210	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0211-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0005-0210			●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0211-		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-0210	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0005-0210			●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0211-		●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	0005-0210	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	0005-0210	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	0005-0210	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-0210	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0005-0210			●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0211-		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-0210	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0005-0210			●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-0210	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0005-0210				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	0005-0210			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0005-0210			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0211-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-0210	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0005-0210			●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0211-		●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	0005-0210	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0211-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	0005-0210			●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-0210	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0211-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0005-0210			●	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-0210	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	0005-0210				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0211-		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	0005-0210			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0211-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0211-		●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	0005-0210	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-0210	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0211-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0211-		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0211-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0211-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-0210	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0005-0210			●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0211-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-0210	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0005-0210			●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0211-		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-0210	●
132	SHAFT; REV	1-33351-017-0	01	1	0005-0210			●	●
132	SHAFT; REV	1-33351-017-0	01	1	0211-		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-0210	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0005-0210			●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0211-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0005-0210	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0005-0210	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	0005-0210	●
149	BEARING; NEEDLE,MAINSHAFT,RR KOYO	1-09810-216-0	01	1	0005-0210	●
212	COLLAR; DIST,MAINSHAFT	1-33235-015-0	01	1	0005-0210	●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	0005-0210	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0210			●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0211-0805		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0005-0210	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-0210			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0211-		●
342	FLANGE; OUTPUT	1-37243-355-0	01	1	0005-0210	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	0005-0210			●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0211-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0005-0210	●		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0211-0707		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-		●

298 286 56 58 57 59 56 60 74 75 77 80 47 46 45 43 345 342 37 30 34 42 82 34 36 50 37 322 38 39 28 172 70 2 3 1 16 8 9 11 12 24 23 124 22 17 15 7 7 10 84 93 96 118 104 105 94 94 94 94 108 109 110 18 121 11 14 27 27 130 128 135 129 129 128 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-0210	●
1	SHAFT; TOP GEAR,TRANS FSS ALL(FS****) Z=25	1-33211-989-0	01	1	0211-		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	0005-0006			●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0210			●	●
1	SHAFT; TOP GEAR,TRANS FTS ALL(FT****) Z=25	1-33211-785-0	01	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-0210	●		●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0211-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0210	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0005-0210			●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0211-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-0210	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0005-0210			●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0211-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-0210	●		●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0211-		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-0210	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0005-0210			●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0211-		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-0210	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0005-0210			●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0211-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0005-0210			●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0211-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0005-0210			●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0211-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0005-0210			●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0211-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0005-0210			●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0211-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	0005-0210	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0005-0210			●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0211-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0005-0210			●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0211-		●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-0210	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0005-0210			●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0211-		●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0005-0210			●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0211-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●		●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0211-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●		●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0211-		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-0210	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0005-0210			●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0211-		●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-0210	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0005-0210			●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0211-		●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-0210	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0211-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0005-0210			●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0005-0210			●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0211-0312		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-0210	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0211-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0005-0210			●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0211-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0005-0210			●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0211-0312		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0005-0210			●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0211-		●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-0210	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0005-0210			●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0211-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0005-0210			●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-0210	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0005-0210			●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0211-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-0210			●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0211-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-0210	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0005-0210			●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0211-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-0210	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0005-0210			●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0211-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0005-0210			●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0211-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0005-0210			●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0211-		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-0210	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0005-0210			●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0211-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	0005-0009			●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0210			●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0211-		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-0210	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0005-0210			●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0211-		●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-0210	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0005-0210			●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0211-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0005-0210			●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0211-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0005-0210			●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0211-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0211-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0005-0210			●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-0210	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0005-0210				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	0005-0210			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	0005-0210	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0005-0210			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0211-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-0210	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0005-0210			●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-0210	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0005-0210			●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0211-		●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	0005-0210	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0211-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	0005-0210			●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-0210	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0211-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0005-0210			●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0005-0210			●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0211-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-0210	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	0005-0210				●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0211-		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	0005-0210			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	0005-0210	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0211-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0005-0210			●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0211-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0005-0210			●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0211-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0211-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0005-0210			●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0211-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0005-0210			●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0211-		●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-0210	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0211-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0005-0210			●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0211-		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	0005-0210	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0211-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0005-0210			●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0211-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-0210	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0005-0210			●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0211-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-0210	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0005-0210			●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0211-		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-0210	●
132	SHAFT; REV	1-33351-017-0	01	1	0005-0210			●	●
132	SHAFT; REV	1-33351-017-0	01	1	0211-		●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-0210	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0005-0210			●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0211-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0005-0210			●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0211-		●
286	NUT; LK,MAINSHAFT M33 FLANGE	1-09449-077-0	01	1	0005-0210	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0210			●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0211-0805		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	0005-0210	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-0210			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0211-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0005-0210			●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0211-		●
342	FLANGE; OUTPUT	1-37243-355-0	01	1	0005-0210	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	0005-0210			●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0211-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0005-0210	●		●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0211-0707		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
