4-42 — POWER STEERING OIL PUMP (#81267) — 100 parça

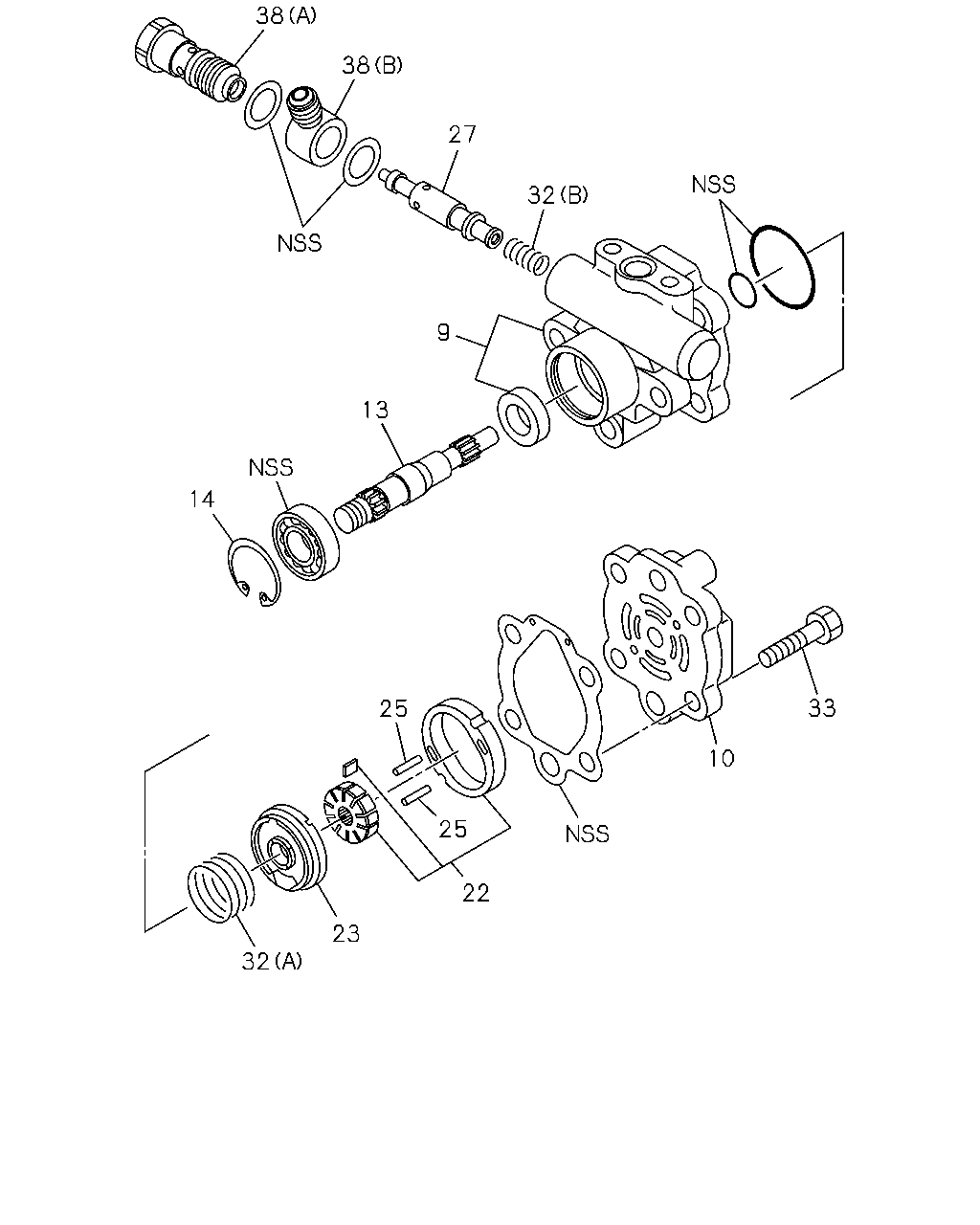

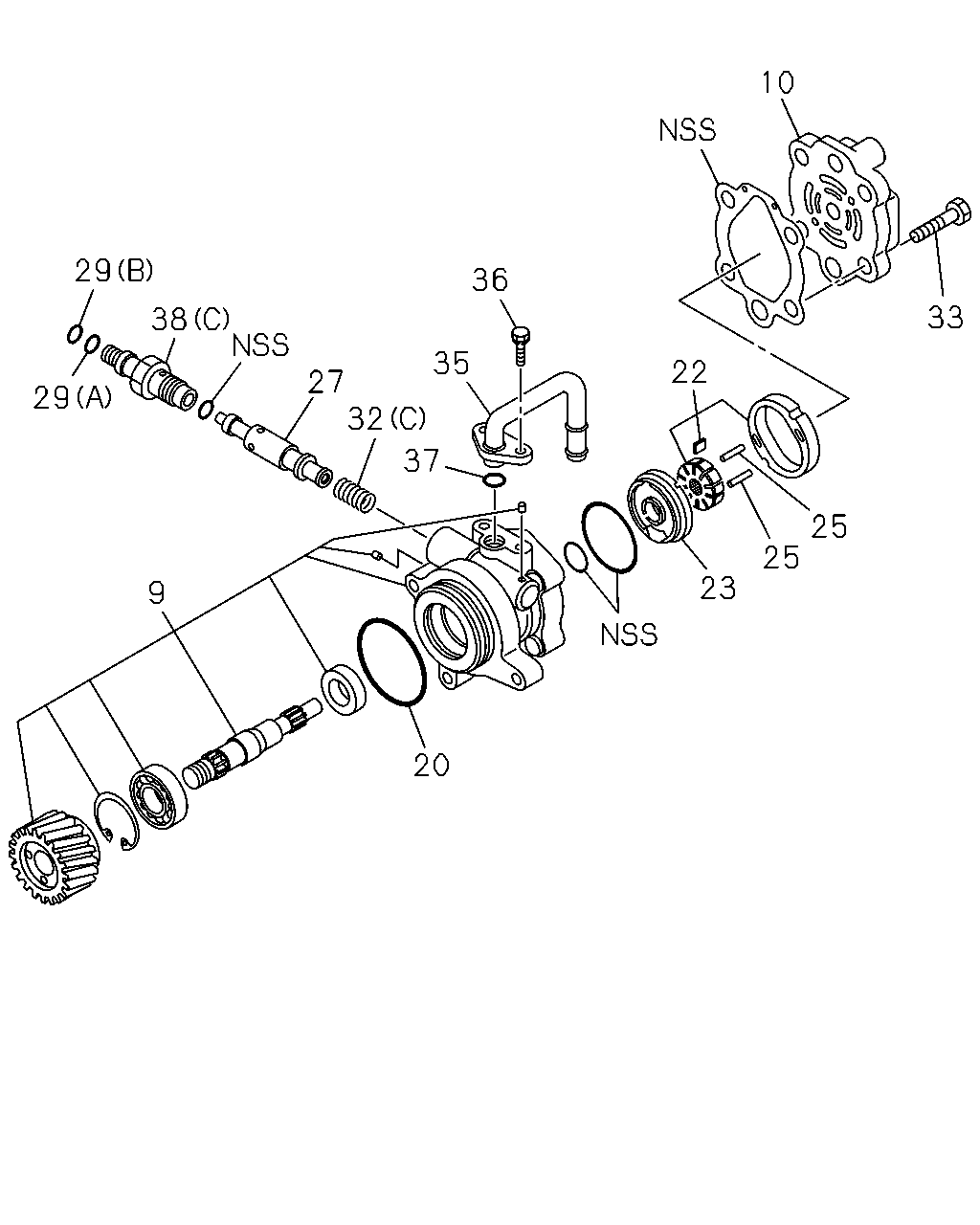

10 29 36 33 38 35 22 27 32 29 37 25 25 23 9 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-424-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-404-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98043-205-4, 98043205	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-419-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-205-4, 98043205	8-98061-418-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-417-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: C = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: C = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

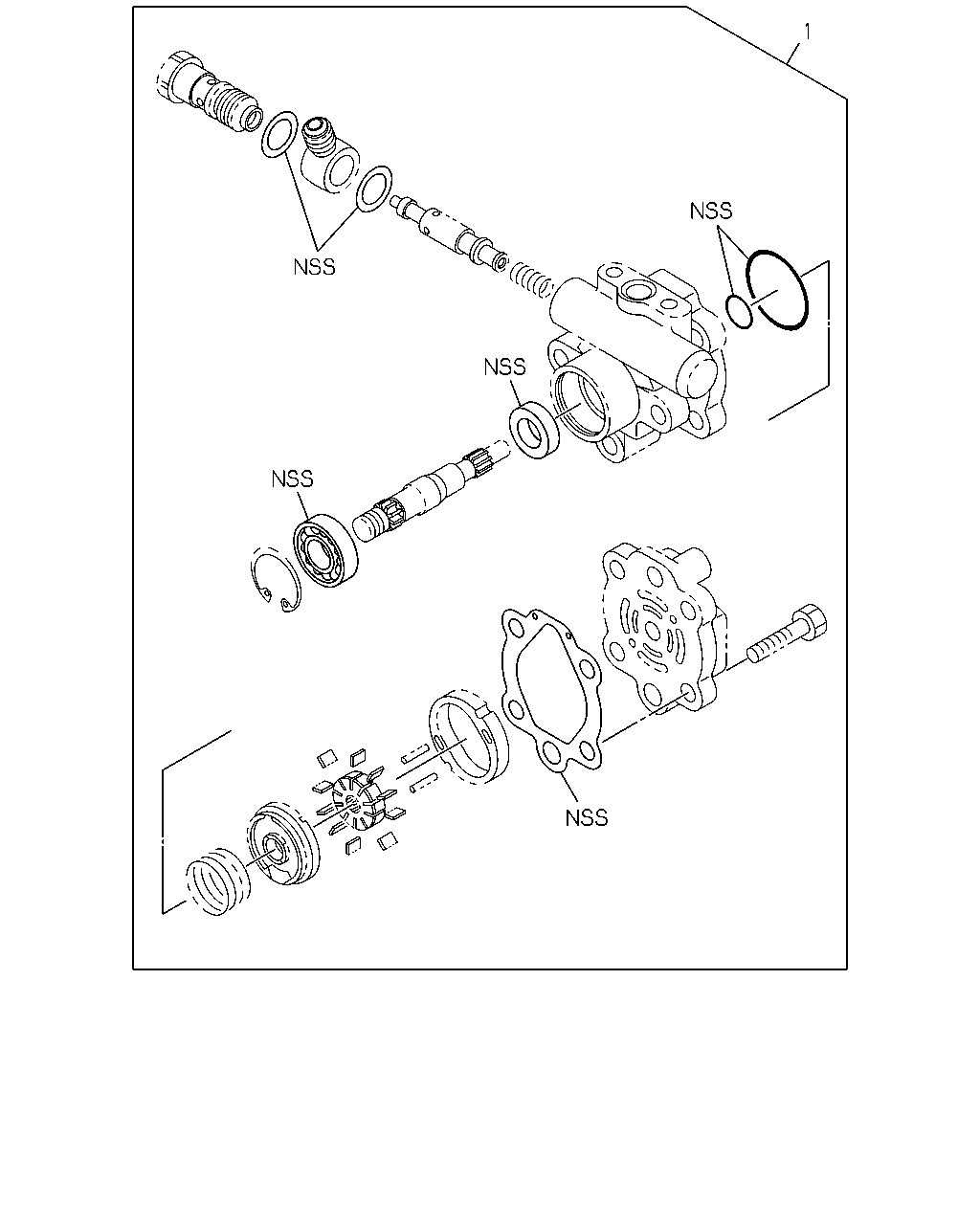

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

38 38 27 32 9 13 14 33 25 10 25 22 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-404-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98043-205-4, 98043205	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: C = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: C = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

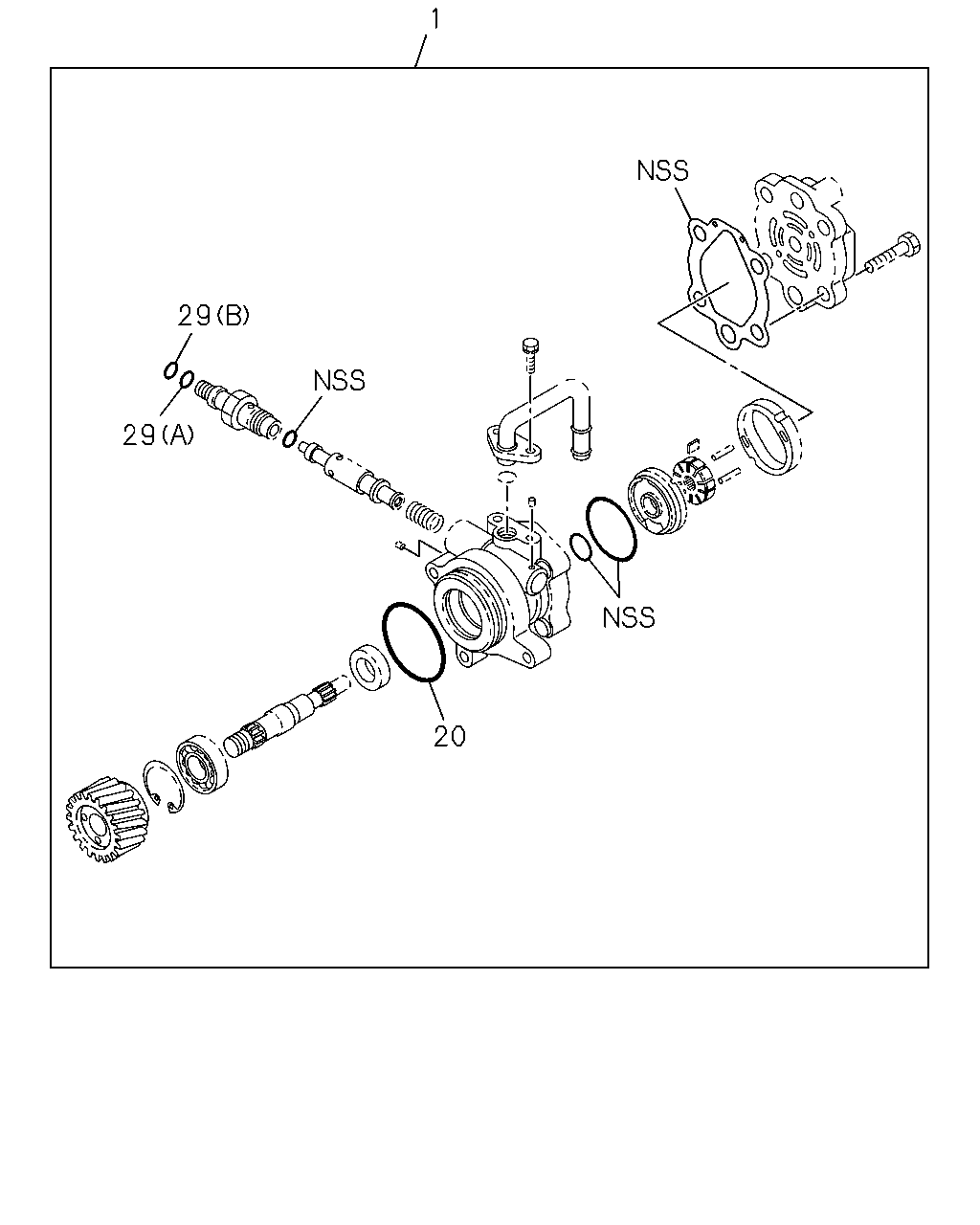

1 29 29 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-424-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-

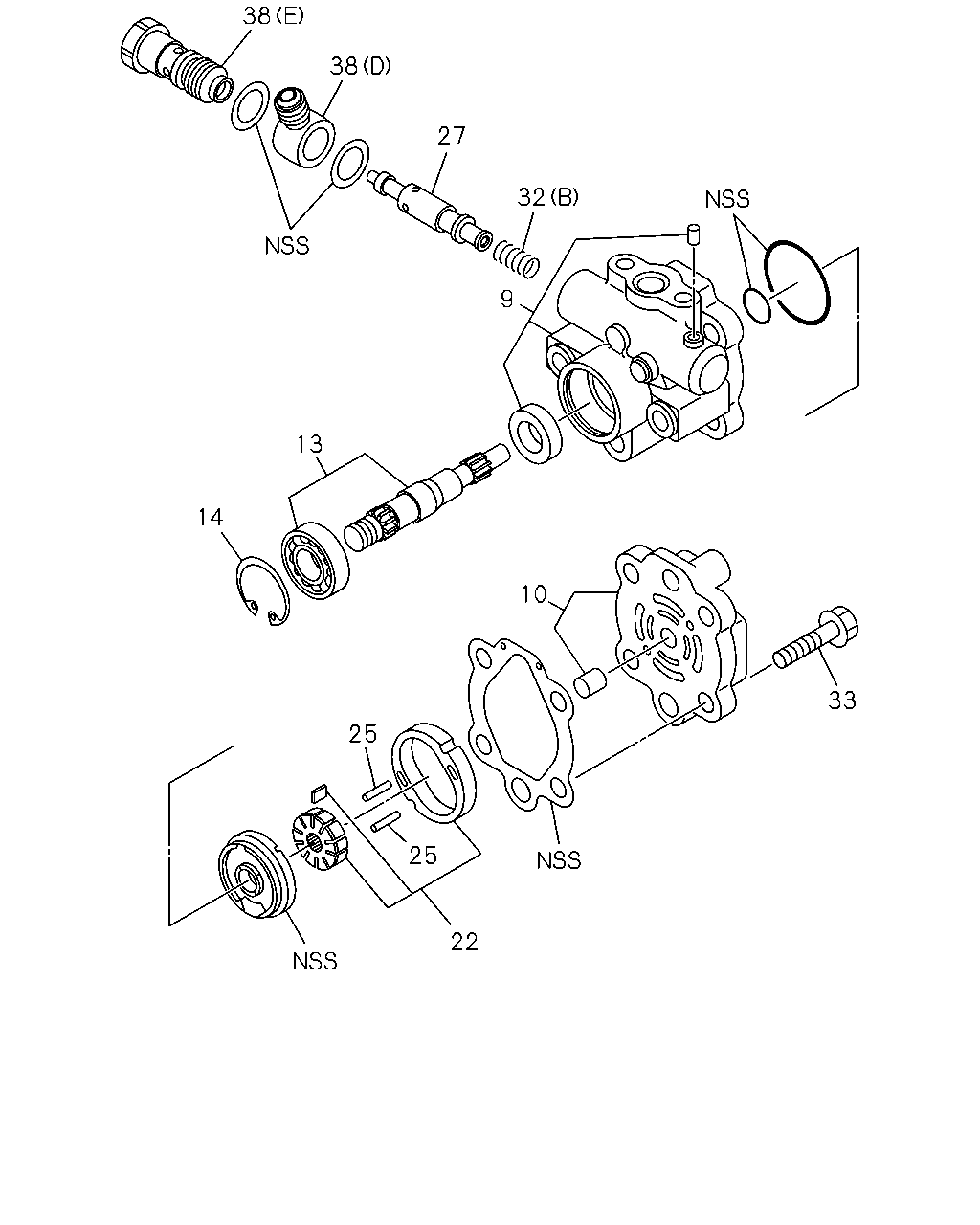

33 10 22 25 25 14 13 9 32 27 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98043-205-4, 98043205	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, C = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: C = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: C = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

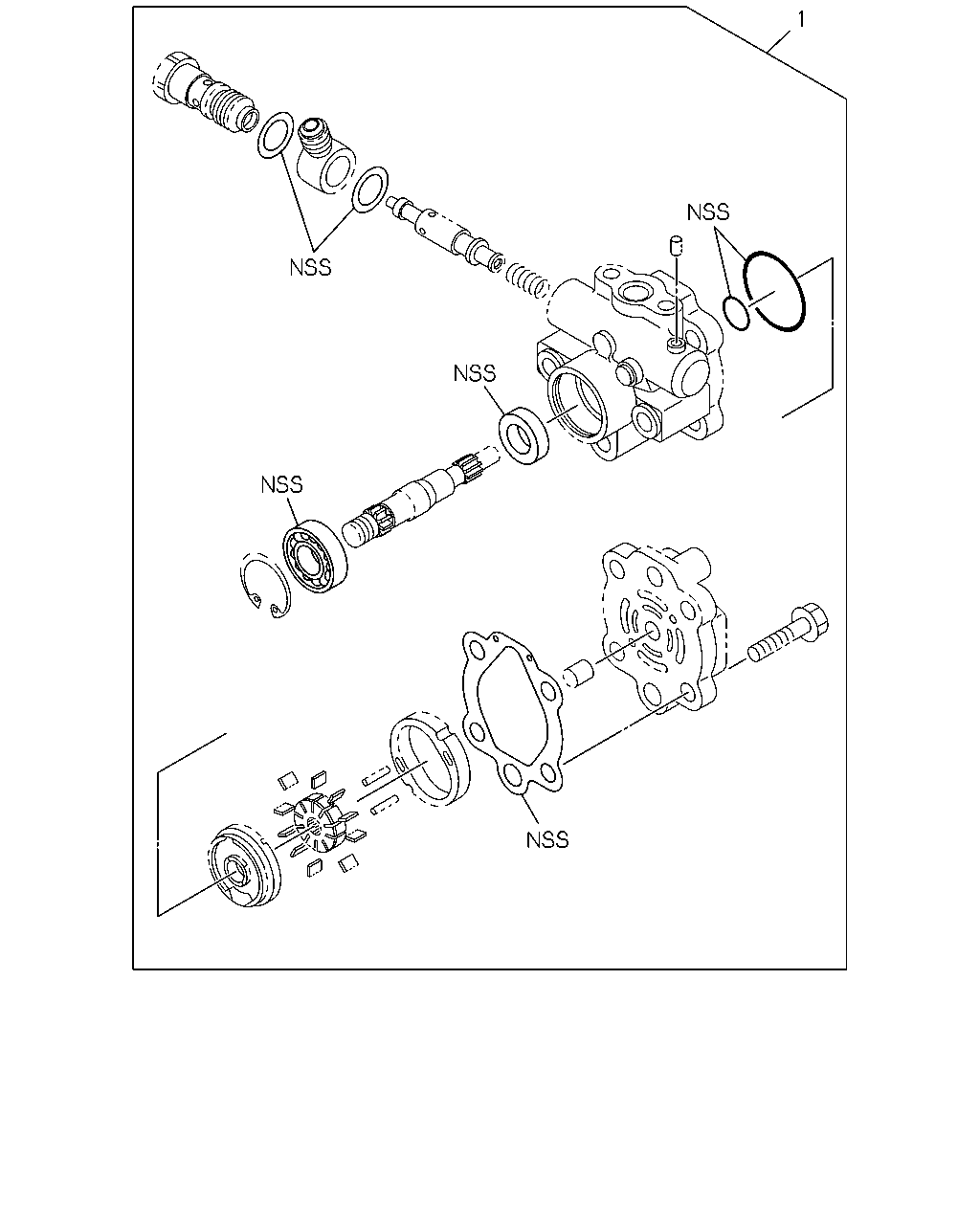

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
