◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#81265) — 43 parça

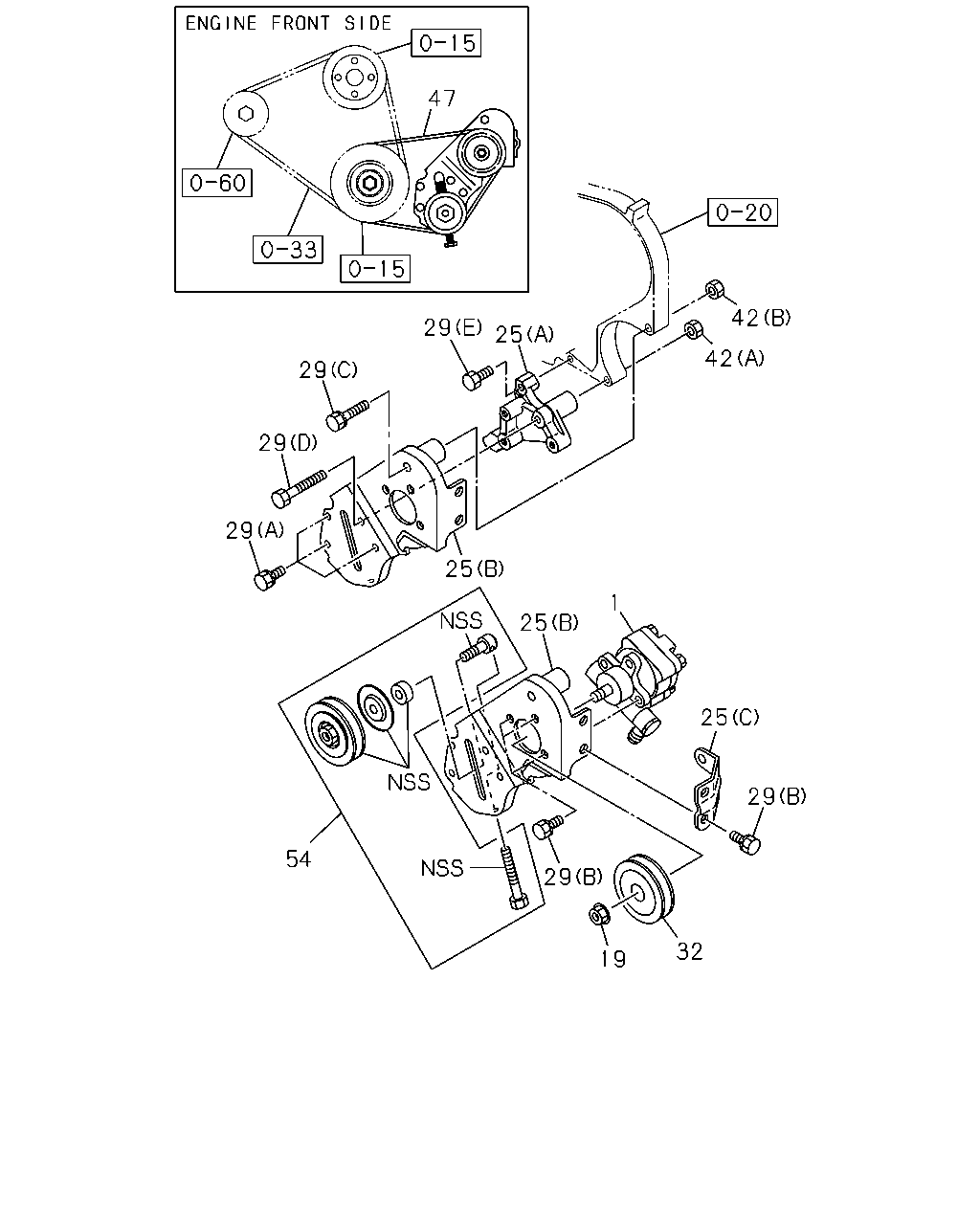

çizim 124261
47 42 42 25 29 29 29 29 25 1 25 29 29 19 32 54 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-1 01 1 0804-1303 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0804-1303 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98217-772-0 01 1 1304- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-98217-772-0 01 1 1304- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) 		8-98043-205-4 01 1 0804- ●
19 07.874 NUT; PULLEY,OIL PUMP
07.395 M12 IDN 		8-97360-126-0 01 1 0804- ●
19 07.874 NUT; PULLEY,OIL PUMP
4JB1-TC ENG(RDT) 07.395 M12 IDN 		8-97360-126-0 01 1 0804- ●
25 06.606 BRACKET; P/S PUMP
(B) 		8-97065-974-0 01 1 0804- ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (B) 		8-97065-974-0 01 1 0804- ●
25 06.606 BRACKET; P/S PUMP
(A) 		8-97107-869-0 01 1 0804- ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (A) 		8-97107-869-0 01 1 0804- ●
25 06.606 BRACKET; P/S PUMP
(C) 		8-97107-872-0 01 1 0804- ●
25 06.606 BRACKET; P/S PUMP
4JB1-TC ENG(RDT) (C) 		8-97107-872-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (B) M10X20 FLANGE IDN 		0-28651-020-0 05 1 0804- ●
29 09.171 BOLT; BRKT,POWER STRG
4JB1-TC ENG(RDT) 02.343 (B) M10X20 FLANGE IDN 		0-28651-020-0 05 1 0804- ●
32 06.665 PULLEY; IDLER,P/S 8-97084-332-2 01 1 0804-1303 ●
32 06.665 PULLEY; IDLER,P/S
4JB1-TC ENG(RDT) 		8-97084-332-2 01 1 0804-1303 ●
32 06.665 PULLEY; IDLER,P/S 8-98217-771-0 01 1 1304- ●
32 06.665 PULLEY; IDLER,P/S
4JB1-TC ENG(RDT) 		8-98217-771-0 01 1 1304- ●
42 06.672 NUT; ADJ PLATE
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ●
42 06.672 NUT; ADJ PLATE
03.162 (B) M10 FLANGE IDN 		0-91180-110-0 01 1 0804- ●
42 06.672 NUT; ADJ PLATE
4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE IDN 		0-91180-110-0 01 1 0804- ●
47 01.066 BELT; P/S PUMP
BEST VALUE PARTS 		5-87610-096-0 01 1 0804- ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-096-0 01 1 0804- ●
47 01.066 BELT; P/S PUMP 8-97085-131-0 01 1 0804- ●
47 01.066 BELT; P/S PUMP
4JB1-TC ENG(RDT) 		8-97085-131-0 01 1 0804- ●
54 06.655 IDLER ASM; P/S OIL PUMP 8-94128-866-0 01 1 0804- ●
54 06.655 IDLER ASM; P/S OIL PUMP
4JB1-TC ENG(RDT) 		8-94128-866-0 01 1 0804- ●

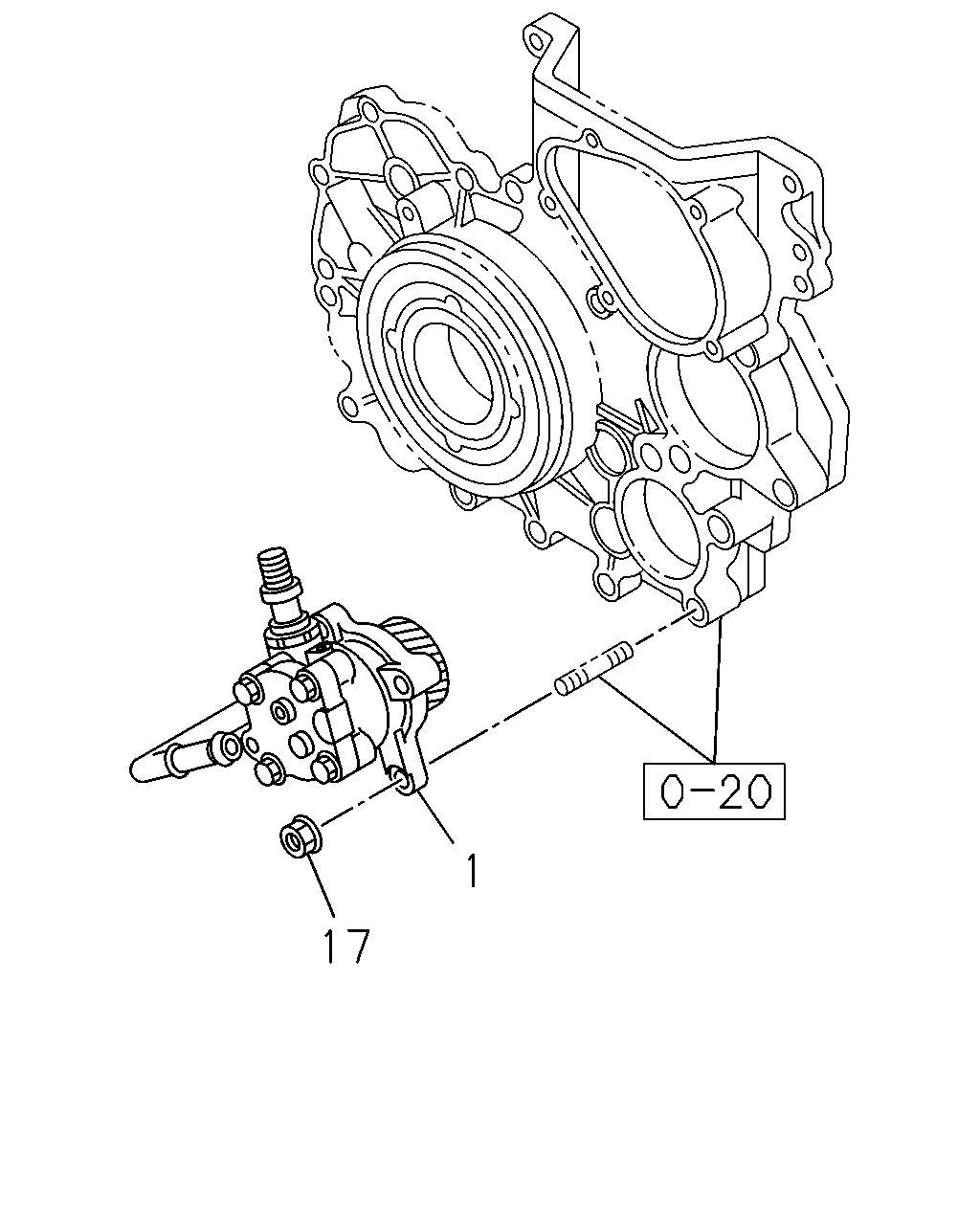

çizim 183495
1 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-1 01 1 0804-1303 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-97354-730-1 01 1 0804-1303 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98217-772-0 01 1 1304- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT) 		8-98217-772-0 01 1 1304- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) 		8-98043-205-4 01 1 0804- ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE IDN 		0-91180-208-0 03 1 0804- ●
