Sayfa 4-35 - Isuzu EPC

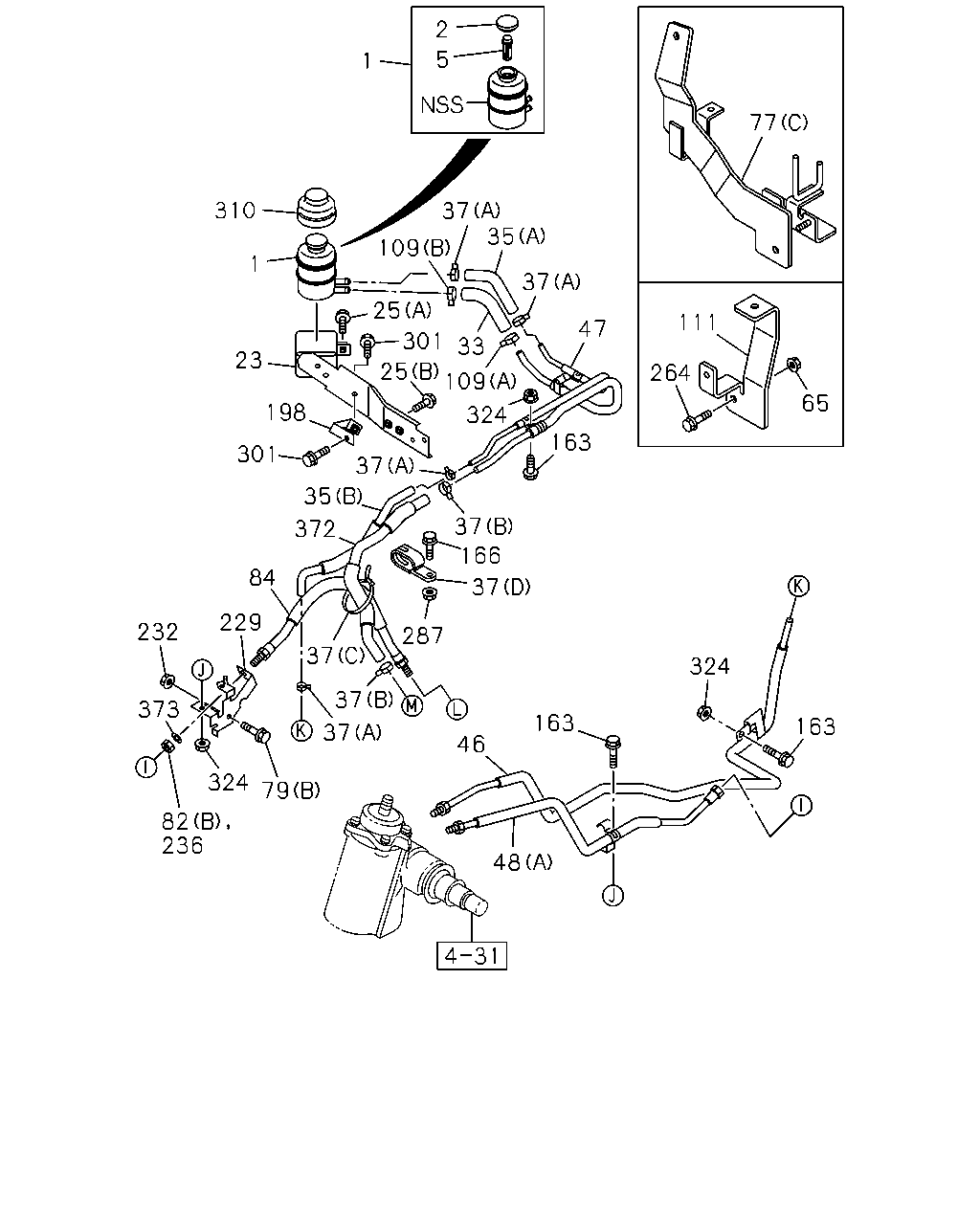

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#81264) — 341 parça

1 2 5 77 111 264 65 37 35 37 47 109 310 1 25 301 33 25 109 324 163 23 198 301 37 35 372 37 166 37 287 84 229 232 373 82 236 324 79 37 37 37 46 48 163 324 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0804-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98090-804-2	01	1	0804-	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-98090-804-2	01	1	0804-		●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0804-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98063-797-2	01	1	0804-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT)	8-98063-797-2	01	1	0804-		●
47	06.671 PIPE; RETURN	8-98064-711-3	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011		●
47	06.671 PIPE; RETURN	8-98174-014-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-227-0	01	1	0804-1011		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98173-325-0	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98063-796-1	01	1	0804-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A)	8-98063-796-1	01	1	0804-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A)	8-98041-027-0	01	1	0804-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-105-0	01	1	1401-		●
65	06.672 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
65	06.672 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
77	06.672 BRACKET; POWER STEERING HOSE (B)	8-97075-615-0	01	1	0804-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	0804-		●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97208-424-0	01	1	0804-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	0804-		●
77	06.672 BRACKET; POWER STEERING HOSE (C)	8-98090-755-1	01	1	0804-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (C)	8-98090-755-1	01	1	0804-		●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-		●
79	06.672 BOLT; BRKT 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909		●
79	06.672 BOLT; BRKT 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-		●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	02	1	0804-0901	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	02	1	0804-0901		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0902-	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	01	1	0902-		●
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98032-376-4	01	1	0804-1312		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
111	06.672 BRACKET; OIL PIPE	8-98095-026-1	01	1	0804-1311	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-98095-026-1	01	1	0804-1311		●
111	06.672 BRACKET; OIL PIPE	8-98252-357-0	01	1	1312-	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-98252-357-0	01	1	1312-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●
166	06.672 BOLT; CLIP 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-		●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98063-795-1	01	1	0804-	●
229	06.606 BRACKET; HOSE,POWER STRG 4JB1-TC ENG(RDT)	8-98063-795-1	01	1	0804-		●
232	06.672 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
232	06.672 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
236	06.672 NUT; FLEX HOSE,P/S PIPING 06.897 M16	8-94370-339-0	01	1	0902-	●
236	06.672 NUT; FLEX HOSE,P/S PIPING 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	01	1	0902-		●
264	06.672 BOLT; PIPE BRKT 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0804-1402	●
264	06.672 BOLT; PIPE BRKT 4JB1-TC ENG(RDT) 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0804-1402		●
264	06.672 BOLT; PIPE BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1403-	●
264	06.672 BOLT; PIPE BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1403-		●
287	06.672 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
287	06.672 NUT; CLIP 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312		●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98090-807-1	01	1	0804-1101	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101		●
372	06.673 HOSE; RUBBER	8-98186-364-0	01	1	1102-	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-		●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0804-0906	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0804-0906		●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-		●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-		●

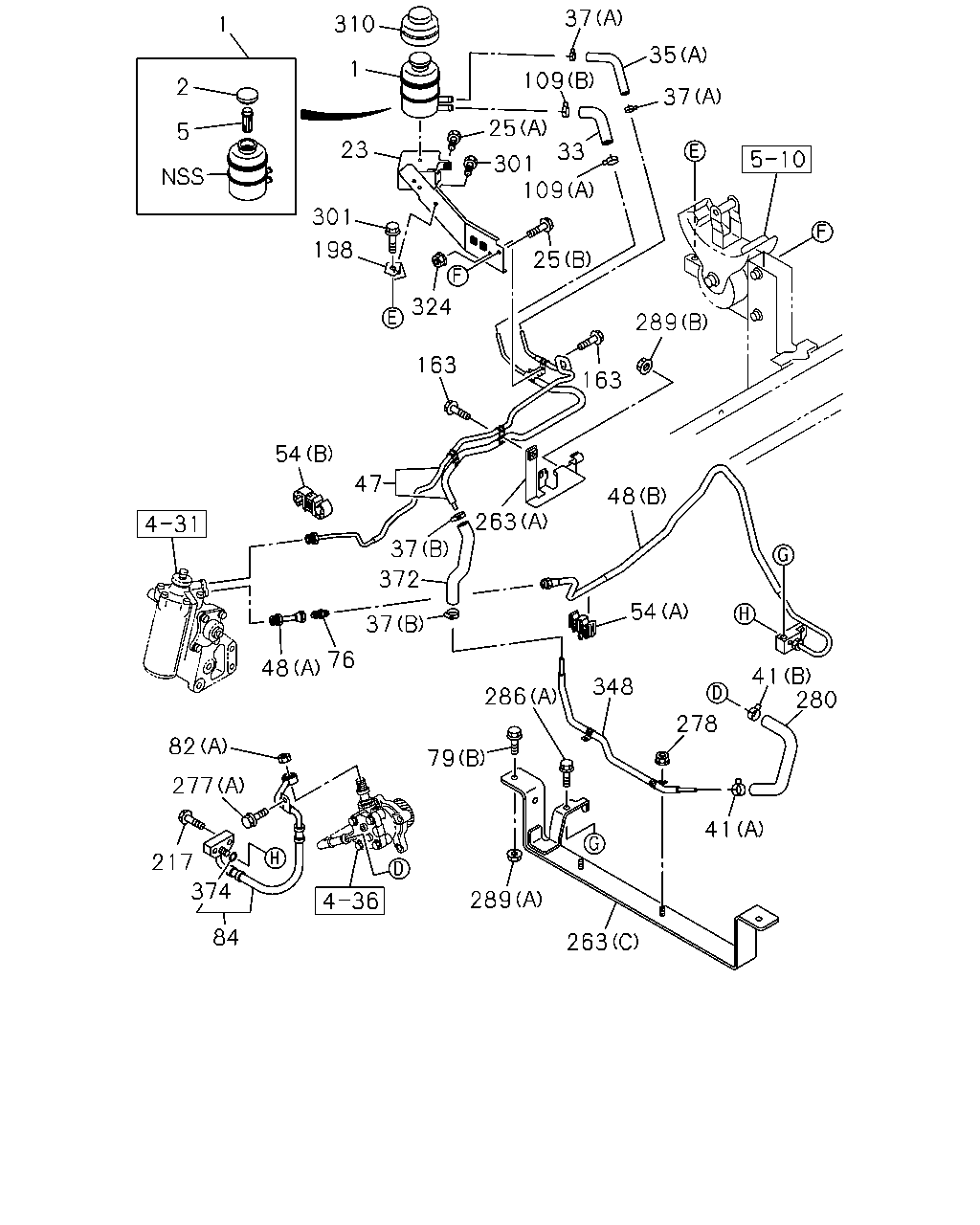

2 1 5 310 37 35 109 25 301 33 109 25 163 1 23 301 198 324 54 47 37 372 37 79 76 48 54 289 263 278 348 277 84 263 163 289 82 374 217 277 41 280 41 286 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0804-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98090-804-2	01	1	0804-	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-98090-804-2	01	1	0804-		●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0804-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0804-		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) (B) ID=21	8-94242-034-0	01	1	0804-0911		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	0912-		●
47	06.671 PIPE; RETURN	8-98064-711-3	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011		●
47	06.671 PIPE; RETURN	8-98174-014-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-227-0	01	1	0804-1011		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98173-325-0	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98063-796-1	01	1	0804-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A)	8-98063-796-1	01	1	0804-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A)	8-98041-027-0	01	1	0804-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-105-0	01	1	1401-		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=10X2 H=37.5 IDN	8-97018-546-0	01	1	0804-		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0805-		●
76	06.673 UNION; OIL PIPE 4JJ1-TCC ENG(RDU) M16 STRAIGHT L=42	0-92123-010-0	01	1	0804-		●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-		●
79	06.672 BOLT; BRKT 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909		●
79	06.672 BOLT; BRKT 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-		●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	02	1	0804-0901	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	02	1	0804-0901		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0902-	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	01	1	0902-		●
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98032-376-4	01	1	0804-1312		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	0804-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (B)	8-98032-325-2	01	1	0804-1312		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (C)	8-98250-108-0	01	1	1401-		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	1003-1312		●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU)	8-98041-245-2	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 02.042 (A) M12 FLANGE IDN	0-91180-112-0	01	1	0804-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98085-486-1	01	1	0804-1312		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98250-107-0	01	1	1401-		●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312		●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98090-807-1	01	1	0804-1101	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101		●
372	06.673 HOSE; RUBBER	8-98186-364-0	01	1	1102-	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-		●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	0804-		●

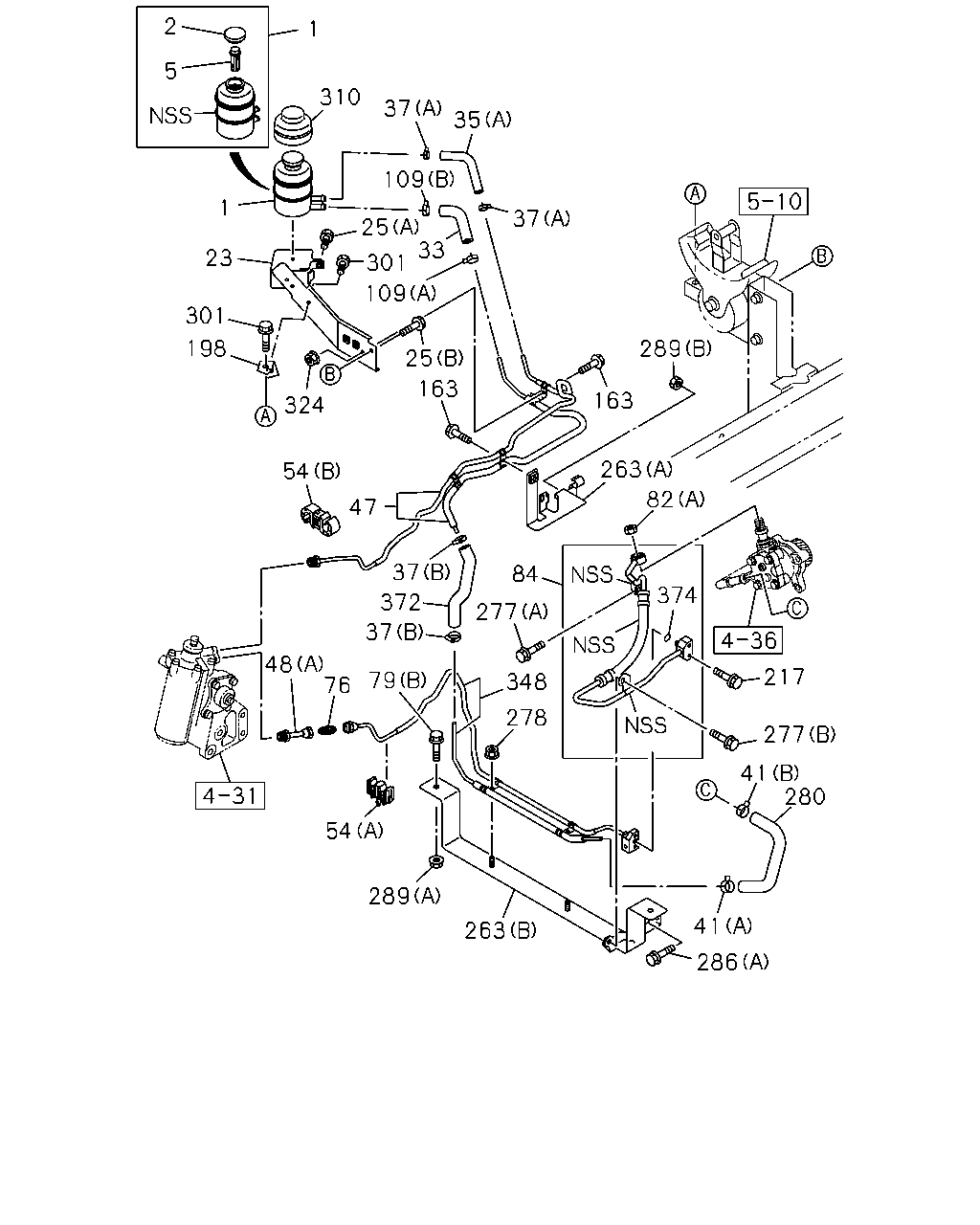

1 2 5 310 1 23 301 324 198 163 54 48 372 37 82 277 217 374 84 289 263 41 79 286 348 278 280 54 41 48 37 47 263 163 289 25 109 301 25 109 37 35 37 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0804-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98090-804-2	01	1	0804-	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-98090-804-2	01	1	0804-		●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0804-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0804-		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) (B) ID=21	8-94242-034-0	01	1	0804-0911		●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	0912-		●
47	06.671 PIPE; RETURN	8-98064-711-3	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011		●
47	06.671 PIPE; RETURN	8-98174-014-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-227-0	01	1	0804-1011		●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98173-325-0	01	1	1012-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98063-796-1	01	1	0804-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A)	8-98063-796-1	01	1	0804-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A)	8-98041-027-0	01	1	0804-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-105-0	01	1	1401-		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) 04.930 (A) ID=10X2 H=37.5 IDN	8-97018-546-0	01	1	0804-		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0805-		●
76	06.673 UNION; OIL PIPE 4JJ1-TCC ENG(RDU) M16 STRAIGHT L=42	0-92123-010-0	01	1	0804-		●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-		●
79	06.672 BOLT; BRKT 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909		●
79	06.672 BOLT; BRKT 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-		●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	02	1	0804-0901	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	02	1	0804-0901		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0902-	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	01	1	0902-		●
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98032-376-4	01	1	0804-1312		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	0804-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (B)	8-98032-325-2	01	1	0804-1312		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (C)	8-98250-108-0	01	1	1401-		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	1003-1312		●
278	06.670 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU)	8-98041-245-2	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) 02.042 (A) M12 FLANGE IDN	0-91180-112-0	01	1	0804-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98085-486-1	01	1	0804-1312		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98250-107-0	01	1	1401-		●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312		●
372	06.673 HOSE; RUBBER 4JJ1-TCC ENG(RDU) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98090-807-1	01	1	0804-1101	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101		●
372	06.673 HOSE; RUBBER	8-98186-364-0	01	1	1102-	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-		●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	0804-		●

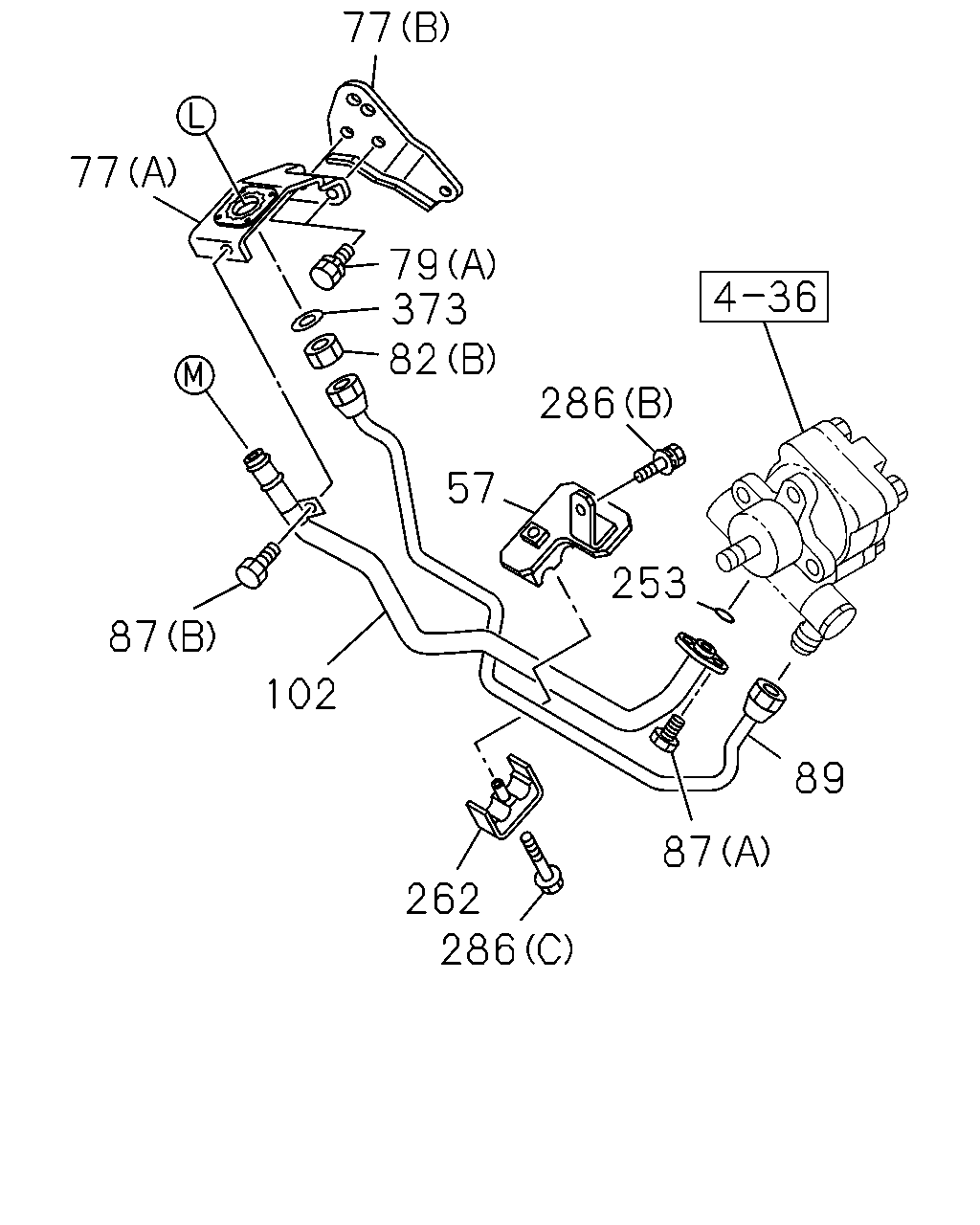

77 77 79 373 82 286 57 87 102 262 286 87 89 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	06.672 BRACKET; POWER STRG PIPE	8-97312-558-3	01	1	0804-	●
57	06.672 BRACKET; POWER STRG PIPE 4JB1-TC ENG(RDT)	8-97312-558-3	01	1	0804-		●
77	06.672 BRACKET; POWER STEERING HOSE (B)	8-97075-615-0	01	1	0804-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	0804-		●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97208-424-0	01	1	0804-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	0804-		●
77	06.672 BRACKET; POWER STEERING HOSE (C)	8-98090-755-1	01	1	0804-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (C)	8-98090-755-1	01	1	0804-		●
79	06.672 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
79	06.672 BOLT; BRKT 4JJ1-TCC ENG(RDU) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-		●
79	06.672 BOLT; BRKT 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0909		●
79	06.672 BOLT; BRKT 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-		●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0804-		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	02	1	0804-0901	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	02	1	0804-0901		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0902-	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	01	1	0902-		●
87	06.672 BOLT; POWER STRG PIPE 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-1303	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-1303		●
87	06.672 BOLT; POWER STRG PIPE (A) M8X14 FLANGE	8-98219-171-0	02	1	1304-	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) (A) M8X14 FLANGE	8-98219-171-0	02	1	1304-		●
87	06.672 BOLT; POWER STRG PIPE 00.206 (B) M6X20	8-94279-112-0	01	1	0804-	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) 00.206 (B) M6X20	8-94279-112-0	01	1	0804-		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H	8-97312-556-0	01	1	0804-1303	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JB1-TC ENG(RDT)	8-97312-556-0	01	1	0804-1303		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H IDN	8-98218-675-0	01	1	1304-	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JB1-TC ENG(RDT) IDN	8-98218-675-0	01	1	1304-		●
102	06.671 PIPE; SUCTION,P/S	8-97312-557-1	01	1	0804-1303	●
102	06.671 PIPE; SUCTION,P/S 4JB1-TC ENG(RDT)	8-97312-557-1	01	1	0804-1303		●
102	06.671 PIPE; SUCTION,P/S	8-98218-669-0	01	1	1304-	●
102	06.671 PIPE; SUCTION,P/S 4JB1-TC ENG(RDT)	8-98218-669-0	01	1	1304-		●
253	06.673 GASKET; OIL PIPE 06.609 ID=11.0	9-09561-111-0	01	1	0804-	●
253	06.673 GASKET; OIL PIPE 4JB1-TC ENG(RDT) 06.609 ID=11.0	9-09561-111-0	01	1	0804-		●
262	06.672 CLIP; P/S PIPE	8-97300-961-1	01	1	0804-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT)	8-97300-961-1	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0804-		●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-		●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0804-0906	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0804-0906		●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-		●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
