Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#81260) — 351 parça

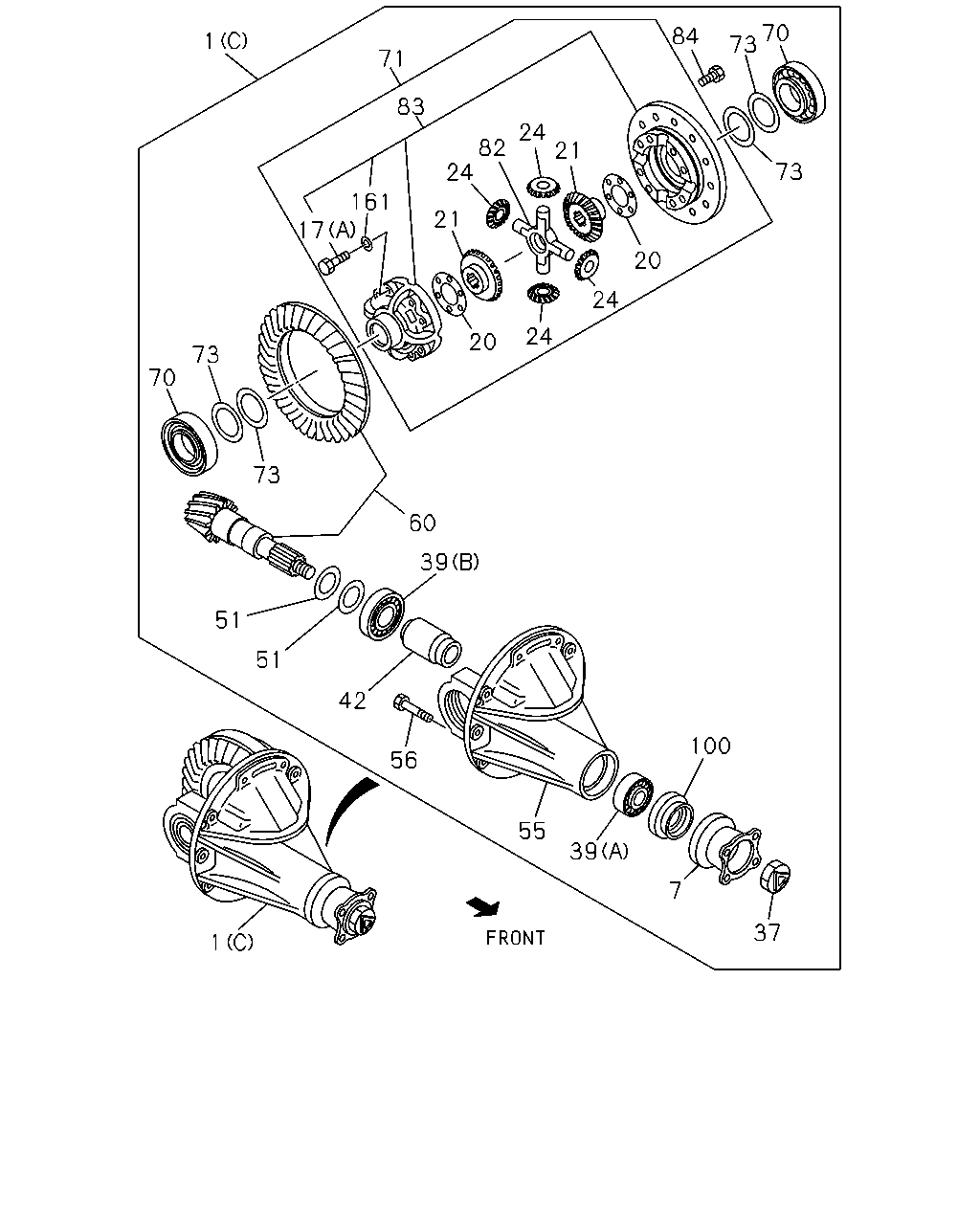

73 70 73 84 20 24 24 20 21 24 82 24 21 83 161 71 1 17 73 73 70 51 51 42 56 39 60 55 100 39 7 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-145-0	01	1	0804-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-146-0	01	1	0804-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) (C) 39/7	8-97367-501-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) (C) 39/8	8-97367-499-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97388-712-0	01	1	0804-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/6(6YB) (B) 41/6	8-97388-713-0	01	1	0804-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94426-787-4	01	1	0804-	●	●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	0804-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0804-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A) M10X75 FLANGE	8-97232-161-0	12	1	0804-	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 (A) M12X58	8-97314-497-0	08	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (A) M12X90	8-97047-295-0	12	1	0804-1208		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1209-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0804-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0804-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	0804-	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	1-41561-093-0	02	1	0804-1004		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1005-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	0804-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0804-	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0804-1004		●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-		●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	0804-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0804-	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0804-		●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (A) NSK	9-00093-078-0	01	1	0804-	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) 05.447 (B) JTEKT	9-00093-079-1	01	1	0804-	●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) (C) NSK	1-09812-026-0	01	1	0804-1002		●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) (C) NSK	5-09812-063-0	01	1	1003-		●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) (C) JTEKT	5-09812-062-1	01	1	1002-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0804-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0804-		●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.12	9-41219-608-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.16	9-41219-610-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.20	9-41219-612-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.24	9-41219-614-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.28	9-41219-616-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.32	9-41219-618-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.36	9-41219-620-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.40	9-41219-622-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.44	9-41219-624-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.48	9-41219-626-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.52	9-41219-628-0	01	1	0804-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.56	9-41219-630-0	01	1	0804-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0804-	●	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	8-94376-227-3	01	1	0804-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0804-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0804-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0804-		●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0804-1201	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97047-092-1	01	1	0804-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0804-	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-182-1	01	1	0804-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	0804-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-97228-309-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) 05.453	8-98191-996-1	01	1	1106-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.50	9-41519-009-0	AR	1	0804-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.25	9-41519-010-0	AR	1	0804-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.30	9-41519-601-0	AR	1	0804-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.35	9-41519-602-0	AR	1	0804-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0804-	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0804-1004		●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-1309		●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1310-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	0804-	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	9-41510-610-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-117-2	01	1	0804-1208		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1209-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0804-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) M12X25	9-09606-505-2	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0804-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0804-	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0804-		●
161	05.506 WASHER; LK REAR AXLE STANDARD 244MM(R39) 00.002 ID=12.2	0-91510-612-0	08	1	0804-	●

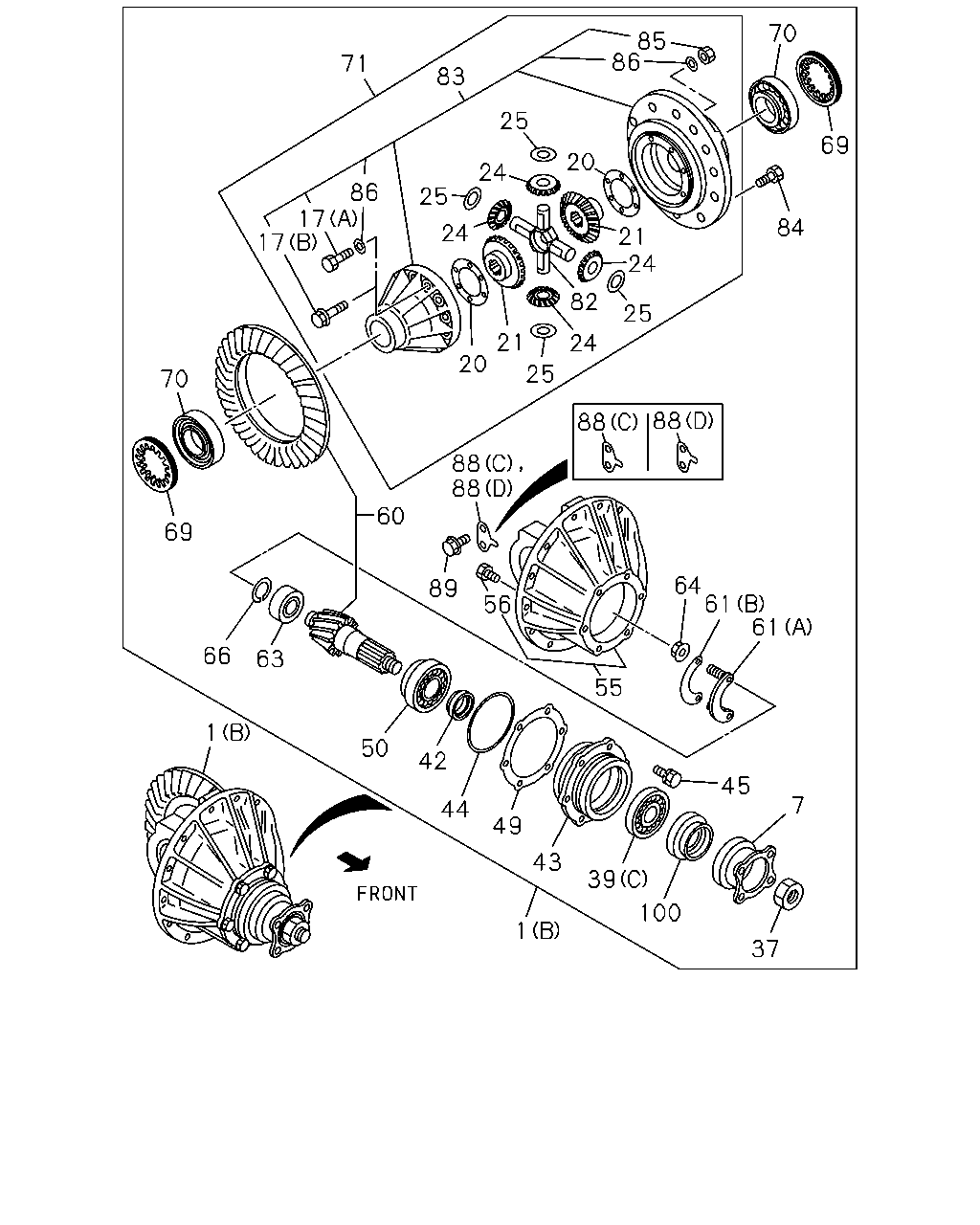

71 83 85 69 70 84 24 21 20 24 24 17 70 69 21 20 82 24 88 89 60 88 56 89 64 55 61 61 45 100 37 7 50 46 43 49 44 1 1 66 63 50 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-145-0	01	1	0804-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-146-0	01	1	0804-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) (C) 39/7	8-97367-501-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) (C) 39/8	8-97367-499-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97388-712-0	01	1	0804-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/6(6YB) (B) 41/6	8-97388-713-0	01	1	0804-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94426-787-4	01	1	0804-	●	●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	0804-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0804-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A) M10X75 FLANGE	8-97232-161-0	12	1	0804-	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 (A) M12X58	8-97314-497-0	08	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (A) M12X90	8-97047-295-0	12	1	0804-1208		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1209-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0804-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0804-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	0804-	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	1-41561-093-0	02	1	0804-1004		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1005-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	0804-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0804-	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0804-1004		●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-		●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	0804-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0804-	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0804-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0804-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0804-		●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0804-	●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0804-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0804-	●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0804-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0804-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0804-0909	●	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0804-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0804-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0804-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0804-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0804-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0804-	●	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	8-94376-227-3	01	1	0804-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0804-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0804-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0804-		●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0804-1201	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97047-092-1	01	1	0804-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0804-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0804-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0804-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0804-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0804-	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0804-	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0804-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0804-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●
64	05.476 NUT; RET 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0804-	●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0804-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0804-	●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0804-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0804-	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-182-1	01	1	0804-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	0804-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-97228-309-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) 05.453	8-98191-996-1	01	1	1106-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0804-	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0804-1004		●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-1309		●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1310-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	0804-	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	9-41510-610-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-117-2	01	1	0804-1208		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1209-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0804-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) M12X25	9-09606-505-2	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0804-		●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	0804-	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	0804-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0804-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0804-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	0804-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0804-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-	●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0804-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0804-	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0804-		●

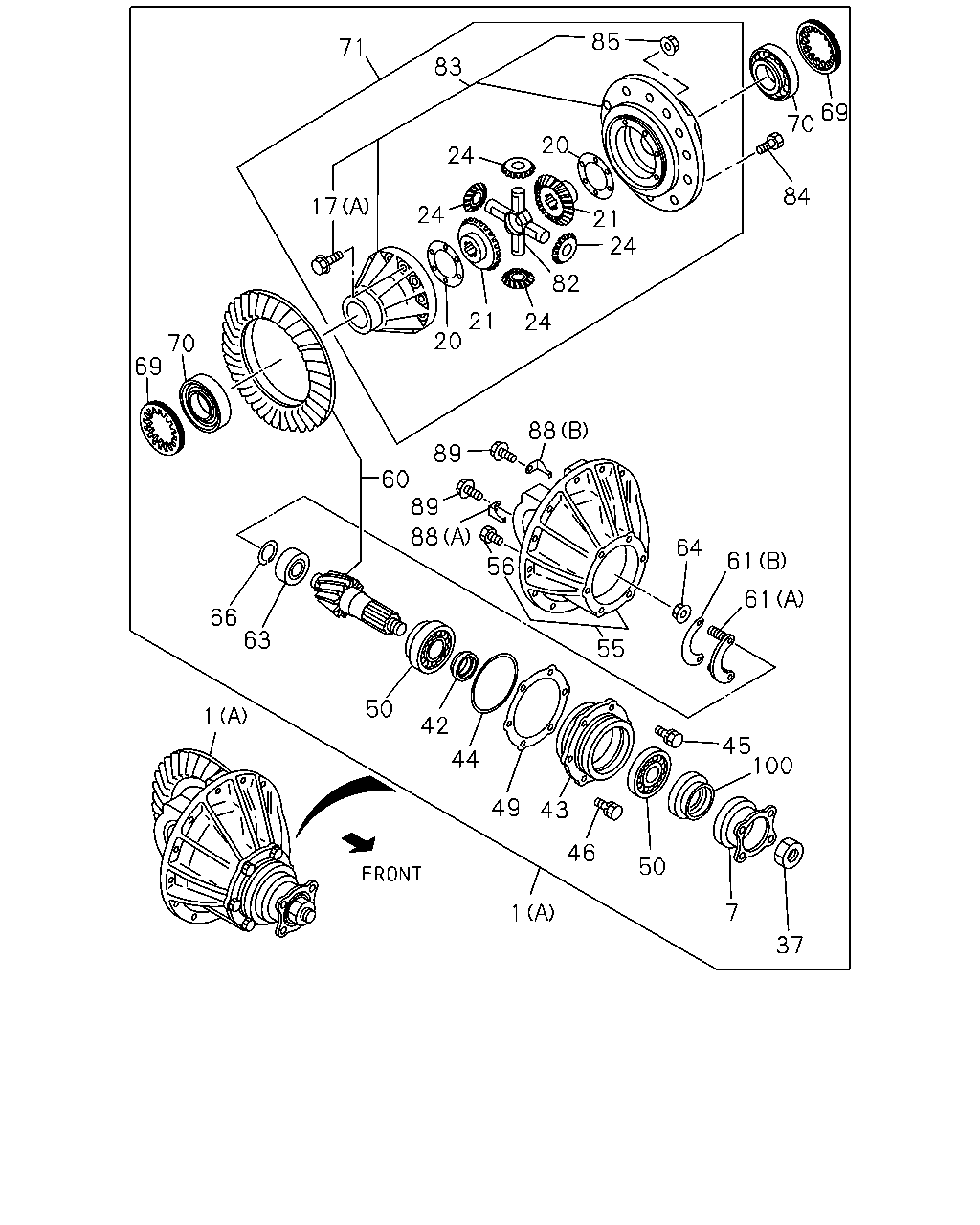

37 100 39 43 49 44 42 50 1 1 66 63 69 70 60 89 56 55 45 7 61 61 64 88 88 88 88 84 69 70 85 86 83 25 21 25 82 24 25 21 20 86 17 17 24 71 20 24 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-145-0	01	1	0804-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-146-0	01	1	0804-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) (C) 39/7	8-97367-501-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) (C) 39/8	8-97367-499-0	01	1	0804-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97388-712-0	01	1	0804-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/6(6YB) (B) 41/6	8-97388-713-0	01	1	0804-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94426-787-4	01	1	0804-	●	●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	0804-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0804-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A) M10X75 FLANGE	8-97232-161-0	12	1	0804-	●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 (A) M12X58	8-97314-497-0	08	1	0804-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (A) M12X90	8-97047-295-0	12	1	0804-1208		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1209-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0804-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	0804-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0804-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0804-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	0804-	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	1-41561-093-0	02	1	0804-1004		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1005-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	0804-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0804-	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0804-1004		●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-		●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	0804-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0804-		●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0804-	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	0804-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0804-		●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (A) NSK	9-00093-078-0	01	1	0804-	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) 05.447 (B) JTEKT	9-00093-079-1	01	1	0804-	●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) (C) NSK	1-09812-026-0	01	1	0804-1002		●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) (C) NSK	5-09812-063-0	01	1	1003-		●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) (C) JTEKT	5-09812-062-1	01	1	1002-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0804-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	0804-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0804-		●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0804-	●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0804-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0804-	●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0804-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0804-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0804-	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0804-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0804-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0804-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0804-	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0804-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0804-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0804-	●	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	8-94376-227-3	01	1	0804-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0804-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0804-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0804-		●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0804-1201	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	0804-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0804-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97047-092-1	01	1	0804-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0804-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0804-	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0804-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0804-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0804-	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0804-	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0804-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0804-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●
64	05.476 NUT; RET 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0804-	●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0804-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0804-	●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0804-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0804-	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	0804-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-182-1	01	1	0804-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	0804-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-97228-309-0	01	1	0804-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) 05.453	8-98191-996-1	01	1	1106-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0804-	●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	0804-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0804-1004		●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-1309		●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1310-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	0804-	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	9-41510-610-0	01	1	0804-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-117-2	01	1	0804-1208		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1209-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0804-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) M12X25	9-09606-505-2	12	1	0804-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0804-		●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	0804-	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	0804-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0804-1208		●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0804-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0804-	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	0804-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0804-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-	●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0804-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0804-	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	0804-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
