Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#81259) — 175 parça

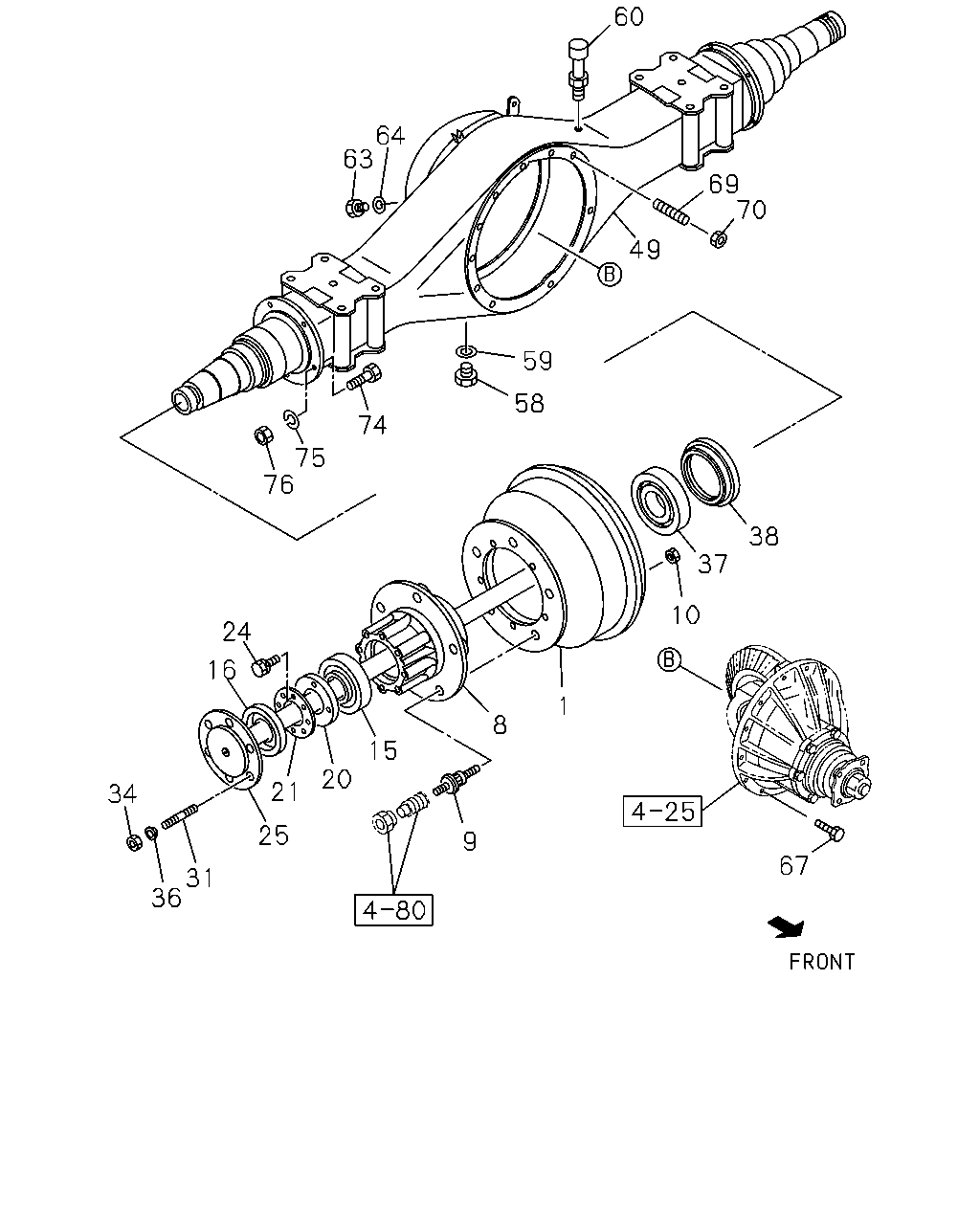

60 64 63 69 70 49 59 58 74 75 76 38 37 10 24 16 1 8 15 20 21 34 25 9 67 31 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	0804-	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-97034-770-3	02	1	0804-1310		●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-98248-900-0	02	1	1311-		●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97036-367-1	02	1	0804-		●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	0804-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97026-139-3	02	1	0804-		●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97122-626-0	02	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) M18X29,M20X55 RH THREAD	8-97017-043-2	10	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	10	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0804-	●
9	05.812 PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0804-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0804-		●
10	05.813 NUT; WHEEL PIN,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) 05.812 M20	0-91110-520-0	20	1	0804-		●
10	05.813 NUT; WHEEL PIN,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 05.812 M20	0-91110-520-0	10	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0804-	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-082-0	02	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-607-0	02	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0804-	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-140-0	02	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-139-0	02	1	0804-		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0804-1106	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	0804-1106		●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0804-1207	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	0804-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-98202-911-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-317-2	02	1	0804-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-98202-912-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-960-1	02	1	0804-1106		●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0804-1303	●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-97137-092-0	02	1	0804-1303		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-98236-850-0	02	1	1304-		●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM(6CP) M55	8-97137-094-0	02	1	0804-		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	0804-	●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM(G73) ID=52	9-09853-214-1	02	1	0804-		●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM(6CP) ID=55	9-09653-002-1	02	1	0804-		●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE IDN	0-28050-610-0	04	1	0804-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	0804-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-496-0	02	1	0804-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-97126-893-0	02	1	0804-0804		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-98098-425-0	02	1	0805-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0804-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0804-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	0804-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0804-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0804-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0804-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0804-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0804-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0804-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	0804-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-98061-921-0	01	1	0804-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39)	8-97205-144-1	01	1	0804-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-97032-861-5	01	1	0804-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97122-348-4	01	1	0804-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0804-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0804-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0804-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0804-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0804-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X40 W/LK WASHER	0-50061-040-0	07	1	0804-0909		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER IDN	0-50561-040-0	07	1	0910-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50061-050-0	04	1	0804-0909		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER IDN	0-50561-050-0	04	1	0910-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER	0-50061-040-0	11	1	0804-0909	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER IDN	0-50561-040-0	11	1	0910-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER	0-50061-040-0	08	1	0804-0909	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) 06.156 M10X40 W/LK WASHER IDN	0-50561-040-0	08	1	0910-	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0804-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0804-	●	●
74	05.002 BOLT; RR BRK ASM SETTING IDN	8-98007-877-0	12	1	0804-	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0804-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2 IDN	0-91510-810-0	12	1	0804-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	0804-		●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	0804-	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0804-		●

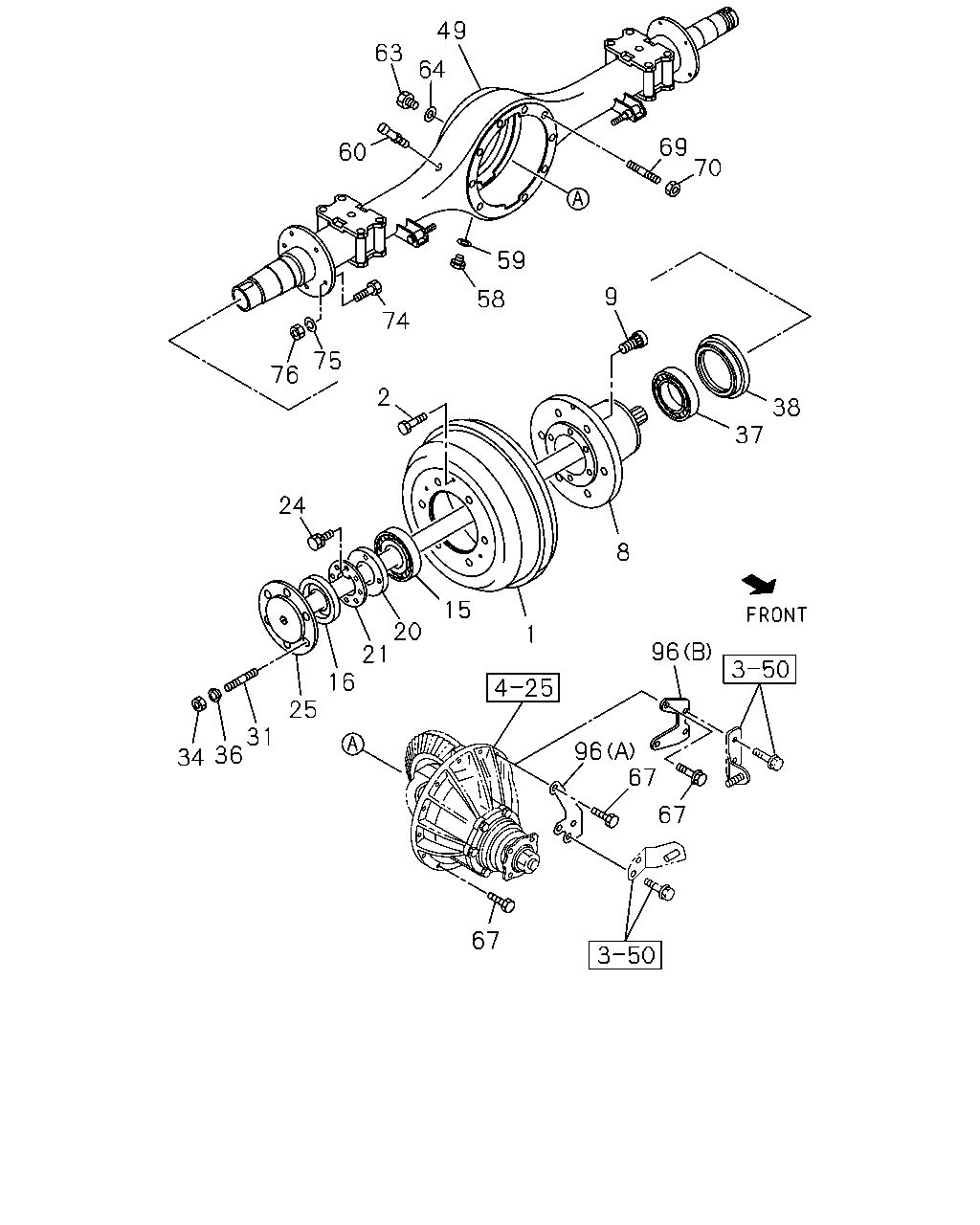

49 63 64 69 70 60 59 9 58 74 75 76 2 38 37 24 8 15 20 21 16 1 96 25 31 34 36 96 67 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	0804-	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-97034-770-3	02	1	0804-1310		●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-98248-900-0	02	1	1311-		●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97036-367-1	02	1	0804-		●
2	05.812 BOLT; BRK DRUM 04.012 M6X18 IDN	0-20800-618-0	02	1	0804-	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	0804-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97026-139-3	02	1	0804-		●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97122-626-0	02	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) M18X29,M20X55 RH THREAD	8-97017-043-2	10	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	10	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0804-	●
9	05.812 PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0804-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0804-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0804-	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-082-0	02	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-607-0	02	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0804-	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-140-0	02	1	0804-		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-139-0	02	1	0804-		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0804-1106	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	0804-1106		●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0804-1207	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	0804-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-98202-911-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-317-2	02	1	0804-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-98202-912-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-960-1	02	1	0804-1106		●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0804-1303	●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-97137-092-0	02	1	0804-1303		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-98236-850-0	02	1	1304-		●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM(6CP) M55	8-97137-094-0	02	1	0804-		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	0804-	●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM(G73) ID=52	9-09853-214-1	02	1	0804-		●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM(6CP) ID=55	9-09653-002-1	02	1	0804-		●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE IDN	0-28050-610-0	04	1	0804-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	0804-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-496-0	02	1	0804-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-97126-893-0	02	1	0804-0804		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-98098-425-0	02	1	0805-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0804-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0804-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	0804-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	0804-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0804-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0804-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0804-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	0804-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0804-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0804-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	0804-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	0804-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-98061-921-0	01	1	0804-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39)	8-97205-144-1	01	1	0804-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) IDN	8-97032-861-5	01	1	0804-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-97122-348-4	01	1	0804-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0804-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0804-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0804-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0804-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0804-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X40 W/LK WASHER	0-50061-040-0	07	1	0804-0909		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER IDN	0-50561-040-0	07	1	0910-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50061-050-0	04	1	0804-0909		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER IDN	0-50561-050-0	04	1	0910-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER	0-50061-040-0	11	1	0804-0909	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER IDN	0-50561-040-0	11	1	0910-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER	0-50061-040-0	08	1	0804-0909	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) 06.156 M10X40 W/LK WASHER IDN	0-50561-040-0	08	1	0910-	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0804-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0804-	●	●
74	05.002 BOLT; RR BRK ASM SETTING IDN	8-98007-877-0	12	1	0804-	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0804-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2 IDN	0-91510-810-0	12	1	0804-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	0804-		●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	0804-	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0804-		●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-98030-956-0	01	1	0804-	●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE STANDARD 244MM(R39) (B)	8-94368-449-2	01	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
