4-10 — FRONT AXLE (#81257) — 61 parça

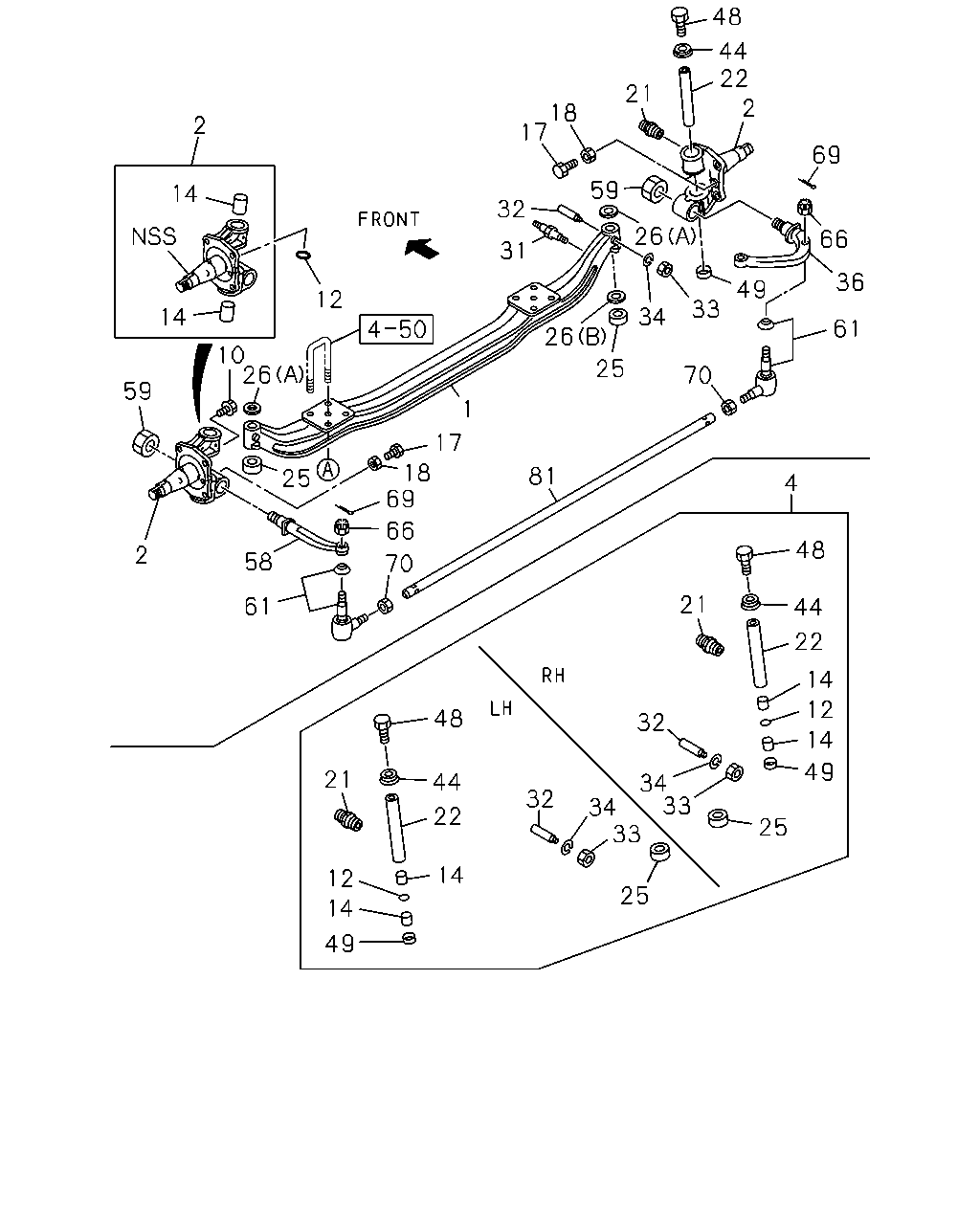

çizim 183488
48 44 22 2 21 18 17 2 69 59 4 32 26 66 31 26 36 49 12 33 34 14 61 10 26 25 70 59 1 17 18 69 81 25 4 66 48 2 58 70 21 61 44 22 14 12 48 32 14 49 21 44 34 33 32 34 33 22 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.008 AXLE; FRT 8-97262-000-4 01 1 0804- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-2 01 1 0804- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU) 		8-97261-545-2 01 1 0804- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-2 01 1 0804- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU) 		8-97261-546-2 01 1 0804- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) 		8-97261-549-2 01 1 0804- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) 		8-97261-550-2 01 1 0804- ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 0804- ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0804- ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 0804- ● ●
14 06.021 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0804-0809 ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0804- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7-15-10 5.5FX15-25 RR 7.5-1 5-12 6GSX15-25(25H) M12X24 EYE-BOLT 		8-97360-059-0 03 1 0804-0809 ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/D ISC 5.5F-15-25(CUQ) M12X24 EYE-BOLT 		8-97360-059-0 03 1 0810- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT&RR 7-1 6-10 5.5FX16-25(89C),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M12X27.5 		8-98016-968-0 03 1 0804-0809 ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5-15-10 5.5FX15-25(09V) M12X27.5 		8-98016-968-0 03 1 0810- ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 0804- ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT IDN 		0-90301-406-0 04 1 0804- ● ●
22 06.203 PIN; KING,FRT AXLE 8-94360-792-2 02 1 0804- ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-3 01 1 0804- ● ●
25 06.210 BEARING; THRUST,KING PIN 8-97141-943-1 01 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0804- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0804- ● ●
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 0804- ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 0804- ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 0804- ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 0804- ● ●
36 06.103 ARM; KNUCKLE 8-97253-712-4 01 1 0804- ● ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0804- ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0804- ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 0804- ● ●
58 06.103 ARM; TIE ROD 8-97138-303-1 01 1 0804- ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 0804- ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0804-1309 ● ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1310- ● ●
61 06.233 ROD END; TIE ROD 8-97255-705-0 01 1 0804-1309 ● ●
61 06.233 ROD END; TIE ROD 8-98251-954-0 01 1 1310- ● ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0804-1204 ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0804- ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0804- ● ●
70 06.234 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0804- ● ●
81 06.230 ROD; TIE 8-97142-024-0 01 1 0804- ● ●

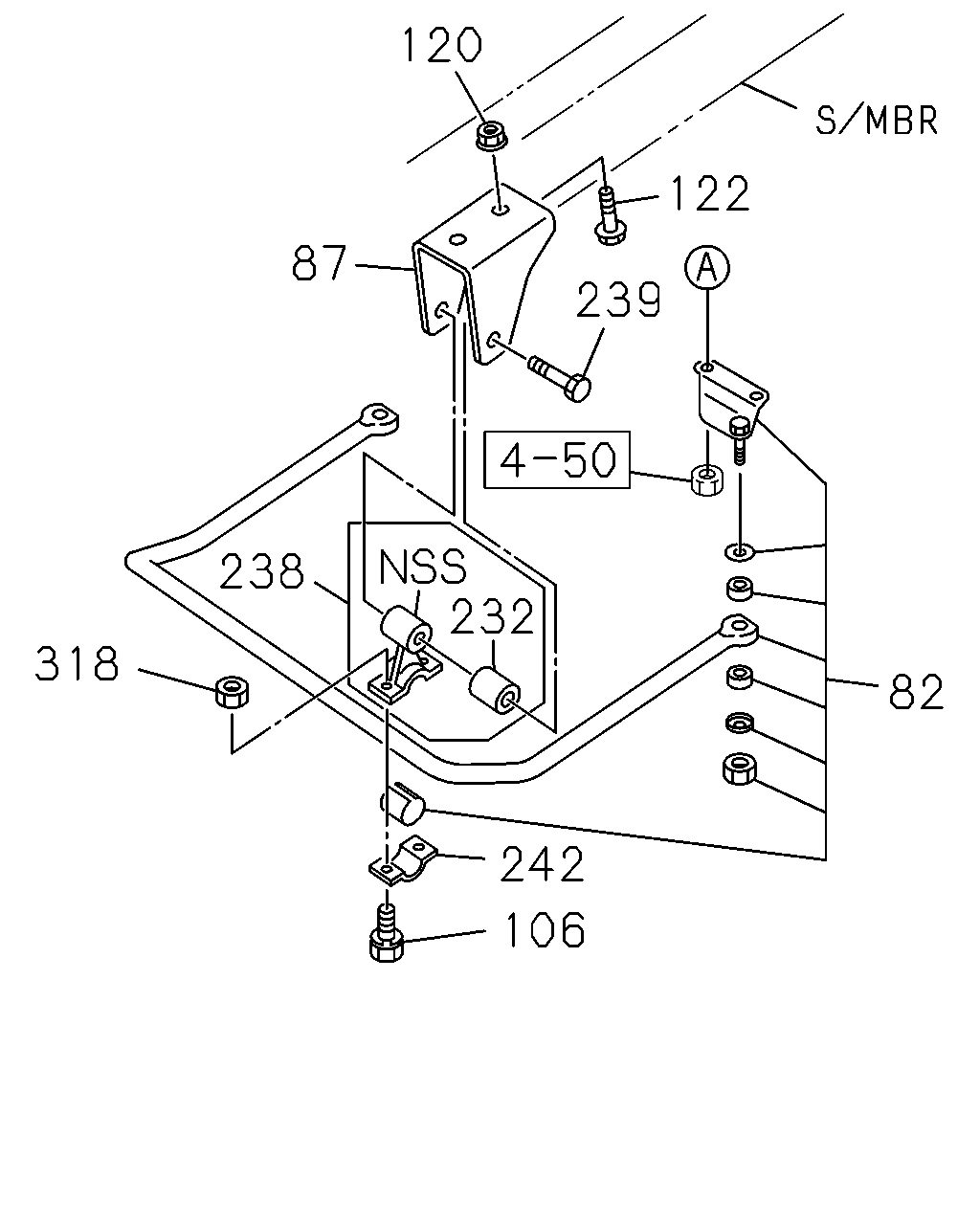

çizim 183492
120 122 87 239 232 238 318 82 242 106
BalonParca AdiParca NoAdetTipApplied Date A B
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98002-084-2 01 1 0804- ●
87 07.242 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-506-0 01 1 0804- ●
87 07.242 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-507-0 01 1 0804- ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE IDN 		0-28651-025-0 04 1 0804- ●
120 06.308 NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> 05.816 M12 FLANGE 		0-91180-212-0 04 1 0804- ●
122 07.242 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> 06.509 M12X30 FLANGE 		0-28661-230-0 04 1 0804- ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0804- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-908-0 02 1 0804- ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0804- ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0804- ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0804-1006 ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 1007- ●
