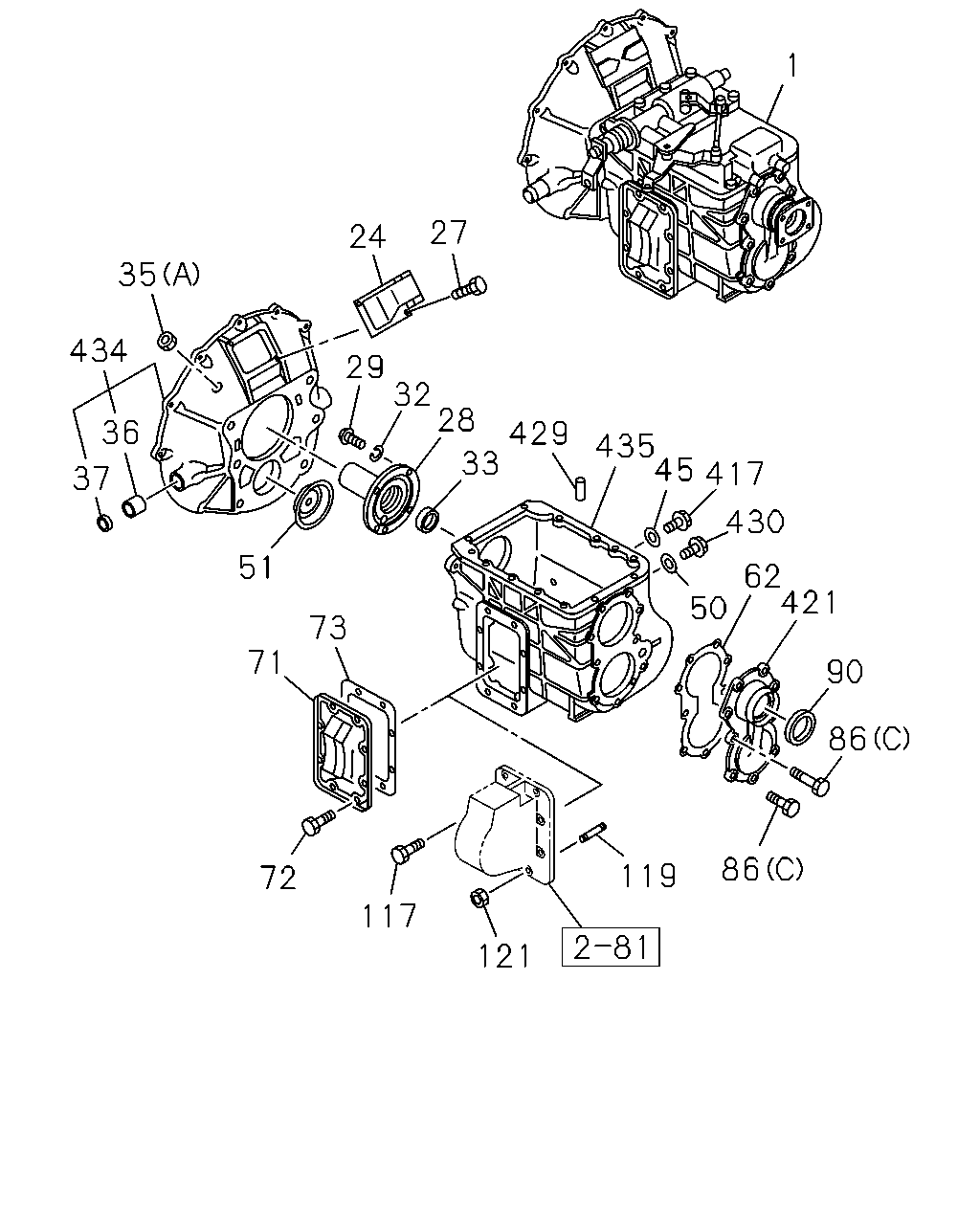

2-20 — MANUAL TRANSMISSION ASM AND CASE (#8125) — 185 parça

1 27 24 35 434 29 32 28 36 429 33 435 45 417 37 430 51 62 421 50 73 71 90 86 86 119 72 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33043-877-0	01	1	0406-	●
1	TRANSMISSION ASM; MANUAL	1-33041-620-0	01	1	0005-0210		●
1	TRANSMISSION ASM; MANUAL FTS ALL(FT****)	1-33043-609-0	01	1	0211-	●
1	TRANSMISSION ASM; MANUAL	1-33041-618-0	01	1	0005-0210			●
1	TRANSMISSION ASM; MANUAL	1-33043-032-0	01	1	0005-0210				●
1	TRANSMISSION ASM; MANUAL FSS ALL(FS****)	1-33043-608-0	01	1	0211-0405	●
1	TRANSMISSION ASM; MANUAL FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-608-0	01	1	0406-	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0005-0210		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0211-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0210		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	0005-0210		●
28	COVER; FRT,TRANS CASE FTS ALL(FT****)	1-33121-108-1	01	1	0211-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0005-0210			●	●
28	COVER; FRT,TRANS CASE FSS ALL(FS****)	1-33121-105-0	01	1	0211-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0005-0210		●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0211-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0005-0210		●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0211-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0005-0210		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). FTS ALL(FT****)	1-09625-497-0	01	1	0211-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0005-0210			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). FSS ALL(FS****)	1-09625-498-0	01	1	0211-	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0005-0210		●	●	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0211-	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0005-0210			●	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0211-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-0210		●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0211-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-0210		●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0211-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-0210		●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0211-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-0210		●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0211-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	0005-0210		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	0005-0210			●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0211-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0005-0210		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0005-0210			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0211-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	0005-0210		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	0005-0210			●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0211-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0005-0210		●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0211-0512	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0005-0210		●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0211-	●
86	BOLT; RR COVER (C) M10X25	1-09044-080-0	09	1	0005-0210		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0005-0210			●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0005-0210			●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0211-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	0005-0210				●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0211-	●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	0005-0210				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0005-0210		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0005-0210			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0211-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	0005-0210		●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0005-0210		●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0005-0210		●	●	●
121	NUT; PTO FIX FSS ALL(FS****) TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
121	NUT; PTO FIX FTS ALL(FT****) TRANSMISSION SIDE PTO(SD8) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0005-0201		●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0210		●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0211-	●
421	COVER; RR,TRANS	9-33131-148-2	01	1	0005-0210		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0005-0210			●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0211-	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	0005-0210				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0005-0210		●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0211-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-0210		●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0211-	●
434	HOUSING; CLU	1-31110-154-1	01	1	0005-0203		●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-0210		●
434	HOUSING; CLU	1-31110-169-0	01	1	0005-0210			●	●
434	HOUSING; CLU	1-31110-169-0	01	1	0211-	●
435	CASE; TRANS	1-33111-239-1	01	1	0005-0112		●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0210		●
435	CASE; TRANS	1-33111-235-0	01	1	0005-0201			●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0210			●
435	CASE; TRANS	1-33111-323-0	01	1	0211-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●
435	CASE; TRANS	1-33111-236-0	01	1	0005-0210				●

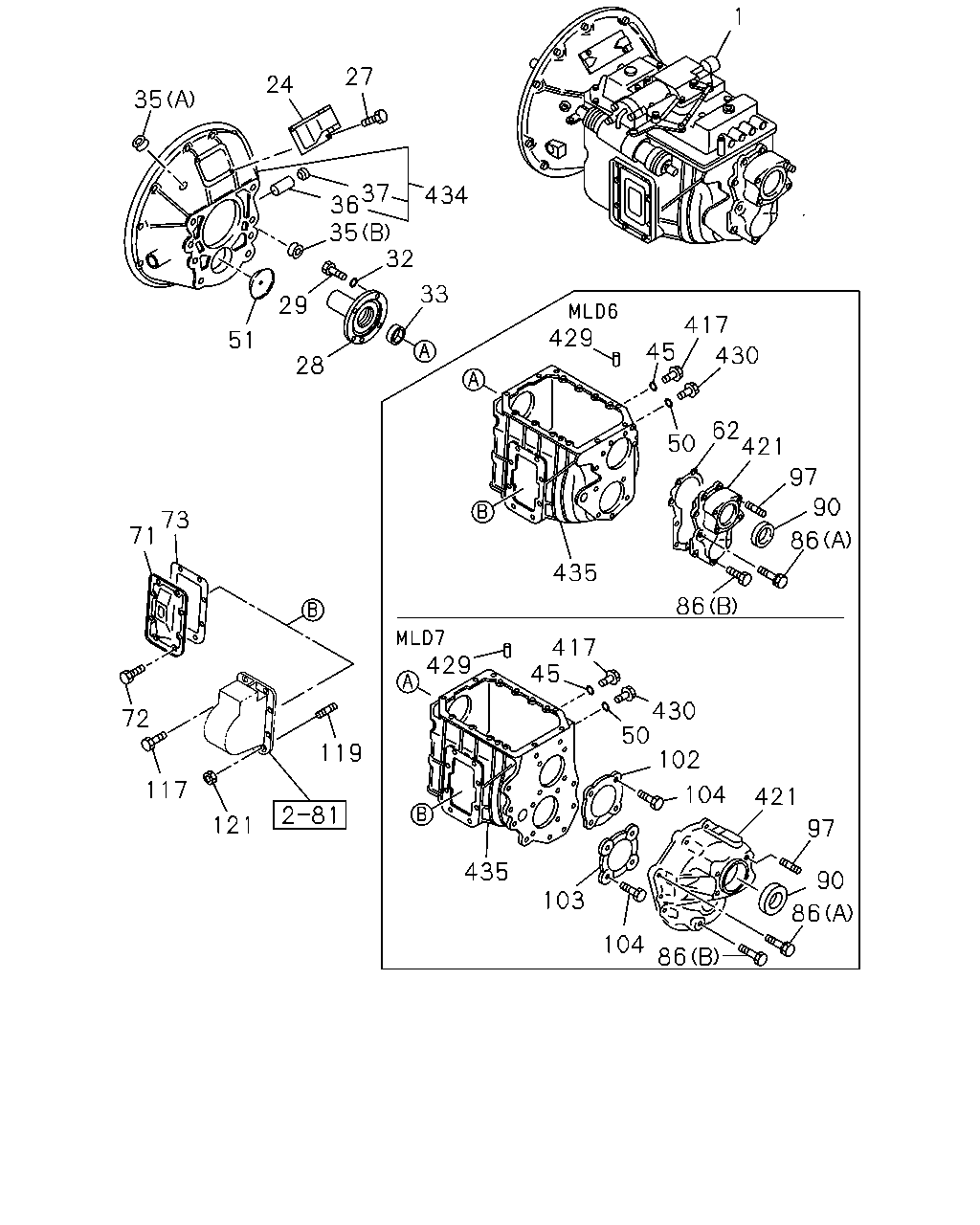

1 27 24 35 37 36 35 32 434 29 33 429 417 45 51 430 28 62 421 50 97 90 73 71 86 435 86 429 417 45 430 50 72 119 102 117 104 421 121 97 435 90 103 86 104 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33043-877-0	01	1	0406-	●
1	TRANSMISSION ASM; MANUAL	1-33041-620-0	01	1	0005-0210		●
1	TRANSMISSION ASM; MANUAL FTS ALL(FT****)	1-33043-609-0	01	1	0211-	●
1	TRANSMISSION ASM; MANUAL	1-33041-618-0	01	1	0005-0210			●
1	TRANSMISSION ASM; MANUAL	1-33043-032-0	01	1	0005-0210				●
1	TRANSMISSION ASM; MANUAL FSS ALL(FS****)	1-33043-608-0	01	1	0211-0405	●
1	TRANSMISSION ASM; MANUAL FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-608-0	01	1	0406-	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0005-0210		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0211-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0210		●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	0005-0210		●
28	COVER; FRT,TRANS CASE FTS ALL(FT****)	1-33121-108-1	01	1	0211-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0005-0210			●	●
28	COVER; FRT,TRANS CASE FSS ALL(FS****)	1-33121-105-0	01	1	0211-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0005-0210		●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0211-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0005-0210		●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0211-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0005-0210		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). FTS ALL(FT****)	1-09625-497-0	01	1	0211-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0005-0210			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). FSS ALL(FS****)	1-09625-498-0	01	1	0211-	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0005-0210		●	●	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0211-	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0005-0210			●	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0211-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-0210		●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0211-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-0210		●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0211-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-0210		●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0211-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-0210		●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0211-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	0005-0210		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	0005-0210			●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0211-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0005-0210		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0005-0210			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0211-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	0005-0210		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	0005-0210			●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0211-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0005-0210		●	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0211-0512	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0005-0210		●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0211-	●
86	BOLT; RR COVER (C) M10X25	1-09044-080-0	09	1	0005-0210		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0005-0210			●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0005-0210			●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0211-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	0005-0210				●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0211-	●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	0005-0210				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0005-0210		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0005-0210			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0211-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0005-0210			●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0211-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	0005-0210				●
103	RETAINER; BRG	1-33151-037-0	01	1	0005-0210				●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0005-0210				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	0005-0210		●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0005-0210		●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0005-0210		●	●	●
121	NUT; PTO FIX FSS ALL(FS****) TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTOWO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
121	NUT; PTO FIX FTS ALL(FT****) TRANSMISSION SIDE PTO(SD8) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0005-0201		●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0210		●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0211-	●
421	COVER; RR,TRANS	9-33131-148-2	01	1	0005-0210		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0005-0210			●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0211-	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	0005-0210				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0005-0210		●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0211-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-0210		●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0211-	●
434	HOUSING; CLU	1-31110-154-1	01	1	0005-0203		●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-0210		●
434	HOUSING; CLU	1-31110-169-0	01	1	0005-0210			●	●
434	HOUSING; CLU	1-31110-169-0	01	1	0211-	●
435	CASE; TRANS	1-33111-239-1	01	1	0005-0112		●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0210		●
435	CASE; TRANS	1-33111-235-0	01	1	0005-0201			●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0210			●
435	CASE; TRANS	1-33111-323-0	01	1	0211-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●
435	CASE; TRANS	1-33111-236-0	01	1	0005-0210				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
