Isuzu WW
▶
TRUCKS
▶
NPR
▶
51355 - NPR/NQR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#81249) — 41 parça
◀

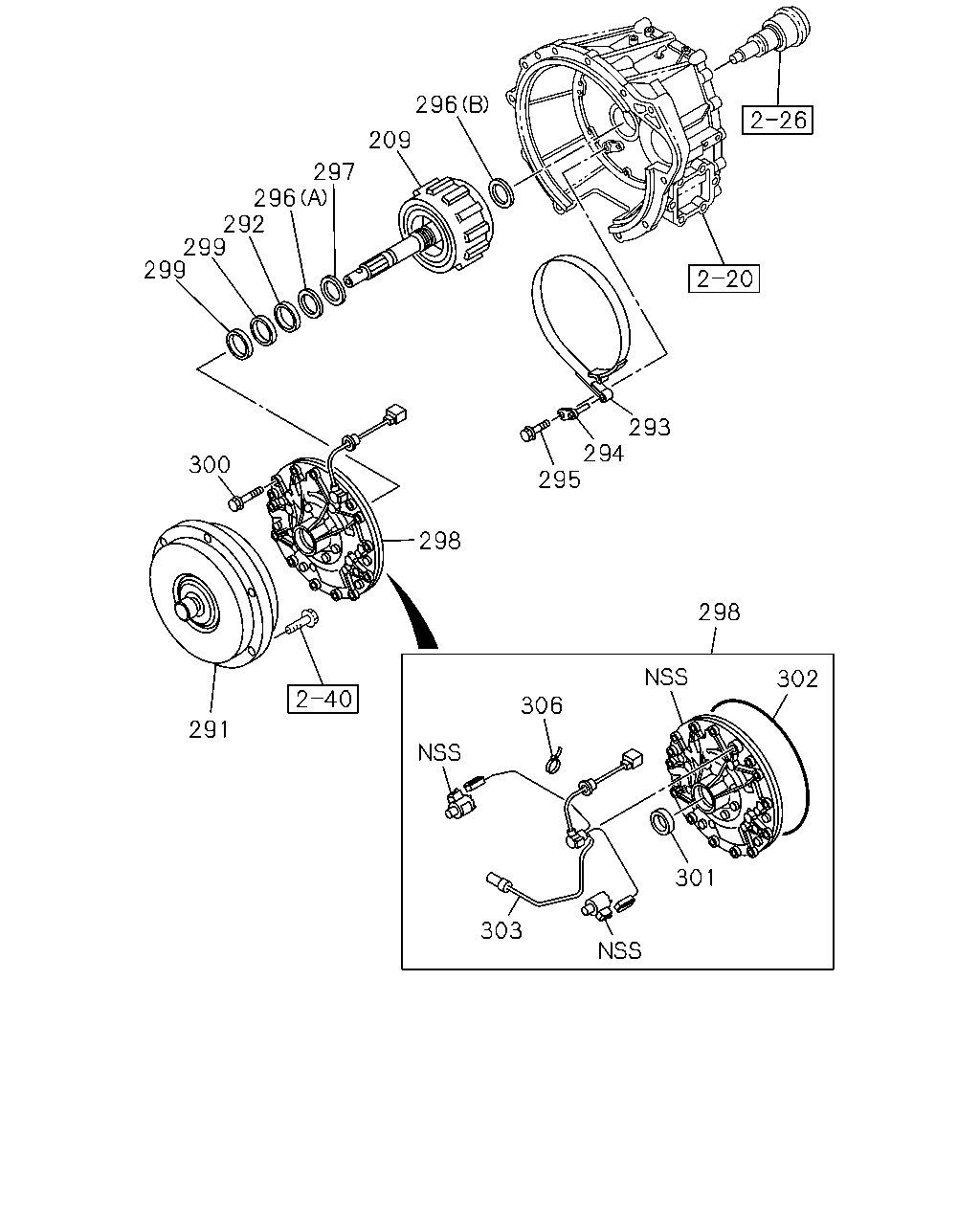

[201A] TRANSMISSION CONTROL-SMOOTHER (20 parça)
[201A] TRANSMISSION CONTROL-SMOOTHER DELETE (21 parça)
▶
296
209
297
296
292
299
299
293
294
295
300
298
298
302
306
291
301
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
209
00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98044-525-0
01
1
0803-0904
209
00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98116-930-2
01
1
0905-1412
209
00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98275-320-0
01
1
1501-
291
00.863 COUPLING; FLUID
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98087-661-2
01
1
0803-
291
00.863 COUPLING; FLUID
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98087-659-2
01
1
0803-
292
00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97255-329-0
01
1
0803-
293
00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97254-651-0
01
1
0803-
294
00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97255-703-0
01
1
0803-
295
00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE
0-28650-820-0
01
1
0803-
296
00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-97255-688-0
01
1
0803-
296
00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-97255-689-0
01
1
0803-
297
00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97300-070-0
01
1
0803-
298
04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98040-037-0
01
1
0803-0803
298
04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98107-924-1
01
1
0804-
299
04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97255-330-0
02
1
0803-
300
04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE
0-28050-845-0
11
1
0803-
301
04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97289-811-0
01
1
0803-
302
04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97255-188-0
01
1
0803-
303
02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98000-265-2
01
1
0803-
306
00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100
8-94279-939-0
03
1
0803-
220
140
1
2
137
116
140
146
27
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97362-235-1
01
1
0803-1402
1
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98255-140-1
01
1
1403-
1
00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98037-004-2
01
1
0803-1401
1
00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98255-139-1
01
1
1402-
1
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-080-1
01
1
0805-1501
1
00.886 DISC; CLUTCH
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS
5-87610-077-1
01
1
0806-1501
2
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.859
8-97351-794-0
01
1
0803-1405
2
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97038-831-2
01
1
1406-
2
00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98040-093-0
01
1
0803-
2
00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS
5-87610-091-0
01
1
0803-
2
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-081-0
01
1
0803-1405
2
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-104-0
01
1
1406-
27
00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98025-313-0
01
1
0803-
57
00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97255-303-0
01
1
0803-
116
00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97255-313-0
01
1
0803-
116
00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-110-0
01
1
0803-
137
00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE
0-28051-016-0
10
1
0803-
140
00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25
8-94410-361-0
02
1
0803-
146
00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE
0-28650-830-0
02
1
0803-
220
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98033-837-0
01
1
0803-
220
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98043-208-0
01
1
0803-
