1-56 — EXHAUST BRAKE SYSTEM
(#81248) — 57 parça
Tümü
A - NPR6SN
B - NPR6SS
C - NPR6WN
◀

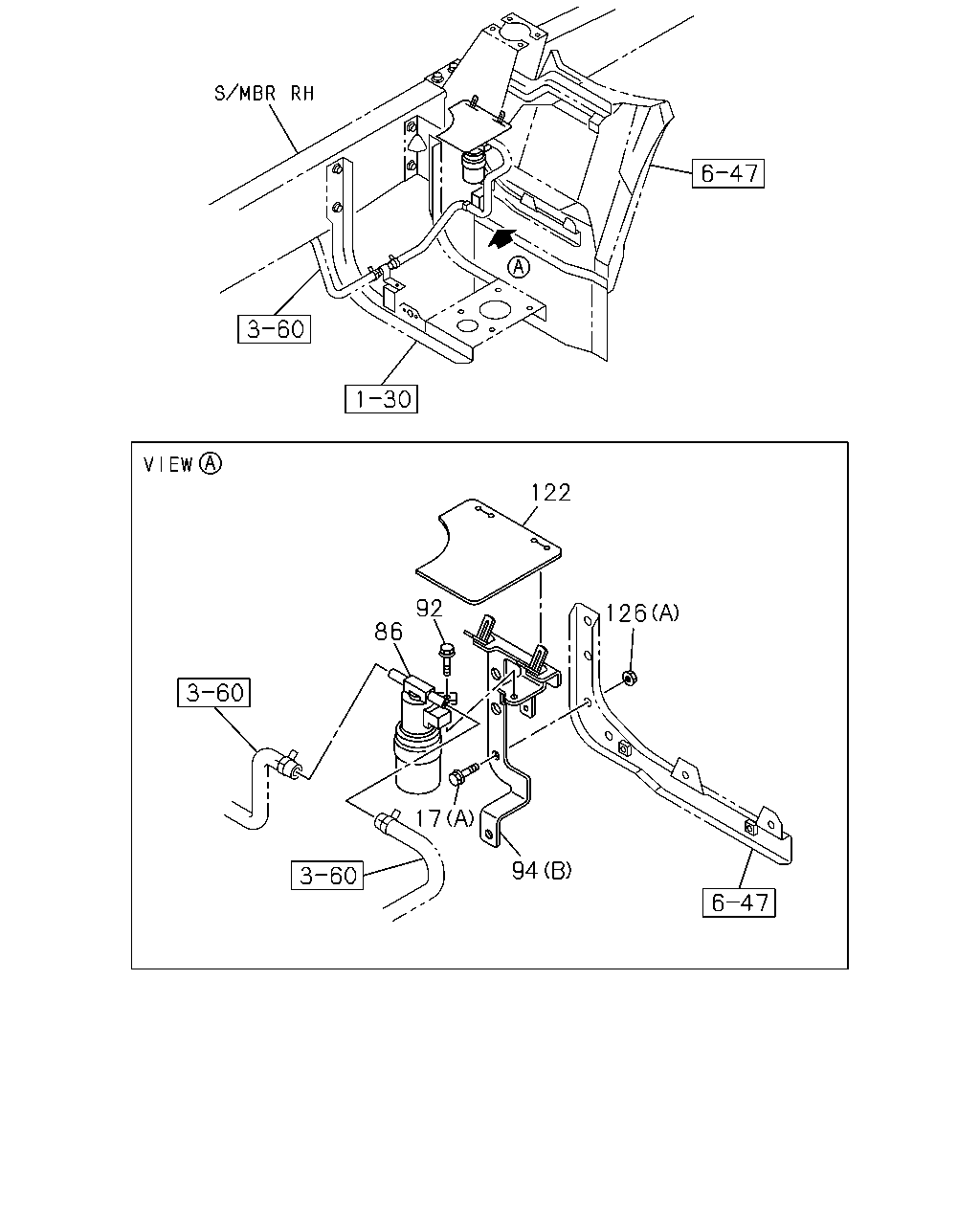

[156A] EXH BRAKE VALVE;SGL CAB (25 parça)

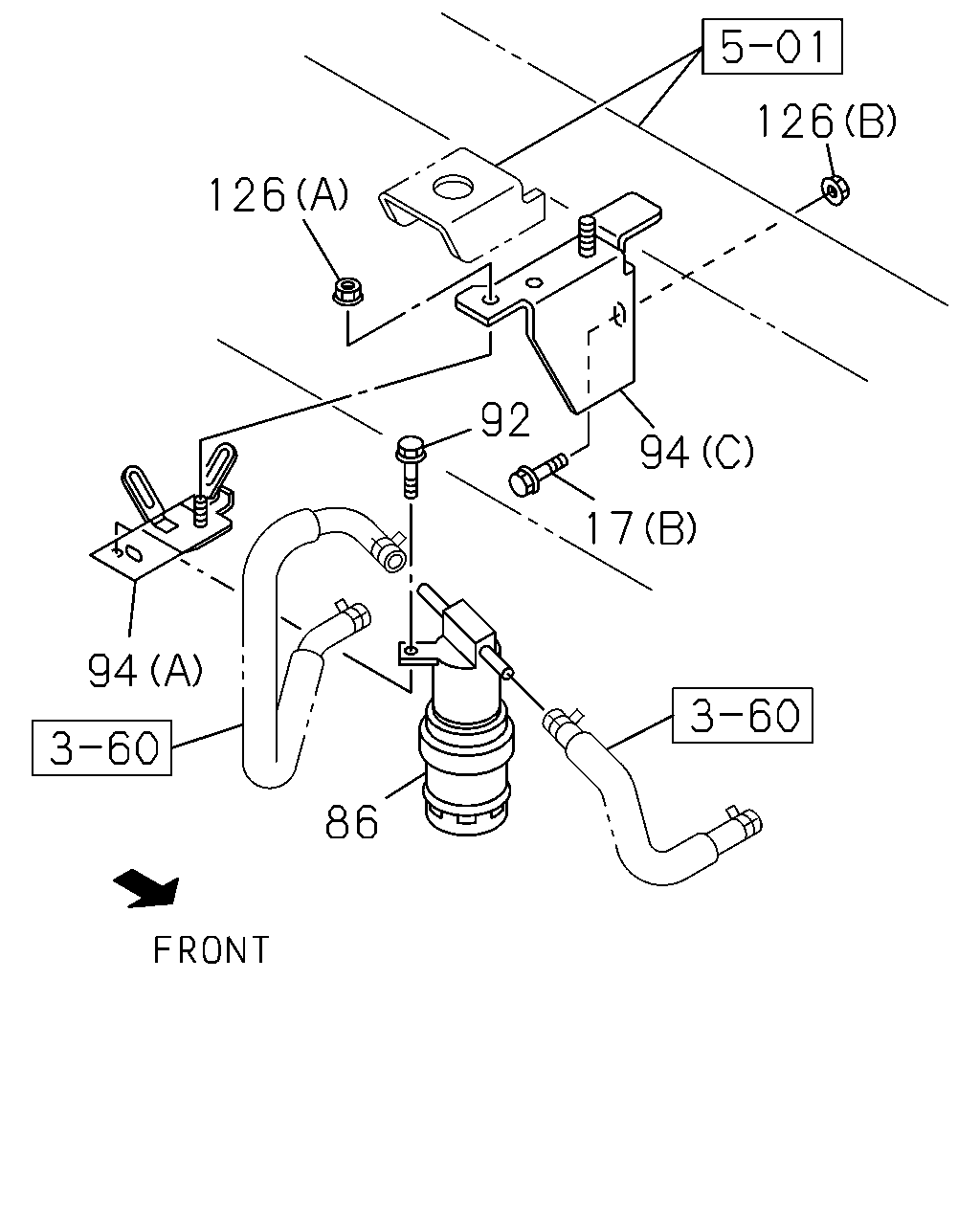

[156A] EXH BRAKE VALVE;DBL CAB (23 parça)
[156A] EXH BRAKE UNIT (9 parça)
▶
122
92
126
86
17
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
17
03.634 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
0803-0906
●
●
17
03.634 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
0907-
●
●
17
03.634 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
01
1
0804-0906
●
17
03.634 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE
0-28651-030-0
01
1
0907-
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0803-0803
●
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0804-
●
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0803-0803
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0804-
●
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
FRAME STRAIGHT TYPE<7KJ> (B)
8-98034-053-3
01
1
0803-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98034-053-3
01
1
0803-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
FRAME STRAIGHT TYPE<7KJ> (B)
8-98034-053-3
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98034-053-3
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
EXC. FRAME STRAIGHT TYPE<7KJ> (B)
8-98092-656-0
01
1
0803-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)
8-98092-656-0
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-97387-681-1
01
1
0804-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) (C)
8-97387-681-1
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98089-211-0
01
1
0804-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) (A)
8-98089-211-0
01
1
0907-
●
122
03.640 PROTECTOR; MAG VLV
8-98087-988-0
01
1
0803-0906
●
●
122
03.640 PROTECTOR; MAG VLV
8-98087-988-0
01
1
0907-
●
●
126
03.634 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
0803-0803
●
●
126
03.634 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
0804-0906
●
●
●
126
03.634 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
0907-
●
●
●
126
03.634 NUT; BRKT
03.162 (B) M10 FLANGE
0-91180-110-0
01
1
0804-0906
●
126
03.634 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE
0-91180-110-0
01
1
0907-
●
126
126
92
94
17
94
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
17
03.634 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
0803-0906
●
●
17
03.634 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
0907-
●
●
17
03.634 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
01
1
0804-0906
●
17
03.634 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE
0-28651-030-0
01
1
0907-
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0803-0803
●
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0804-
●
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0803-0803
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0804-
●
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
FRAME STRAIGHT TYPE<7KJ> (B)
8-98034-053-3
01
1
0803-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98034-053-3
01
1
0803-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
FRAME STRAIGHT TYPE<7KJ> (B)
8-98034-053-3
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98034-053-3
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
EXC. FRAME STRAIGHT TYPE<7KJ> (B)
8-98092-656-0
01
1
0803-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)
8-98092-656-0
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-97387-681-1
01
1
0804-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) (C)
8-97387-681-1
01
1
0907-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98089-211-0
01
1
0804-0906
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) (A)
8-98089-211-0
01
1
0907-
●
126
03.634 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
0803-0803
●
●
126
03.634 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
0804-0906
●
●
●
126
03.634 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
01
1
0907-
●
●
●
126
03.634 NUT; BRKT
03.162 (B) M10 FLANGE
0-91180-110-0
01
1
0804-0906
●
126
03.634 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE
0-91180-110-0
01
1
0907-
●
1
8
5
5
5
1
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.632 BRAKE UNIT; EXH
4HK1-TCN ENG(RDQ) (A)
8-98056-673-0
01
1
0803-1407
●
●
1
03.632 BRAKE UNIT; EXH
4HK1-TCN ENG(RDQ) (A)
8-98288-176-0
01
1
1408-
●
●
1
03.632 BRAKE UNIT; EXH
4JJ1-TCC ENG(RDU) (B)
8-98033-200-1
01
1
0803-0803
●
1
03.632 BRAKE UNIT; EXH
4JJ1-TCC ENG(RDU) (B)
8-98033-200-1
01
1
0804-
●
●
5
03.634 GASKET; EXH BRAKE UNIT
4HK1-TCN ENG(RDQ) 03.611 (A) ID=64
8-97373-108-0
02
1
0803-
●
●
5
03.634 GASKET; EXH BRAKE UNIT
4JJ1-TCC ENG(RDU) (B) ID=54
8-94328-354-0
01
1
0803-0803
●
5
03.634 GASKET; EXH BRAKE UNIT
4JJ1-TCC ENG(RDU) (B) ID=54
8-94328-354-0
02
1
0804-
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
0803-0803
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
0804-
●
●
●
