1-50 — EXHAUST PIPE AND SILENCER (#81246) — 666 parça

2 329 25 36 44 1 44 43 172 25 532 38 385 562 143 2 44 1 36 8

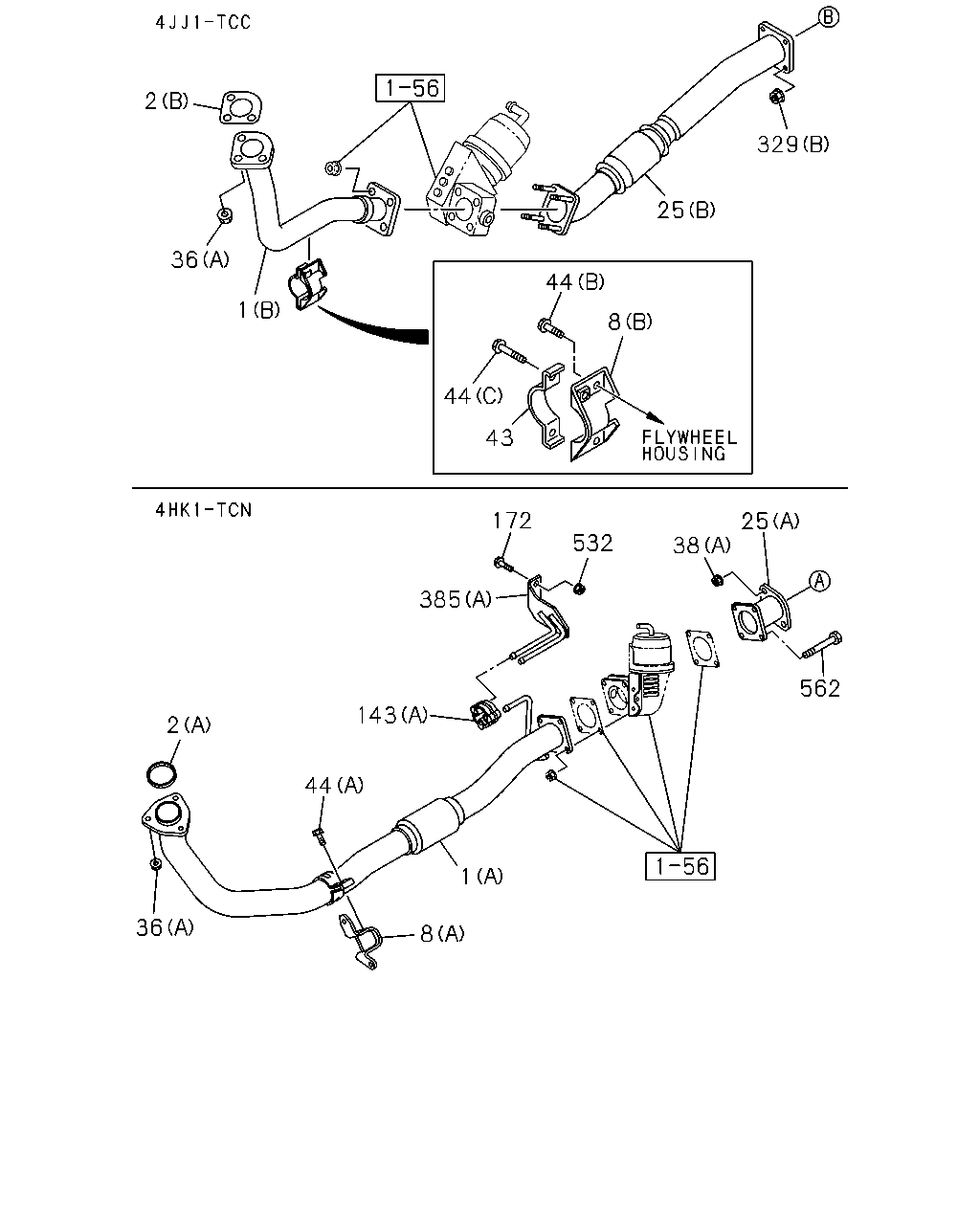

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	0803-	●	●
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU) (B)	8-98075-966-0	01	1	0803-0803	●
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU) (B)	8-98075-966-0	01	1	0804-	●		●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ) (A)	8-97381-455-0	01	1	0803-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	0803-0803	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	0804-	●		●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97365-228-0	01	1	0803-	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	0803-0803	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613 (B)	8-98026-063-0	01	1	0804-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A)	8-98074-109-0	01	1	0803-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98082-064-0	01	1	0803-0803	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98082-064-0	01	1	0804-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-0803	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0804-	●	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●		●
43	03.611 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97351-200-1	01	1	0803-0803	●
43	03.611 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97351-200-1	01	1	0804-	●		●
44	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.685 (A) M10X40 FLANGE	0-28051-040-0	01	1	0803-	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0803-0803	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (B) M10X25 FLANGE	0-28151-025-0	02	1	0804-	●		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0804-	●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	0803-	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0803-0803	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	0803-0803	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0804-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	0804-	●		●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0803-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	0803-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	0803-	●	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) 03.632 M8X70	0-10855-870-0	04	1	0803-	●	●

118 117 115 113 352 118 117 115 376 115 59 38 352 113 337 115 126 84 576 12 14 345 345 577 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

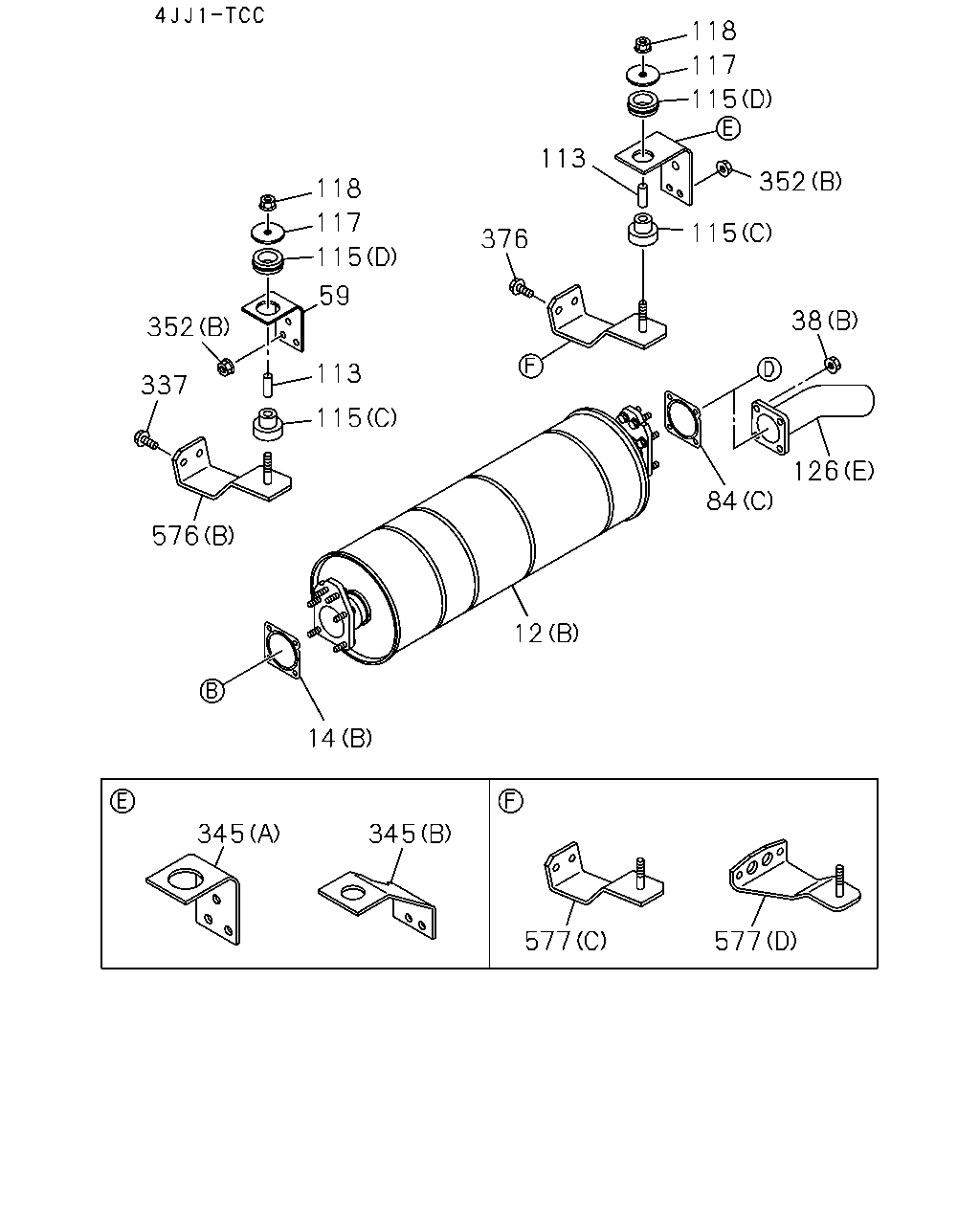

12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	0803-	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (B)	8-98027-813-1	01	1	0803-0803	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (B)	8-98027-813-1	01	1	0804-	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7	8-94328-352-0	01	1	0803-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 (B) ID=64	8-97373-108-0	01	1	0803-0803	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 (B) ID=64	8-97373-108-0	01	1	0804-	●		●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●		●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-021-0	01	1	0803-0803	●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-021-0	01	1	0804-	●		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0803-0803	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0804-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0803-0803	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0804-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0804-			●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0803-0803	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0804-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-882-0	02	1	0803-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-927-0	02	1	0803-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (C)	8-94457-277-1	02	1	0803-0803	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (C)	8-94457-277-1	02	1	0804-	●		●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (D)	8-94457-278-1	02	1	0803-0803	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (D)	8-94457-278-1	02	1	0804-	●		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0803-0803	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0804-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-0803	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0804-	●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98078-964-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98082-058-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0804-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98072-137-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98072-137-0	01	1	0804-	●		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98011-818-0	01	1	0803-0811		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98134-346-0	01	1	0812-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	0803-0811	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98090-128-1	01	1	0803-0811		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	0812-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	0812-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98134-798-0	01	1	0812-		●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0803-0803	●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0804-	●		●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A)	8-98082-027-0	01	1	0803-	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98081-909-0	01	1	0803-0803	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98081-909-0	01	1	0804-	●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) (B)	8-98081-909-0	01	1	0804-			●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0803-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-			●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-0803	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0804-	●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0804-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98074-124-1	01	1	0803-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98082-019-0	01	1	0803-0803	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98082-019-0	01	1	0804-	●		●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98078-961-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98074-124-1	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98074-124-1	01	1	0803-		●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98082-019-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D)	8-98106-886-0	01	1	0803-0803	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D)	8-98106-886-0	01	1	0804-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) (D)	8-98106-886-0	01	1	0804-			●

532 460 574 118 117 115 118 352 117 115 352 577 532 118 574 122 577 117 200 113 115 115 387 576 81 385 200 124 113 115 385 124 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

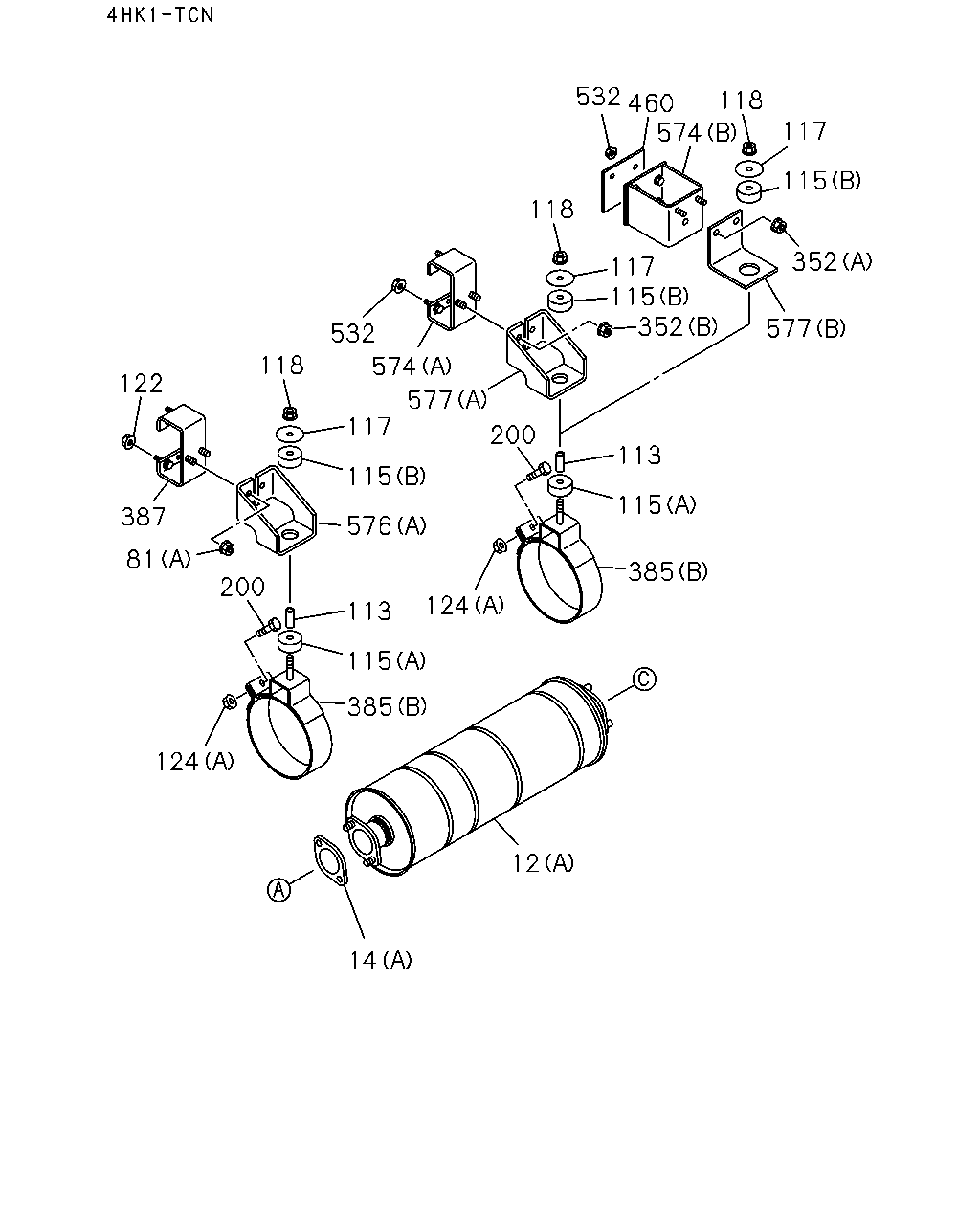

12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	0803-	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (B)	8-98027-813-1	01	1	0803-0803	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (B)	8-98027-813-1	01	1	0804-	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7	8-94328-352-0	01	1	0803-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 (B) ID=64	8-97373-108-0	01	1	0803-0803	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 (B) ID=64	8-97373-108-0	01	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0803-0803	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0804-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-882-0	02	1	0803-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-927-0	02	1	0803-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (C)	8-94457-277-1	02	1	0803-0803	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (C)	8-94457-277-1	02	1	0804-	●		●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (D)	8-94457-278-1	02	1	0803-0803	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (D)	8-94457-278-1	02	1	0804-	●		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0803-0803	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0804-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-0803	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0804-	●	●	●
122	03.275 NUT; HANGER BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 02.334 (A) M8	0-91110-508-0	02	1	0803-	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-			●
200	03.704 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0803-0909	●	●
200	03.704 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0803-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	0803-	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-98074-495-1	01	1	0803-	●	●
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.706	8-98078-962-1	01	1	0803-	●
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706	8-98044-774-0	01	1	0803-	●
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.706	8-98044-774-0	01	1	0803-		●
460	03.609 PLATE; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W)	8-98035-656-0	01	1	0803-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98079-106-0	01	1	0803-	●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98044-774-0	01	1	0803-	●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98044-774-0	01	1	0803-		●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98074-124-1	01	1	0803-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98082-019-0	01	1	0803-0803	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98082-019-0	01	1	0804-	●		●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98078-961-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98074-124-1	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98074-124-1	01	1	0803-		●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98082-019-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D)	8-98106-886-0	01	1	0803-0803	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D)	8-98106-886-0	01	1	0804-	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) (D)	8-98106-886-0	01	1	0804-			●

88 357 105 88 95 126 104 124 137 164 166 165 94 38 162 165 95 164 105 357 88 125 81 137 162 97 70 88 137 126 166 124 94 147 144 143 193 420 94 36 162 94 124 166 165 367 3 88 84 38 357 105 104

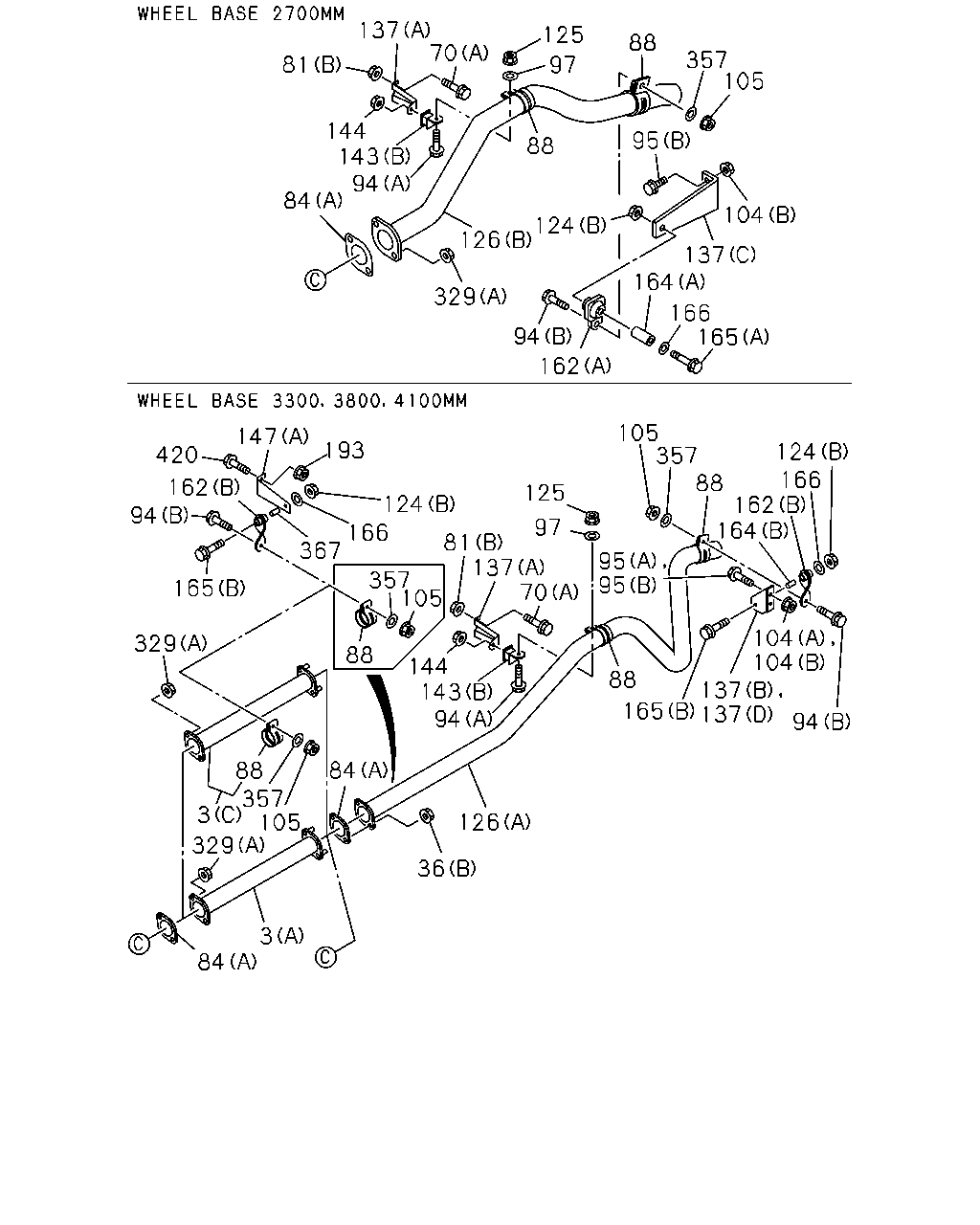

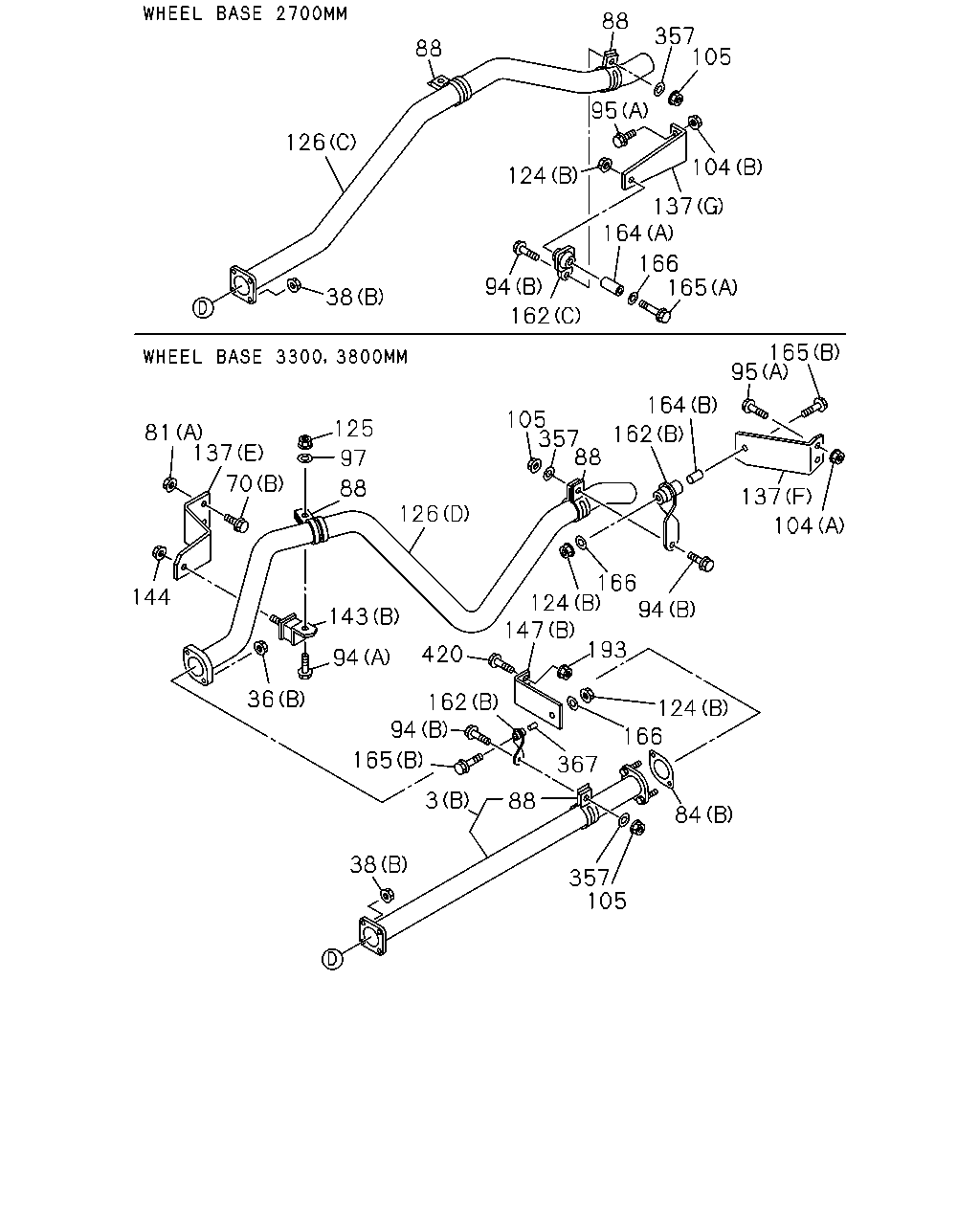

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-063-1	01	1	0803-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-062-1	01	1	0803-0803	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-062-1	01	1	0804-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-062-1	01	1	0804-			●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C)	8-98090-138-0	01	1	0803-0811		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-97307-804-0	01	1	0812-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97089-322-0	01	1	0803-0811	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-97089-322-0	01	1	0803-0811		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98134-199-0	01	1	0812-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (C)	8-98134-199-0	01	1	0812-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-0803	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0804-	●	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●		●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0803-0803	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0804-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0803-0803	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0804-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0804-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97373-158-0	01	1	0803-0803	●	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0804-0811	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0804-0811	●		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0812-	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0812-	●		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-0803	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●		●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803		●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-			●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-			●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-			●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-0803	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-0803	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10	0-91110-510-0	01	1	0803-0803	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0803-0803		●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.833 M10	0-91110-510-0	01	1	0803-0803		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10	0-91110-510-0	01	1	0804-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0804-		●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.833 M10	0-91110-510-0	01	1	0804-		●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 02.334 (A) M8	0-91110-508-0	02	1	0803-	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-			●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0803-0803	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-0803	●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0804-	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-	●		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98078-964-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98082-058-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0804-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98072-137-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98072-137-0	01	1	0804-	●		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98011-818-0	01	1	0803-0811		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98134-346-0	01	1	0812-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	0803-0811	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98090-128-1	01	1	0803-0811		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	0812-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	0812-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98134-798-0	01	1	0812-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	0803-	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-97169-014-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (G)	8-97387-256-1	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D)	8-97185-801-0	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98001-913-0	01	1	0803-0803	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98001-913-0	01	1	0804-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98001-913-0	01	1	0804-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98019-904-2	01	1	0803-0803	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98019-904-2	01	1	0804-	●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	0803-	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0803-0803	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	0803-0803	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0804-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	0804-	●		●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●		●
147	03.704 BRACKET; VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-146-0	01	1	0803-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-125-1	01	1	0803-0811	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98090-125-1	01	1	0803-0811		●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-604-0	01	1	0812-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98117-604-0	01	1	0812-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-98032-150-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98032-151-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0803-0803		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0803-0803		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-			●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=23	8-98006-011-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0803-0803	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0803-0803	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=37.5	9-22151-217-0	01	1	0803-0803		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0804-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0804-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=37.5	9-22151-217-0	01	1	0804-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0804-			●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-			●
193	03.704 NUT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803		●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-			●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	0803-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5	9-22151-217-0	01	1	0803-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.706 L=37.5	9-22151-217-0	01	1	0803-		●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-		●

137 70 125 88 357 105 81 97 144 143 94 95 88 84 104 124 126 137 164 329 166 165 94 162 105 357 88 147 193 124 166 162 164 420 162 94 125 124 166 367 97 81 137 70 95 95 357 105 165 104 104 137 165 137 329 88 144 143 94 88 94 84 88 357 3 105 126 329 36 3 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-063-1	01	1	0803-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-062-1	01	1	0803-0803	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-062-1	01	1	0804-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-062-1	01	1	0804-			●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C)	8-98090-138-0	01	1	0803-0811		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-97307-804-0	01	1	0812-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97089-322-0	01	1	0803-0811	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-97089-322-0	01	1	0803-0811		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98134-199-0	01	1	0812-	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (C)	8-98134-199-0	01	1	0812-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-	●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0804-			●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-0803	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0804-	●	●	●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0804-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-	●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0803-0803	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0804-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0803-0803	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0804-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	0804-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97373-158-0	01	1	0803-0803	●	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0804-0811	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0804-0811	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0804-0811	●		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	0812-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0812-	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0812-	●		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-0803	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●		●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-0803		●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-			●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0803		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0804-			●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-0803		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0804-			●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-0803	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-0803	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10	0-91110-510-0	01	1	0803-0803	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0803-0803		●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.833 M10	0-91110-510-0	01	1	0803-0803		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10	0-91110-510-0	01	1	0804-	●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0804-		●
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.833 M10	0-91110-510-0	01	1	0804-		●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-			●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 02.334 (A) M8	0-91110-508-0	02	1	0803-	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-			●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0803-0803	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-0803	●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0804-	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-	●		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98078-964-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98082-058-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-057-0	01	1	0804-			●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98072-137-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98072-137-0	01	1	0804-	●		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98011-818-0	01	1	0803-0811		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98134-346-0	01	1	0812-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	0803-0811	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98090-128-1	01	1	0803-0811		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	0812-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	0812-	●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (A)	8-98134-798-0	01	1	0812-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) 03.613 (A)	8-97096-651-0	01	1	0803-	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-97169-014-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (G)	8-97387-256-1	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D)	8-97185-801-0	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98001-913-0	01	1	0803-0803	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98001-913-0	01	1	0804-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98001-913-0	01	1	0804-			●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98019-904-2	01	1	0803-0803	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98019-904-2	01	1	0804-	●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	0803-	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0803-0803	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	0803-0803	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0804-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	0804-	●		●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●		●
147	03.704 BRACKET; VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-146-0	01	1	0803-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-125-1	01	1	0803-0811	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98090-125-1	01	1	0803-0811		●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-604-0	01	1	0812-	●
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98117-604-0	01	1	0812-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-98032-150-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C)	8-98032-151-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0803-0803	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0803-0803		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0803-0803		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=115	8-98034-765-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-			●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=23	8-98006-011-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0803-0803	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0803-0803	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=37.5	9-22151-217-0	01	1	0803-0803		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0804-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0804-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) L=37.5	9-22151-217-0	01	1	0804-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0804-			●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-0803		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0804-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-0803		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-			●
193	03.704 NUT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0803-0803	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0804-	●		●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-0803		●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-			●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5	9-22151-217-0	01	1	0803-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5	9-22151-217-0	01	1	0803-	●
367	03.704 COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.706 L=37.5	9-22151-217-0	01	1	0803-		●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
420	03.704 BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
