1-40 — FUEL TANK (#81244) — 140 parça

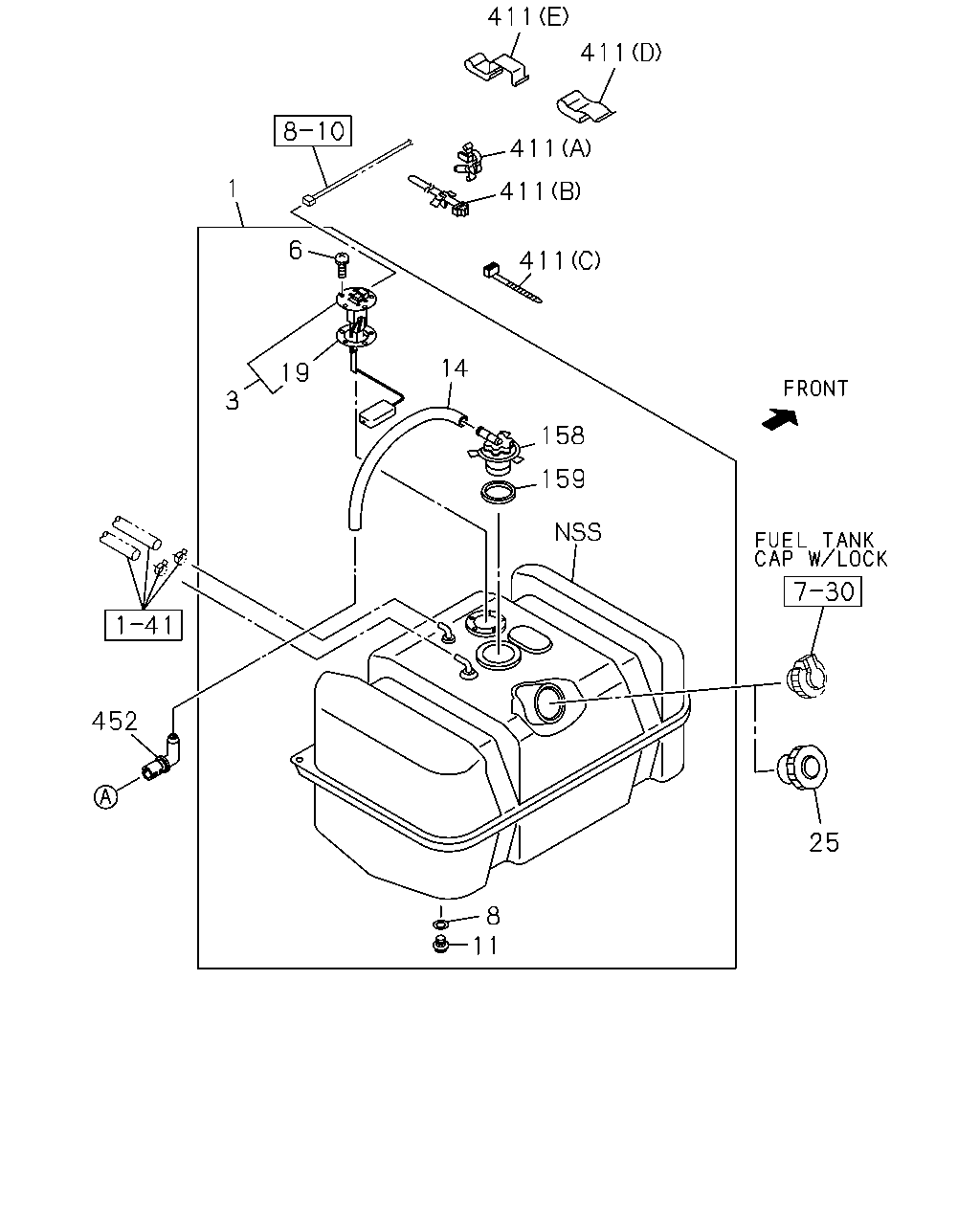

çizim 93127
411 411 411 1 411 6 411 14 19 3 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0803-0803 ● ●
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0804- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0803-0803 ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0804- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0803-0803 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0804- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0803-0803 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0804- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0803-0803 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0804- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0803-0803 ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0804-1003 ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1004- ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0803-0803 ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0804- ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0803-0803 ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0804-0906 ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0907- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0803-0803 ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0804- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0803-0803 ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 03 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 05 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=6.0 		5-09709-012-0 05 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=5.5 		8-97371-951-0 05 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E) T=6.0 		5-09709-024-0 02 1 0803-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0803-0803 ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0804- ● ● ●

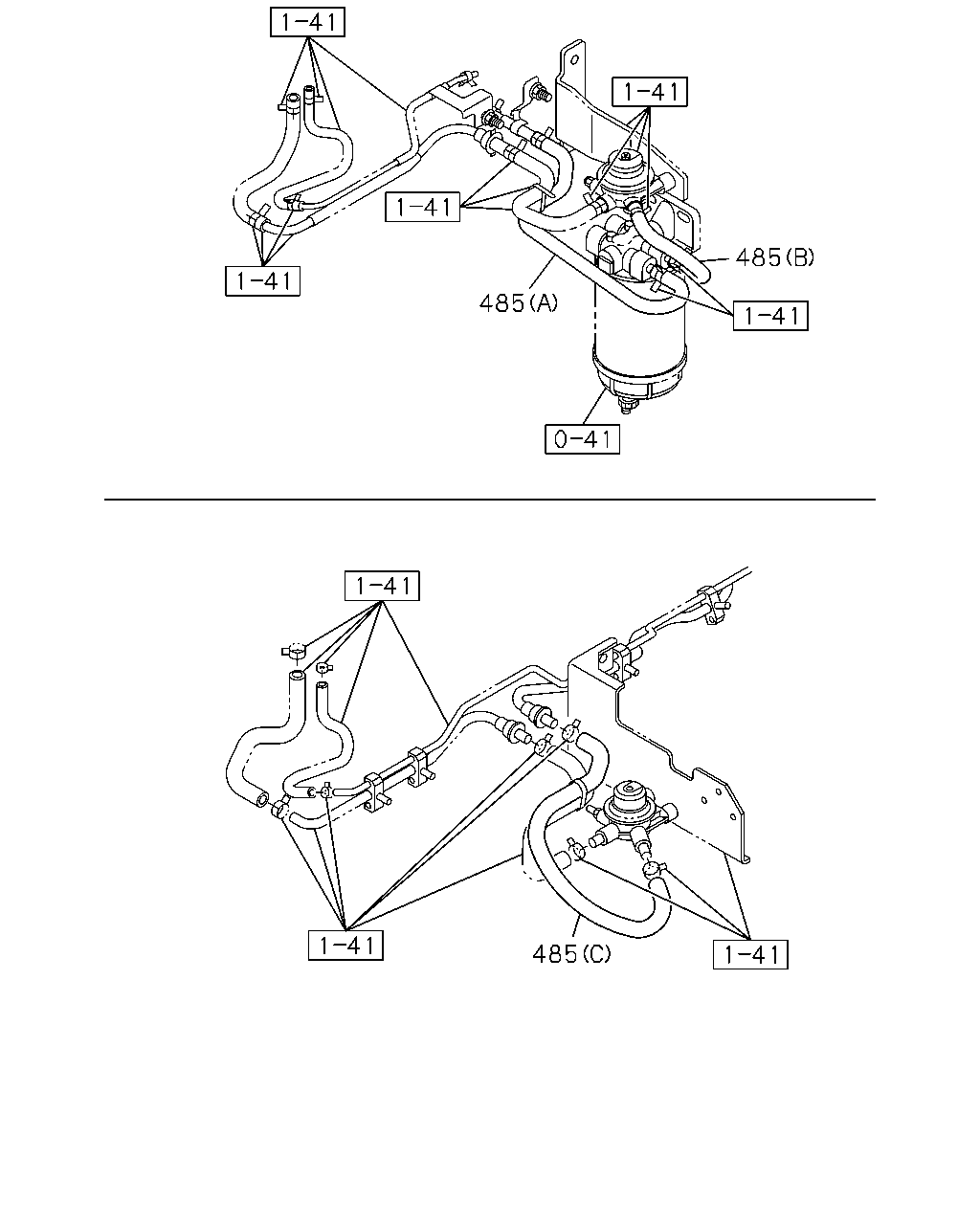

çizim 93277
485 485 485
BalonParca AdiParca NoAdetTipApplied Date A B C
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (A) 		8-98099-503-0 01 1 0803-0906 ●
485 03.163 HOSE; FUEL
(A) 		8-98099-503-0 01 1 0803-0906 ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (A) 		8-98099-503-0 01 1 0907- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (A) 		8-98099-503-0 01 1 0907- ●
485 03.163 HOSE; FUEL
(A) 		8-98099-503-0 01 1 0907- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) (A) 		8-98099-503-0 01 1 0907- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98105-710-0 01 1 0803-0906 ●
485 03.163 HOSE; FUEL
(B) 		8-98105-710-0 01 1 0803-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98105-710-0 01 1 0907- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) (B) 		8-98105-710-0 01 1 0907- ●
485 03.163 HOSE; FUEL
DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98098-276-0 01 1 0803-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98098-276-0 01 1 0907- ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98041-728-0 01 1 0803-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98041-728-0 01 1 0907- ●

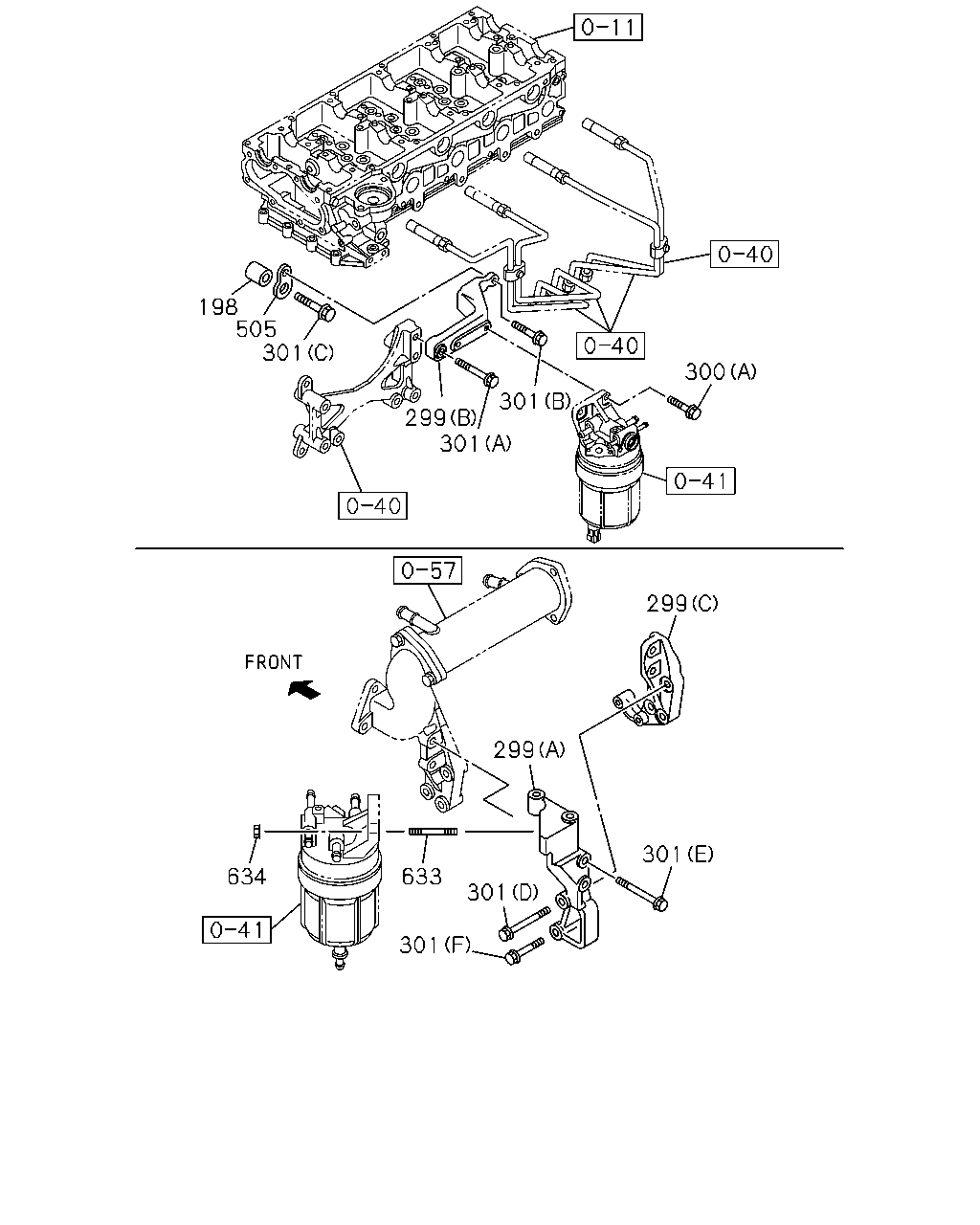

çizim 93309
198 505 301 300 299 301 301 299 299 301 634 633 301 301
BalonParca AdiParca NoAdetTipApplied Date A B C
198 03.107 SPACER
4JJ1-TCC ENG(RDU) 		8-98081-509-0 01 1 0803-0803 ●
198 03.107 SPACER
4JJ1-TCC ENG(RDU) 		8-98081-509-0 01 1 0804-1001 ●
198 03.107 SPACER 8-98081-509-0 01 1 0804-1001 ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) 		8-98074-132-1 01 1 0803- ● ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ) (A) 		8-98023-175-3 01 1 0803- ● ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCC ENG(RDU) (B) 		8-98009-087-4 01 1 0803-0803 ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCC ENG(RDU) (B) 		8-98009-087-4 01 1 0804-1001 ●
299 03.162 BRACKET; FUEL FILTER
(B) 		8-98009-087-4 01 1 0804-1001 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0803-0803 ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0803-0803 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0804- ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0804- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0803 ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 02.510 (D) M12X100 FLANGE 		0-28151-200-0 01 1 0803- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.685 (E) M12X50 FLANGE 		0-28151-250-0 02 1 0803-0811 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.685 (E) M12X50 FLANGE 		0-28151-250-0 01 1 0812- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.206 (D) M12X70 FLANGE 		0-28151-270-0 01 1 0803-0811 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 09.181 (F) M12X80 		0-28151-280-0 01 1 0803-0811 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0803-0803 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0803-0803 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0803-0803 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 09.181 (F) M12X80 		0-28151-280-0 01 1 0905- ● ●
505 03.163 BRACKET
4JJ1-TCC ENG(RDU) 		8-98081-486-0 01 1 0803-0803 ●
505 03.163 BRACKET
4JJ1-TCC ENG(RDU) 		8-98081-486-0 01 1 0804-1001 ●
505 03.163 BRACKET 8-98081-486-0 01 1 0804-1001 ●
633 03.162 STUD; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 03.275 M8X25 L=37 		0-41010-825-0 02 1 0803- ● ●
634 03.162 NUT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
çizim 93338
322 1 322 43 49 49 44 44 43 42 42 42 42 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0803-0803 ● ●
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0804- ● ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0803-0803 ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0804- ● ● ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 0803-0803 ● ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 0804- ● ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 0803-0803 ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 0804- ● ● ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 0803-0803 ● ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 0804- ● ● ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0803- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ●
49 03.023 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0803-0803 ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0803-0803 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0804- ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0804- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0803 ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0803-0803 ●
302 03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0803-0803 ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0804- ●
302 03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0804- ● ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0803-0803 ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 0803-0803 ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0804- ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0803-0803 ● ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
