1-01 — ACCELERATOR PEDAL AND CONTROL (#81238) — 41 parça

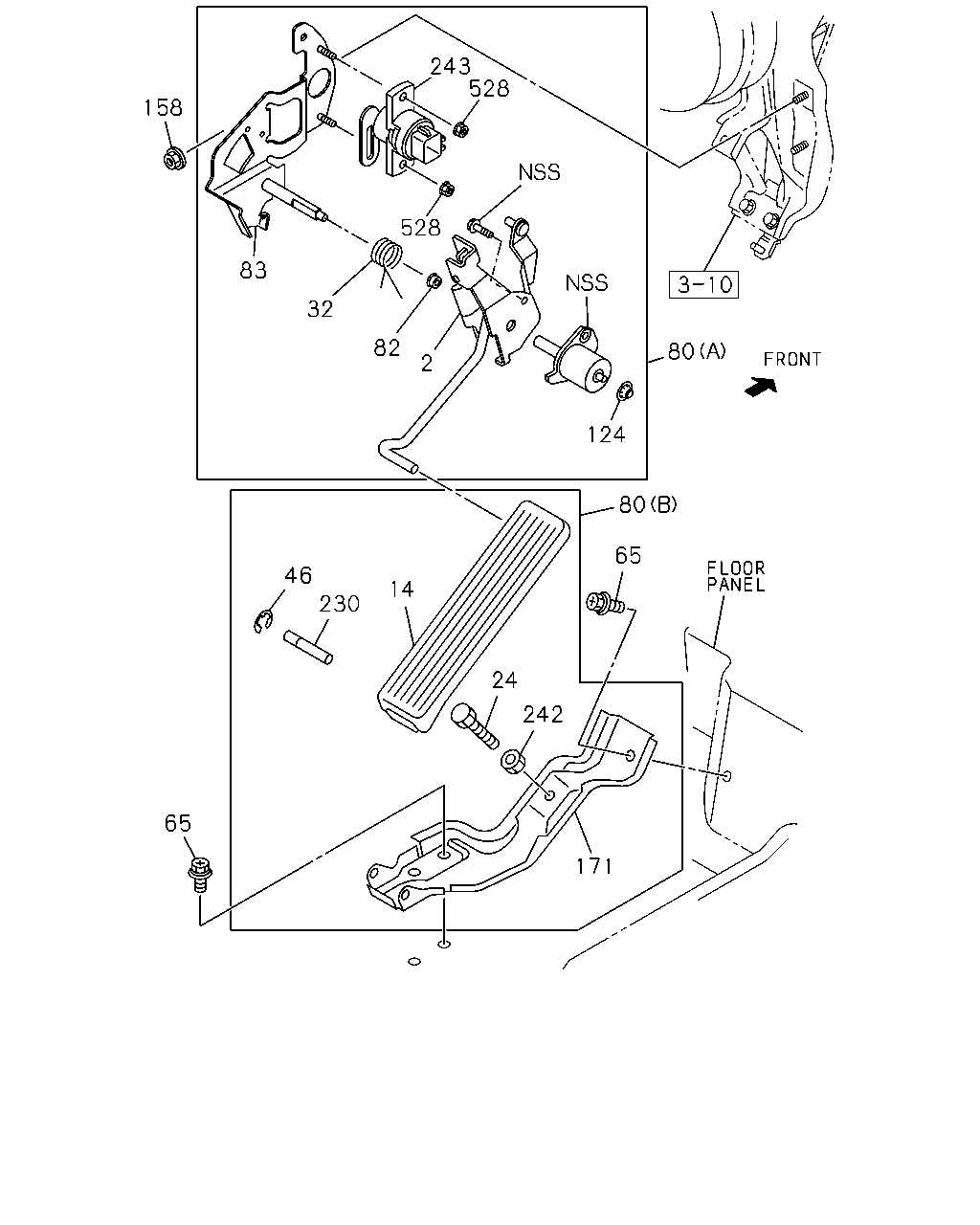

çizim 85451
243 528 158 528 83 32 82 80 2 124 80 65 46 14 230 24 242 65 171
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.454 LEVER; ENG CONT 8-98002-158-2 01 1 0803-0803 ● ●
2 03.454 LEVER; ENG CONT 8-98002-158-2 01 1 0804- ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0803-0803 ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0804- ● ● ●
24 03.483 BOLT; BRKT
09.173 M8X35 FLANGE 		8-98049-562-0 01 1 0803-0803 ● ●
24 03.483 BOLT; BRKT
09.173 M8X35 FLANGE 		8-98049-562-0 01 1 0804- ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0803-0803 ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0804- ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0803-0803 ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0804- ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0803-0803 ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0804- ● ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0803-0803 ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0804- ● ● ●
80 03.452 LINK ASM; ENG CONT
03.459 (B) 		8-98006-714-1 01 1 0803-0803 ● ●
80 03.452 LINK ASM; ENG CONT
03.459 (B) 		8-98006-714-1 01 1 0804- ● ● ●
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0803-0803 ● ●
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0804- ● ● ●
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 0803-0803 ● ●
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 0804- ● ● ●
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0803-0803 ● ●
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0804- ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0803-0803 ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0804- ● ● ●
171 03.483 BRACKET ASM; ACCEL PEDAL 8-98006-716-1 01 1 0803-0803 ● ●
171 03.483 BRACKET ASM; ACCEL PEDAL 8-98006-716-1 01 1 0804- ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 0803-0803 ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 0804- ● ● ●
242 03.483 NUT; ACCEL PEDAL
02.559 M8 FLANGE 		8-98040-024-0 01 1 0803-0803 ● ●
242 03.483 NUT; ACCEL PEDAL
02.559 M8 FLANGE 		8-98040-024-0 01 1 0804- ● ● ●
243 03.425 SENSOR; ACCEL 8-97602-416-0 01 1 0803-0803 ● ●
243 03.425 SENSOR; ACCEL 8-97602-416-0 01 1 0804-0910 ● ● ●
243 03.425 SENSOR; ACCEL 8-98131-263-0 01 1 0911- ● ● ●
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 0803-0803 ● ●
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 0804- ● ● ●

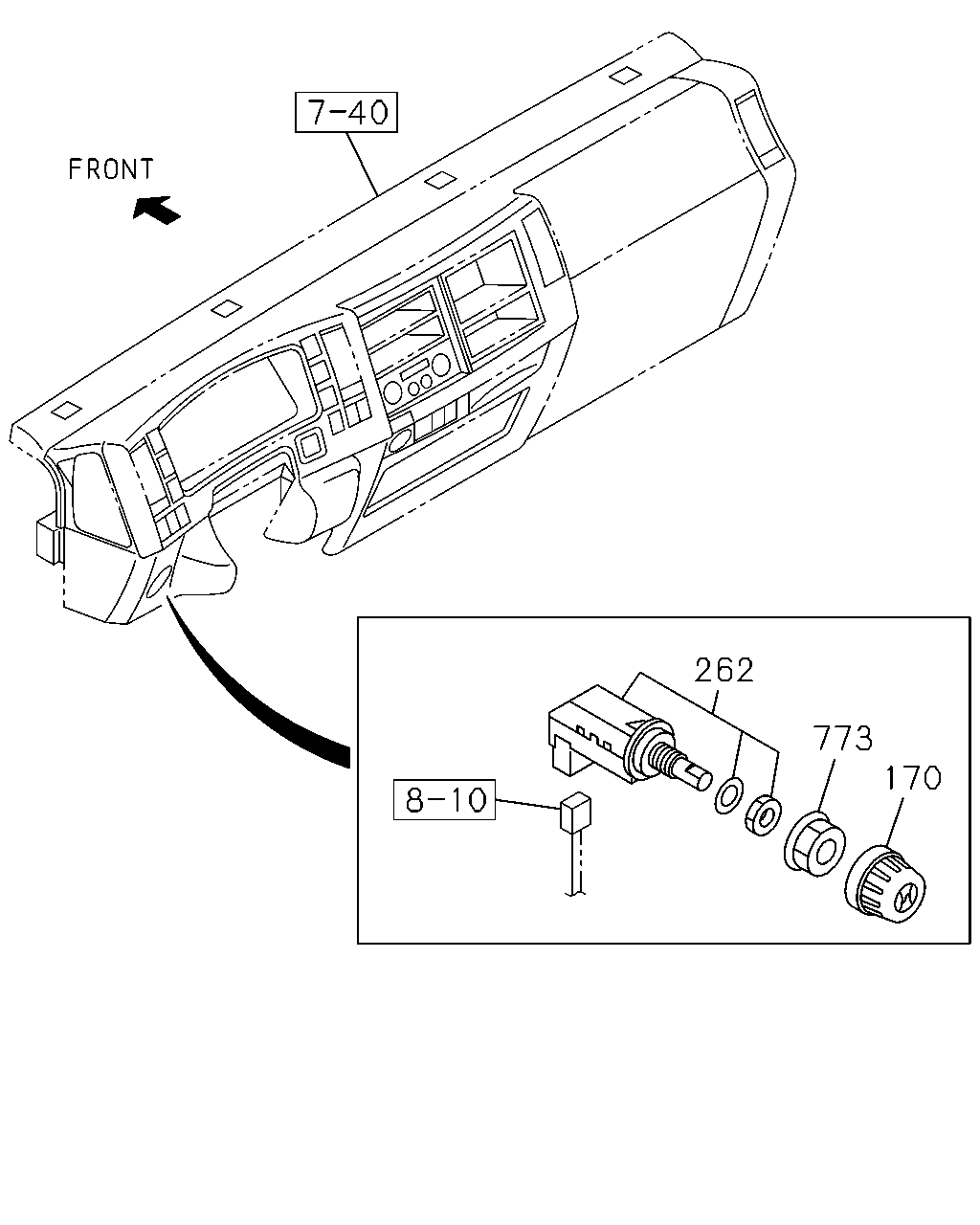

çizim 191627
262 773 170
BalonParca AdiParca NoAdetTipApplied Date A B C
170 03.480 KNOB 8-98013-420-0 01 1 0803-0803 ● ●
170 03.480 KNOB 8-98013-420-0 01 1 0804- ● ● ●
262 03.452 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0803-0803 ● ●
262 03.452 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0804- ● ● ●
773 03.452 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0803-0803 ● ●
773 03.452 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0804- ● ● ●
