1 |

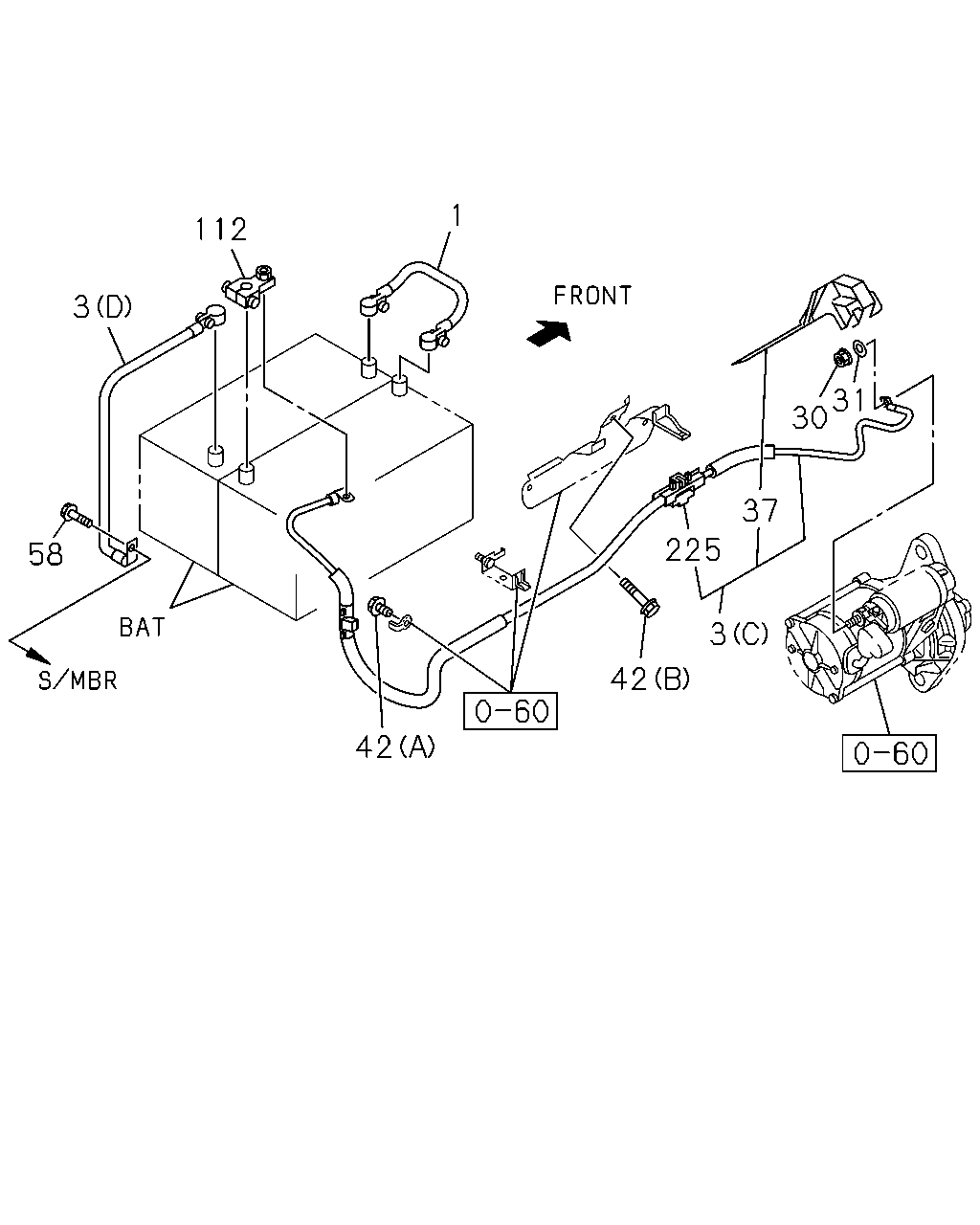

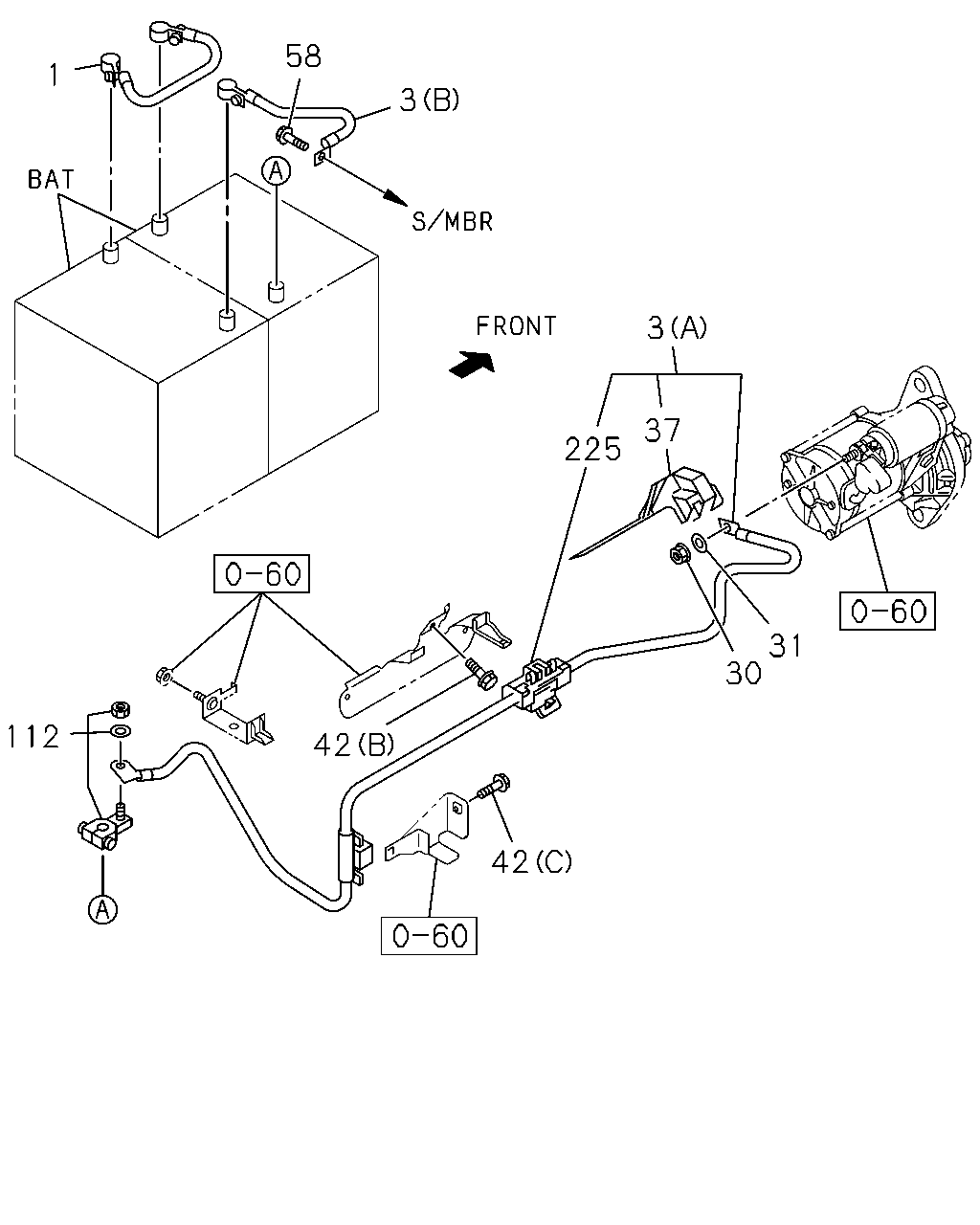

02.341 CABLE; BATTERY
L=280
|
8-98025-412-3 |
01 |
1 |
0803- |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF)
BATTERY 115E41L<8MA>
(C)
|
8-98077-141-2 |
01 |
1 |
0803-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF)
BATTERY 115E41L<8MA>
(C)
|
8-98294-726-0 |
01 |
1 |
1410- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98077-138-4 |
01 |
1 |
0803-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-724-0 |
01 |
1 |
1410- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98077-149-1 |
01 |
1 |
0803-1409 |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-729-0 |
01 |
1 |
1410- |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98046-378-4 |
01 |
1 |
0803-1409 |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98293-917-0 |
01 |
1 |
1410- |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98070-229-2 |
01 |
1 |
0803-1409 |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-720-0 |
01 |
1 |
1410- |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA>
(D)
L=400
|
8-98056-339-1 |
01 |
1 |
0803-1203 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA>
(D)
L=400
|
8-98201-105-0 |
01 |
1 |
1204- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA>
(B)
L=200
|
8-98056-337-1 |
01 |
1 |
0803- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
(B)
L=200
|
8-98056-337-1 |
01 |
1 |
0803- |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98070-228-2 |
01 |
1 |
0803-1409 |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-719-0 |
01 |
1 |
1410- |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98067-966-2 |
01 |
1 |
0803-0804 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),BATTERY
115E41L<8MA>
(A)
|
8-98067-966-3 |
01 |
1 |
0805-0812 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
(A)
|
8-98067-966-4 |
01 |
1 |
0901-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
(A)
|
8-98294-718-0 |
01 |
1 |
1410- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
(C)
|
8-98070-230-1 |
01 |
1 |
0803-0812 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
(C)
|
8-98070-230-2 |
01 |
1 |
0901-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
(C)
|
8-98294-721-0 |
01 |
1 |
1410- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98116-880-1 |
01 |
1 |
0805-0812 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98137-177-1 |
01 |
1 |
0901-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
(A)
|
8-98294-694-0 |
01 |
1 |
1410- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. DUMP CHASSIS(V4D)
(C)
|
8-98137-187-1 |
01 |
1 |
0906-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. DUMP CHASSIS(V4D)
(C)
|
8-98294-738-0 |
01 |
1 |
1410- |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),BATTERY
115E41L<8MA>
(A)
|
8-98137-179-1 |
01 |
1 |
0906-1409 |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),BATTERY
115E41L<8MA>
(A)
|
8-98294-737-0 |
01 |
1 |
1410- |
● |
|
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
M8
|
0-91110-508-0 |
01 |
1 |
0803- |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559
ID=8.2
|
0-91510-808-0 |
01 |
1 |
0803- |
● |
● |
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
|
8-98042-507-0 |
01 |
1 |
0803-0812 |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
|
8-98042-507-0 |
01 |
1 |
0803-0812 |
|
● |
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98042-507-0 |
01 |
1 |
0901-0905 |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
|
8-98042-507-0 |
01 |
1 |
0901-0905 |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
|
8-98042-507-0 |
01 |
1 |
0901-0905 |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98042-507-0 |
01 |
1 |
0901-0905 |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. BATTERY 115E41L<8MA>
|
8-98042-507-0 |
01 |
1 |
0901-0905 |
|
● |
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D)
|
8-98042-507-0 |
01 |
1 |
0906- |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98042-507-0 |
01 |
1 |
0906- |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
|
8-98042-507-0 |
01 |
1 |
0906- |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
|
8-98042-507-0 |
01 |
1 |
0906- |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98042-507-0 |
01 |
1 |
0906- |
● |
|
| |
37 |
02.343 CAP; TERMINAL,BATTERY CABLE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. BATTERY 115E41L<8MA>
|
8-98042-507-0 |
01 |
1 |
0906- |
|
● |
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0803- |
● |
|
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
02.500
(B)
M6X16 FLANGE
|
8-97329-599-0 |
01 |
1 |
0803- |
● |
● |
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*)
EXC. BATTERY 115E41L<8MA>
00.685
(C)
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0803-0809 |
● |
|
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W)
EXC. BATTERY 115E41L<8MA>
00.685
(C)
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0803-0809 |
|
● |
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
DUMP CHASSIS(V4D)
00.685
(C)
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0810- |
● |
|
| |
42 |
02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W)
EXC. BATTERY 115E41L<8MA>
00.685
(C)
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0810- |
|
● |
| |
58 |
02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
0803-1004 |
● |
● |
| |
58 |
02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
|
8-98141-256-1 |
01 |
1 |
1005- |
● |
● |
| |
112 |
02.343 TERMINAL; BATTERY
<+>
|
8-97365-771-0 |
01 |
1 |
0803- |
● |
● |
| |
225 |
02.343 BLOCK; TERMINAL
|
8-98029-689-0 |
01 |
1 |
0803-0812 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
|
8-98029-689-0 |
01 |
1 |
0803-0812 |
|
● |
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98029-689-0 |
01 |
1 |
0901-0905 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0901-0905 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0901-0905 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98029-689-0 |
01 |
1 |
0901-0905 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. BATTERY 115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0901-0905 |
|
● |
| |
225 |
02.343 BLOCK; TERMINAL
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D)
|
8-98029-689-0 |
01 |
1 |
0906-1409 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98029-689-0 |
01 |
1 |
0906-1409 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0906-1409 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0906-1409 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98029-689-0 |
01 |
1 |
0906-1409 |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. BATTERY 115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0906-1409 |
|
● |
| |
225 |
02.343 BLOCK; TERMINAL
POWER TAKE OFF CONTROL ELECTRIC(7GR)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D)
|
8-98294-524-0 |
01 |
1 |
1410- |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98294-524-0 |
01 |
1 |
1410- |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
DUMP CHASSIS(V4D)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. BATTERY 115E41L<8MA>
|
8-98294-524-0 |
01 |
1 |
1410- |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. DUMP CHASSIS(V4D),POWER TAKE OFF
CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA>
|
8-98294-524-0 |
01 |
1 |
1410- |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
BATTERY 115E41L<8MA>
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)
|
8-98294-524-0 |
01 |
1 |
1410- |
● |
|
| |
225 |
02.343 BLOCK; TERMINAL
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. BATTERY 115E41L<8MA>
|
8-98294-524-0 |
01 |
1 |
1410- |
|
● |
