0-57 — EMISSION PIPING (#81231) — 49 parça

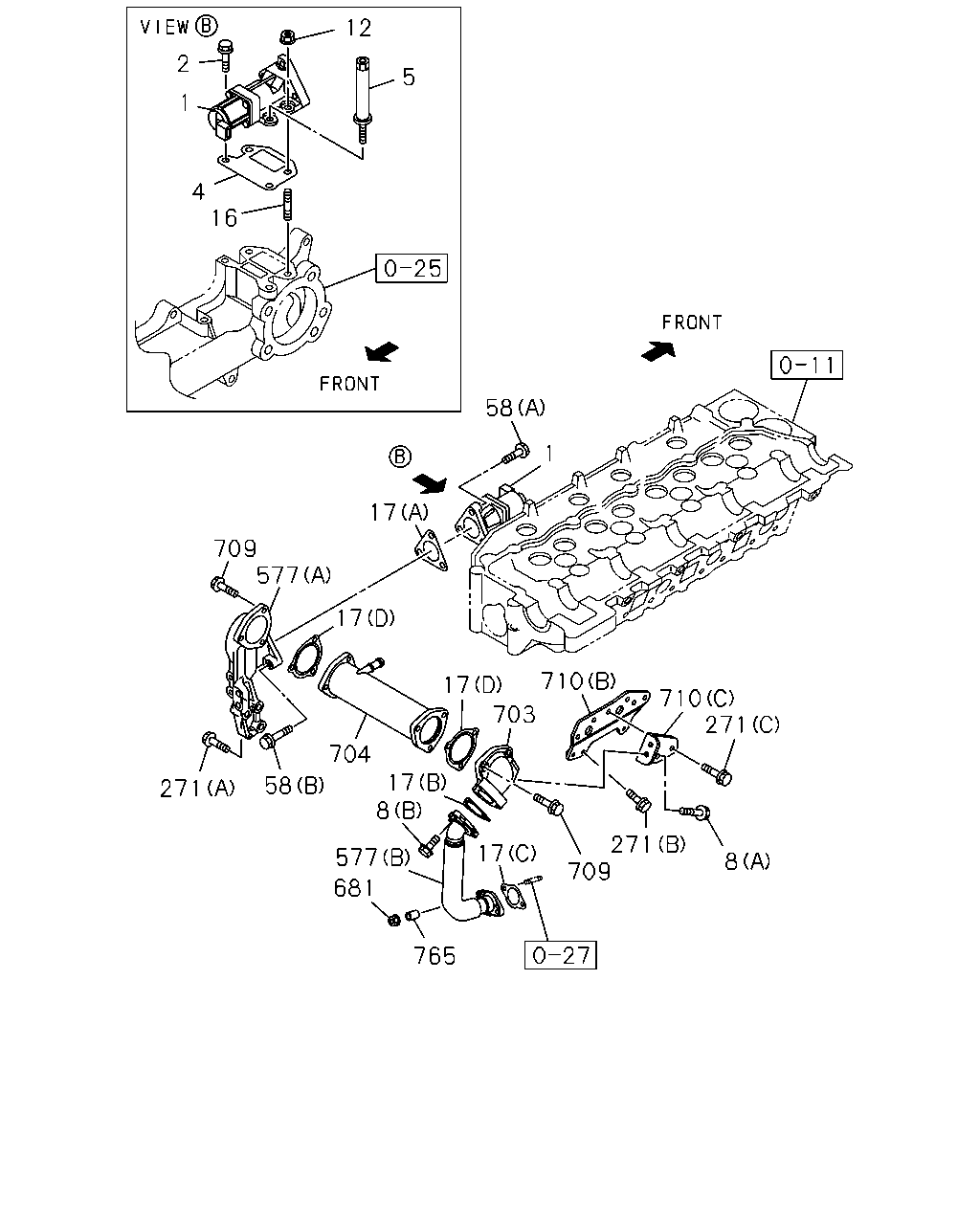

12 2 5 1 4 16 58 1 17 709 577 17 710 17 710 271 703 704 17 8 58 271 271 709 17 577 8 681 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	0803-	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0803-	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0803-	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 03.417 (B) M8X28 FLANGE	8-98043-528-0	03	1	0803-	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) 02.510 M8X20 L=32	0-41010-820-0	02	1	0803-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	0803-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	0803-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	0803-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	0803-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3) 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0803-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0803-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	0803-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0803-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (A)	8-98055-858-2	01	1	0803-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	0803-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-	●
703	03.675 DUCT; EGR EURO3 SPECIFICATION(NT3)	8-98061-100-2	01	1	0803-	●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION(NT3)	8-98061-104-0	01	1	0803-	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3) 00.780 M10X30 FLANGE	0-28751-030-0	06	1	0803-0808	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3) 00.029 M10X35 FLANGE	0-28751-035-0	06	1	0809-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	0803-	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0803-	●

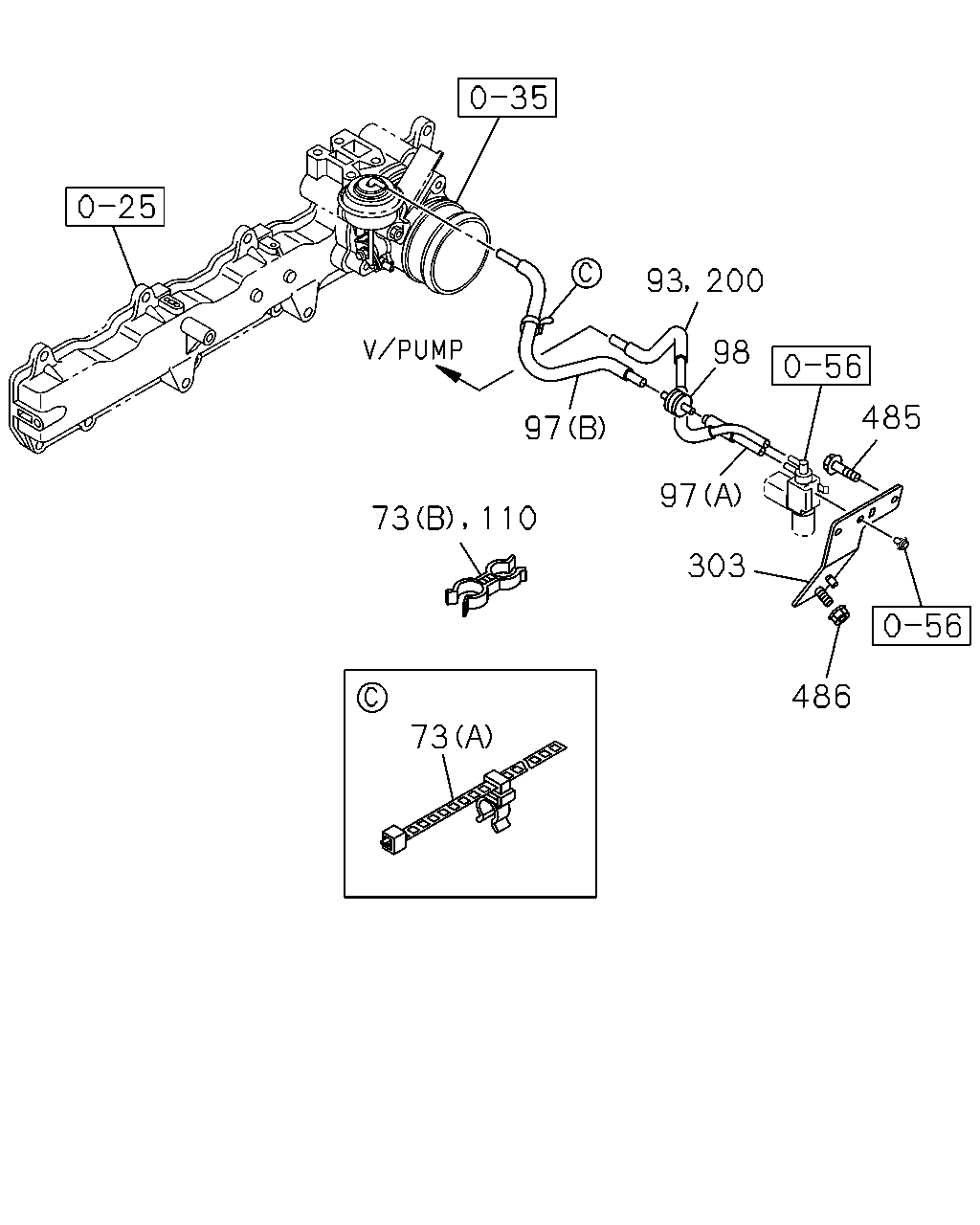

93 200 98 485 97 97 73 110 303 486 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE (A) L=350	8-97373-487-0	02	1	0803-	●
73	03.680 CLIP; VAC HOSE 03.162 (B) ID=13.2 & 14.5	8-94475-649-0	01	1	0811-0905	●	●
93	03.675 HOSE ASM	8-98105-295-1	01	1	0906-	●
97	03.675 HOSE; RUBBER (B)	8-98113-964-0	01	1	0803-	●
97	03.675 HOSE; RUBBER (A)	8-98113-965-0	01	1	0803-	●
98	03.670 VALVE; DELAY	8-94110-978-0	01	1	0803-	●
110	03.671 CLIP; VAC HOSE 03.162 ID=13.2 & 14.5	8-94475-649-0	01	1	0906-	●
200	03.675 HOSE; VAC	8-98105-295-1	01	1	0803-0905	●
303	03.671 BRACKET; VAC SW	8-98097-124-0	01	1	0803-	●
485	03.671 BOLT; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0803-	●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●

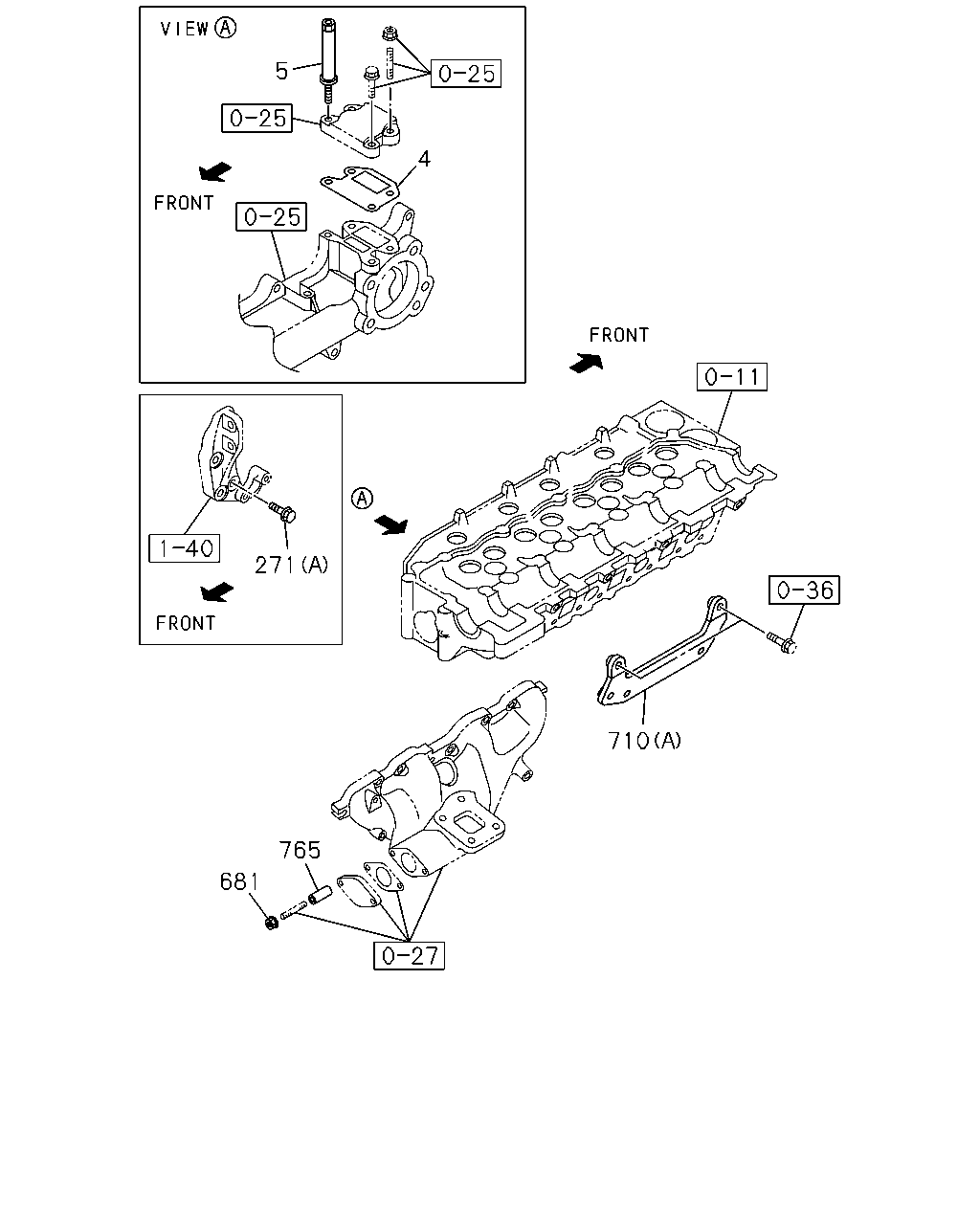

5 4 271 710 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0803-	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0803-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	0803-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0803-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	0803-	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
