Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#81222) — 229 parça

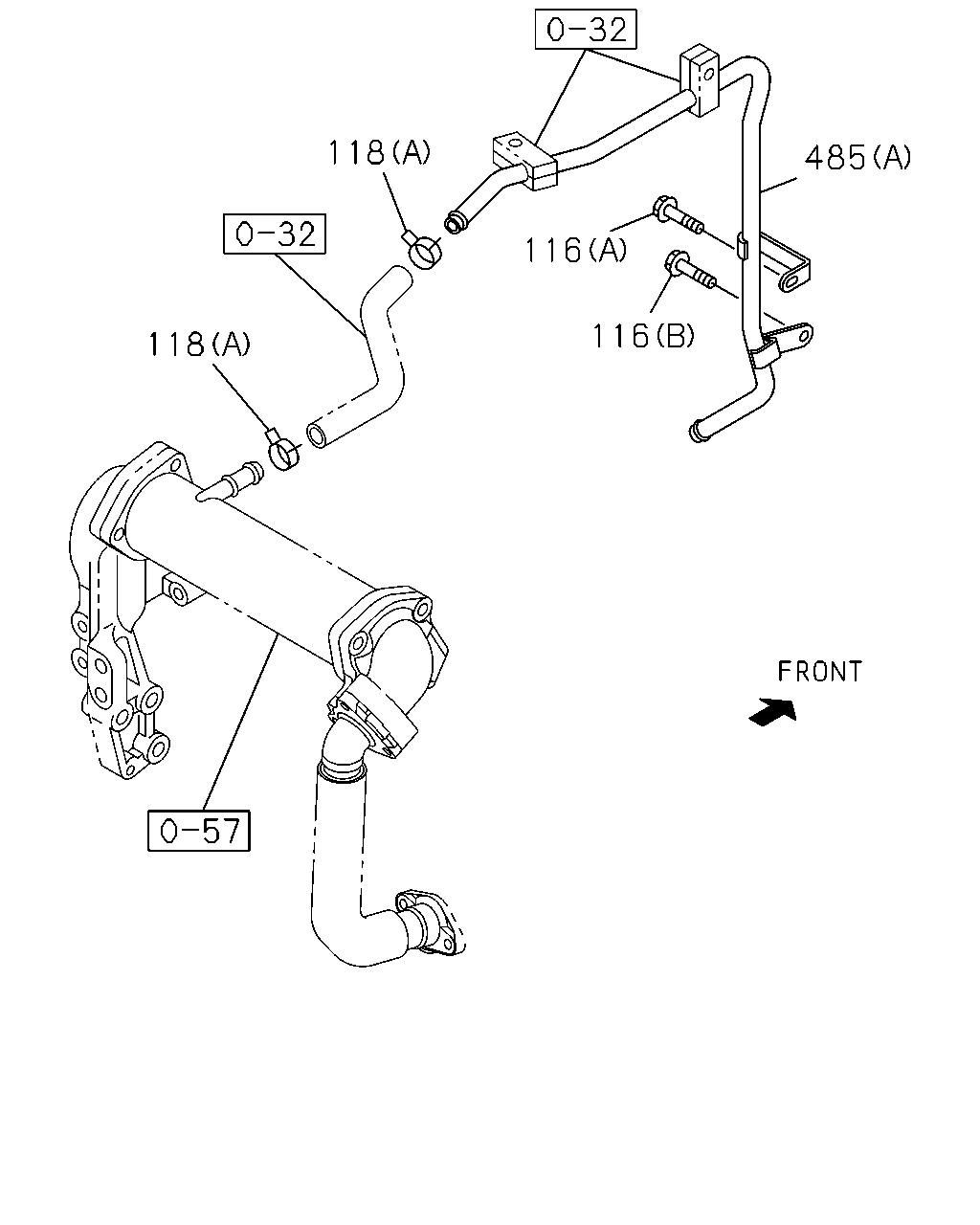

118 485 116 116 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	05	1	0803-	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0804	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0803-	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	0803-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0803-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0803-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	0803-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	0803-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	0803-	●

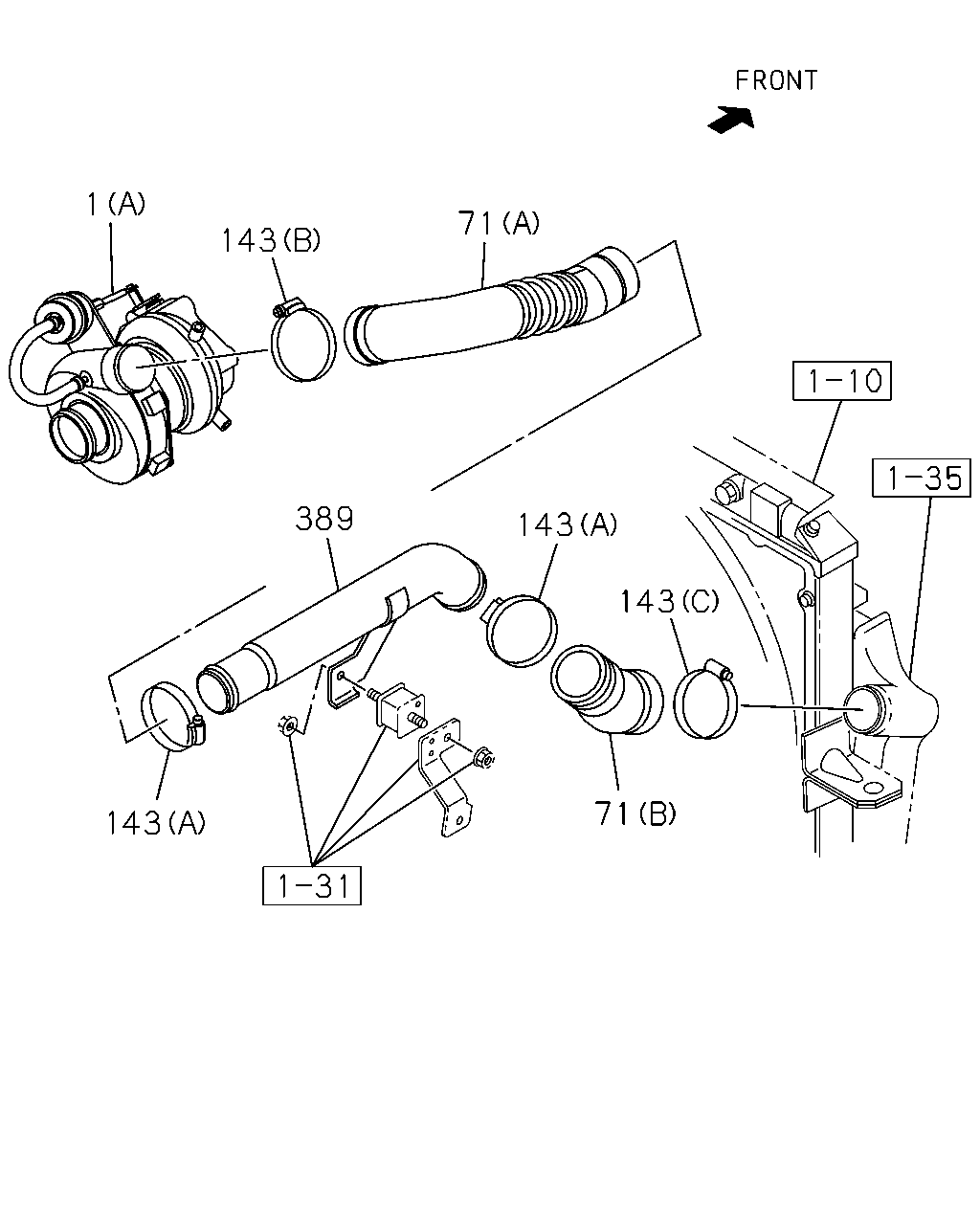

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98015-115-1	01	1	0803-0804		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	0805-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	0803-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	0803-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0803-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98055-062-1	01	1	0803-1001		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98159-280-1	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0803-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0803-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	04	1	0811-0812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (A) ID=45-65	8-98133-348-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0803-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (A) ID=58-76	1-09707-203-0	02	1	0803-0811	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=55-75	8-98133-349-0	02	1	0812-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (D) ID=45-65	8-98133-348-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65	8-98096-418-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=70-90	8-98122-372-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (D) ID=60-65	8-98096-418-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=60-65	8-98096-418-0	04	1	1002-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0803-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0803-		●

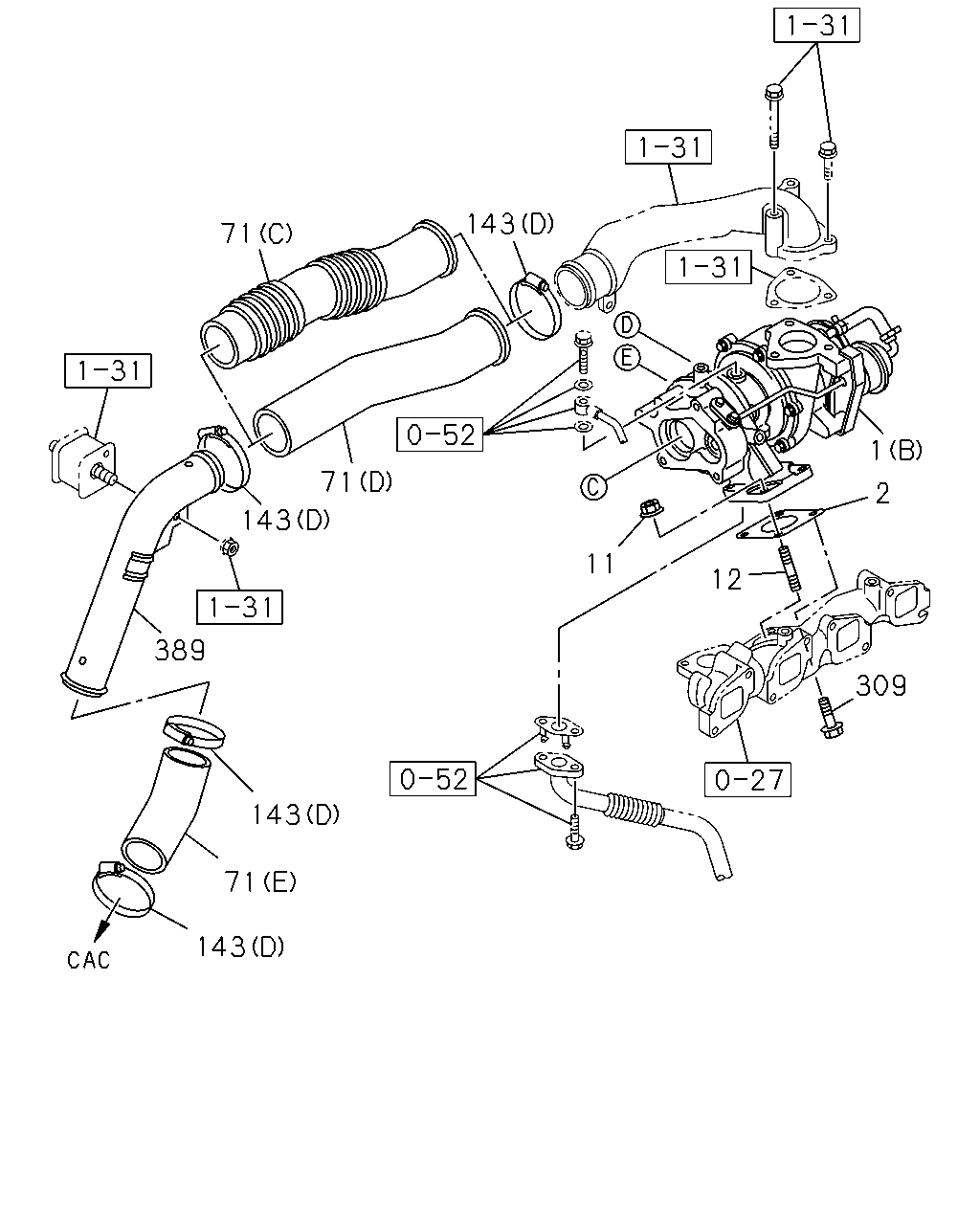

143 71 1 71 2 143 11 12 389 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98015-115-1	01	1	0803-0804		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	0805-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0803-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0803-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0803-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0803-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0803-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	0803-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98107-509-1	01	1	0803-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0803-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98055-062-1	01	1	0803-1001		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98159-280-1	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0803-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0803-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	04	1	0811-0812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (A) ID=45-65	8-98133-348-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0803-0810	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (A) ID=58-76	1-09707-203-0	02	1	0803-0811	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=55-75	8-98133-349-0	02	1	0812-0812	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (D) ID=45-65	8-98133-348-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65	8-98096-418-0	02	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=70-90	8-98122-372-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (D) ID=60-65	8-98096-418-0	04	1	0901-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=60-65	8-98096-418-0	04	1	1002-		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0803-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0803-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0803-		●

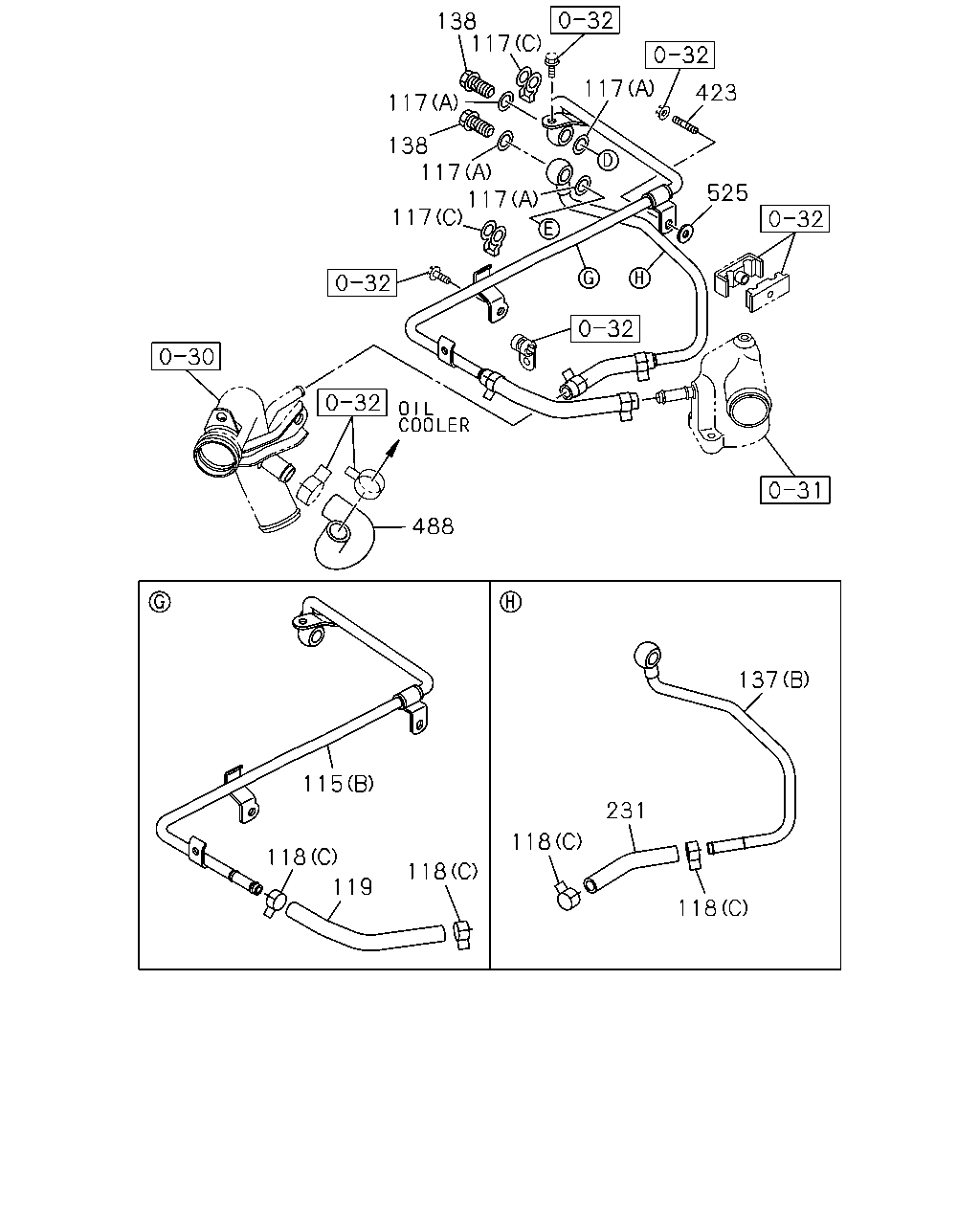

138 117 117 423 117 138 117 117 117 525 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98066-088-0	01	1	0803-0803		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	0803-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0804	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	04	1	0804-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0803-0904		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	0803-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0803-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0803-		●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0803-0803		●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	0803-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	0803-		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0803-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0803-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0803-		●
423	03.373 STUD; WATER PIPE 00.206 M6X16 L=25	0-41010-616-0	01	1	0803-		●
488	03.163 HOSE; RUBBER	8-98066-091-0	01	1	0803-		●
525	03.373 PLATE; WATER,TURBO 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	0803-		●

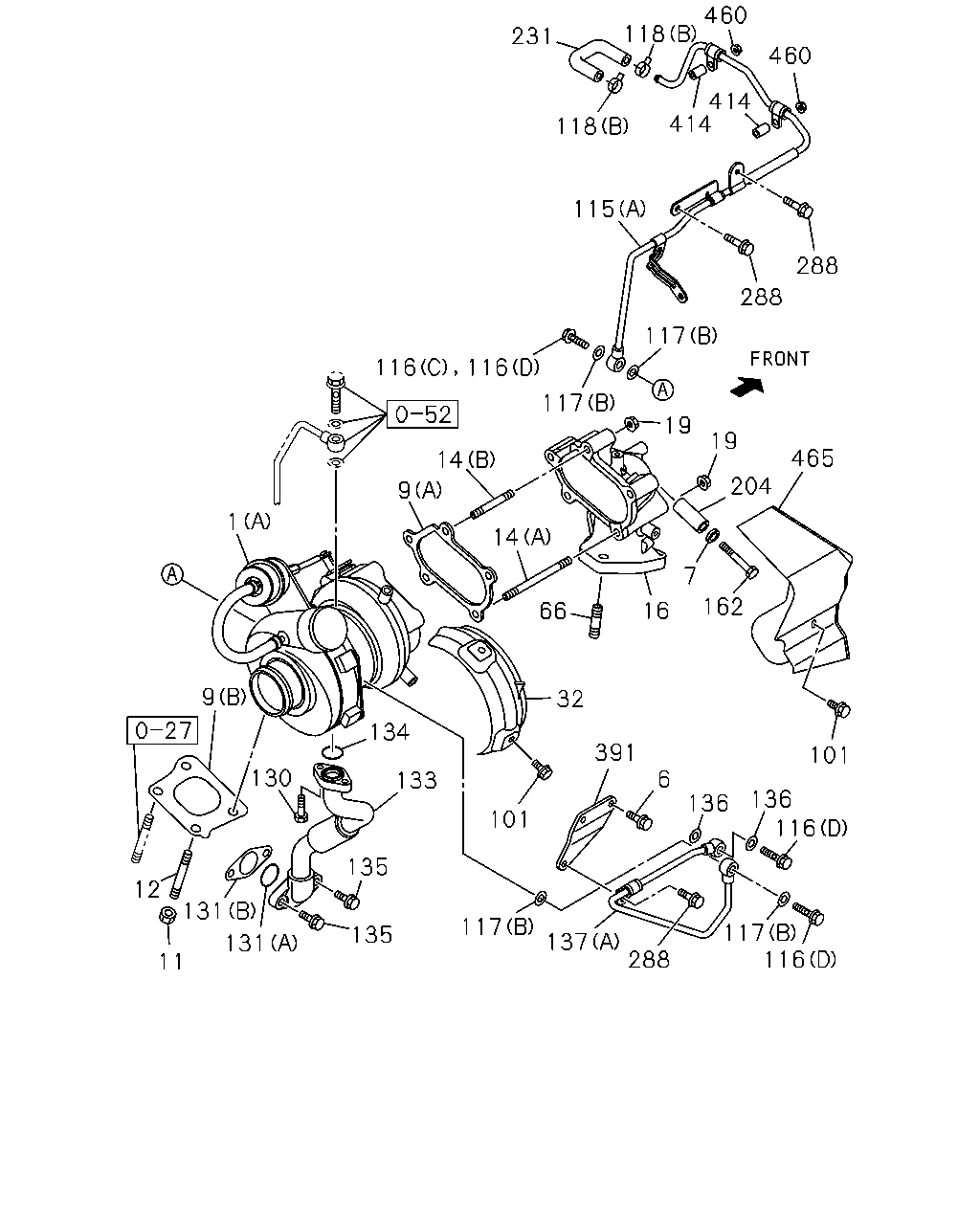

1 116 116 115 118 231 118 460 414 460 414 288 288 117 117 19 19 204 465 162 7 16 66 14 14 9 32 391 6 136 136 101 116 101 133 134 9 130 135 135 131 131 12 11 117 137 288 116 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98015-115-1	01	1	0803-0804		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	0805-		●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	01	1	0803-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0803-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0803-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0803-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0803-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0803-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0803-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0803-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0803-	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	0803-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0803-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0803-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0803-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0803-		●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98066-088-0	01	1	0803-0803		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	0803-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	05	1	0803-	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0804	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0803-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0804	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	04	1	0804-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0803-0904		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	0803-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0803-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0803-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0803-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0803-1006	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0803-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0803-	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0803-	●
136	01.519 GASKET; WATER PIPE 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-1312	●
136	01.519 GASKET; WATER PIPE 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	0803-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	0803-		●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0803-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0803-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0803-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0803-		●
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0803-	●
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	0803-	●
414	03.602 SPACER EURO2 SPECIFICATION(NT2) 01.429 M8X10	1-11369-081-0	02	1	0803-	●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	0803-1204	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-	●

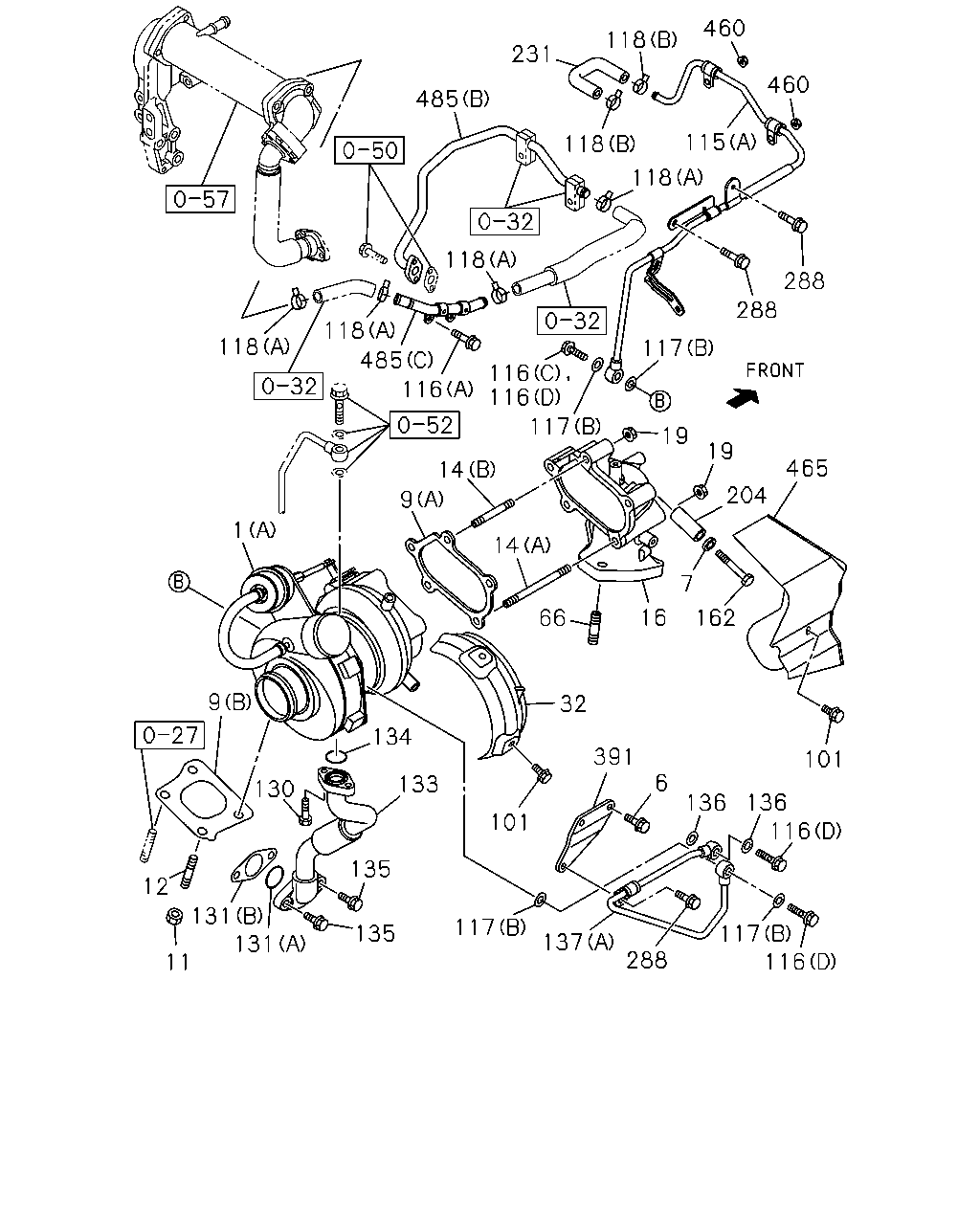

485 231 118 460 460 115 118 118 288 288 117 118 118 118 485 116 116 116 465 204 19 19 117 7 162 101 16 66 14 14 9 1 9 134 133 32 391 6 136 136 116 117 116 288 137 117 101 135 135 130 12 131 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3) (A)	8-98000-031-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2) (A)	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98015-115-1	01	1	0803-0804		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. (B)	8-98097-686-1	01	1	0805-		●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	01	1	0803-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0803-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0803-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0803-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0803-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0803-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0803-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0803-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0803-	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	0803-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0803-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0803-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0803-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0803-		●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98096-928-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98066-088-0	01	1	0803-0803		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-710-0	01	1	0803-		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	05	1	0803-	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0804	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0803-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0804	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	04	1	0804-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0803-0904		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	0803-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0803-	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0803-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0803-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0803-1006	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0803-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0803-	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0803-	●
136	01.519 GASKET; WATER PIPE 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-1312	●
136	01.519 GASKET; WATER PIPE 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-98063-840-0	01	1	0803-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97381-650-0	01	1	0803-		●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0803-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0803-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0803-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0803-		●
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0803-	●
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	0803-	●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	0803-1204	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	0803-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	0803-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	0803-	●

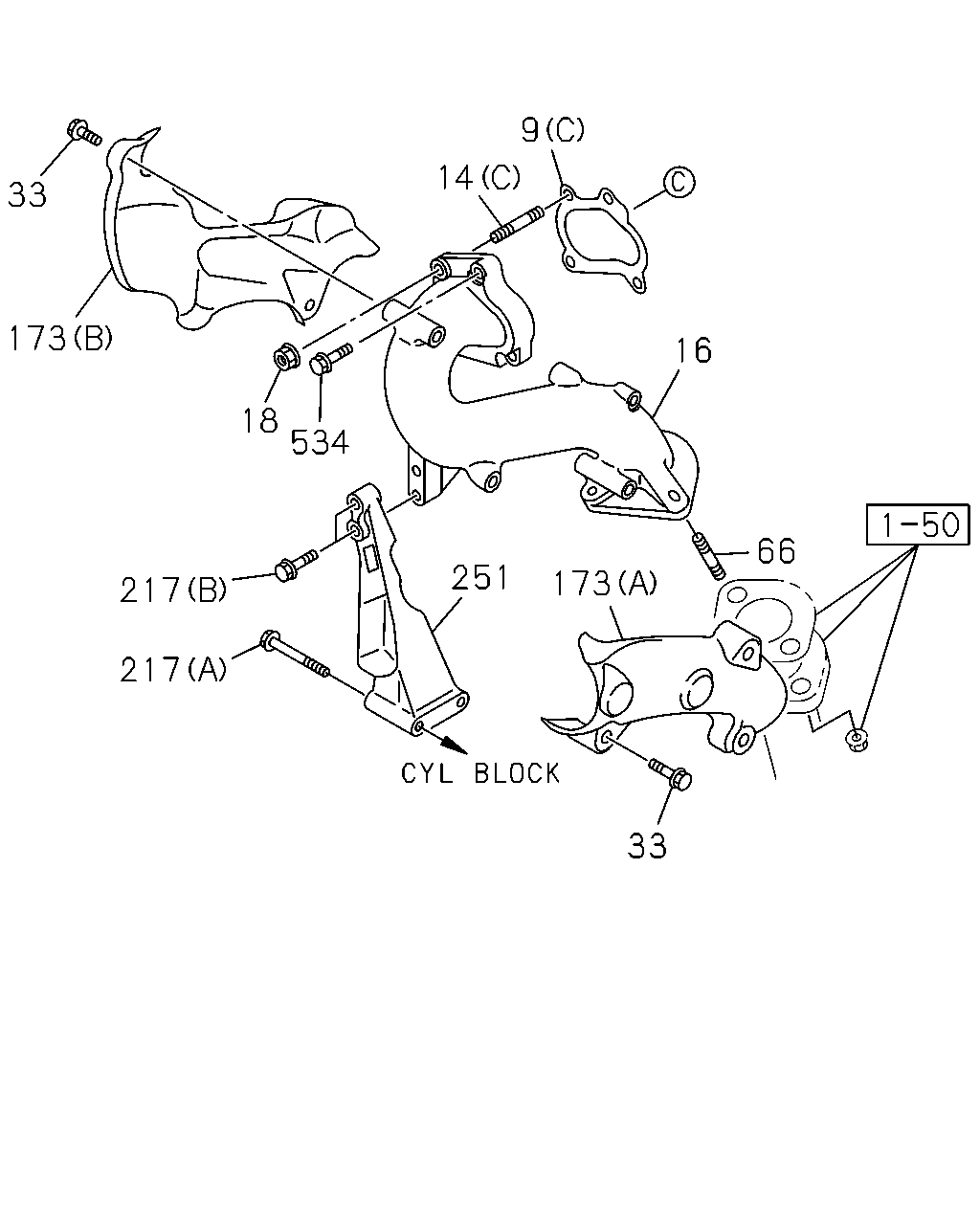

9 14 33 173 16 18 534 66 251 173 217 217 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98015-116-1	01	1	0803-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0803-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0803-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0803-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0803-	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	0803-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0803-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0803-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0803-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0803-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-023-1	01	1	0803-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0803-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0803-		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0803-		●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0803-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
