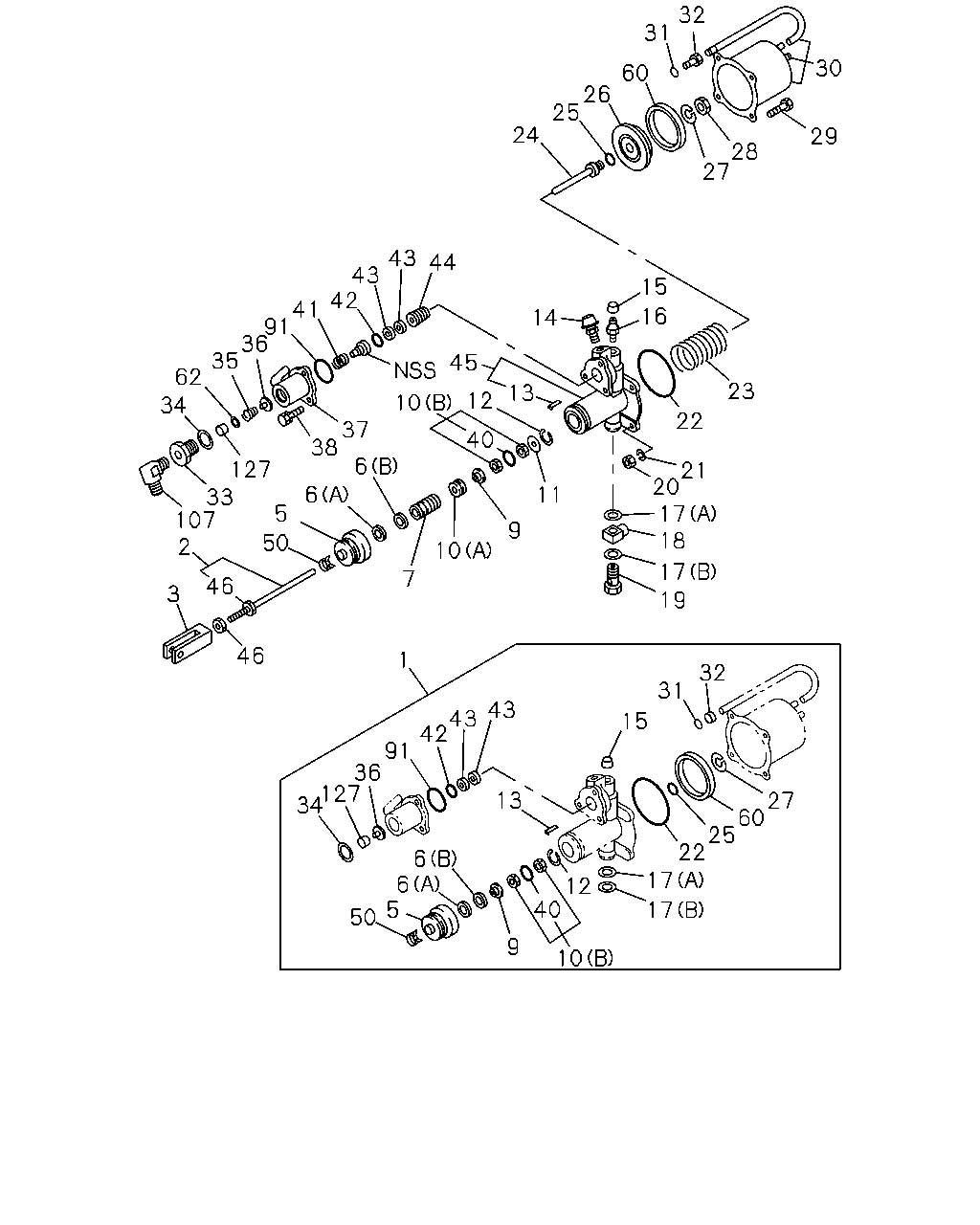

2-07 — CLUTCH BOOSTER; MINIPACK (#8122) — 67 parça

32 31 30 60 26 25 24 29 28 27 43 43 42 44 15 41 91 36 35 16 14 45 62 23 13 12 10 34 22 37 38 40 6 127 33 107 2 21 20 17 18 6 11 5 9 50 10 17 7 46 3 19 46 1 32 31 43 43 42 15 91 36 127 34 13 27 60 25 22 17 6 6 5 12 40 17 50 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER FSS ALL(FS****)	1-31829-542-0	01	1	0211-0307
1	REPAIR KIT; CLU BOOSTER FSS ALL(FS****)	1-31829-550-0	01	1	0308-
1	REPAIR KIT; CLU BOOSTER FTS ALL(FT****)	1-31829-539-0	01	1	0211-
2	ROD; PUSH,CLU BOOSTER	1-31824-156-0	01	1	0211-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-538-0	01	1	0211-0307
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	0308-
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0211-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0211-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0211-
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0211-
9	GASKET; PISTON CUP,CLU BOOSTER FSS ALL(FS****)	1-31829-251-0	01	1	0211-
9	GASKET; PISTON CUP,CLU BOOSTER FTS ALL(FT****)	1-31829-003-0	01	1	0211-
10	RETAINER; PISTON,CLU BOOSTER FSS ALL(FS****) (B)	1-31829-285-0	01	1	0211-
10	RETAINER; PISTON,CLU BOOSTER FSS ALL(FS****) (A)	1-31829-428-0	01	1	0211-
10	RETAINER; PISTON,CLU BOOSTER FTS ALL(FT****) (B)	1-31829-107-0	01	1	0211-
10	RETAINER; PISTON,CLU BOOSTER FTS ALL(FT****) (A)	1-31829-108-0	01	1	0211-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0211-
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	0211-
13	PIN; SPR	1-31829-109-0	01	1	0211-
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0211-0307
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0308-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0211-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0211-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0211-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0211-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0211-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0211-
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0211-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0211-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0211-
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0211-
24	ROD; PUSH,CLU BOOSTER FSS ALL(FS****)	1-31829-340-0	01	1	0211-
24	ROD; PUSH,CLU BOOSTER FTS ALL(FT****)	1-31829-112-0	01	1	0211-
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0211-
26	PISTON; SHELL,CLU BOOSTER	1-31821-083-0	01	1	0211-
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0211-
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0211-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0211-
30	SHELL; CYL,CLU BOOSTER	1-31811-123-0	01	1	0211-
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0211-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0211-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-212-0	01	1	0211-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0211-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0211-
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0211-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-089-0	01	1	0211-0307
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-138-0	01	1	0308-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0211-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0211-1412
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	0211-
42	GASKET; FITTING,CLU BOOSTER FSS ALL(FS****)	1-31829-123-0	01	1	0211-
42	GASKET; FITTING,CLU BOOSTER FTS ALL(FT****)	1-31829-143-0	01	1	0211-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0211-
44	PISTON; UPR VLV,CLU BOOSTER FSS ALL(FS****)	1-31821-019-0	01	1	0211-0307
44	PISTON; UPR VLV,CLU BOOSTER FSS ALL(FS****)	1-31821-089-0	01	1	0308-
44	PISTON; UPR VLV,CLU BOOSTER FTS ALL(FT****)	1-31821-029-0	01	1	0211-0307
44	PISTON; UPR VLV,CLU BOOSTER FTS ALL(FT****)	1-31821-087-0	01	1	0308-
45	PLATE; END,CLU BOOSTER FSS ALL(FS****)	1-31811-062-0	01	1	0211-
45	PLATE; END,CLU BOOSTER FTS ALL(FT****)	1-31811-081-0	01	1	0211-
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	02	1	0211-0307
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0308-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-168-0	01	1	0211-
60	GASKET; SHELL,CLU BOOSTER	1-31829-535-0	01	1	0211-
62	RETAINER; POPPET	1-31829-489-0	01	1	0211-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0211-
107	CONNECTOR; ELBOW	1-09650-358-1	01	1	0211-
127	FILTER; POPPET	1-31829-495-0	01	1	0211-
