Isuzu WW
▶
TRUCKS
▶
NPR
▶
51355 - NPR/NQR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#81219) — 24 parça
Tümü
A - 4HK1-TCN ENG
B - 4JJ1-TCC ENG
◀

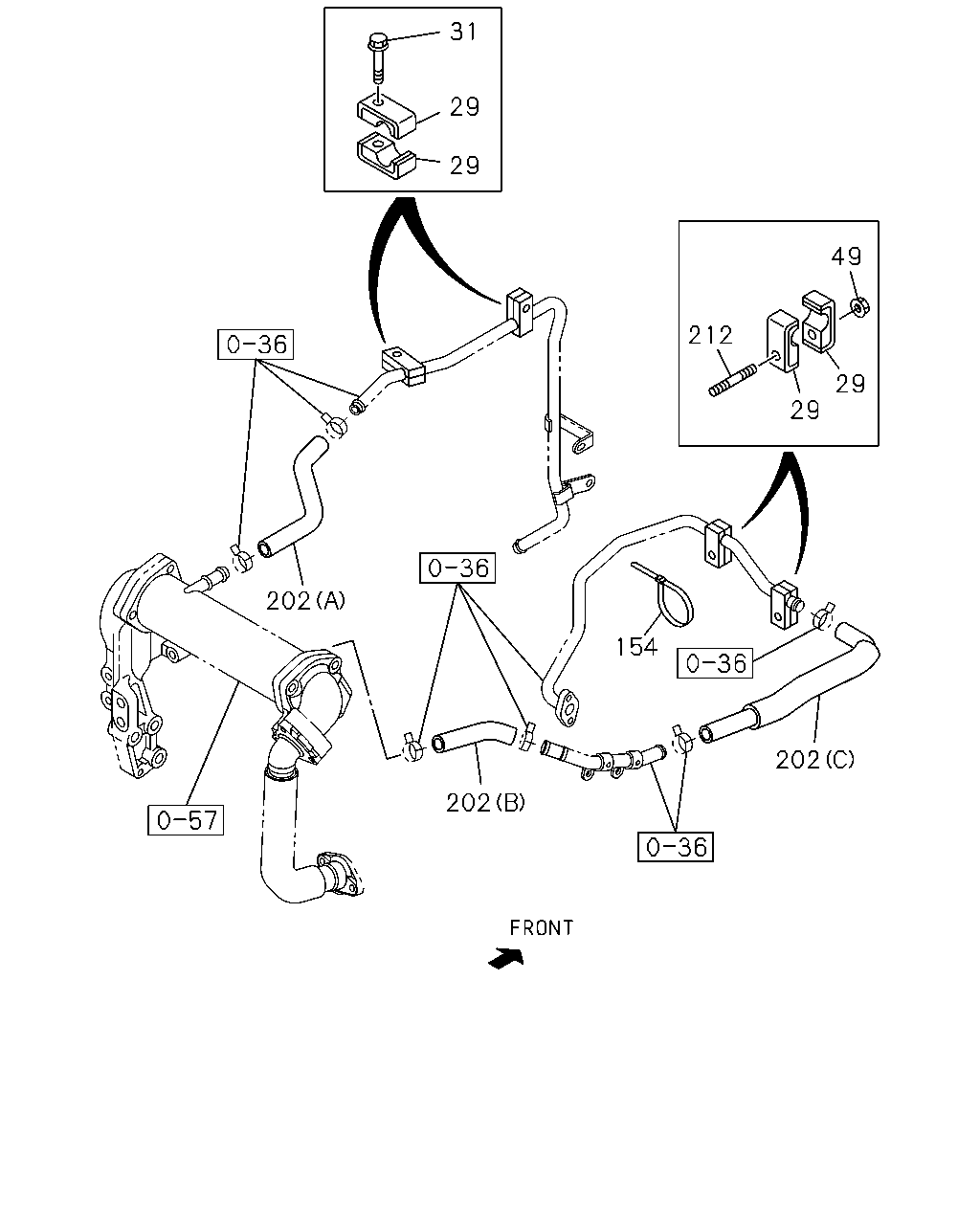

[032A] WATER HOSE,EURO3 SPECIFICATION;4HK1 (8 parça)

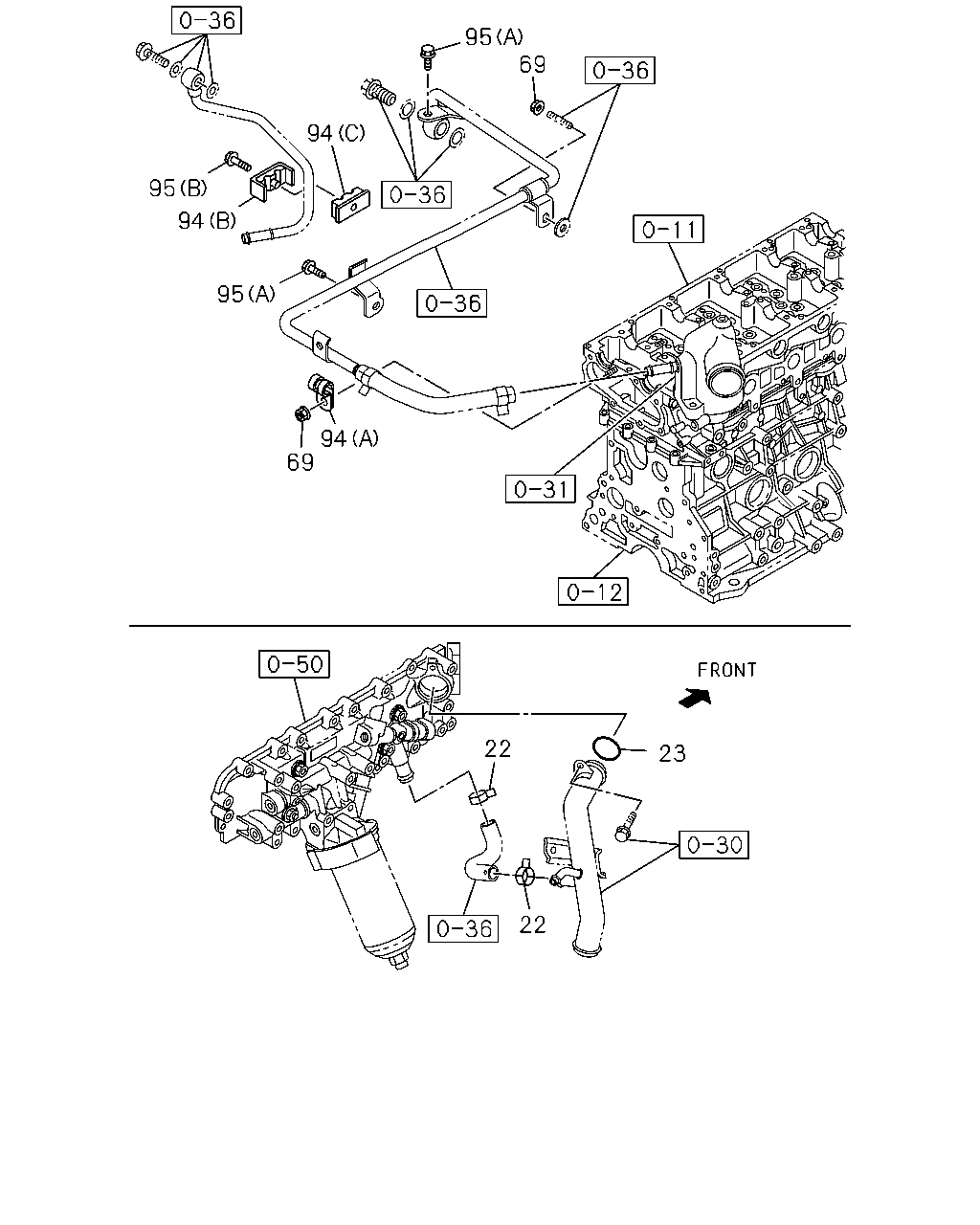

[032A] WATER PIPE AND FIX PARTS;4JJ1 (9 parça)

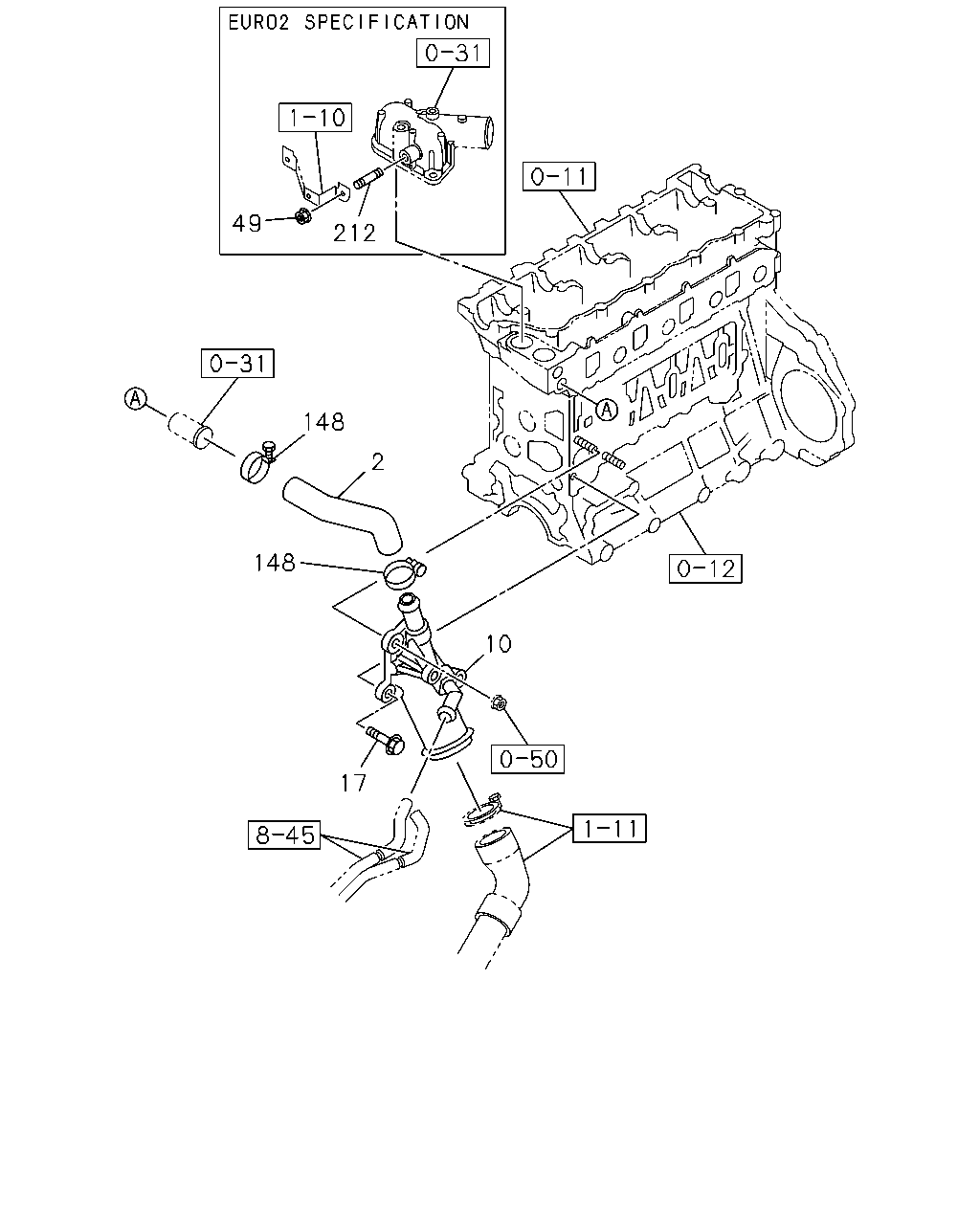

[032A] SUCTION PIPE;4HK1 (7 parça)
▶
49
29
29
212
29
29
31
202
202
154
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
01.166 CLIP; PIPE
EURO3 SPECIFICATION(NT3)
1-09701-284-0
08
1
0803-
●
31
01.159 BOLT; CLIP
EURO3 SPECIFICATION(NT3) 02.277 M8X40 FLANGE
0-28050-840-0
02
1
0803-
●
49
01.153 NUT; WATER PIPE
01.062 M8 FLANGE
0-91180-108-0
02
1
0803-
●
154
01.153 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3) 02.559 L=170.3
1-09987-182-0
01
1
0803-
●
202
01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (A)
8-97386-586-1
01
1
0803-
●
202
01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B)
8-98092-382-0
01
1
0803-
●
202
01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (C)
8-98097-605-1
01
1
0803-
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0803-
●
95
69
94
95
94
95
94
69
22
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
01.153 CLIP; WATER HOSE
08.846 ID=22
8-94382-401-0
02
1
0803-1003
●
22
01.153 CLIP; WATER HOSE
03.278 ID=22
8-97359-141-0
02
1
1004-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
0803-
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
02
1
0803-
●
94
01.153 CLIP; WATER PIPE
04.047 (A)
1-09700-911-1
01
1
0803-
●
94
01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25
1-09701-228-3
01
1
0803-
●
94
01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25
1-09701-229-2
01
1
0803-
●
95
01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE
0-28050-612-0
02
1
0803-
●
95
01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE
0-28650-635-0
01
1
0803-
●
10
17
148
2
148
49
212
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.097 HOSE; WATER,BY-PASS
8-97379-228-1
01
1
0803-
●
10
01.153 PIPE; SUCTION
8-97371-775-1
01
1
0803-1010
●
10
01.153 PIPE; SUCTION
8-98166-991-0
01
1
1011-
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0803-
●
49
01.153 NUT; WATER PIPE
01.062 M8 FLANGE
0-91180-108-0
02
1
0803-
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0803-
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0803-
●
