Isuzu WW
▶
TRUCKS
▶
NPR
▶
51355 - NPR/NQR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#81216) — 23 parça
◀

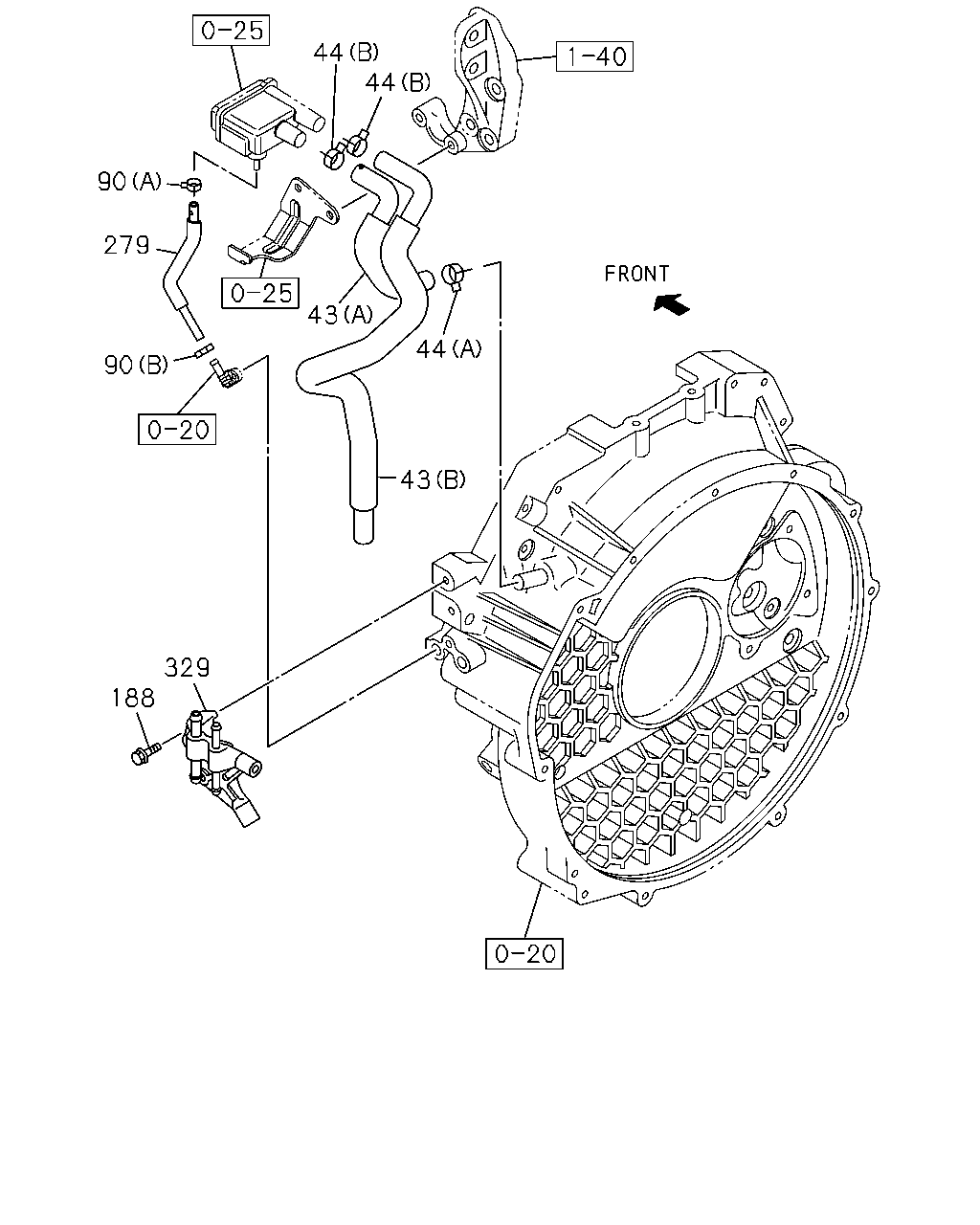

[028A] EURO2 SPECIFICATION;4HK1 (12 parça)

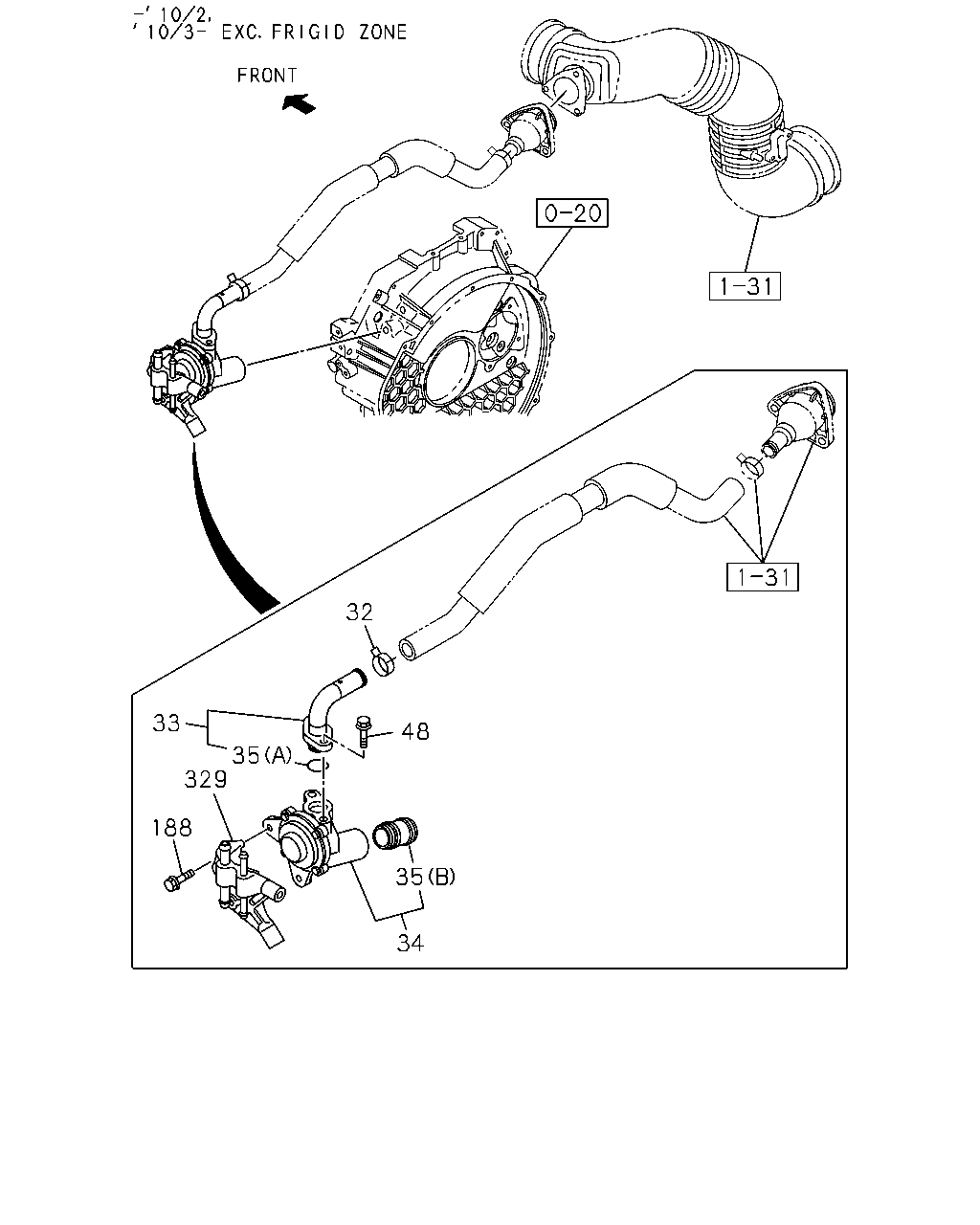

[028A] EURO3 SPECIFICATION;4JJ1 (11 parça)
▶
44
44
90
279
43
44
90
43
329
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (A)
8-98075-187-2
01
1
0803-
43
03.278 HOSE; PCV
EURO2 SPECIFICATION(NT2) (B)
8-98089-567-2
01
1
0803-
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 06.672 (A) ID=21
8-94242-034-0
01
1
0803-
44
03.278 CLIP; HOSE,PCV
EURO2 SPECIFICATION(NT2) 01.252 (B) ID=22.7
8-94466-382-0
02
1
0803-
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 03.163 (A) ID=11
8-94238-570-0
01
1
0803-
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 01.097 (B) ID=11
8-94238-925-0
02
1
0803-1007
90
03.358 CLIP; RUBBER HOSE
EURO2 SPECIFICATION(NT2) 03.162 (B) ID=11.5
8-97138-011-0
02
1
1008-
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
0803-
188
01.780 BOLT; BRKT
EURO3 SPECIFICATION(NT3) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
0803-
279
03.278 HOSE; RUBBER,OIL DRAIN
EURO2 SPECIFICATION(NT2)
8-98075-190-1
01
1
0803-
329
01.750 BRACKET; VENTILATOR
8-98036-160-0
01
1
0803-1009
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1010-
32
33
48
35
329
188
35
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
03.417 CLIP; VENT HOSE
EURO3 SPECIFICATION(NT3) 08.846 ID=21.7
8-97203-074-0
01
1
0803-
33
03.278 PIPE; VENTILATOR
EURO3 SPECIFICATION(NT3)
8-98075-640-1
01
1
0803-
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3)
8-98036-808-1
01
1
0803-1310
34
03.415 VENTILATOR
EURO3 SPECIFICATION(NT3)
8-98245-392-0
01
1
1311-
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) 01.550 (A) ID=17.8
1-09623-588-0
01
1
0803-
35
03.415 GASKET; VENTILATOR
EURO3 SPECIFICATION(NT3) (B)
8-98038-692-0
01
1
0803-
48
03.278 BOLT; PIPE
EURO3 SPECIFICATION(NT3) 09.242 M6X16 FLANGE
0-28050-616-0
02
1
0803-
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
0803-
188
01.780 BOLT; BRKT
EURO3 SPECIFICATION(NT3) 00.206 M8X30 FLANGE
0-28050-830-0
02
1
0803-
329
01.750 BRACKET; VENTILATOR
8-98036-160-0
01
1
0803-1009
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
