9-01 — TOOLS (#81203) — 65 parça

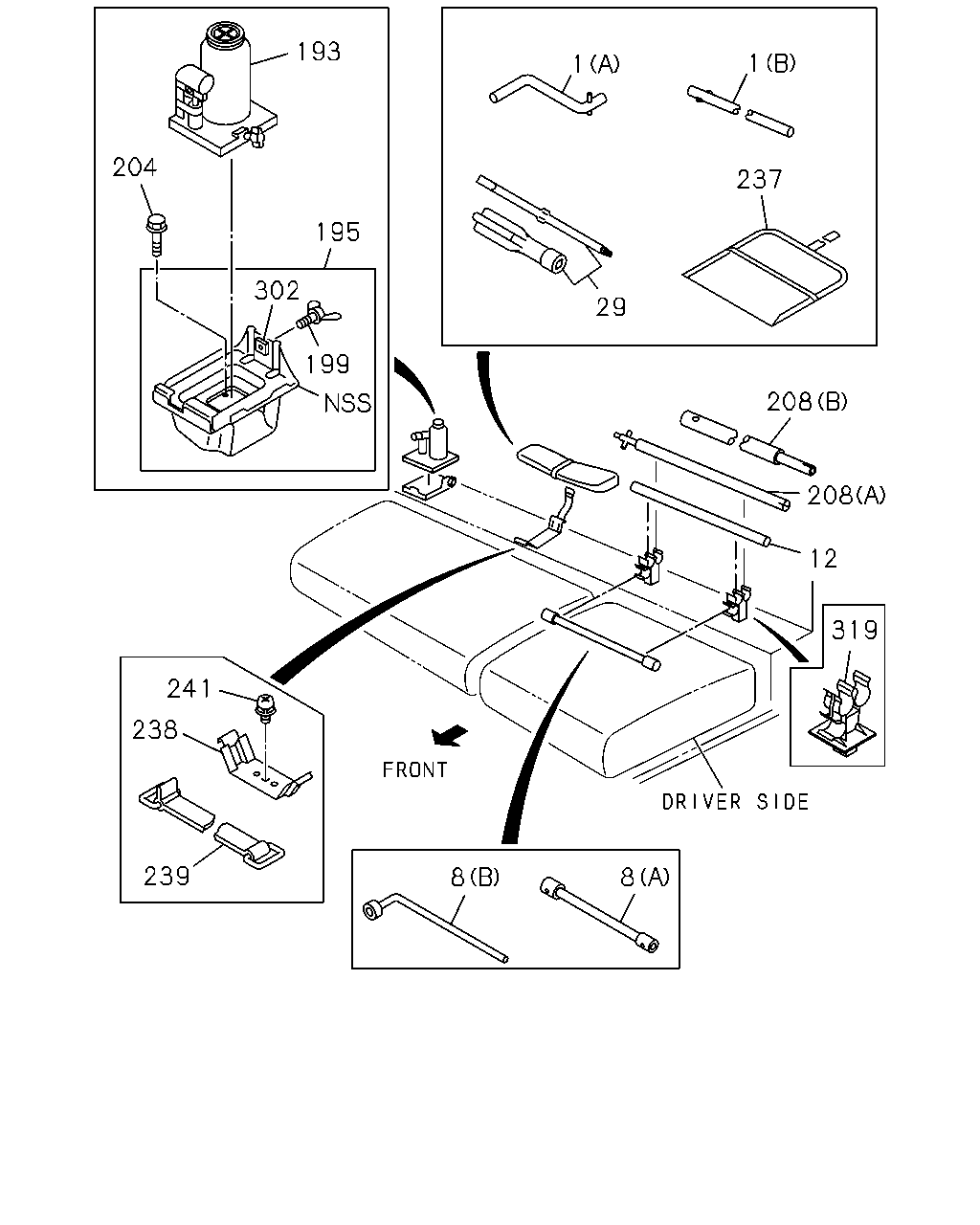

çizim 14599
204 193 195 302 199 1 1 237 29 208 208 12 319 8 8 239 238 241
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1103-1206 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1207- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1207- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 1103-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109-1206 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1207- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1207- ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 1103- ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1103- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1207-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1112-1204 ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1103- ● ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 1109-1206 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 1207-1510 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 1511- ●
193 08.820 JACK ASM
4TON 		8-98090-823-0 01 1 1103-1108 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98090-823-0 01 1 1109-1206 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98090-823-0 01 1 1207-1311 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98239-828-0 01 1 1312-1510 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98239-828-0 01 1 1511- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1103-1108 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1109-1206 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1207-1410 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1411-1510 ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1511- ●
195 08.820 BRACKET; JACK 8-97589-376-2 01 1 1103- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1103- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1103- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1103- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1103- ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1103-1108 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109-1206 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1207- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1207- ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 1103-1108 ●
208 08.820 HANDLE; JACK
(B) L=580 		8-98181-249-0 01 1 1109-1206 ●
208 08.820 HANDLE; JACK
EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1207- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1207- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1103- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1103- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1103- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1103- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1103- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1103- ● ●

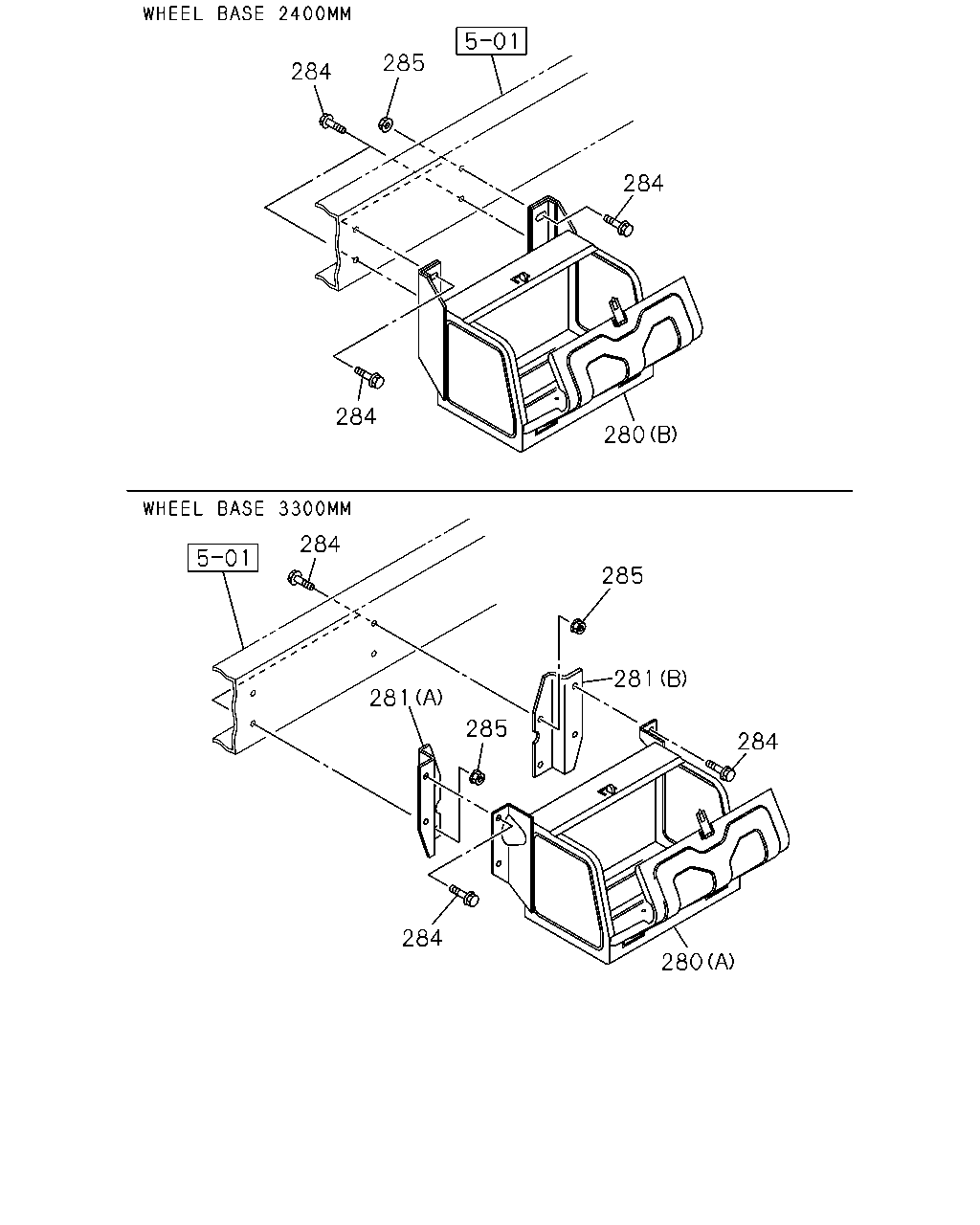

çizim 14635
284 285 284 280 284 284 285 281 284 280 284 285 281
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (B) 		8-98054-885-0 01 1 1109-1206 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (B) 		8-98054-885-0 01 1 1207- ●
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (B) 		8-98054-885-0 01 1 1207- ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97384-079-0 01 1 1103-1206 ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-97384-079-0 01 1 1207- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1103-1206 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1207- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1103-1206 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1207- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1103-1108 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1103-1108 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1109-1206 ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1109-1206 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1207- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1207- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1109-1206 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1207- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1207- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1103-1206 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1207- ●
