Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#8120) — 262 parça

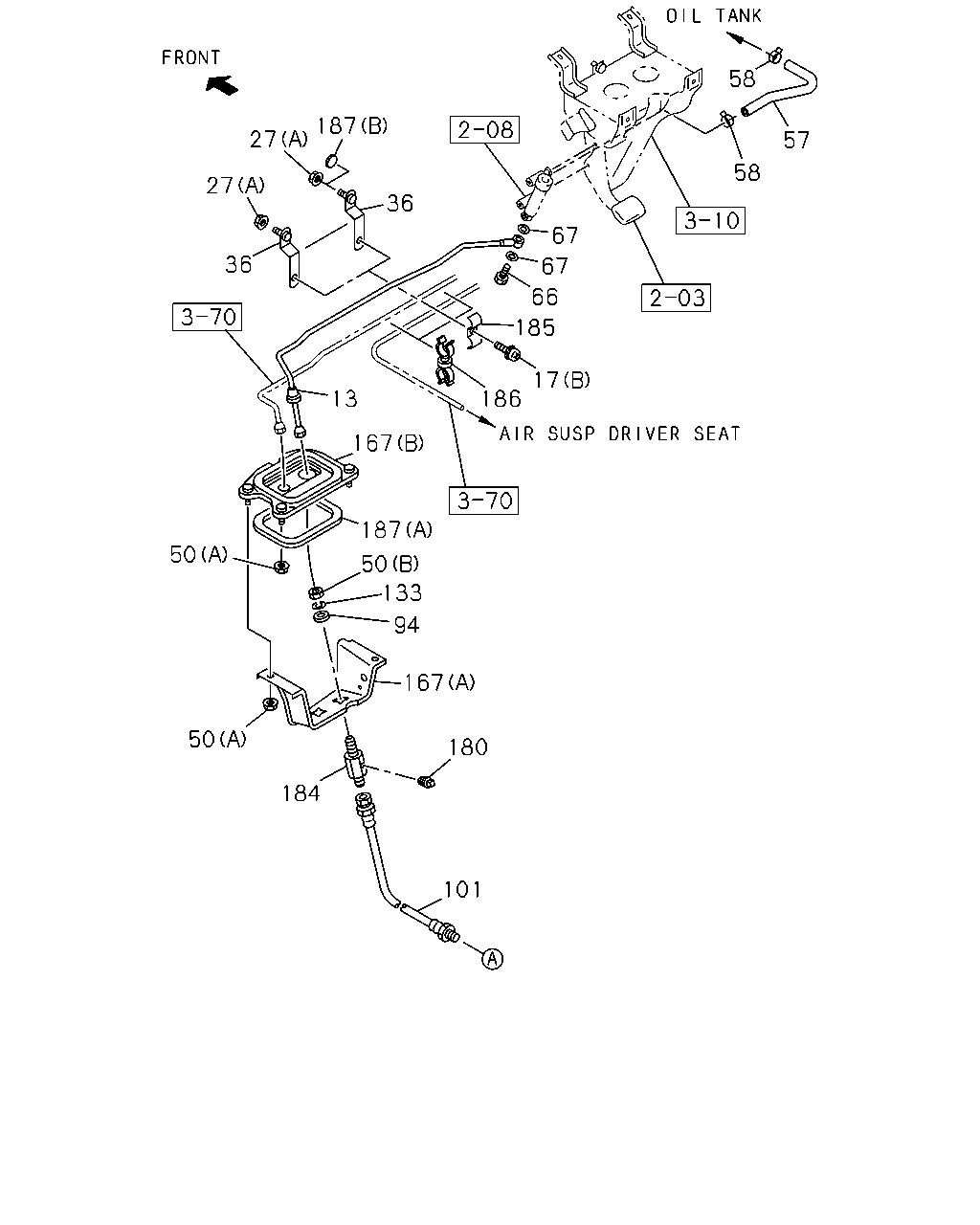

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0210	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0211-				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
17	BOLT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0104	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0210	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-				●
17	BOLT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0104	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-				●
27	NUT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0104	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-0210	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-				●
27	NUT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0104	●	●	●
36	BRACKET; CLIP DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0005-0104	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0105-0210	●	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0211-				●
36	BRACKET; CLIP EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0005-0104	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-				●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0211-0512				●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-				●
50	NUT; UNION FTS ALL(FT****) (C) M12	9-09840-280-0	01	1	0211-0405				●
50	NUT; UNION FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0406-				●
50	NUT; UNION FTS ALL(FT****) (C) M12	9-09840-280-0	01	1	0406-				●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0210	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0211-				●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0210	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0211-				●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0210	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0211-0805				●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-				●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312				●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0210	●	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0211-0605				●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0211-0703				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-				●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0210	●	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0211-0603				●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-				●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0210	●	●	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0211-				●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	0005-0210	●	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0211-				●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0210	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0211-0804				●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0005-0210	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0211-0804				●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-				●
185	CLIP; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0005-0104	●	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0105-0210	●	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0211-				●
185	CLIP; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0005-0104	●	●	●
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0005-0104	●	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0105-0210	●	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0211-				●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0210	●	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0211-				●
187	SEAL; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0104	●	●	●

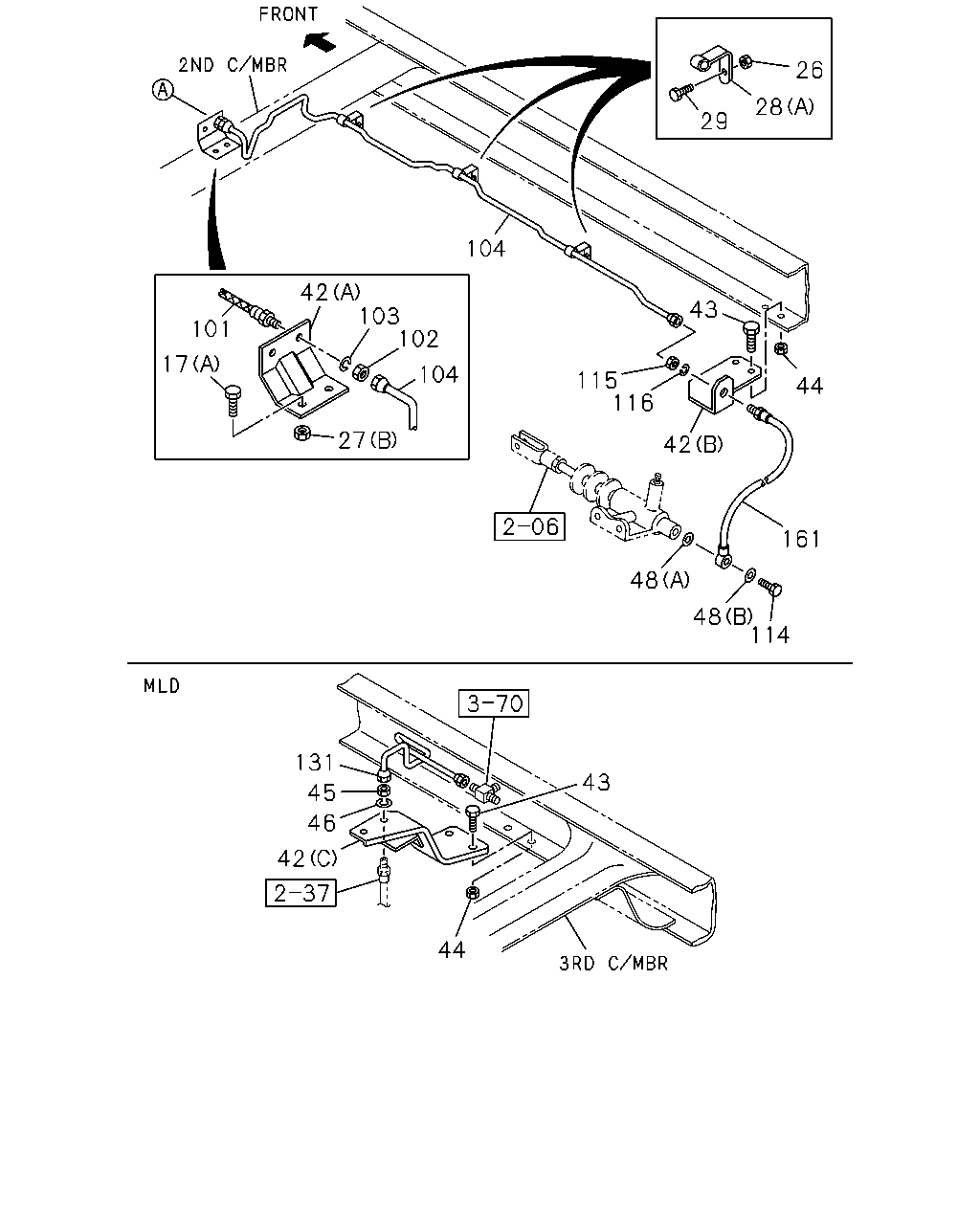

26 28 29 104 42 103 102 43 101 17 104 115 116 44 27 42 161 48 48 114 131 43 45 46 42 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
17	BOLT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0104	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0210	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-				●
17	BOLT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0104	●	●	●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0211-0602				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-				●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-				●
27	NUT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0104	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-0210	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-				●
27	NUT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0104	●	●	●
28	CLIP; OIL PIPE FSS ALL(FS****) (C) ID=10 & 10	1-09709-277-1	01	1	0409-				●
28	CLIP; OIL PIPE FSS ALL(FS****) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0210			●
28	CLIP; OIL PIPE FSS ALL(FS****) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0211-				●
28	CLIP; OIL PIPE FTS ALL(FT****) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210			●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210	●	●
28	CLIP; OIL PIPE FTS ALL(FT****) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0211-				●
28	CLIP; OIL PIPE FSS ALL(FS****) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0211-				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0005-0210			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0005-0210	●	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0211-0512				●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28650-825-0	03	1	0601-				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X40 FLANGE	0-28080-840-0	01	1	0211-0512				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X40 FLANGE	0-28050-840-0	01	1	0601-				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-640-0	01	1	0005-0210	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	0211-				●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	0005-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0210			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0512				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	04	1	0005-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0005-0210	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0211-				●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0005-0210	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0211-0603				●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-				●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-0210	●	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0211-				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=14.2	9-09851-004-0	01	1	0005-0210	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0211-0703				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-				●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512				●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=2651 SERVICED BY L=2700	1-47426-483-0	01	1	0005-0210			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=3207 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0408			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=3211 SERVICED BY L=3300	1-47426-398-0	01	1	0409-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS ALL(FT****) L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS ALL(FT****) L=3186 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0304				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS ALL(FT****) L=3200 SERVICED BY L=3300	1-47426-398-0	01	1	0305-				●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0005-0210	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-				●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49117-605-0	01	1	0005-0210	●	●
131	PIPE; AIR,UNION TO FLEX HOSE FSS ALL(FS****)	1-49123-500-0	01	1	0211-				●
131	PIPE; AIR,UNION TO FLEX HOSE FTS ALL(FT****)	1-49123-711-0	01	1	0211-				●
161	HOSE; FLEX,SLAVE CYL ENGINE REAR PTO(SV1) L=380	0-05567-380-0	01	1	0005-0210	●	●	●	●
161	HOSE; FLEX,SLAVE CYL EXC. ENGINE REAR PTO(SV1) L=310	0-05567-310-0	01	1	0005-0210	●	●	●	●

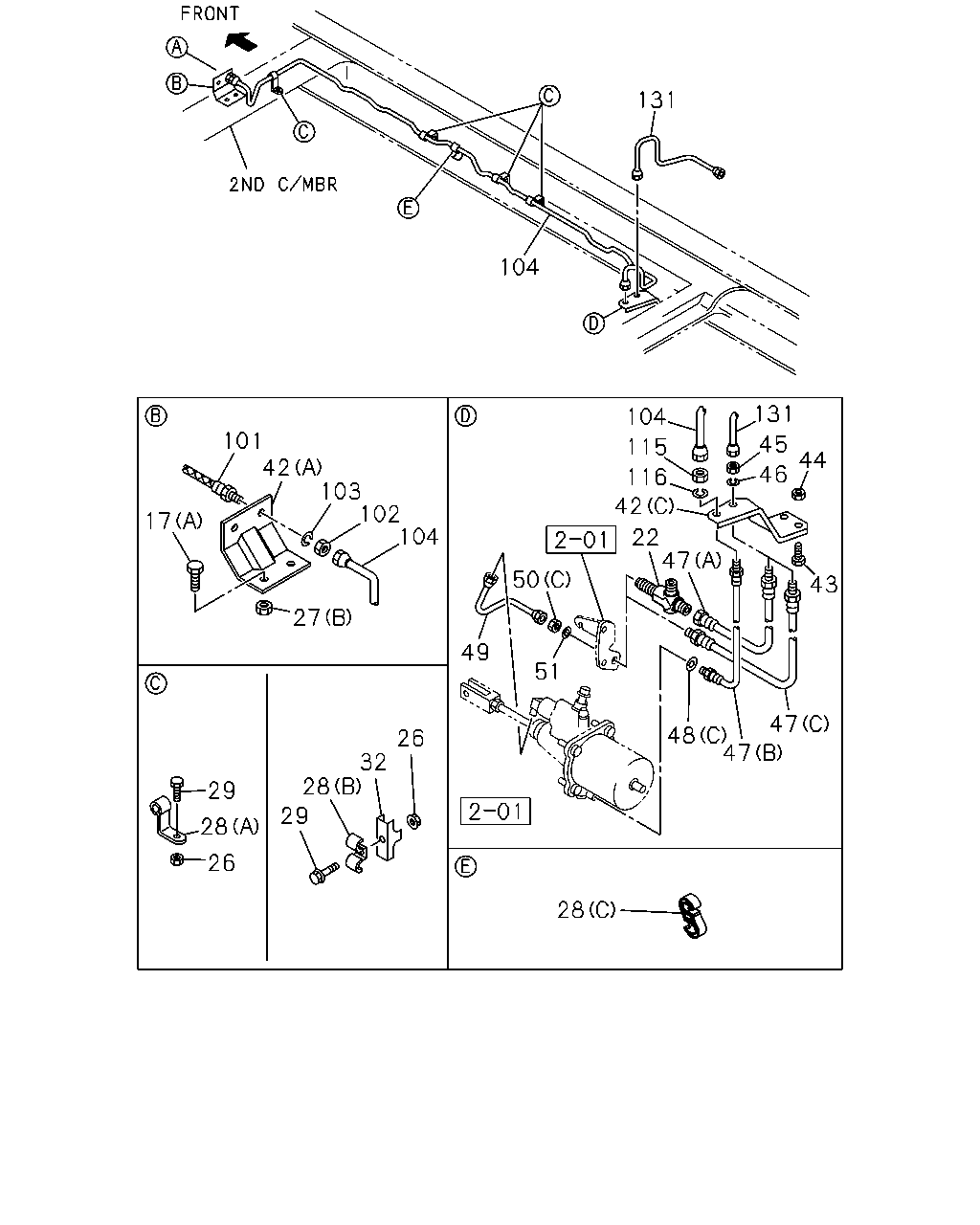

131 104 131 104 101 42 45 115 44 103 102 104 46 116 42 17 22 47 50 43 27 49 51 47 48 47 26 32 28 29 29 28 26 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512				●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
17	BOLT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0104	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0210	●	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-				●
17	BOLT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0104	●	●	●
22	UNION; CLU PIPE FTS ALL(FT****) M12 3WAY	9-09228-706-1	01	1	0211-0405				●
22	UNION; CLU PIPE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0406-0607				●
22	UNION; CLU PIPE FTS ALL(FT****) M12 3WAY	9-09228-706-1	01	1	0406-0607				●
22	UNION; CLU PIPE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-				●
22	UNION; CLU PIPE FTS ALL(FT****) M12 3WAY	0-92138-706-0	01	1	0608-				●
26	NUT; CLIP,OIL PIPE FSS ALL(FS****) M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0211-0602				●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-				●
26	NUT; CLIP,OIL PIPE FTS ALL(FT****) M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-				●
27	NUT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0104	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-0210	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-				●
27	NUT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0104	●	●	●
28	CLIP; OIL PIPE FSS ALL(FS****) (C) ID=10 & 10	1-09709-277-1	01	1	0409-				●
28	CLIP; OIL PIPE FSS ALL(FS****) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0210			●
28	CLIP; OIL PIPE FSS ALL(FS****) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0211-				●
28	CLIP; OIL PIPE FTS ALL(FT****) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210			●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210	●	●
28	CLIP; OIL PIPE FTS ALL(FT****) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0211-				●
28	CLIP; OIL PIPE FSS ALL(FS****) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0211-				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0005-0210			●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	0005-0210	●	●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	03	1	0211-0512				●
29	BOLT; CLIP,OIL PIPE FTS ALL(FT****) M8X25 FLANGE	0-28650-825-0	03	1	0601-				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X40 FLANGE	0-28080-840-0	01	1	0211-0512				●
29	BOLT; CLIP,OIL PIPE FSS ALL(FS****) M8X40 FLANGE	0-28050-840-0	01	1	0601-				●
32	BRACKET; CLIP OIL PIPE FSS ALL(FS****)	1-47475-427-1	01	1	0211-				●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-				●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-640-0	01	1	0005-0210	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	0211-				●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-357-0	01	1	0005-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0210			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0512				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	04	1	0005-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0005-0210	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0211-				●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0005-0210	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0211-0603				●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-				●
47	HOSE; FLEX,CLU CONT ENGINE REAR PTO(SV1) (B) L=350	1-09364-446-0	01	1	0211-				●
47	HOSE; FLEX,CLU CONT EXC. ENGINE REAR PTO(SV1) (B) L=390	1-09364-475-0	01	1	0211-				●
47	HOSE; FLEX,CLU CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) (C) L=350	1-09363-651-0	01	1	0211-0405				●
47	HOSE; FLEX,CLU CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=350	1-09363-651-0	01	1	0406-				●
47	HOSE; FLEX,CLU CONT FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (C) L=390	1-09363-629-0	01	1	0211-0405				●
47	HOSE; FLEX,CLU CONT FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> (C) L=390	1-09363-629-0	01	1	0406-				●
47	HOSE; FLEX,CLU CONT FTS ALL(FT****) ENGINE REAR PTO(SV1) (A) L=300	1-09363-608-0	01	1	0211-0405				●
47	HOSE; FLEX,CLU CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) ASSISTOR SHIFT CONTROL<WX8> (A) L=300	1-09363-608-0	01	1	0406-				●
47	HOSE; FLEX,CLU CONT FTS ALL(FT****) ENGINE REAR PTO(SV1) (A) L=300	1-09363-608-0	01	1	0406-				●
47	HOSE; FLEX,CLU CONT FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (A) L=340	1-09363-622-0	01	1	0211-0405				●
47	HOSE; FLEX,CLU CONT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) (A) L=340	1-09363-622-0	01	1	0406-				●
47	HOSE; FLEX,CLU CONT FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (A) L=340	1-09363-622-0	01	1	0406-				●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-0210	●	●	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0211-				●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=14.2	9-09851-004-0	01	1	0005-0210	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FTS ALL(FT****) L=204	1-49117-400-0	01	1	0211-0405				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=204	1-49117-400-0	01	1	0406-				●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210	●	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-				●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210	●	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0211-0512				●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-				●
50	NUT; UNION FTS ALL(FT****) (C) M12	9-09840-280-0	01	1	0211-0405				●
50	NUT; UNION FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0406-				●
50	NUT; UNION FTS ALL(FT****) (C) M12	9-09840-280-0	01	1	0406-				●
51	WASHER; LK FTS ALL(FT****) ID=12.2	9-09150-512-0	01	1	0211-0405				●
51	WASHER; LK FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0406-0603				●
51	WASHER; LK FTS ALL(FT****) ID=12.2	9-09150-512-0	01	1	0406-0603				●
51	WASHER; LK FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-				●
51	WASHER; LK FTS ALL(FT****) ID=12.2	0-91510-512-0	01	1	0604-				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0211-0703				●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-				●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512				●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603				●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=2651 SERVICED BY L=2700	1-47426-483-0	01	1	0005-0210			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=3207 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0408			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FSS ALL(FS****) L=3211 SERVICED BY L=3300	1-47426-398-0	01	1	0409-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS ALL(FT****) L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2561 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS ALL(FT****) L=3186 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0304				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FTS ALL(FT****) L=3200 SERVICED BY L=3300	1-47426-398-0	01	1	0305-				●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-				●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49117-605-0	01	1	0005-0210	●	●
131	PIPE; AIR,UNION TO FLEX HOSE FSS ALL(FS****)	1-49123-500-0	01	1	0211-				●
131	PIPE; AIR,UNION TO FLEX HOSE FTS ALL(FT****)	1-49123-711-0	01	1	0211-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
