8-52 — PIPING; AIR CONDITIONING
(#81195) — 36 parça
Tümü
A - NMR6SE
B - NMR6SN
◀

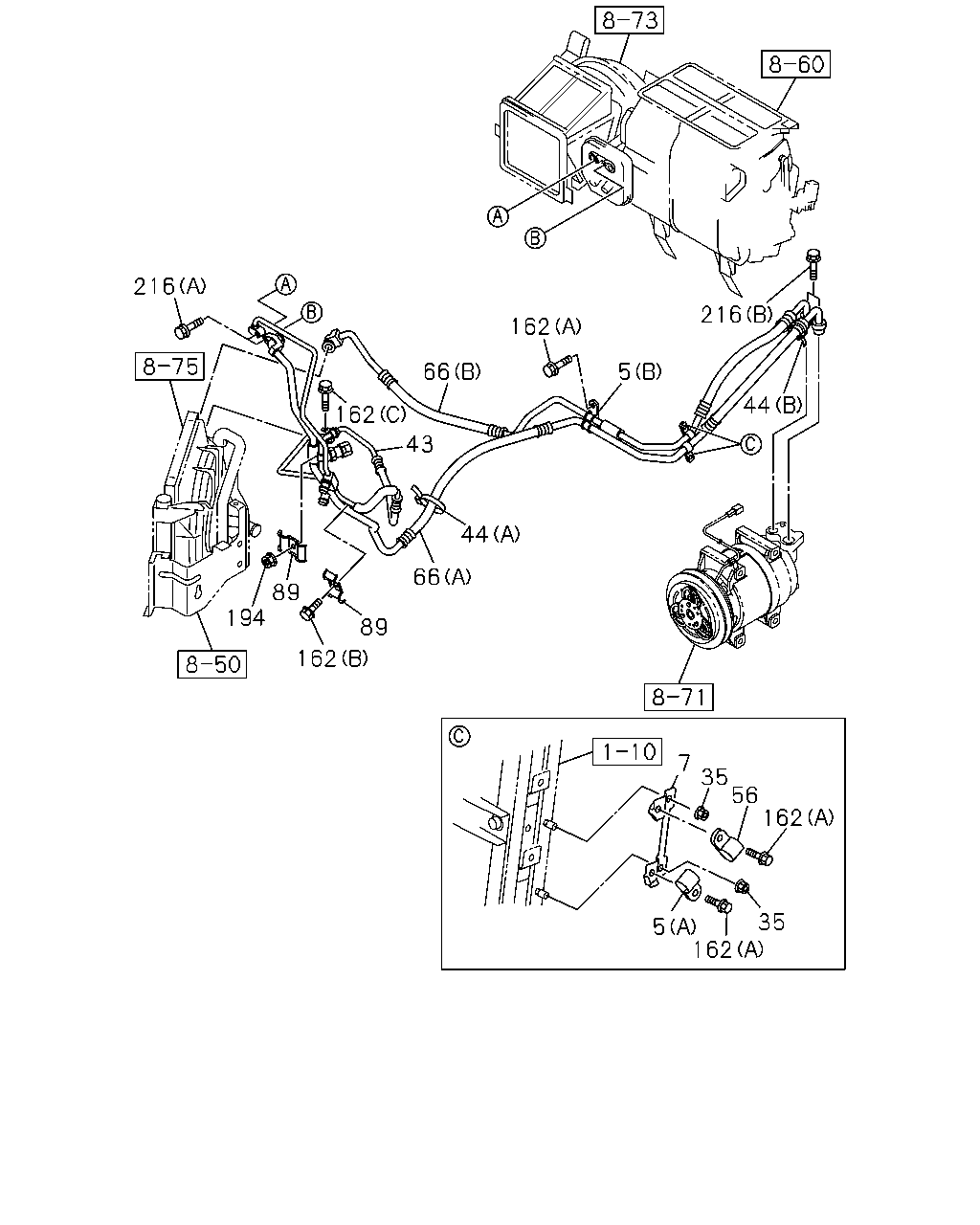

[852A] PIPING (20 parça)
[852A] COMPONENT (16 parça)
▶
162
35
5
162
56
35
7
162
194
89
89
66
44
43
162
66
162
5
44
216
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
09.242 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) ID=16 L=20
0-95235-532-0
01
1
1103-1311
●
●
5
09.242 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98052-857-0
01
1
1103-
●
●
7
09.242 BRACKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97388-130-1
01
1
1103-
●
●
35
09.242 NUT; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE
0-91180-106-0
02
1
1103-
●
●
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60)
8-98119-005-1
01
1
1103-
●
●
44
09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250
5-09707-030-1
01
1
1103-
●
●
44
09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250
5-09707-030-1
01
1
1103-
●
●
44
09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140
5-09707-031-1
01
1
1103-
●
●
56
09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=13 H=12 L=20
8-98038-485-0
01
1
1103-1311
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98159-998-0
01
1
1103-1311
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98248-641-0
01
1
1312-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98178-840-0
01
1
1103-1311
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98248-637-0
01
1
1312-
●
●
89
09.242 BRACKET; A/C PIPE
AIR CONDITIONER MANUAL CONT(C60)
8-98151-264-0
02
1
1103-
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE
0-28050-612-0
03
1
1103-
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE
0-28650-620-0
01
1
1103-
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE
0-28650-625-0
03
1
1103-
●
●
194
09.242 NUT; HOSE
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE
0-91180-106-0
01
1
1103-
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 03.680 (A) M6X30 FLANGE
0-28650-630-0
02
1
1103-
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE
0-28650-825-0
02
1
1103-
●
●
43
50
50
202
148
147
67
148
147
66
49
67
66
67
67
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60)
8-98119-005-1
01
1
1103-
●
●
49
09.242 CLAMP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98257-461-0
01
1
1312-
●
●
49
09.242 CLAMP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98257-462-0
01
1
1312-
●
●
50
09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=7.5
1-83539-316-0
02
1
1103-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98159-998-0
01
1
1103-1311
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98248-641-0
01
1
1312-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98178-840-0
01
1
1103-1311
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98248-637-0
01
1
1312-
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) ID=11.7
8-97095-907-0
02
1
1103-
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5
8-97095-908-0
01
1
1103-
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=17.6
8-98036-895-0
01
1
1103-
●
●
147
09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L
1-83539-331-0
01
1
1103-
●
●
147
09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H
8-97095-911-0
01
1
1103-
●
●
148
09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-97095-909-0
01
1
1103-
●
●
148
09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98031-629-0
01
1
1103-
●
●
202
09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60)
1-83564-392-1
01
1
1103-
●
●
