8-50 — AIR CONDITIONING SYSTEM; FRONT (#81194) — 13 parça

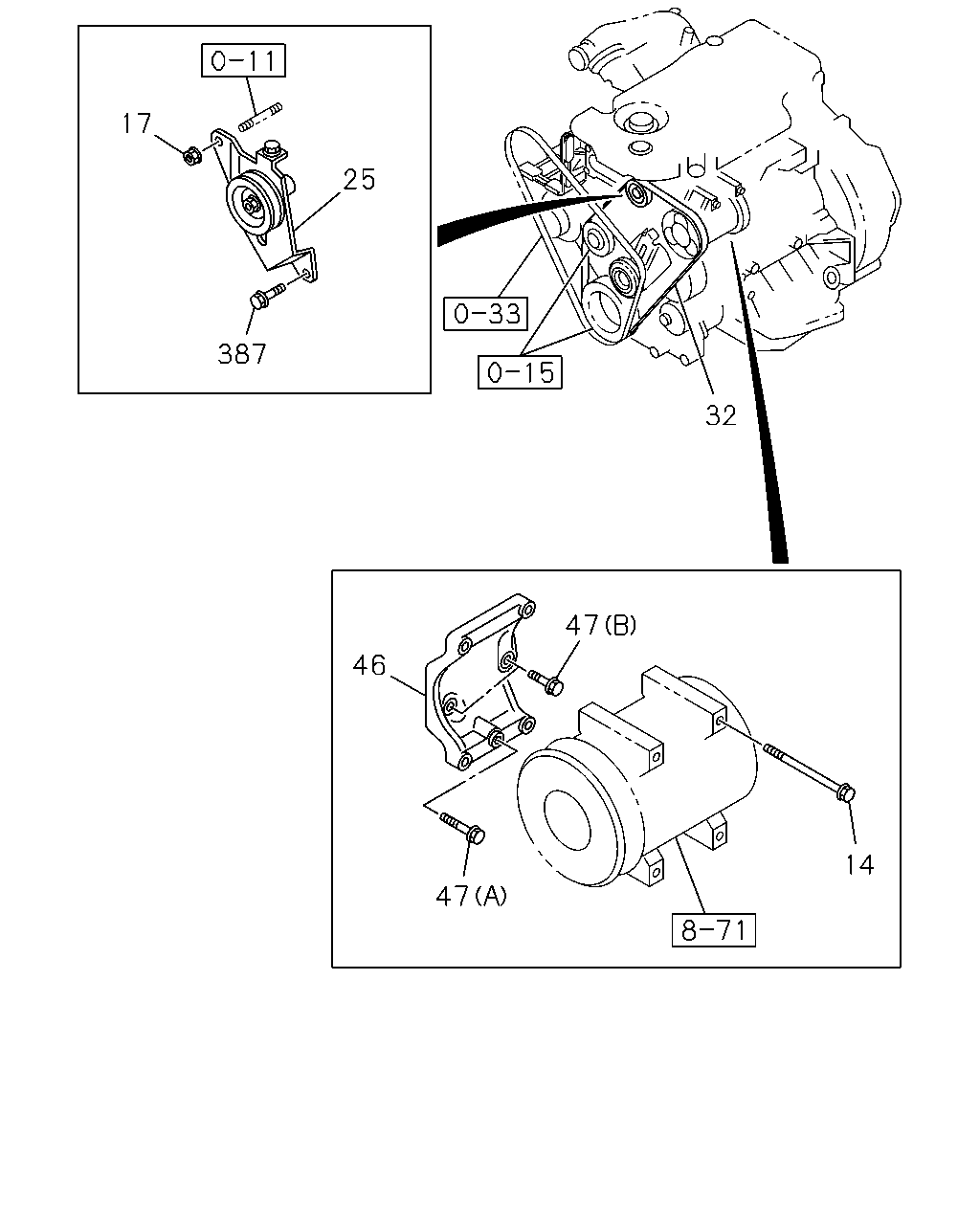

çizim 141233

14 47 46 47 32 387 25 17

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1103-	●	●
	17	09.171 NUT; CMPR AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	1103-	●	●
	25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1103-	●	●
	32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1103-	●	●
	32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1103-	●	●
	46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98037-322-0	01	1	1103-	●	●
	47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE	0-28050-845-0	01	1	1103-	●	●
	47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
	387	09.190 BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●

çizim 191561

70 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98146-844-0	01	1	1103-	●	●
	70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-	●	●

çizim 191563

71 378

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-235-1	01	1	1103-	●	●
	378	09.211 HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98105-819-0	01	1	1103-	●	●
