2-03 — CLUTCH PEDAL AND CONTROL (#8119) — 45 parça

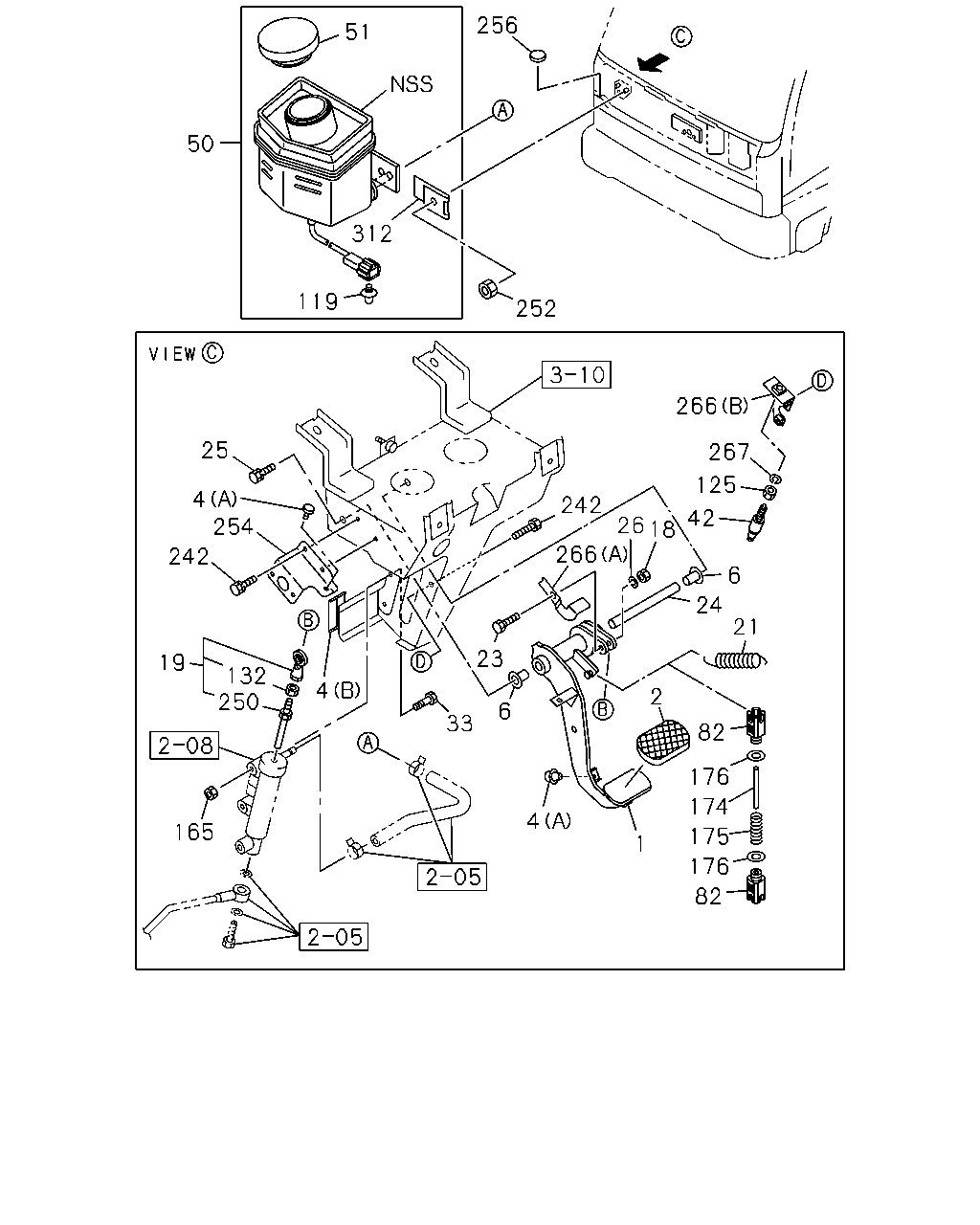

çizim 102928
256 51 50 312 119 252 266 25 267 125 4 254 242 42 26 18 266 242 6 24 21 23 19 132 250 2 4 6 33 82 176 174 4 165 175 1 176 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PEDAL; CLU 1-73908-331-2 01 1 0005-0210 ● ● ● ●
1 PEDAL; CLU 1-73908-171-3 01 1 0211- ● ● ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 0005-0103 ● ● ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104- ● ● ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0005- ● ● ● ●
4 STOPPER; CLU PEDAL
(B) 		1-73908-088-1 01 1 0104-0210 ● ● ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0005- ● ● ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0211- ● ● ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0005-0210 ● ● ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 0005-0210 ● ● ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-1 01 1 0211- ● ● ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0211- ● ● ● ●
23 BOLT; PUSH ROD
M8X35 		0-10960-835-0 01 1 0211- ● ● ● ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 0005-0210 ● ● ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0005- ● ● ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0005- ● ● ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0211- ● ● ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0005-0210 ● ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 0005-0210 ● ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0211-0512 ● ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ● ● ●
42 SWITCH; CLU 1-82440-094-2 01 1 0104- ● ● ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0005- ● ● ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0005- ● ● ● ●
82 CLEVIS; HELPER,CLU PEDAL 1-73998-472-1 02 1 0005-0210 ● ● ● ●
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 0005- ● ● ● ●
125 NUT; CLU SWITCH
M10 		0-91110-510-0 01 1 0211- ● ● ● ●
125 NUT; CLU SWITCH
M10 		9-09110-510-0 01 1 0104-0210 ● ● ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0211- ● ● ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0005-0210 ● ● ● ●
165 NUT; CLU M/CYL
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ● ● ●
174 PIN; STRAIGHT,CLU PEDAL 1-73998-474-0 01 1 0005-0210 ● ● ● ●
175 SPRING; HELPER 1-73908-052-0 01 1 0005-0210 ● ● ● ●
176 SEAT; SPRING 1-09503-114-0 02 1 0104-0210 ● ● ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0005- ● ● ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0005- ● ● ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005- ● ● ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0005- ● ● ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ● ● ●
266 BRACKET; CLU SWITCH
(B) 		1-73908-354-0 01 1 0211- ● ● ● ●
266 BRACKET; CLU SWITCH
(A) 		1-73907-395-1 01 1 0104- ● ● ● ●
266 BRACKET; CLU SWITCH
(B) 		1-73908-354-0 01 1 0104-0210 ● ● ● ●
267 WASHER; LK,CLU SWITCH
ID=10.2 		0-91510-510-0 01 1 0211- ● ● ● ●
267 WASHER; LK,CLU SWITCH
ID=10.2 		9-09150-510-0 01 1 0104-0210 ● ● ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0005- ● ● ● ●
