◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#81189) — 25 parça

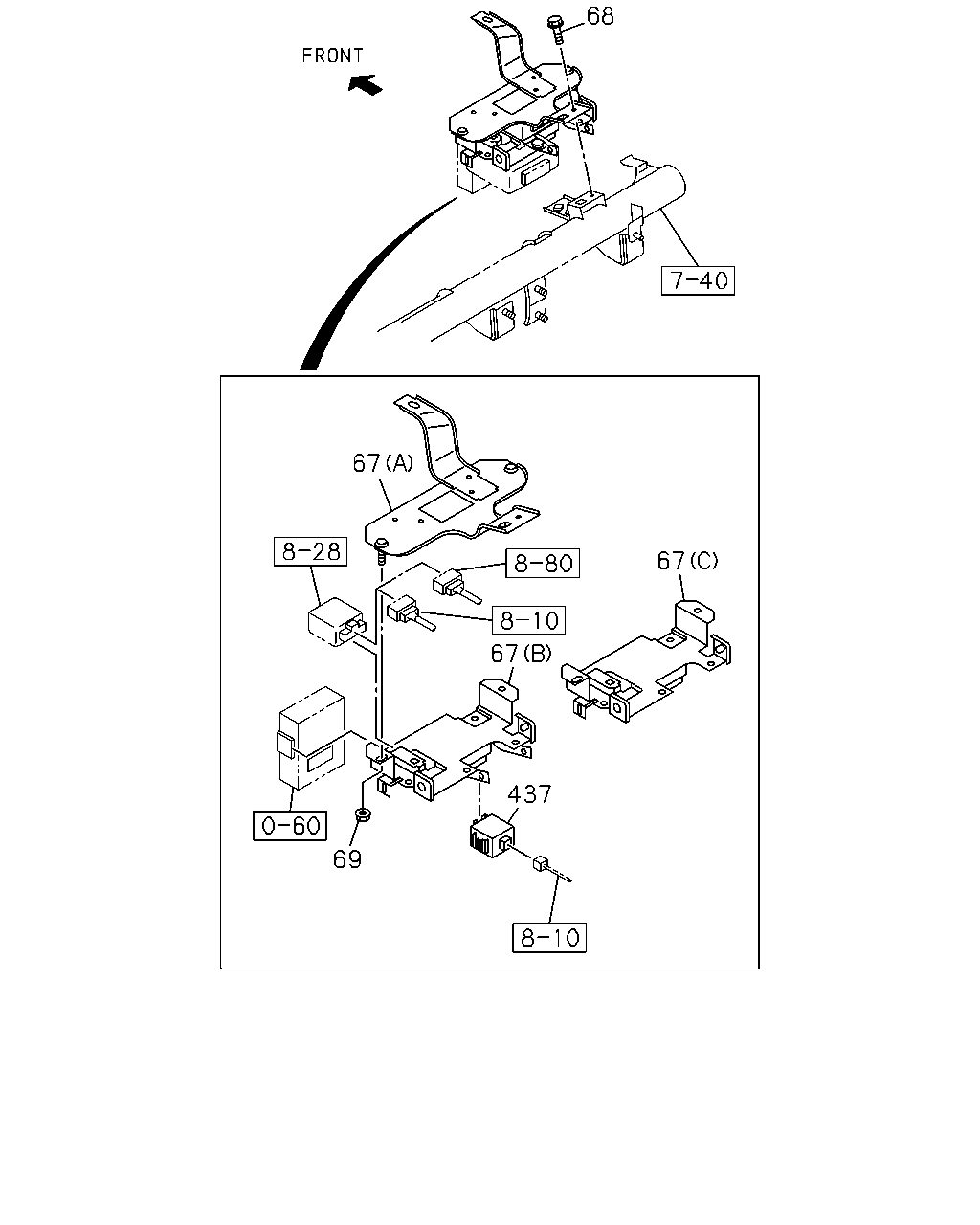

çizim 138113
68 67 69 67 437 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1103-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1103- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1103- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1103- ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1103-1108 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1109- ● ●

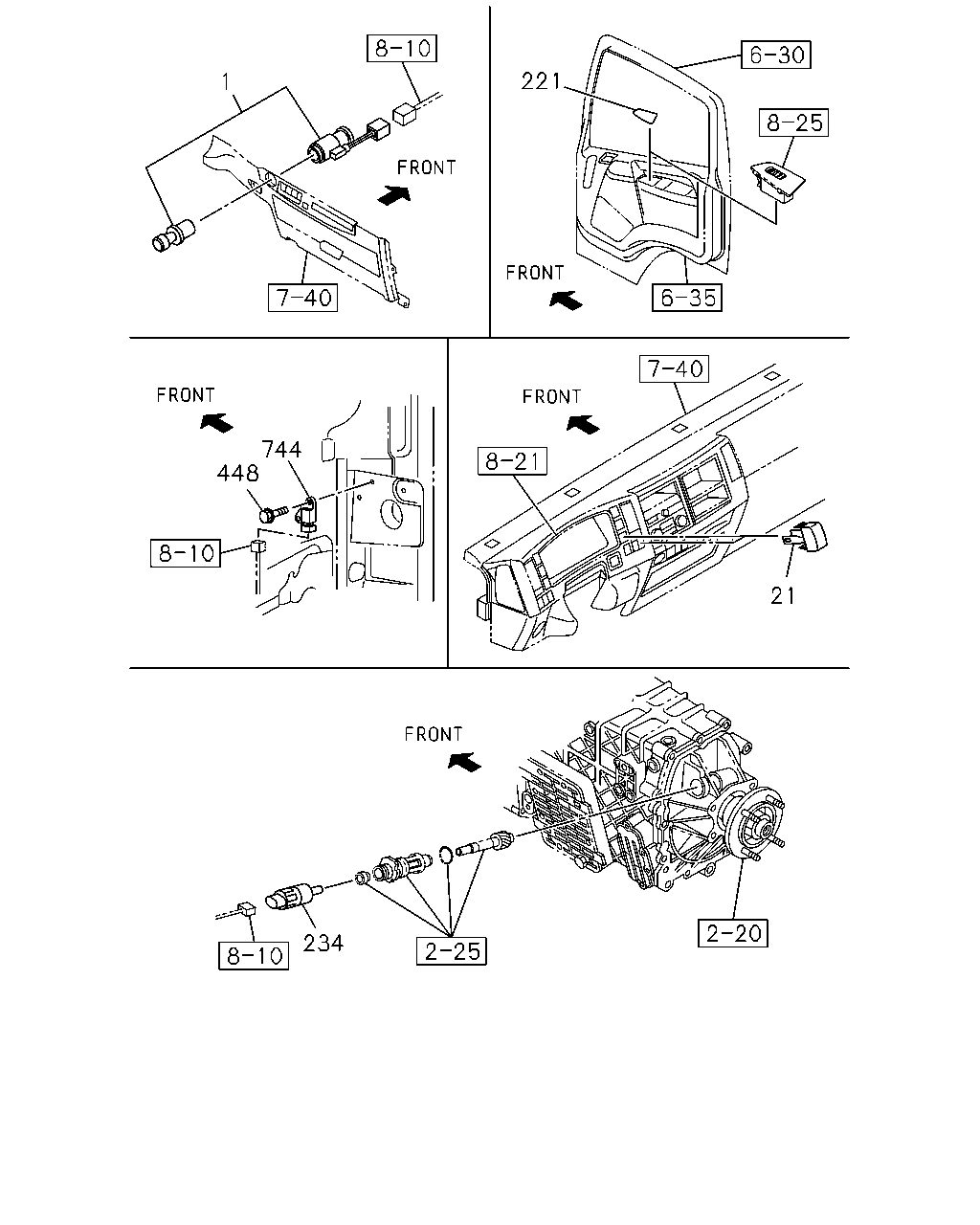

çizim 138120
1 221 744 448 21 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1103- ● ●
21 09.744 COVER; HOLE
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.081 		8-98025-954-1 01 1 1109-1109 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 		8-98025-954-1 01 1 1110-1206 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 		8-98025-954-1 01 1 1207-1412 ● ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) EXC. ARGENTINA COUNTRY(CX1) 16.081 		8-98025-954-1 01 1 1207-1412 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) 16.081 		8-98025-954-1 01 1 1501-1510 ● ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. ARGENTINA COUNTRY(CX1) 16.081 		8-98025-954-1 01 1 1501-1510 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) AZERBAIJAN EQUIPMENT(CX0) 16.081 		8-98025-954-1 01 1 1511- ● ●
21 09.744 COVER; HOLE
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) EXC. AZERBAIJAN EQUIPMENT(CX0) 16.081 		8-98025-954-1 01 1 1511- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1103- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1103- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1103- ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1109- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1103- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1103- ● ●
