8-21 — METER ASM (#81187) — 36 parça

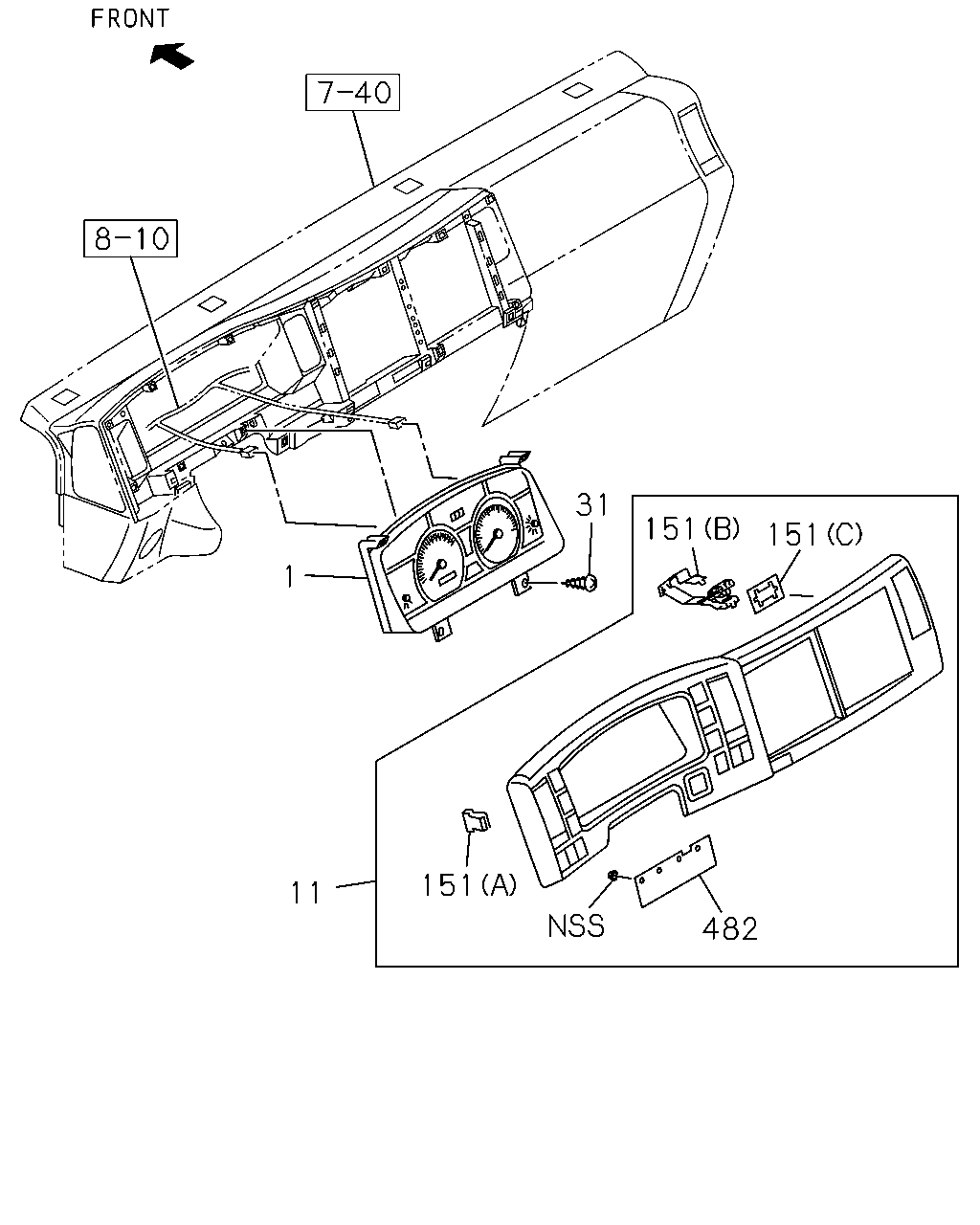

çizim 137801
1 31 151 151 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER 8-98161-295-0 01 1 1103- ● ●
11 09.743 CLUSTER ASM; METER
CHILE EQUIPMENT(KE1) DARK GRAY 		8-97406-005-6 01 1 1109-1206 ● ●
11 09.743 CLUSTER ASM; METER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) DARK GRAY 		8-97406-005-6 01 1 1207-1501 ● ●
11 09.743 CLUSTER ASM; METER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) DARK GRAY 		8-97406-005-6 01 1 1502-1504 ●
11 09.743 CLUSTER ASM; METER
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) DARK GRAY 		8-97406-005-6 01 1 1502-1504 ●
11 09.743 CLUSTER ASM; METER
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DARK GRAY 		8-97406-005-6 01 1 1505- ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-534-1 01 1 1103-1108 ● ●
11 09.743 CLUSTER ASM; METER
RUSSIA EQUIPMENT(B12) DARK GRAY 		8-97418-534-1 01 1 1109-1504 ● ●
11 09.743 CLUSTER ASM; METER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DARK GRAY 		8-97418-534-1 01 1 1505- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1103-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 13 1 1109-1206 ● ●
151 09.747 CLIP; METER CLUSTER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 13 1 1207-1501 ● ●
151 09.747 CLIP; METER CLUSTER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 13 1 1502-1504 ●
151 09.747 CLIP; METER CLUSTER
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 13 1 1502-1504 ●
151 09.747 CLIP; METER CLUSTER
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 13 1 1505- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1103-1108 ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12) 16.085 (A) 		8-98021-271-0 12 1 1109-1504 ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 12 1 1505- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1103-1108 ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12) 16.090 (B) 		8-98152-030-0 01 1 1109-1504 ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.090 (B) 		8-98152-030-0 01 1 1505- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1103-1108 ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12) 16.090 (C) 		8-98152-031-0 01 1 1109-1504 ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.090 (C) 		8-98152-031-0 01 1 1505- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1103-1108 ● ●
482 09.772 SEAL; CLUSTER METER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98116-843-0 01 1 1109-1206 ● ●
482 09.772 SEAL; CLUSTER METER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98116-843-0 01 1 1207-1501 ● ●
482 09.772 SEAL; CLUSTER METER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 		8-98116-843-0 01 1 1502-1504 ●
482 09.772 SEAL; CLUSTER METER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 		8-98116-843-0 01 1 1502-1504 ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1505- ● ●

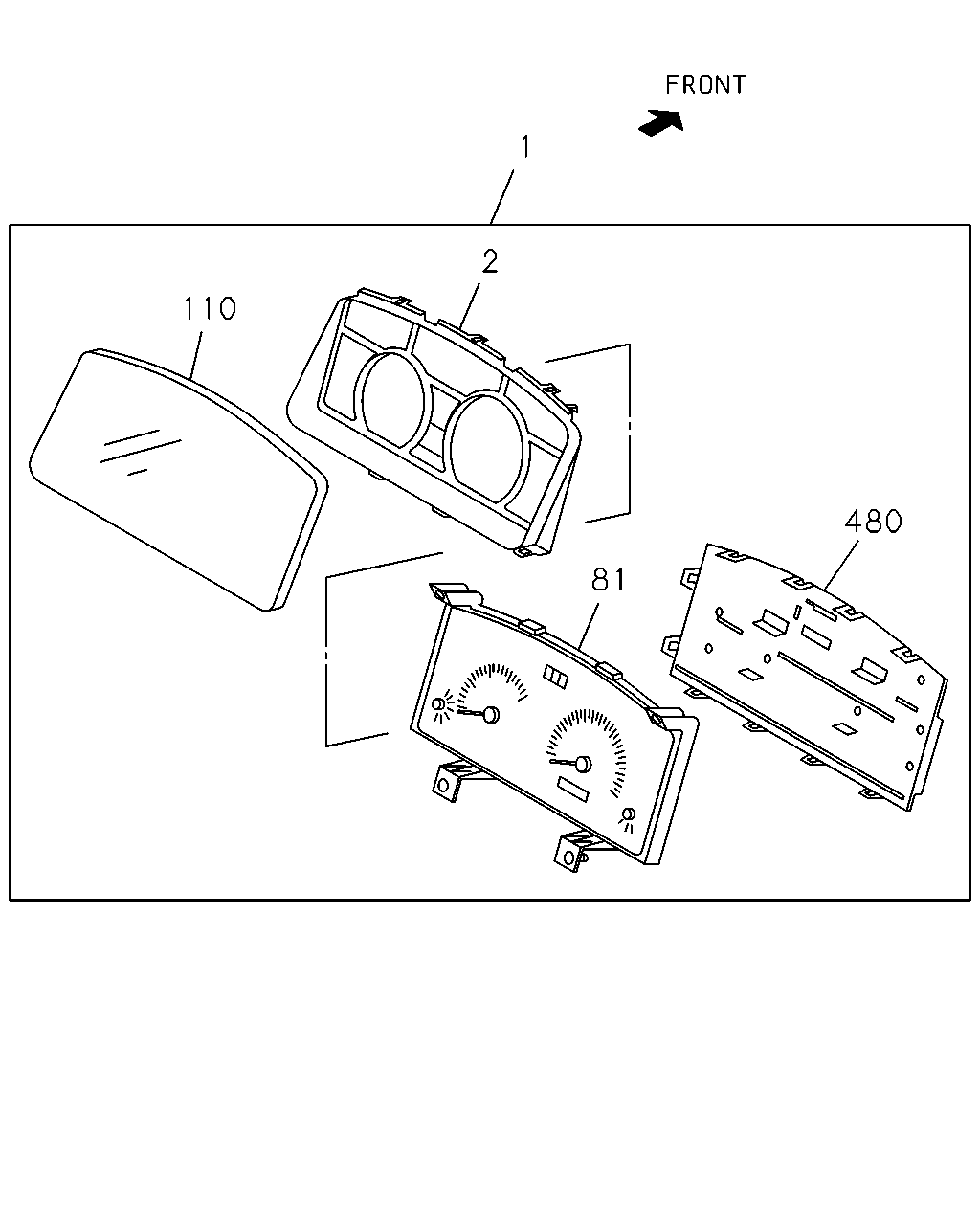

çizim 191556
110 1 2 81 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER 8-98161-295-0 01 1 1103- ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1103- ● ●
81 09.735 METER SUB ASM 8-98176-353-0 01 1 1103- ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1103- ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1103- ● ●
