Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#81186) — 328 parça

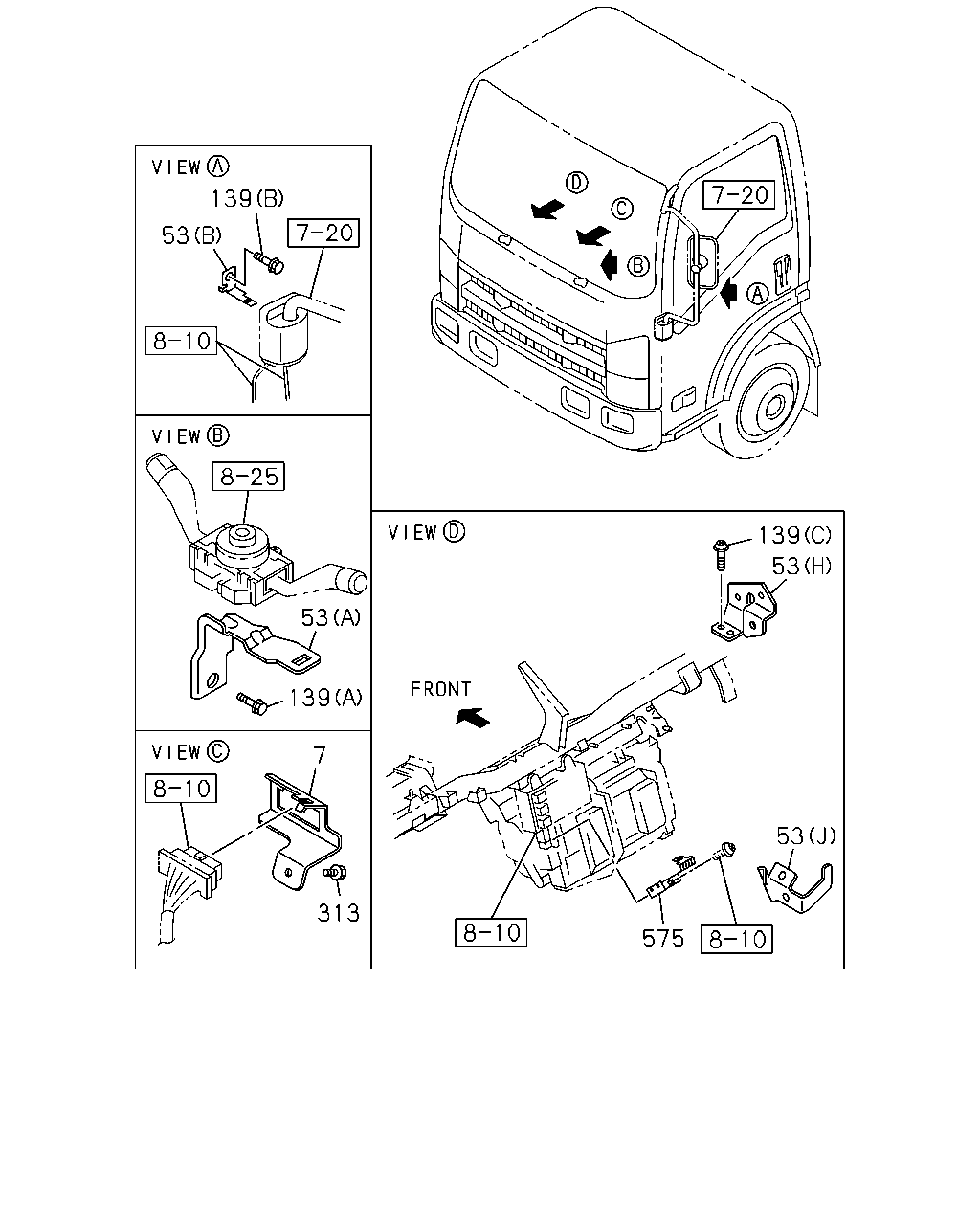

139 53 53 139 7 313 139 53 53 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1103-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1103-1108	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (F)	8-98033-918-2	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1103-1108	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98052-900-1	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	1103-1109	●	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	1110-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98105-778-0	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (E)	8-98105-778-0	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98105-778-0	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (E)	8-98105-778-0	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98105-778-0	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (I)	8-98107-111-1	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (I)	8-98107-111-1	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (I)	8-98107-111-1	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (I)	8-98107-111-1	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (I)	8-98107-111-1	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (K)	8-98171-457-0	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (K)	8-98171-457-0	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (K)	8-98171-457-0	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (K)	8-98171-457-0	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (K)	8-98171-457-0	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (K)	8-98171-457-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (K)	8-98171-457-0	01	1	1310-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1103-1212	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1103-	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-2	01	1	1103-	●	●

516 139 313 480 481 529 38 480 460 480 139 38 516 139 480 386 377 386 377 139 552 515 219 294 515 524 552 24 515 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1107-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1103-1212	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1103-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1103-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1103-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1103-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1103-	●	●
460	02.559 BOLT; HARNESS PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-1108	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1103-1108		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1109-1210	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1109-1210	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1109-1210		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309		●
480	02.483 BOLT; BRKT MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1103-	●	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1103-1108		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1109-1210	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1109-1210		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1211-1309	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1211-1309		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1310-	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1310-		●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1103-1108	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1109-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1103-	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1103-1108		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1103-1108		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-		●
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1103-1109	●	●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1110-	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1103-	●	●

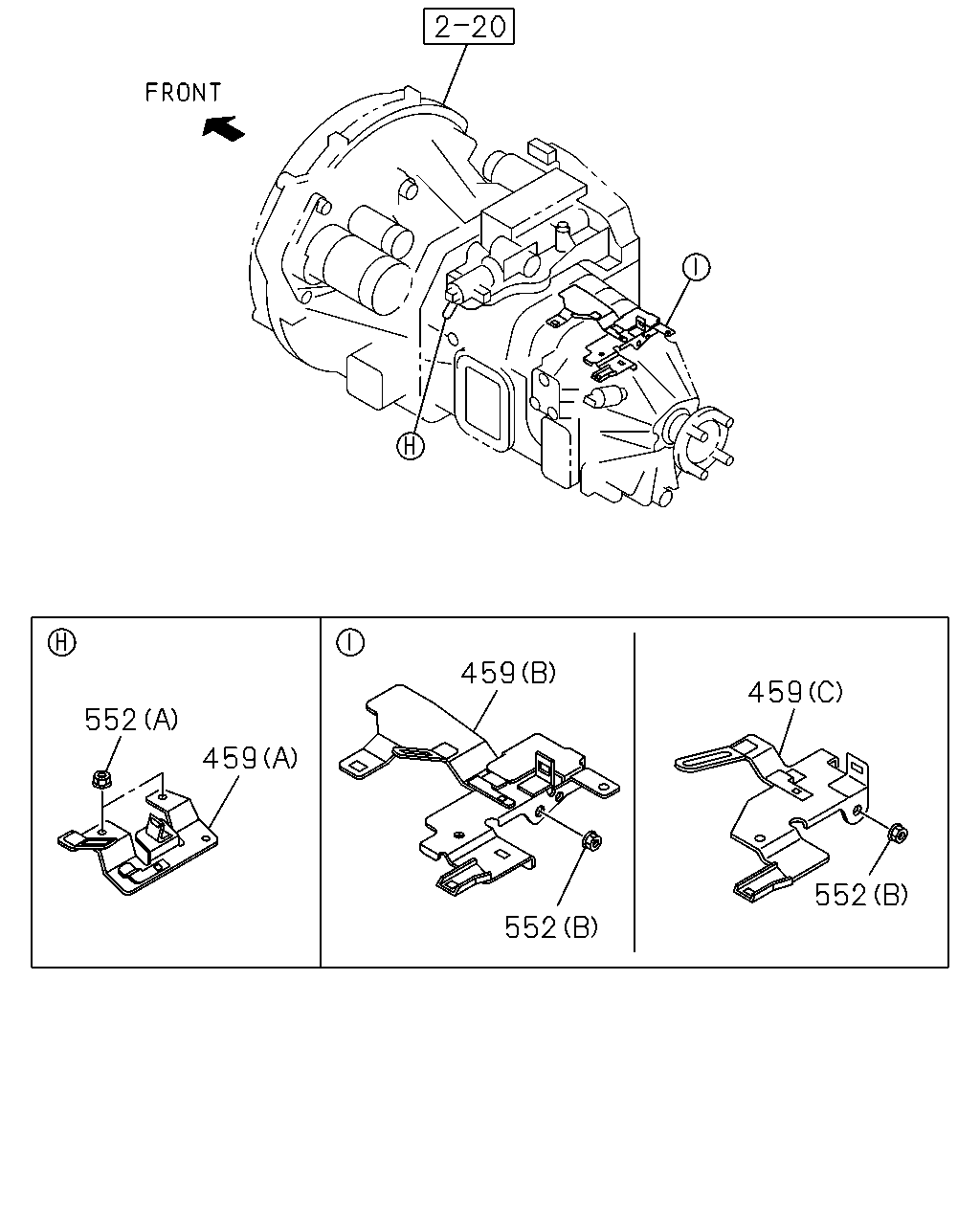

552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1103-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1103-	●	●

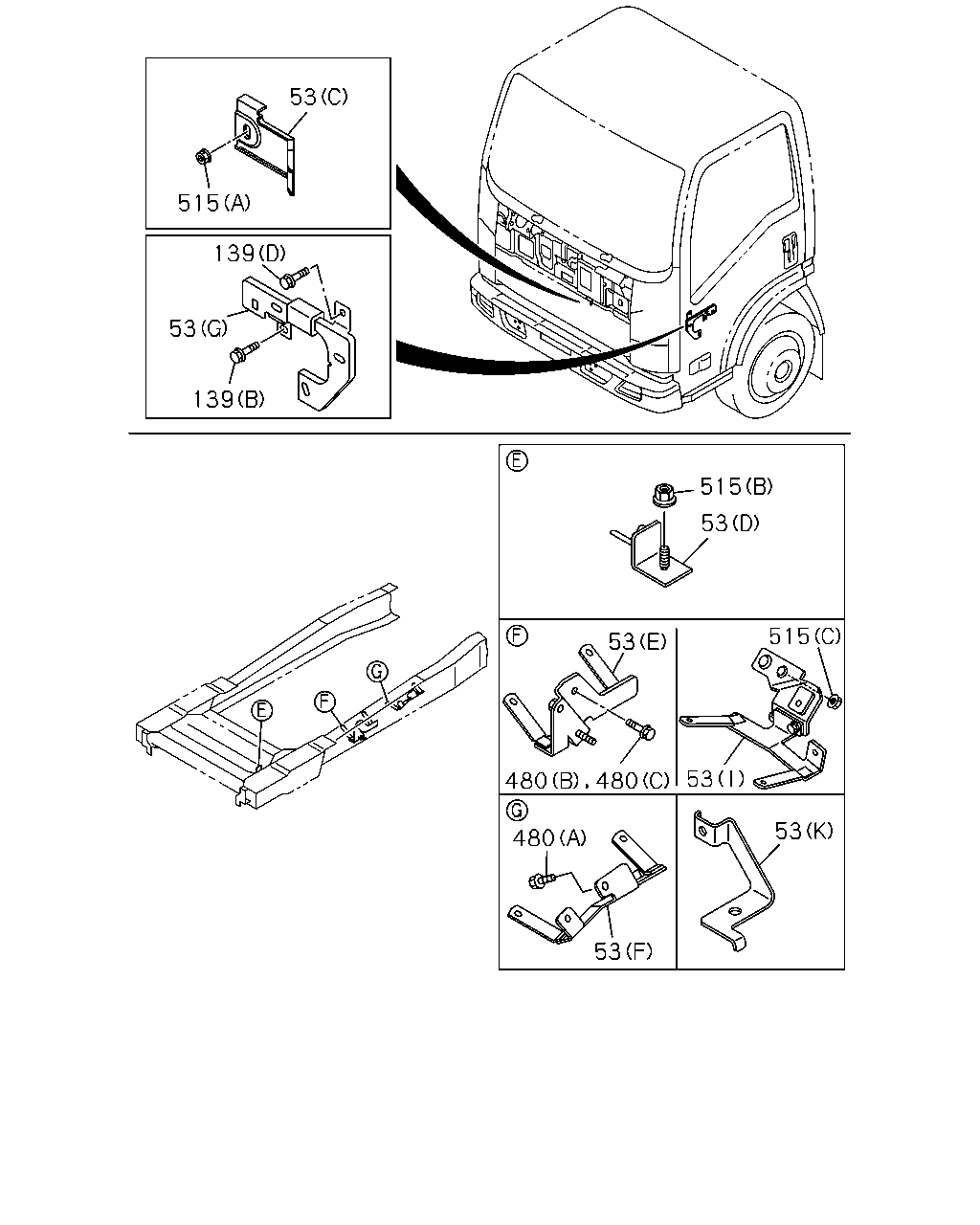

515 53 139 53 139 515 53 515 53 480 480 53 53 53 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1103-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1103-1108	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (F)	8-98033-918-2	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1103-1108	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98052-900-1	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1103-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	1103-1109	●	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	1110-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98105-778-0	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (E)	8-98105-778-0	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (E)	8-98105-778-0	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (E)	8-98105-778-0	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (E)	8-98105-778-0	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (I)	8-98107-111-1	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (I)	8-98107-111-1	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (I)	8-98107-111-1	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (I)	8-98107-111-1	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (I)	8-98107-111-1	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (K)	8-98171-457-0	01	1	1103-1108		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (K)	8-98171-457-0	01	1	1109-1210	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (K)	8-98171-457-0	01	1	1109-1210		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (K)	8-98171-457-0	01	1	1211-1309	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (K)	8-98171-457-0	01	1	1211-1309		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (K)	8-98171-457-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (K)	8-98171-457-0	01	1	1310-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1103-1212	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-1108	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1103-1108		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1109-1210	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1109-1210	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1109-1210		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309		●
480	02.483 BOLT; BRKT MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1211-1309		●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1103-	●	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1103-1108		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1109-1210	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1109-1210		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1211-1309	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1211-1309		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1310-	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1310-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1103-	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1103-1108		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1103-1108		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1109-1210		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1211-1309		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-		●

488 22 22 617 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (H) ID=20	8-94241-972-0	01	1	1103-1108	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=20	8-94241-972-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1109-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.866 (H) ID=25 L=50	1-09701-019-0	01	1	1107-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1103-1311	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1103-	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. RUSSIA EQUIPMENT(B12) L=250	5-09707-030-1	01	1	1109-1402	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	1103-1108	●	●
488	02.559 CLIP; CABLE,TRAILER RUSSIA EQUIPMENT(B12) L=250	5-09707-030-1	04	1	1109-1402	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1403-	●	●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1103-1106	●	●

22 22 22 16 22 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (H) ID=20	8-94241-972-0	01	1	1103-1108	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=20	8-94241-972-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1109-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.866 (H) ID=25 L=50	1-09701-019-0	01	1	1107-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1103-1311	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1103-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 ID=14 L=47	5-09700-319-0	07	1	1207-		●
48	02.559 CLIP; FRAME HARNESS 01.240 ID=14 L=47	5-09700-319-0	06	1	1103-	●
48	02.559 CLIP; FRAME HARNESS 01.240 ID=14 L=47	5-09700-319-0	09	1	1103-1206		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 ID=14 L=47	5-09700-319-0	09	1	1207-		●

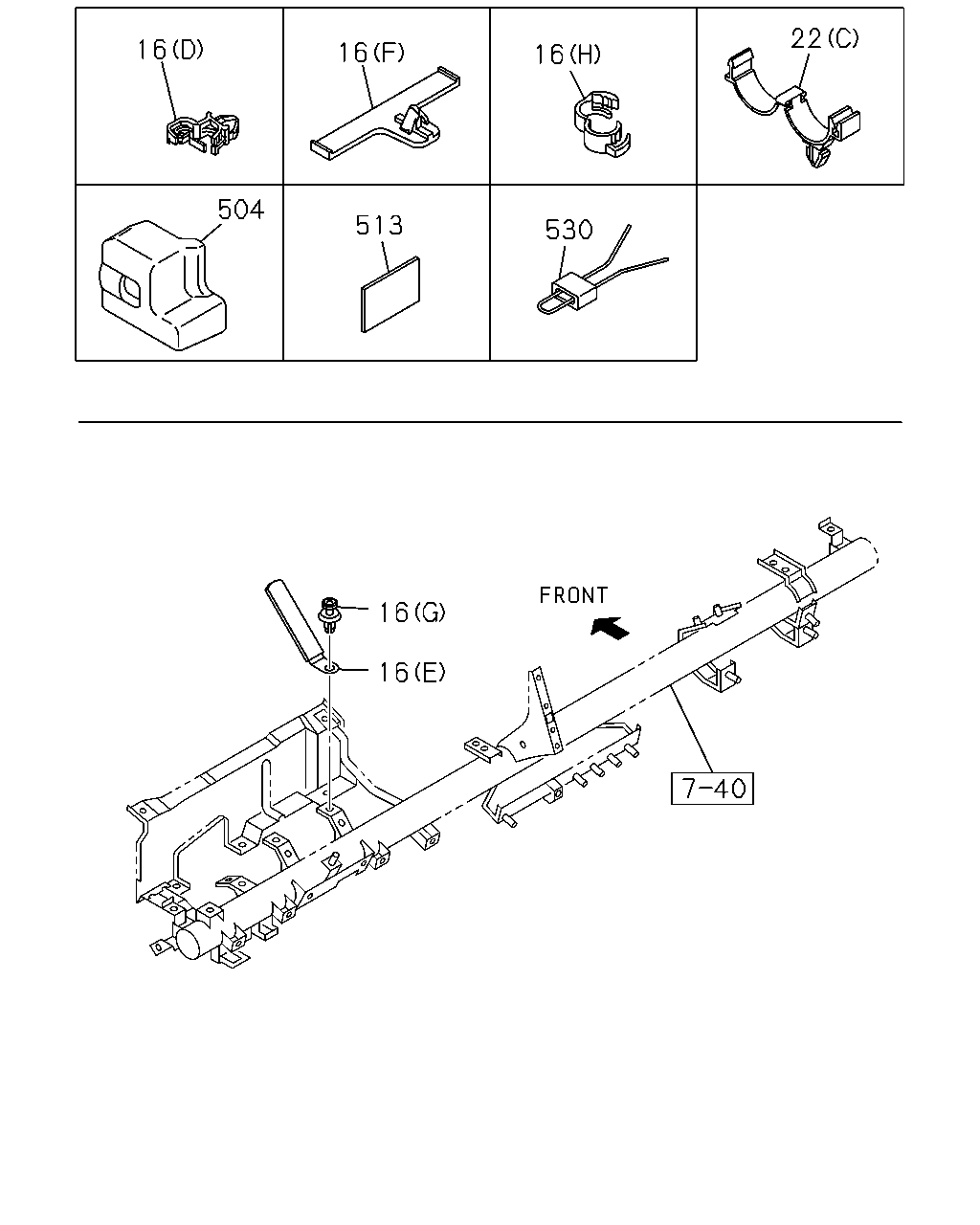

16 16 16 22 504 513 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (H) ID=20	8-94241-972-0	01	1	1103-1108	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=20	8-94241-972-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1109-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1103-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1103-1108	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1109-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.866 (H) ID=25 L=50	1-09701-019-0	01	1	1107-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1103-1311	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1103-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1103-	●	●
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1201-	●	●
513	02.559 TAPE; SOFT,HARNESS RUSSIA EQUIPMENT(B12) 130X80	8-97304-373-0	01	1	1205-	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1103-1309	●	●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483	8-97382-876-0	02	1	1409-	●	●

459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1103-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	1103-1109	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
