Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#8118) — 259 parça

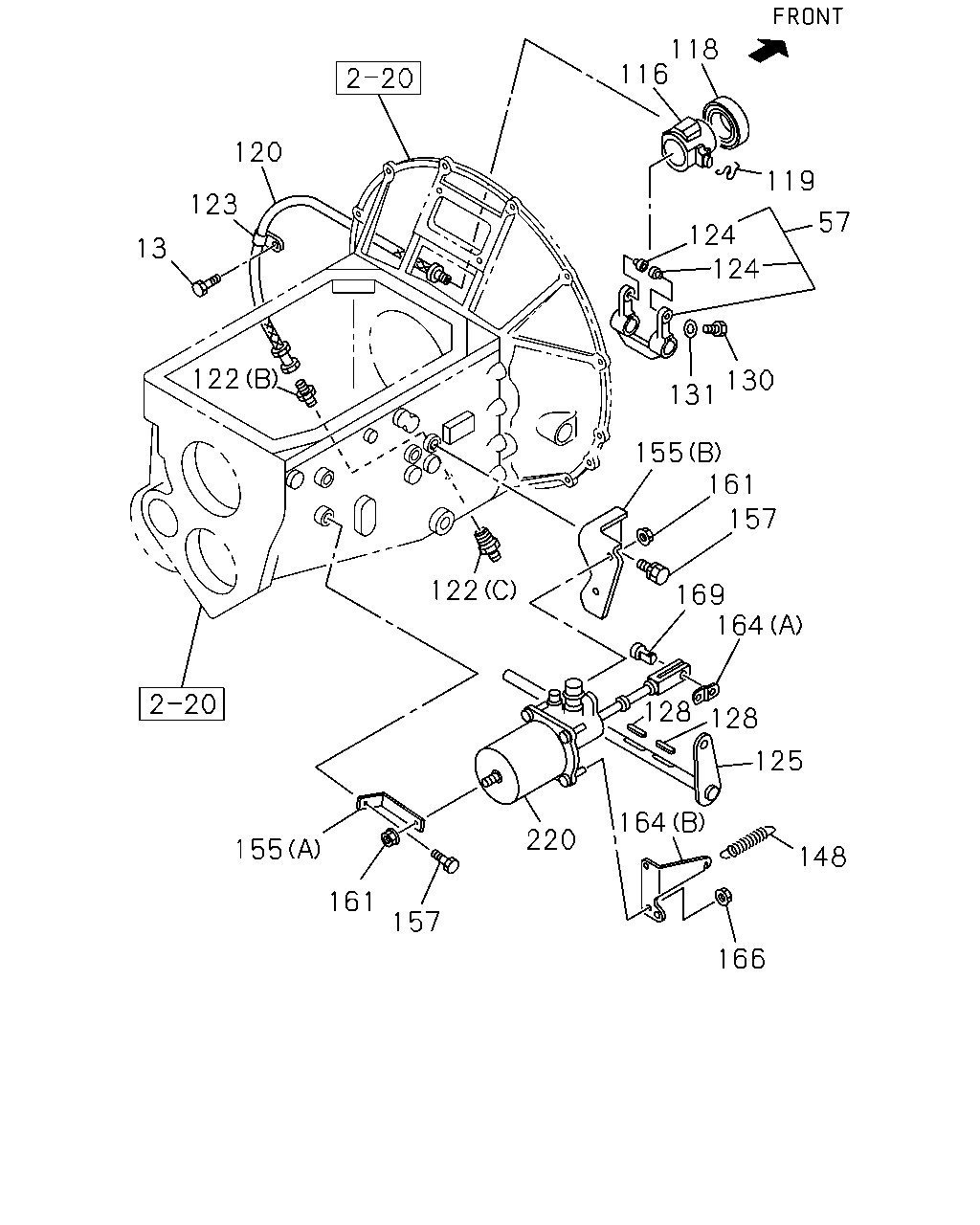

118 116 120 119 123 57 124 124 13 122 130 131 155 161 157 122 169 164 128 128 125 164 220 155 148 161 157 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0211-0512			●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	0005-0210	●	●		●
57	FORK; SHIFT,CLU FSS ALL(FS****)	1-31340-056-1	01	1	0211-			●
57	FORK; SHIFT,CLU FTS ALL(FT****)	1-31340-060-0	01	1	0211-1306			●
57	FORK; SHIFT,CLU FTS ALL(FT****)	1-31340-077-0	01	1	1307-			●
116	BLOCK; SHIFT,CLU	1-31321-070-2	01	1	0005-0210				●
116	BLOCK; SHIFT,CLU FTS ALL(FT****)	1-31321-075-1	01	1	0211-1204			●
116	BLOCK; SHIFT,CLU FTS ALL(FT****)	1-31321-113-0	01	1	1205-1306			●
116	BLOCK; SHIFT,CLU FTS ALL(FT****)	1-31321-114-0	01	1	1307-			●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	0005-0210	●	●
116	BLOCK; SHIFT,CLU FSS ALL(FS****)	1-31321-052-3	01	1	0211-			●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	0005-0111	●	●		●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0210	●	●		●
118	BEARING; CLU RELEASE FSS ALL(FS****)	1-09820-114-0	01	1	0211-			●
118	BEARING; CLU RELEASE FTS ALL(FT****)	1-09820-117-0	01	1	0211-			●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0005-0210	●	●		●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0211-			●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0005-0210	●	●		●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0211-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	0005-0210				●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-0210	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0211-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0210				●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0210	●	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0211-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0211-0512			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-0210	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0211-0606			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0005-0210	●	●		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0211-			●
125	SHAFT; CLU	1-31342-299-0	01	1	0005-0210				●
125	SHAFT; CLU	1-31342-169-1	01	1	0211-			●
125	SHAFT; CLU	1-31342-298-1	01	1	0005-0210	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210	●	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0211-			●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-0210	●	●		●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0211-0512			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-			●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0210	●	●		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0211-0603			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-			●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0005-0210	●	●		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0211-			●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	0211-			●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	0211-			●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0211-			●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	0211-0602			●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-			●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0211-			●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0211-			●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	0211-0602			●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-			●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0211-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. FSS ALL(FS****)	1-31800-383-3	01	1	0211-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. FTS ALL(FT****)	1-31800-388-3	01	1	0211-			●

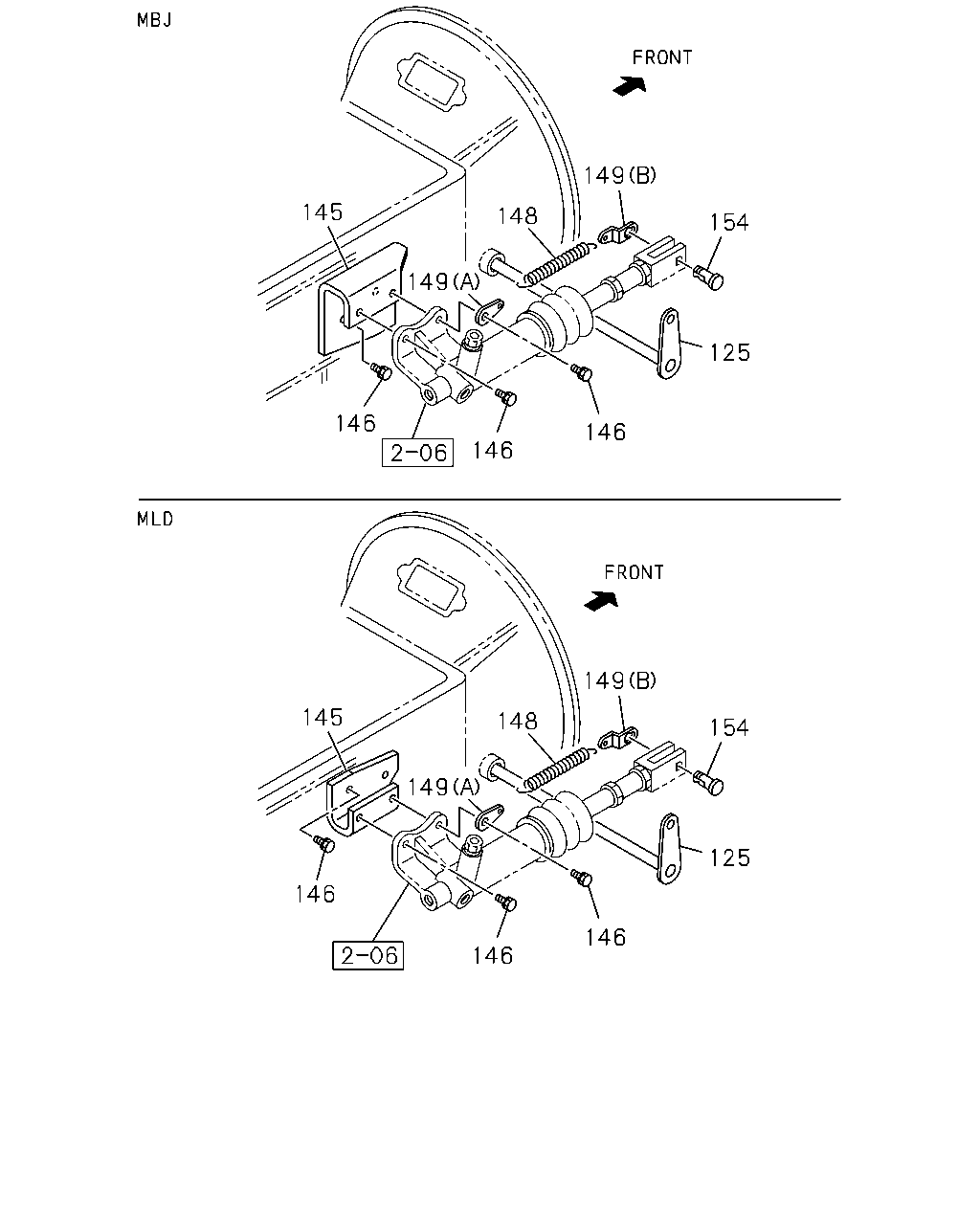

149 145 148 154 149 125 146 146 146 149 145 148 154 149 125 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
125	SHAFT; CLU	1-31342-299-0	01	1	0005-0210				●
125	SHAFT; CLU	1-31342-169-1	01	1	0211-			●
125	SHAFT; CLU	1-31342-298-1	01	1	0005-0210	●	●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-059-0	01	1	0005-0210				●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-058-0	01	1	0005-0210	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	0005-0210	●	●		●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0005-0210	●	●		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0211-			●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	0005-0210	●	●		●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	0005-0210	●	●		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0005-0210	●	●		●

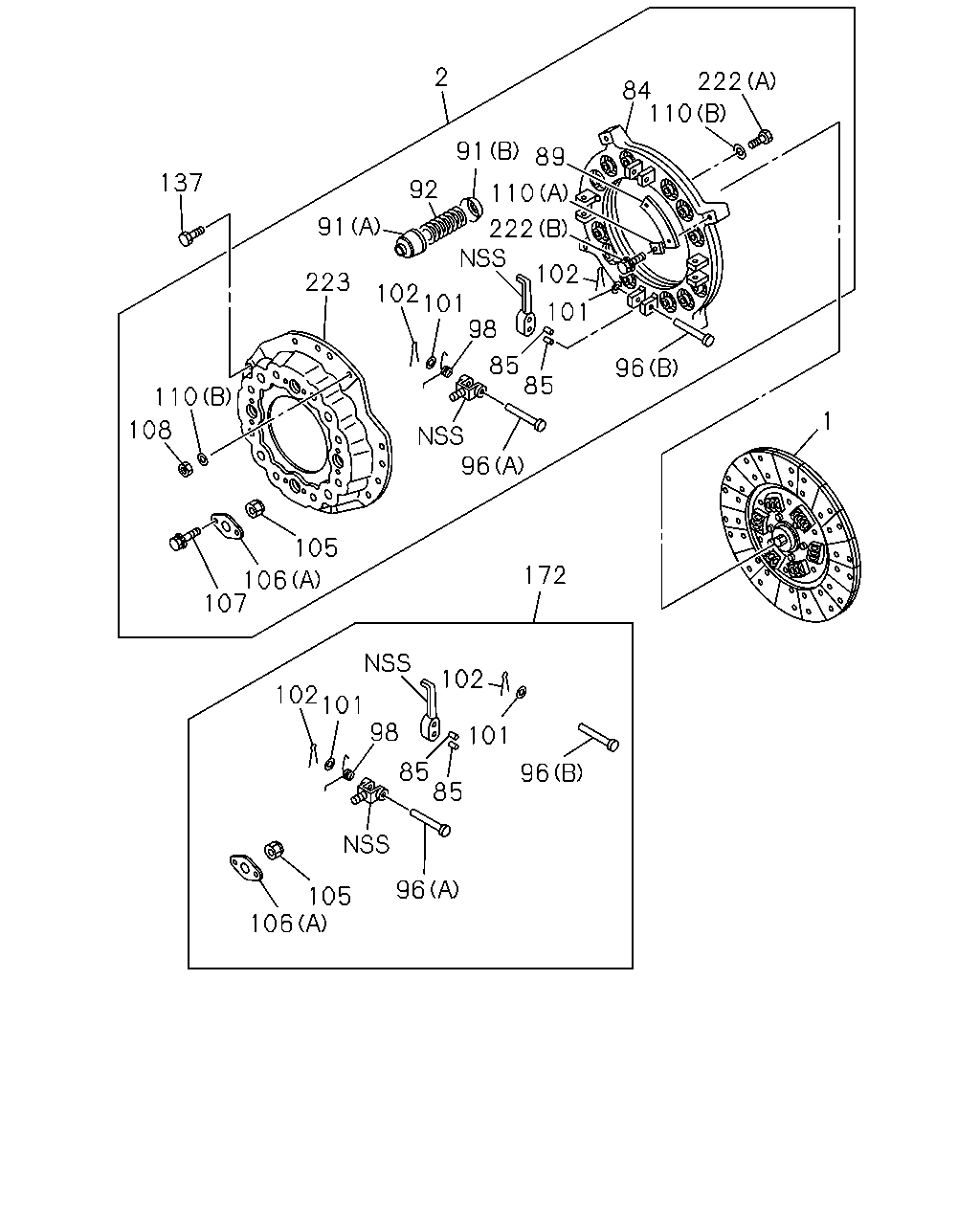

2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 1 108 96 105 172 106 107 102 102 101 98 101 85 85 96 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	0005-0105	●	●		●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-0210	●	●		●
1	DISC; CLUTCH FSS ALL(FS****) 14"	1-31240-901-0	01	1	0211-			●
1	DISC; CLUTCH FTS ALL(FT****) 15"	1-31240-889-0	01	1	0211-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	0005-0109	●	●		●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-0	01	1	0110-0210	●	●		●
2	PLATE ASM; PRESSURE,CLU FSS ALL(FS****)	1-31220-365-2	01	1	0211-			●
2	PLATE ASM; PRESSURE,CLU FTS ALL(FT****)	1-31220-374-2	01	1	0211-			●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	0005-0210	●	●		●
84	PLATE; PRESSURE FSS ALL(FS****) 14"	1-31221-082-0	01	1	0211-			●
84	PLATE; PRESSURE FTS ALL(FT****) 15"	1-31221-100-0	01	1	0211-			●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210	●	●		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0211-			●
89	PLATE; STRAP	1-31229-001-0	08	1	0005-0210	●	●		●
89	PLATE; STRAP FSS ALL(FS****)	1-31229-001-0	08	1	0211-			●
89	PLATE; STRAP FTS ALL(FT****)	1-31229-050-0	16	1	0211-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210	●	●		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0211-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210	●	●		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0211-			●
92	SPRING; CLU	1-09580-234-0	12	1	0005-0210	●	●		●
92	SPRING; CLU FTS ALL(FT****)	1-31214-019-0	12	1	0211-0308			●
92	SPRING; CLU FTS ALL(FT****)	1-31214-086-0	12	1	0309-			●
92	SPRING; CLU FSS ALL(FS****)	1-31214-064-0	12	1	0211-			●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0005-0210	●	●		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0211-			●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0005-0210	●	●		●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0211-			●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210	●	●		●
98	SPRING; RETURN	1-31233-003-0	04	1	0211-			●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0210	●	●		●
101	WASHER; RELEASE LEVER FSS ALL(FS****)	9-31239-039-0	08	1	0211-			●
101	WASHER; RELEASE LEVER FTS ALL(FT****)	1-31239-058-0	08	1	0211-			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0005-0210	●	●		●
102	PIN; SPLIT,RELEASE LEVER FSS ALL(FS****) OD=2.7 L=22	9-08113-022-0	08	1	0211-			●
102	PIN; SPLIT,RELEASE LEVER FTS ALL(FT****) OD=2.7 L=22	9-08103-022-0	08	1	0211-			●
105	NUT; SUPPORT FSS ALL(FS****)	1-31235-014-0	04	1	0309-0309			●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-			●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●		●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210	●	●		●
105	NUT; SUPPORT	1-31235-012-0	04	1	0211-0308			●
105	NUT; SUPPORT FTS ALL(FT****)	1-31235-012-0	04	1	0309-0309			●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0005-0109	●	●		●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-0210	●	●		●
106	PLATE; LK,LEVER SUPPORT FSS ALL(FS****) (B)	1-31235-008-0	08	1	0211-			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210	●	●		●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0211-			●
107	BOLT; LK PLATE FSS ALL(FS****)	1-31239-061-0	08	1	0309-0309			●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-			●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210	●	●		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0211-0308			●
107	BOLT; LK PLATE FTS ALL(FT****) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309			●
108	NUT; STRAP FTS ALL(FT****)	1-09449-036-0	04	1	0211-			●
110	WASHER; SPECIAL,STRAP FTS ALL(FT****) (B) T=3.2	1-09503-095-0	08	1	0211-0403			●
110	WASHER; SPECIAL,STRAP FTS ALL(FT****) (B) T=3.2	8-97374-512-0	08	1	0404-			●
110	WASHER; SPECIAL,STRAP FTS ALL(FT****) (A) T=1.2	1-31229-009-0	04	1	0211-			●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210	●	●		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0211-0512			●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-			●
172	LEVER KIT; RELEASE,CLU FSS ALL(FS****)	1-87830-902-1	01	1	0211-0306			●
172	LEVER KIT; RELEASE,CLU FSS ALL(FS****)	1-87831-173-1	01	1	0307-			●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	0005-0109	●	●		●
172	LEVER KIT; RELEASE,CLU	1-87831-166-0	01	1	0110-0210	●	●		●
172	LEVER KIT; RELEASE,CLU FTS ALL(FT****) 15"	1-87830-760-3	01	1	0211-0307			●
172	LEVER KIT; RELEASE,CLU FTS ALL(FT****)	1-87831-170-1	01	1	0308-			●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	0005-0109	●	●		●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-0210	●	●		●
222	BOLT; STRAP FSS ALL(FS****) (C)	1-31239-059-0	04	1	0211-			●
222	BOLT; STRAP FTS ALL(FT****) (B) M10X23.2	1-09040-042-0	04	1	0211-			●
222	BOLT; STRAP FTS ALL(FT****) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0211-			●
223	COVER; CLU FTS ALL(FT****)	1-31211-019-1	01	1	0211-			●

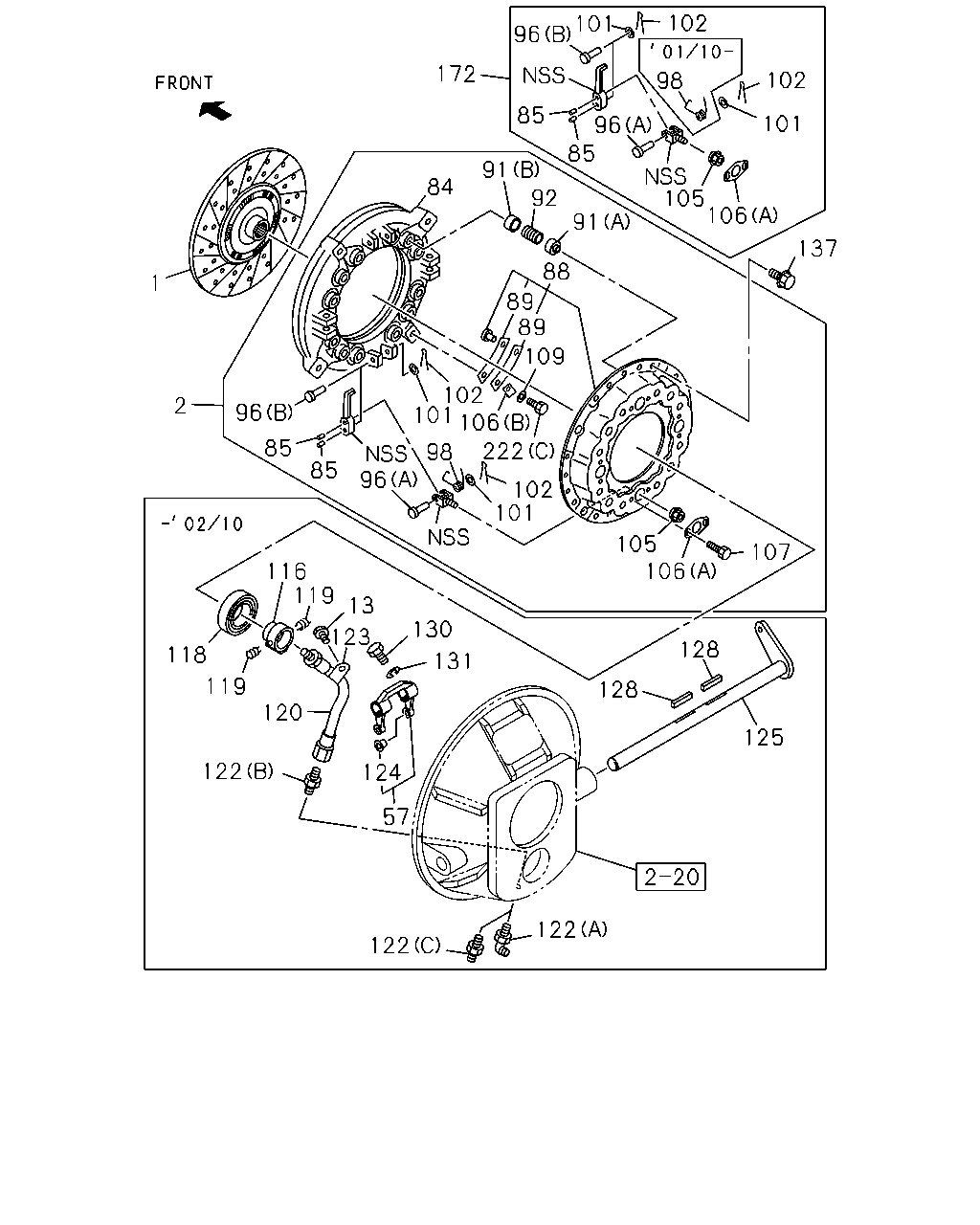

102 101 96 172 102 98 96 85 85 101 91 92 105 106 84 91 137 88 1 89 89 109 222 102 101 106 2 96 96 85 85 102 101 105 106 107 116 119 13 130 123 128 118 131 119 128 120 125 122 124 57 122 122 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	0005-0105	●	●		●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-0210	●	●		●
1	DISC; CLUTCH FSS ALL(FS****) 14"	1-31240-901-0	01	1	0211-			●
1	DISC; CLUTCH FTS ALL(FT****) 15"	1-31240-889-0	01	1	0211-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	0005-0109	●	●		●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-0	01	1	0110-0210	●	●		●
2	PLATE ASM; PRESSURE,CLU FSS ALL(FS****)	1-31220-365-2	01	1	0211-			●
2	PLATE ASM; PRESSURE,CLU FTS ALL(FT****)	1-31220-374-2	01	1	0211-			●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0211-0512			●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	0005-0210	●	●		●
57	FORK; SHIFT,CLU FSS ALL(FS****)	1-31340-056-1	01	1	0211-			●
57	FORK; SHIFT,CLU FTS ALL(FT****)	1-31340-060-0	01	1	0211-1306			●
57	FORK; SHIFT,CLU FTS ALL(FT****)	1-31340-077-0	01	1	1307-			●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	0005-0210	●	●		●
84	PLATE; PRESSURE FSS ALL(FS****) 14"	1-31221-082-0	01	1	0211-			●
84	PLATE; PRESSURE FTS ALL(FT****) 15"	1-31221-100-0	01	1	0211-			●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210	●	●		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0211-			●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	0005-0210	●	●		●
88	COVER SUB ASM; CLU FSS ALL(FS****)	1-31211-036-0	01	1	0211-			●
89	PLATE; STRAP	1-31229-001-0	08	1	0005-0210	●	●		●
89	PLATE; STRAP FSS ALL(FS****)	1-31229-001-0	08	1	0211-			●
89	PLATE; STRAP FTS ALL(FT****)	1-31229-050-0	16	1	0211-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210	●	●		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0211-			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210	●	●		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0211-			●
92	SPRING; CLU	1-09580-234-0	12	1	0005-0210	●	●		●
92	SPRING; CLU FTS ALL(FT****)	1-31214-019-0	12	1	0211-0308			●
92	SPRING; CLU FTS ALL(FT****)	1-31214-086-0	12	1	0309-			●
92	SPRING; CLU FSS ALL(FS****)	1-31214-064-0	12	1	0211-			●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0005-0210	●	●		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0211-			●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0005-0210	●	●		●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0211-			●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210	●	●		●
98	SPRING; RETURN	1-31233-003-0	04	1	0211-			●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0210	●	●		●
101	WASHER; RELEASE LEVER FSS ALL(FS****)	9-31239-039-0	08	1	0211-			●
101	WASHER; RELEASE LEVER FTS ALL(FT****)	1-31239-058-0	08	1	0211-			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0005-0210	●	●		●
102	PIN; SPLIT,RELEASE LEVER FSS ALL(FS****) OD=2.7 L=22	9-08113-022-0	08	1	0211-			●
102	PIN; SPLIT,RELEASE LEVER FTS ALL(FT****) OD=2.7 L=22	9-08103-022-0	08	1	0211-			●
105	NUT; SUPPORT FSS ALL(FS****)	1-31235-014-0	04	1	0309-0309			●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-			●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●		●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210	●	●		●
105	NUT; SUPPORT	1-31235-012-0	04	1	0211-0308			●
105	NUT; SUPPORT FTS ALL(FT****)	1-31235-012-0	04	1	0309-0309			●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0005-0109	●	●		●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-0210	●	●		●
106	PLATE; LK,LEVER SUPPORT FSS ALL(FS****) (B)	1-31235-008-0	08	1	0211-			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210	●	●		●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0211-			●
107	BOLT; LK PLATE FSS ALL(FS****)	1-31239-061-0	08	1	0309-0309			●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-			●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210	●	●		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0211-0308			●
107	BOLT; LK PLATE FTS ALL(FT****) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309			●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	0005-0210	●	●		●
109	WASHER; LK,STRAP FSS ALL(FS****) ID=10.2	9-09150-510-0	04	1	0211-0603			●
109	WASHER; LK,STRAP FSS ALL(FS****) ID=10.2	0-91510-510-0	04	1	0604-			●
116	BLOCK; SHIFT,CLU	1-31321-070-2	01	1	0005-0210				●
116	BLOCK; SHIFT,CLU FTS ALL(FT****)	1-31321-075-1	01	1	0211-1204			●
116	BLOCK; SHIFT,CLU FTS ALL(FT****)	1-31321-113-0	01	1	1205-1306			●
116	BLOCK; SHIFT,CLU FTS ALL(FT****)	1-31321-114-0	01	1	1307-			●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	0005-0210	●	●
116	BLOCK; SHIFT,CLU FSS ALL(FS****)	1-31321-052-3	01	1	0211-			●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	0005-0111	●	●		●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0210	●	●		●
118	BEARING; CLU RELEASE FSS ALL(FS****)	1-09820-114-0	01	1	0211-			●
118	BEARING; CLU RELEASE FTS ALL(FT****)	1-09820-117-0	01	1	0211-			●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0005-0210	●	●		●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0211-			●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0005-0210	●	●		●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0211-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	0005-0210				●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-0210	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0211-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0210				●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0210	●	●		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0211-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	0211-0512			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-0210	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0211-0606			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0005-0210	●	●		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0211-			●
125	SHAFT; CLU	1-31342-299-0	01	1	0005-0210				●
125	SHAFT; CLU	1-31342-169-1	01	1	0211-			●
125	SHAFT; CLU	1-31342-298-1	01	1	0005-0210	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210	●	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0211-			●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-0210	●	●		●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0211-0512			●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-			●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0210	●	●		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0211-0603			●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-			●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210	●	●		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0211-0512			●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-			●
172	LEVER KIT; RELEASE,CLU FSS ALL(FS****)	1-87830-902-1	01	1	0211-0306			●
172	LEVER KIT; RELEASE,CLU FSS ALL(FS****)	1-87831-173-1	01	1	0307-			●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	0005-0109	●	●		●
172	LEVER KIT; RELEASE,CLU	1-87831-166-0	01	1	0110-0210	●	●		●
172	LEVER KIT; RELEASE,CLU FTS ALL(FT****) 15"	1-87830-760-3	01	1	0211-0307			●
172	LEVER KIT; RELEASE,CLU FTS ALL(FT****)	1-87831-170-1	01	1	0308-			●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	0005-0109	●	●		●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-0210	●	●		●
222	BOLT; STRAP FSS ALL(FS****) (C)	1-31239-059-0	04	1	0211-			●
222	BOLT; STRAP FTS ALL(FT****) (B) M10X23.2	1-09040-042-0	04	1	0211-			●
222	BOLT; STRAP FTS ALL(FT****) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0211-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
