Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#81175) — 232 parça

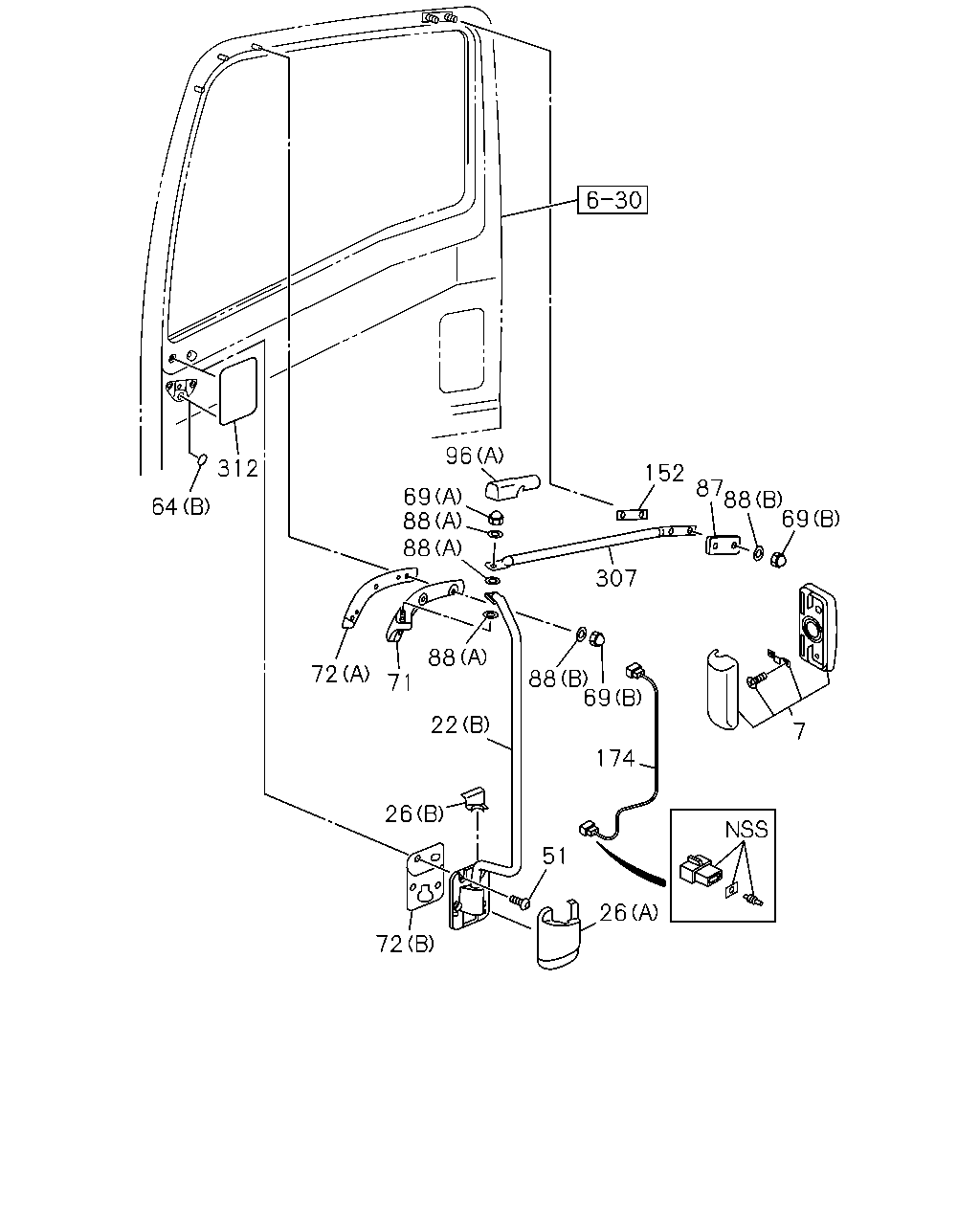

26 51 72 26 22 88 71 72 88 69 88 96 174 7 69 88 307 152 87 88 69 312 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	16.068 MIRROR ASM; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98043-060-1	01	1	1103-1112	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98043-060-1	01	1	1201-	●	●
7	16.068 MIRROR ASM; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98043-176-1	01	1	1103-1112	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98043-176-1	01	1	1201-	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98043-058-1	01	1	1103-	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98043-174-1	01	1	1103-	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98055-991-1	01	1	1103-	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98055-992-1	01	1	1103-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> (A)	8-98070-506-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> (A)	8-98070-504-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98070-503-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-503-0	01	1	1109-		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-510-0	01	1	1109-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-508-0	01	1	1109-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-030-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-031-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-037-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-038-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-510-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-846-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-511-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-847-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-512-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-848-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-513-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-849-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98081-403-0	01	1	1111-1112	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1201-	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-		●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-		●
26	16.069 COVER; OUTSIDE MIRROR (A)	8-98031-802-2	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1109-	●	●
26	16.069 COVER; OUTSIDE MIRROR (A)	8-98031-803-2	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1109-	●	●
26	16.069 COVER; OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1109-	●	●
26	16.069 COVER; OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1109-	●	●
51	16.069 SCREW; MIRROR 16.323 M8X23	8-97310-216-1	08	1	1103-1108	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23	8-97310-216-1	08	1	1109-	●	●
64	16.069 SEAL; MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	1111-1112	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	1201-	●	●
64	16.069 SEAL; MIRROR 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1103-1108	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1109-1202	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1203-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (B) OD=52 BLACK	1-76798-041-0	02	1	1103-	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, WINDOW RR<8LF> 16.165 (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1109-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, WINDOW RR<8LF> 16.570 (C) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1109-	●	●
69	16.069 NUT; CAP (A) M10 CAP NUT	8-98059-913-0	02	1	1103-1108	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	8-98059-913-0	02	1	1109-1404	●	●
69	16.069 NUT; CAP (A) M10 CAP NUT	1-09984-134-0	02	1	1405-	●	●
69	16.069 NUT; CAP (B) M8 CAP NUT	8-98059-914-0	10	1	1103-1108	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT	8-98059-914-0	10	1	1109-	●	●
71	16.069 BRACKET; OUTSIDE MIRROR	8-98031-793-2	01	1	1103-1108	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-793-2	01	1	1109-	●	●
71	16.069 BRACKET; OUTSIDE MIRROR	8-98031-794-2	01	1	1103-1108	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-794-2	01	1	1109-	●	●
72	16.069 SHEET (A)	8-98031-796-0	01	1	1103-1108	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-796-0	01	1	1109-	●	●
72	16.069 SHEET (A)	8-98031-797-0	01	1	1103-1108	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-797-0	01	1	1109-	●	●
72	16.069 SHEET (B)	8-98080-418-0	02	1	1103-1108	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98080-418-0	02	1	1109-	●	●
87	16.069 SPACER	8-98063-789-0	02	1	1103-1108	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-789-0	02	1	1109-	●	●
88	16.069 WASHER; PL,SUPPORT STAY (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1103-1108	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1109-	●	●
88	16.069 WASHER; PL,SUPPORT STAY (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1103-1108	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1109-	●	●
96	16.069 CAP; MIRROR STAY (A)	8-98080-173-0	02	1	1103-1108	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1109-	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1109-	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98027-552-2	02	1	1109-		●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98027-552-2	01	1	1111-1112	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98027-552-2	01	1	1201-	●	●
152	16.069 SHEET; MIRROR STAY	8-98063-786-0	02	1	1103-1108	●	●
152	16.069 SHEET; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-786-0	02	1	1109-	●	●
174	16.068 HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.480	8-98079-660-0	02	1	1103-	●	●
307	16.069 STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1103-1108	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-784-2	01	1	1109-	●	●
307	16.069 STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1103-1108	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-785-2	01	1	1109-	●	●
312	16.081 TAPE	8-98164-812-0	02	1	1103-1108	●	●
312	16.081 TAPE DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98164-812-0	02	1	1109-	●	●

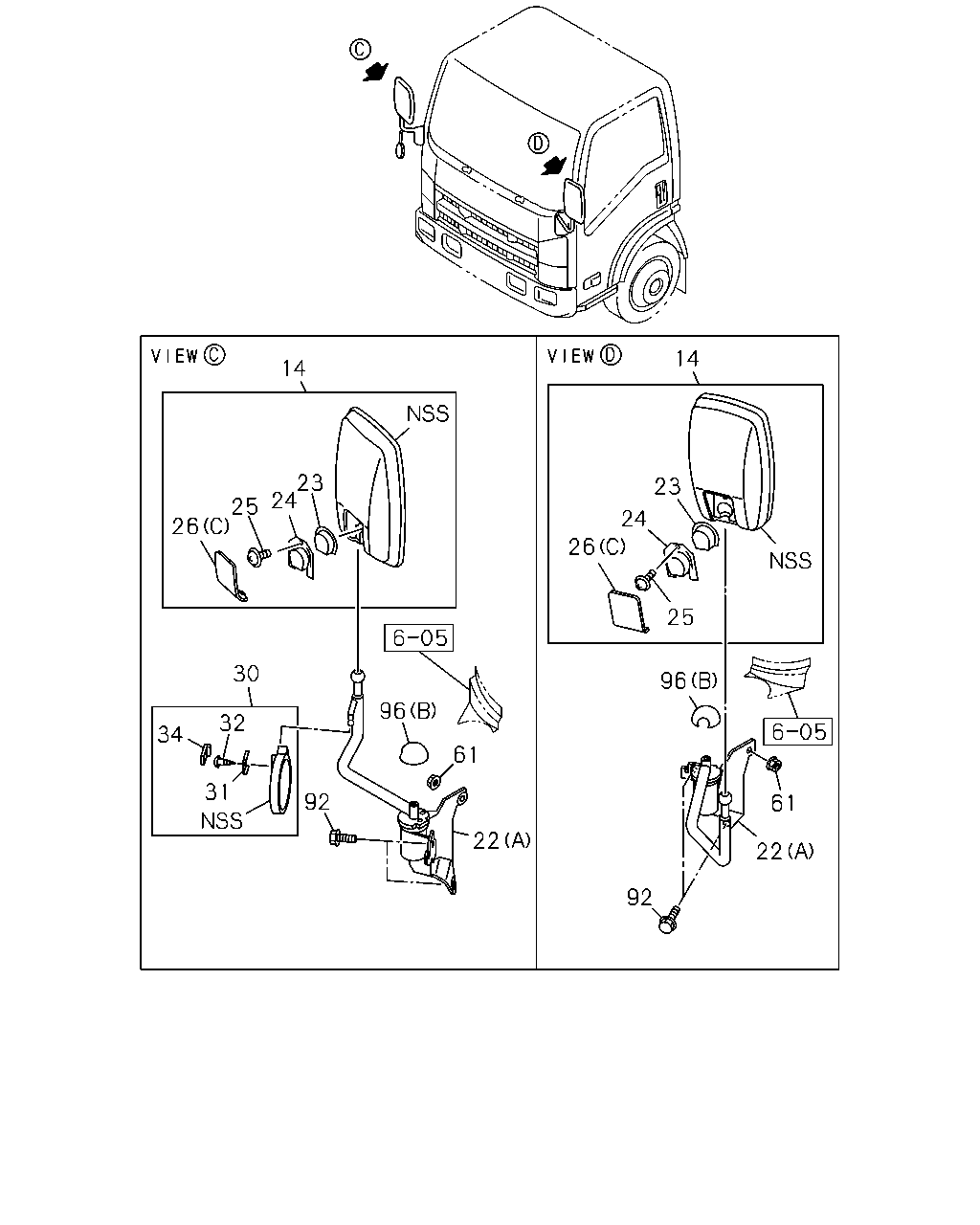

92 22 61 96 26 23 24 14 14 23 24 25 26 96 61 22 92 30 32 34 31 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1109-	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1109-	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-542-3	01	1	1109-		●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-542-3	01	1	1109-		●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> (A)	8-98070-506-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> (A)	8-98070-504-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98070-503-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-503-0	01	1	1109-		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-510-0	01	1	1109-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-508-0	01	1	1109-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-030-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-031-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-037-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-038-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-510-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-846-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-511-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-847-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-512-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-848-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-513-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-849-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98081-403-0	01	1	1111-1112	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1201-	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1109-	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1109-	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> T=2.0	8-94262-545-0	01	1	1109-		●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> T=2.0	8-94262-545-0	01	1	1109-		●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	1109-	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	1109-	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> T=1.6	8-94262-546-1	01	1	1109-		●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> T=1.6	8-94262-546-1	01	1	1109-		●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1109-	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1109-	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M6X30	8-94279-365-0	01	1	1109-		●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M6X30	8-94279-365-0	01	1	1109-		●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-		●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1109-		●
26	16.069 COVER; OUTSIDE MIRROR (A)	8-98031-802-2	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1109-	●	●
26	16.069 COVER; OUTSIDE MIRROR (A)	8-98031-803-2	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1109-	●	●
26	16.069 COVER; OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1109-	●	●
26	16.069 COVER; OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1103-1108	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1109-	●	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1109-1110	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-625-2	01	1	1109-1110		●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1111-	●	●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1109-1110	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-631-0	01	1	1109-1110		●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1111-	●	●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1109-1110	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M5X18	8-94279-372-0	02	1	1109-1110		●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1111-	●	●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1109-1110	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-629-0	01	1	1109-1110		●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1111-	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1112	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1201-	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
92	16.069 BOLT; STAY BRKT,MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-1112	●	●
92	16.069 BOLT; STAY BRKT,MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1201-	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-		●
96	16.069 CAP; MIRROR STAY (A)	8-98080-173-0	02	1	1103-1108	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1109-	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1109-	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98027-552-2	02	1	1109-		●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98027-552-2	01	1	1111-1112	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98027-552-2	01	1	1201-	●	●

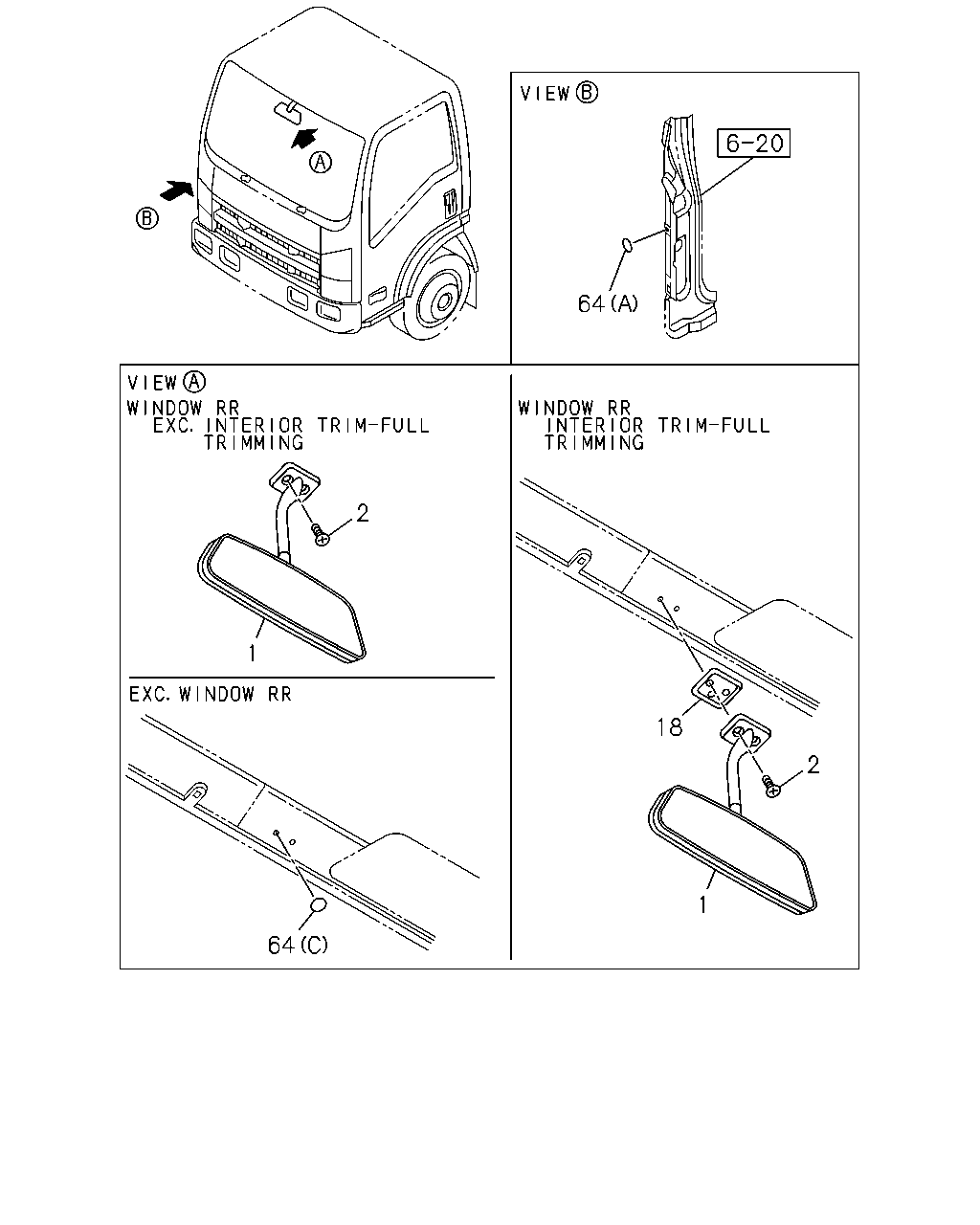

2 1 18 64 2 1 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.068 MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1103-1108	●	●
1	16.068 MIRROR; ROOM WINDOW RR<8LF> DARK GRAY	8-98097-534-1	01	1	1109-	●	●
2	16.069 SCREW; MIRROR TO BODY 16.070 M6X26	8-98033-674-0	02	1	1103-1108	●	●
2	16.069 SCREW; MIRROR TO BODY WINDOW RR<8LF> 16.070 M6X26	8-98033-674-0	02	1	1109-	●	●
18	16.069 CLIP; MIRROR INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-241-0	01	1	1103-1108	●	●
18	16.069 CLIP; MIRROR INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> DARK GRAY	8-97408-241-0	01	1	1109-	●	●
64	16.069 SEAL; MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	1111-1112	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	1201-	●	●
64	16.069 SEAL; MIRROR 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1103-1108	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1109-1202	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1203-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (B) OD=52 BLACK	1-76798-041-0	02	1	1103-	●	●
64	16.069 SEAL; MIRROR BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, WINDOW RR<8LF> 16.165 (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1109-	●	●
64	16.069 SEAL; MIRROR BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, WINDOW RR<8LF> 16.570 (C) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1109-	●	●

22 61 96 92 30 34 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> (A)	8-98070-506-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> (A)	8-98070-504-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98070-503-0	01	1	1109-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-503-0	01	1	1109-		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-510-0	01	1	1109-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-508-0	01	1	1109-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-030-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-031-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-037-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-038-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-510-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-846-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-511-0	01	1	1103-1204	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-847-0	01	1	1205-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-512-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-848-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98067-513-0	01	1	1103-1202	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-849-0	01	1	1203-	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98081-403-0	01	1	1111-1112	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1201-	●	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1109-1110	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-625-2	01	1	1109-1110		●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-625-2	01	1	1111-	●	●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1109-1110	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-631-0	01	1	1109-1110		●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-631-0	01	1	1111-	●	●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1109-1110	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M5X18	8-94279-372-0	02	1	1109-1110		●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	1111-	●	●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1109-1110	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-629-0	01	1	1109-1110		●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9>	8-94262-629-0	01	1	1111-	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1112	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1201-	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
92	16.069 BOLT; STAY BRKT,MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-1112	●	●
92	16.069 BOLT; STAY BRKT,MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1201-	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-		●
96	16.069 CAP; MIRROR STAY (A)	8-98080-173-0	02	1	1103-1108	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1109-	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1109-	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98027-552-2	02	1	1109-		●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98027-552-2	01	1	1111-1112	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98027-552-2	01	1	1201-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
