Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#81172) — 162 parça

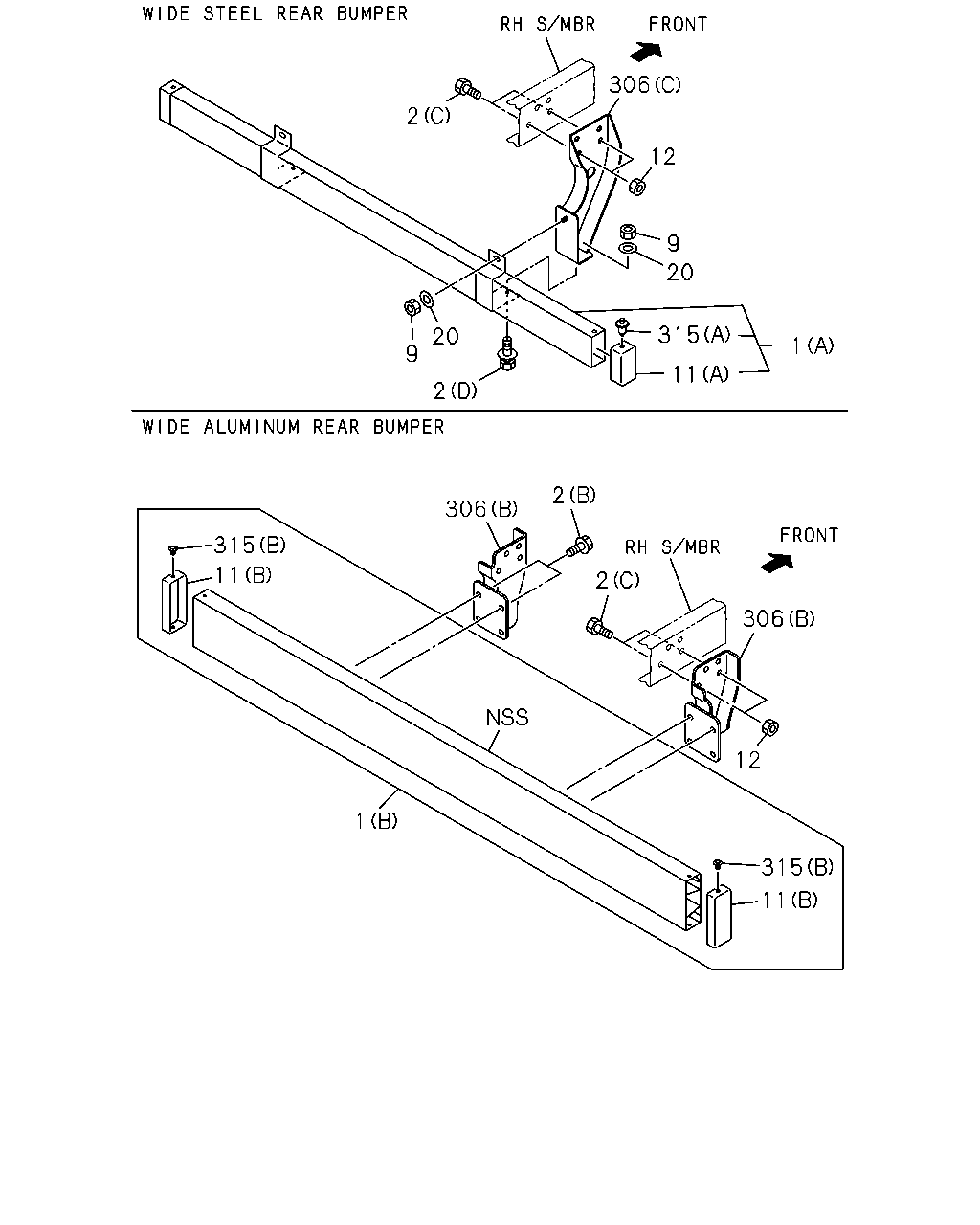

2 306 12 9 20 315 11 1 20 9 2 315 11 1 11 315 12 306 2 2 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR (A) STEEL BUMPER STAMP IJ2G	8-98000-144-1	01	1	1103-1108	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2G	8-98000-144-1	01	1	1109-	●
1	07.070 BUMPER; RR (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	1103-1108		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	1109-1206		●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	1207-		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2G	8-98088-672-0	01	1	1207-		●
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	1103-1108	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	1109-1209	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-	●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1103-1108		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1109-		●
2	07.874 BOLT; BACK BAR (C) M14X30	0-20851-430-0	08	1	1103-1108	●	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	1109-1206	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1109-1206		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	1207-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1207-		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	04	1	1207-		●
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	1103-1108	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	1109-1209	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-	●
11	07.829 CAP; RR BUMPER (A)	8-97174-008-0	02	1	1103-1108	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	1109-	●
11	07.829 CAP; RR BUMPER (B)	1-71290-064-0	02	1	1103-1108		●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> (B)	1-71290-064-0	02	1	1109-		●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1207-		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1103-1108	●	●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1109-1206	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1109-1206		●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1207-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1207-		●
20	07.070 WASHER; PL,BUMPER WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-	●
306	07.836 BAR; BACK,RR (A) STAMP IC	8-98001-794-1	01	1	1103-1108	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IC	8-98001-794-1	01	1	1109-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IC	8-98211-480-0	01	1	1210-	●
306	07.836 BAR; BACK,RR (A) STAMP IC	8-98001-795-1	01	1	1103-1108	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IC	8-98001-795-1	01	1	1109-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IC	8-98211-481-0	01	1	1210-	●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-408-0	01	1	1103-1108		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	1109-		●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-409-0	01	1	1103-1108		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	1109-		●
315	07.829 RIVET; CAP 08.155 (A) D8X13.5	1-09987-248-1	04	1	1103-1108	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1109-	●
315	07.829 RIVET; CAP (B)	1-71290-062-0	04	1	1103-1108		●
315	07.829 RIVET; CAP BUMPER REAR<7HZ> (B)	1-71290-062-0	04	1	1109-		●

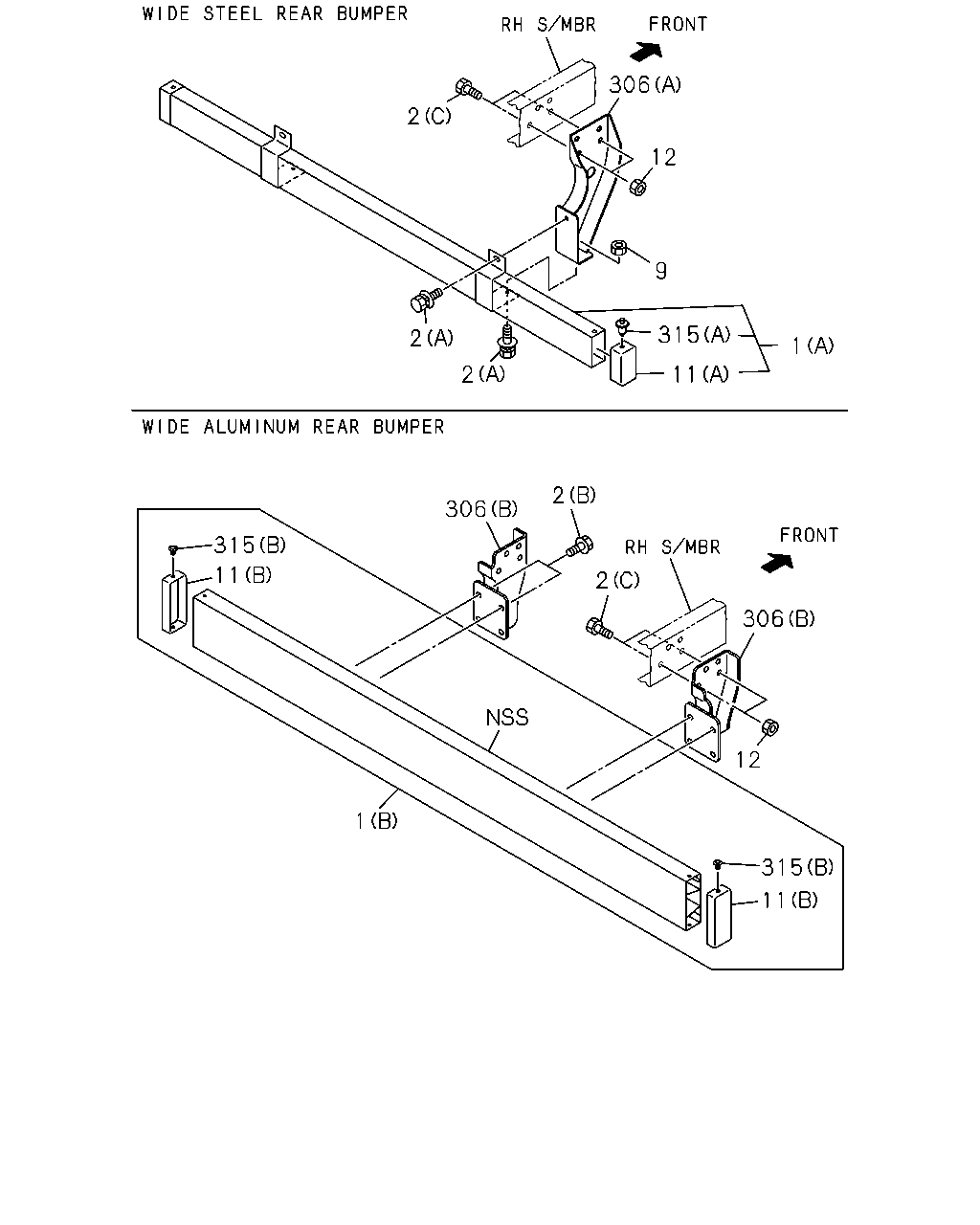

2 2 2 306 12 9 315 11 1 2 306 2 306 12 315 11 1 11 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR (A) STEEL BUMPER STAMP IJ2G	8-98000-144-1	01	1	1103-1108	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2G	8-98000-144-1	01	1	1109-	●
1	07.070 BUMPER; RR (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	1103-1108		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	1109-1206		●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> (B) ALUMINUM BUMPER STAMP IH2J	8-98088-673-0	01	1	1207-		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. REAR WIDE TREAD(V4T) (B) ALUMINUM BUMPER STAMP IH2G	8-98088-672-0	01	1	1207-		●
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	1103-1108	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30	8-94324-205-0	04	1	1109-1209	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE	0-28651-025-0	02	1	1210-	●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1103-1108		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1109-		●
2	07.874 BOLT; BACK BAR (C) M14X30	0-20851-430-0	08	1	1103-1108	●	●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	1109-1206	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1109-1206		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (C) M14X30	0-20851-430-0	08	1	1207-	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W) BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	08	1	1207-		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2400MM(24W) BUMPER REAR<7HZ> (C) M14X30	0-20851-430-0	04	1	1207-		●
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	1103-1108	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	02	1	1109-1209	●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-	●
11	07.829 CAP; RR BUMPER (A)	8-97174-008-0	02	1	1103-1108	●
11	07.829 CAP; RR BUMPER WIDE STEEL REAR BUMPER<SMS> (A)	8-97174-008-0	02	1	1109-	●
11	07.829 CAP; RR BUMPER (B)	1-71290-064-0	02	1	1103-1108		●
11	07.829 CAP; RR BUMPER BUMPER REAR<7HZ> (B)	1-71290-064-0	02	1	1109-		●
12	07.833 NUT; BRKT WHEEL BASE 2400MM(24W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1207-		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1103-1108	●	●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1109-1206	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1109-1206		●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1207-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W) BUMPER REAR<7HZ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1207-		●
306	07.836 BAR; BACK,RR (A) STAMP IC	8-98001-794-1	01	1	1103-1108	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IC	8-98001-794-1	01	1	1109-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IC	8-98211-480-0	01	1	1210-	●
306	07.836 BAR; BACK,RR (A) STAMP IC	8-98001-795-1	01	1	1103-1108	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (A) STAMP IC	8-98001-795-1	01	1	1109-1209	●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (C) STAMP IC	8-98211-481-0	01	1	1210-	●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-408-0	01	1	1103-1108		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-408-0	01	1	1109-		●
306	07.836 BAR; BACK,RR (B) STAMP IA3	8-98039-409-0	01	1	1103-1108		●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> (B) STAMP IA3	8-98039-409-0	01	1	1109-		●
315	07.829 RIVET; CAP 08.155 (A) D8X13.5	1-09987-248-1	04	1	1103-1108	●
315	07.829 RIVET; CAP WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5	1-09987-248-1	04	1	1109-	●
315	07.829 RIVET; CAP (B)	1-71290-062-0	04	1	1103-1108		●
315	07.829 RIVET; CAP BUMPER REAR<7HZ> (B)	1-71290-062-0	04	1	1109-		●

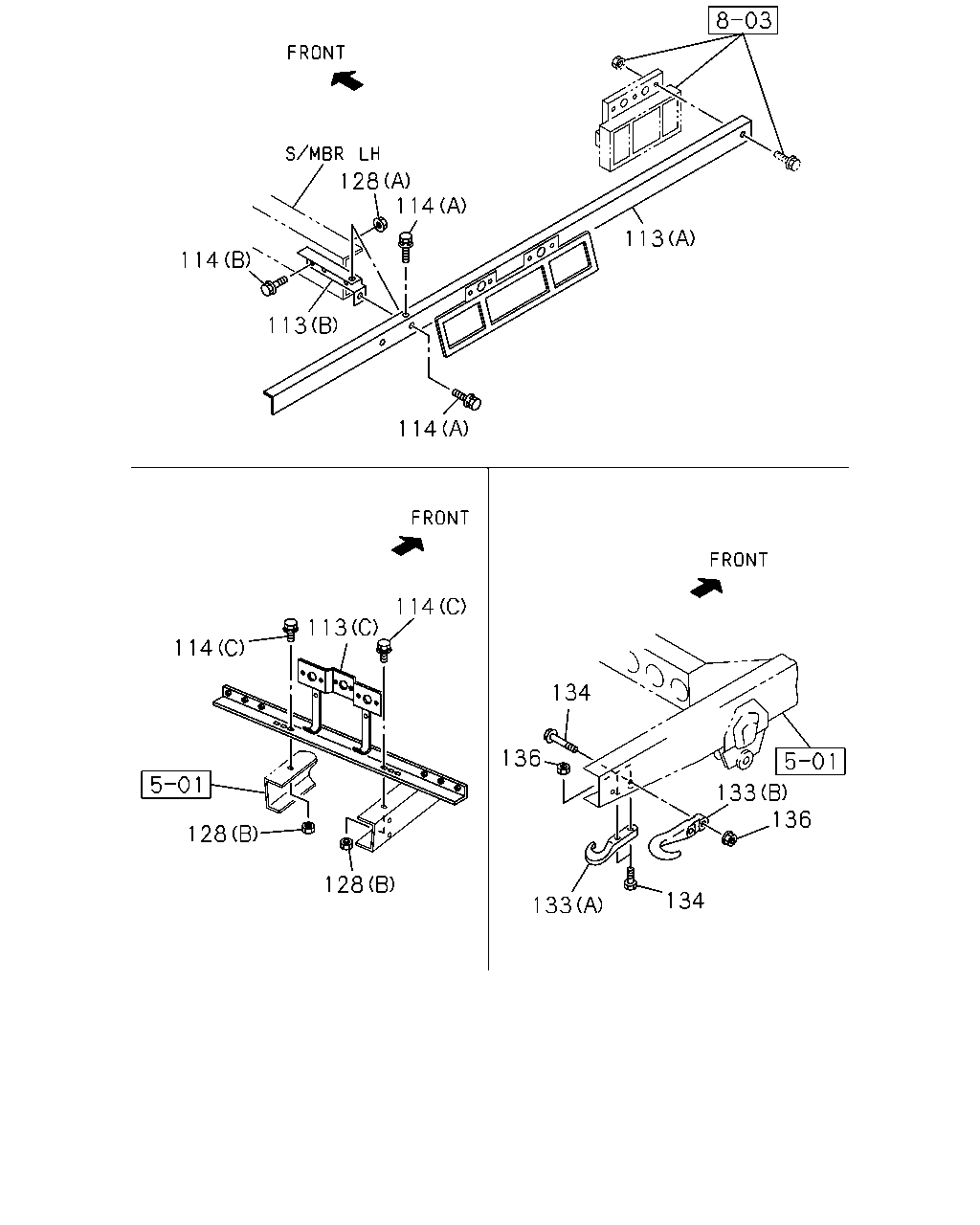

113 114 128 113 114 114 114 113 114 128 128 136 134 133 136 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> 02.664 (A)	8-98030-832-0	01	1	1103-1108	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> 02.664 (A)	8-98030-832-0	01	1	1109-1206	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> 02.664 (A)	8-98030-832-0	01	1	1207-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> BUMPER REAR<7HZ> 02.664 (A)	8-98030-832-0	01	1	1207-1402		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-019-0	01	1	1103-1108	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-019-0	01	1	1109-1206	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-019-0	01	1	1207-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) BUMPER REAR<7HZ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-019-0	01	1	1207-1402		●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-017-0	01	1	1103-1108	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-017-0	01	1	1109-1206	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-017-0	01	1	1207-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12) BUMPER REAR<7HZ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A)	8-97206-017-0	01	1	1207-1402		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (A)	8-98079-145-0	01	1	1103-1108		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> (A)	8-98079-145-0	01	1	1109-1206		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> (A)	8-98079-145-0	01	1	1207-1402		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-146-0	01	1	1103-1108		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-146-0	01	1	1109-1206		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-146-0	01	1	1207-1402		●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1103-1108		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1109-1206		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1207-1402		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	1103-1108		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (B)	8-98100-014-0	01	1	1109-1402		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	1103-1108		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (B)	8-98100-015-0	01	1	1109-1402		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98089-089-0	01	1	1103-1108	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (B)	8-98089-089-0	01	1	1109-1402	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98089-090-0	01	1	1103-1108	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (B)	8-98089-090-0	01	1	1109-1402	●
113	07.800 BRACKET; LICENSE PLATE EXC. RUSSIA EQUIPMENT(B12) (C)	8-98029-390-3	01	1	1109-1402	●	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (C)	8-98029-390-3	01	1	1403-1412	●	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (C)	8-98029-390-3	01	1	1501-1510	●	●
113	07.800 BRACKET; LICENSE PLATE (C)	8-98029-390-3	01	1	1511-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1103-1108	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1109-1402	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1103-1108	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1109-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	1103-1108		●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 07.874 (B) M14X30	0-20851-430-0	04	1	1109-1402		●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RUSSIA EQUIPMENT(B12) 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1109-1402	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1511-	●	●
128	02.662 NUT; CROSS PLATE EXC. RUSSIA EQUIPMENT(B12) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1109-1402	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1403-1412	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1501-1510	●	●
128	02.662 NUT; CROSS PLATE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
128	02.662 NUT; CROSS PLATE 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	1103-1108	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12) 03.162 (A) M10 FLANGE	0-91180-110-0	04	1	1109-1402	●
128	02.662 NUT; CROSS PLATE 00.429 (A) M14 FLANGE	0-91180-214-0	04	1	1103-1108		●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12) 00.429 (A) M14 FLANGE	0-91180-214-0	04	1	1109-1402		●
133	07.112 HOOK EXC. RUSSIA EQUIPMENT(B12) 07.330 (A)	8-94183-262-0	01	1	1109-1206	●
133	07.112 HOOK EXC. RUSSIA EQUIPMENT(B12) 07.330 (A)	8-94183-262-0	01	1	1207-1212	●
133	07.112 HOOK EXC. RUSSIA EQUIPMENT(B12),REAR WIDE TREAD(V4T) 07.330 (A)	8-94183-262-0	01	1	1207-1212		●
133	07.112 HOOK EXC. RUSSIA EQUIPMENT(B12) 07.330 (A)	8-94183-262-0	01	1	1301-	●
133	07.112 HOOK EXC. RUSSIA EQUIPMENT(B12) 07.068 (B)	8-97387-665-0	01	1	1109-1206		●
133	07.112 HOOK REAR WIDE TREAD(V4T) EXC. RUSSIA EQUIPMENT(B12) 07.068 (B)	8-97387-665-0	01	1	1207-		●
134	07.068 BOLT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1109-1206	●
134	07.068 BOLT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1207-1212	●
134	07.068 BOLT; HOOK EXC. RUSSIA EQUIPMENT(B12),REAR WIDE TREAD(V4T) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1207-1212		●
134	07.068 BOLT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1301-	●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> EXC. RUSSIA EQUIPMENT(B12) 07.039 M14X50	0-10856-450-0	02	1	1109-1206		●
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. RUSSIA EQUIPMENT(B12) 07.039 M14X50	0-10856-450-0	02	1	1207-		●
134	07.068 BOLT; HOOK EXC. RUSSIA EQUIPMENT(B12), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1109-1206		●
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) EXC. RUSSIA EQUIPMENT(B12), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1207-1212		●
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) EXC. RUSSIA EQUIPMENT(B12) M14X60	0-10861-460-0	02	1	1301-1301		●
134	07.068 BOLT; HOOK REAR WIDE TREAD(V4T) EXC. RUSSIA EQUIPMENT(B12), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1302-		●
136	07.068 NUT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.833 M10	0-91110-510-0	02	1	1109-1206	●
136	07.068 NUT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.833 M10	0-91110-510-0	02	1	1207-1212	●
136	07.068 NUT; HOOK EXC. RUSSIA EQUIPMENT(B12),REAR WIDE TREAD(V4T) 00.833 M10	0-91110-510-0	02	1	1207-1212		●
136	07.068 NUT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.833 M10	0-91110-510-0	02	1	1301-	●
136	07.068 NUT; HOOK EXC. RUSSIA EQUIPMENT(B12) 00.429 M14 FLANGE	0-91180-214-0	02	1	1109-1206		●
136	07.068 NUT; HOOK REAR WIDE TREAD(V4T) EXC. RUSSIA EQUIPMENT(B12) 00.429 M14 FLANGE	0-91180-214-0	02	1	1207-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
