◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#81169) — 32 parça

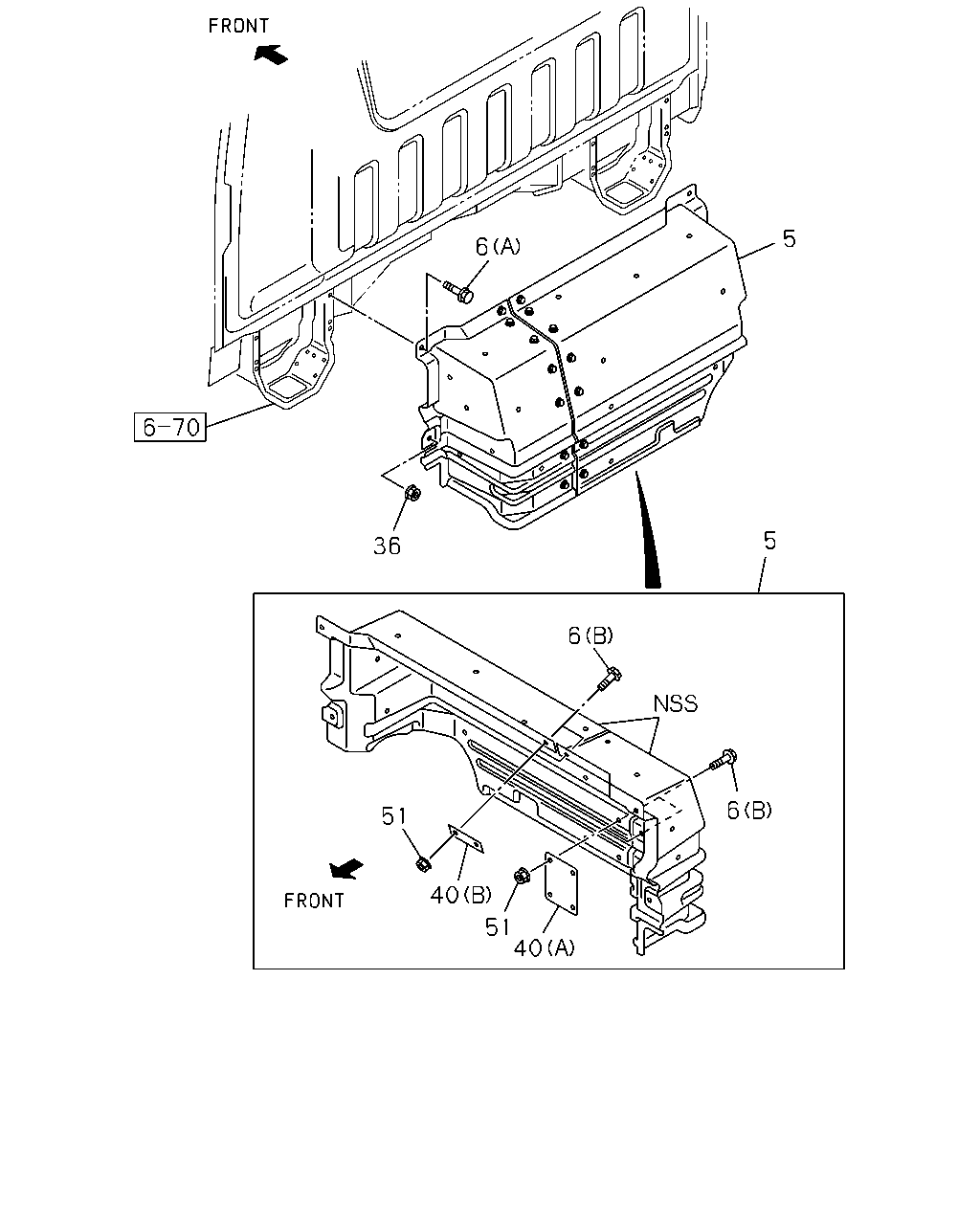

çizim 131861
5 6 5 36 6 6 51 40 51 40
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.587 PANEL; CAB BACK
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) 		8-98180-758-0 01 1 1109- ● ●
6 16.587 BOLT; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) 08.155 (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1109- ● ●
6 16.587 BOLT; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) 08.155 (B) M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1109- ● ●
36 16.587 NUT; BRKT
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1109- ● ●
40 16.587 BRACKET; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) (A) 		8-98181-432-0 03 1 1109- ● ●
40 16.587 BRACKET; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) (B) 		8-98181-433-0 01 1 1109- ● ●
51 16.587 NUT; PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. ARGENTINA COUNTRY(CX1) 01.062 M6 FLANGE 		0-91180-106-0 14 1 1109- ● ●

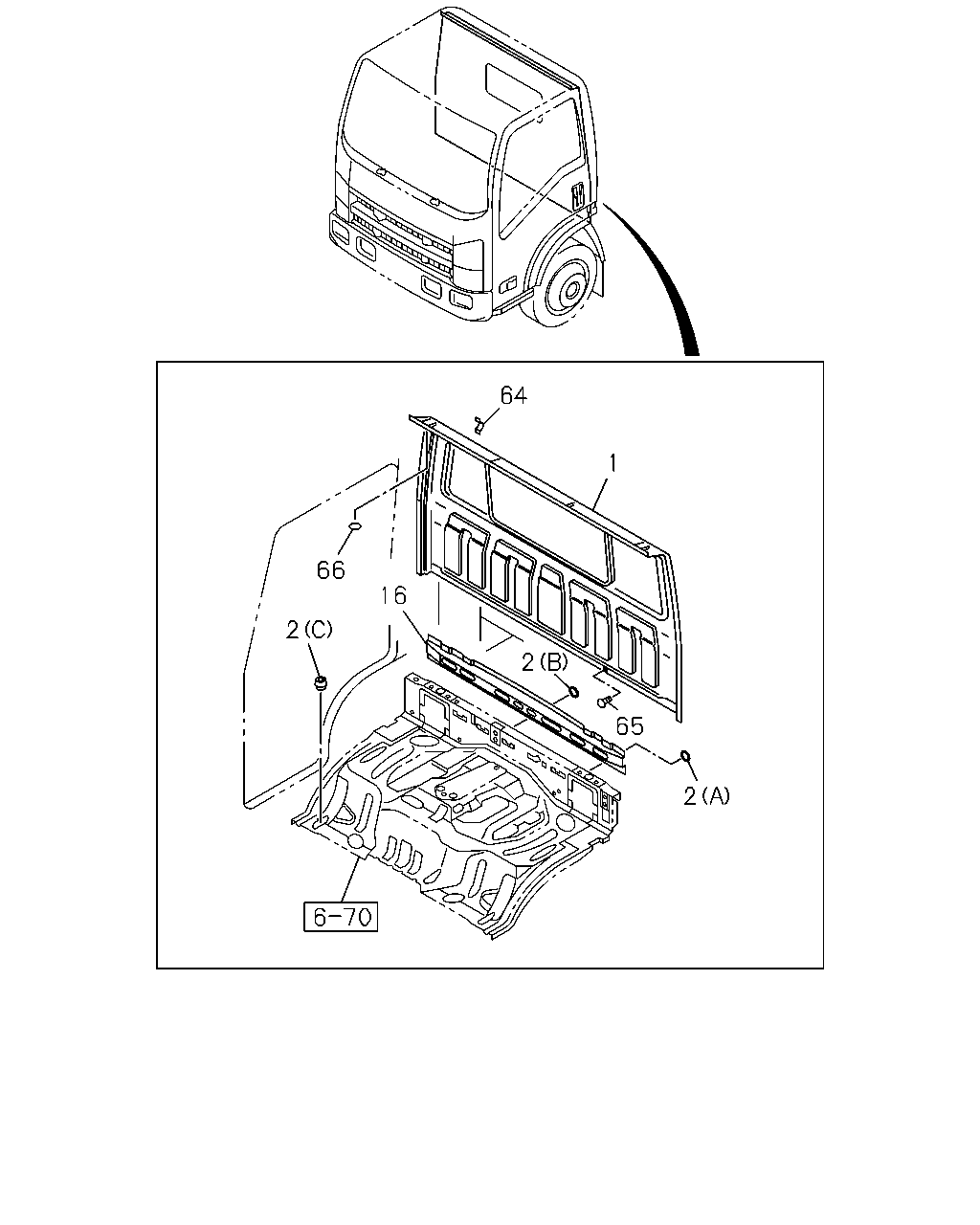

çizim 132341
1 64 2 65 2 16 66 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-303-4 01 1 1109-1410 ● ●
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-303-4 01 1 1411- ● ●
1 16.587 PANEL; BACK OUTER 8-97584-300-3 01 1 1103-1108 ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-300-3 01 1 1109- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 09 1 1103- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1103- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=12.1 		8-97898-423-0 04 1 1103- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1103- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1103- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> 		8-98313-204-0 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-607-3 01 1 1103-1410 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 		8-97584-607-3 01 1 1411-1504 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1505- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1103-1410 ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1411- ● ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1103-1410 ● ●
65 17.198 STUD; BACK PANEL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 		8-94389-701-0 01 1 1411- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1103-1108 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1109- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1103-1108 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1109- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1103-1108 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1109- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1103-1108 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1109- ● ●
