1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#8116) — 145 parça

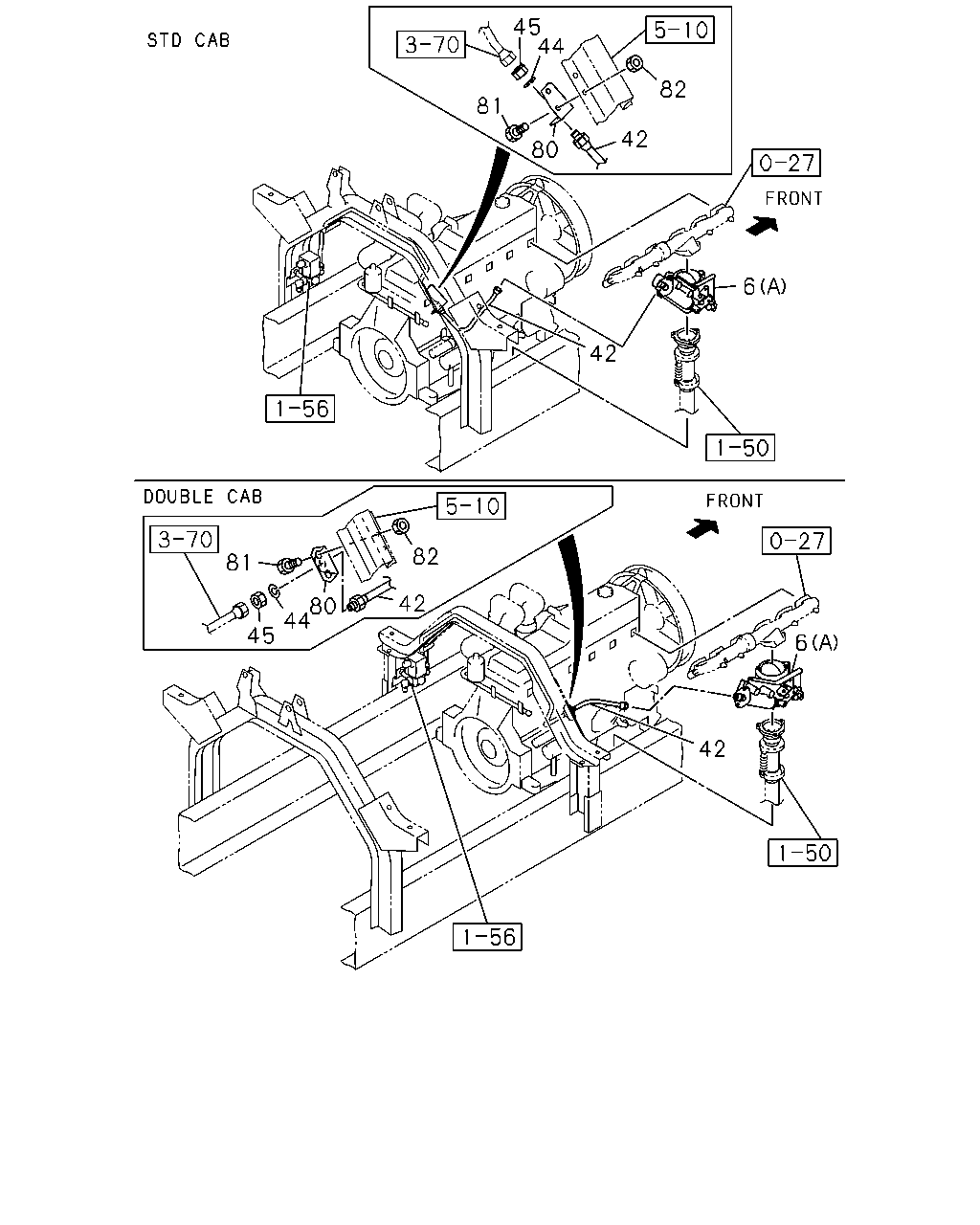

45 44 82 80 81 42 6 42 82 81 42 80 44 45 6 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (B)	1-22181-158-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE (A)	8-97602-533-1	01	1	0211-		●	●
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	8-94391-043-1	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (A)	8-94390-569-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (B)	8-97600-874-0	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FSS STD CAB(FS*M) FTS STD CAB(FT*M) L=300	1-09363-608-0	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FSS STD CAB(FS*M) FTS STD CAB(FT*M) L=350	1-09363-651-0	01	1	0211-		●	●
42	HOSE; FLEX,EXH BRK FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) L=260	1-09363-609-0	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FSS DOUBLE CAB(FS*W) L=260	1-09363-876-0	01	1	0211-			●
42	HOSE; FLEX,EXH BRK FTS DOUBLE CAB(FT*W) L=240	1-09363-671-0	01	1	0211-		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0005-0210	●
44	WASHER; LK,FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) ID=12.2	9-09150-512-0	02	1	0211-0603		●	●
44	WASHER; LK,FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) ID=12.2	0-91510-512-0	02	1	0604-		●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0005-0210	●
45	NUT; FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) M12	9-09840-280-0	02	1	0211-		●	●
80	BRACKET; FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-47476-355-0	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-47476-880-1	01	1	0211-		●	●
80	BRACKET; FLEX HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-47477-345-0	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-47479-321-0	01	1	0211-		●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●

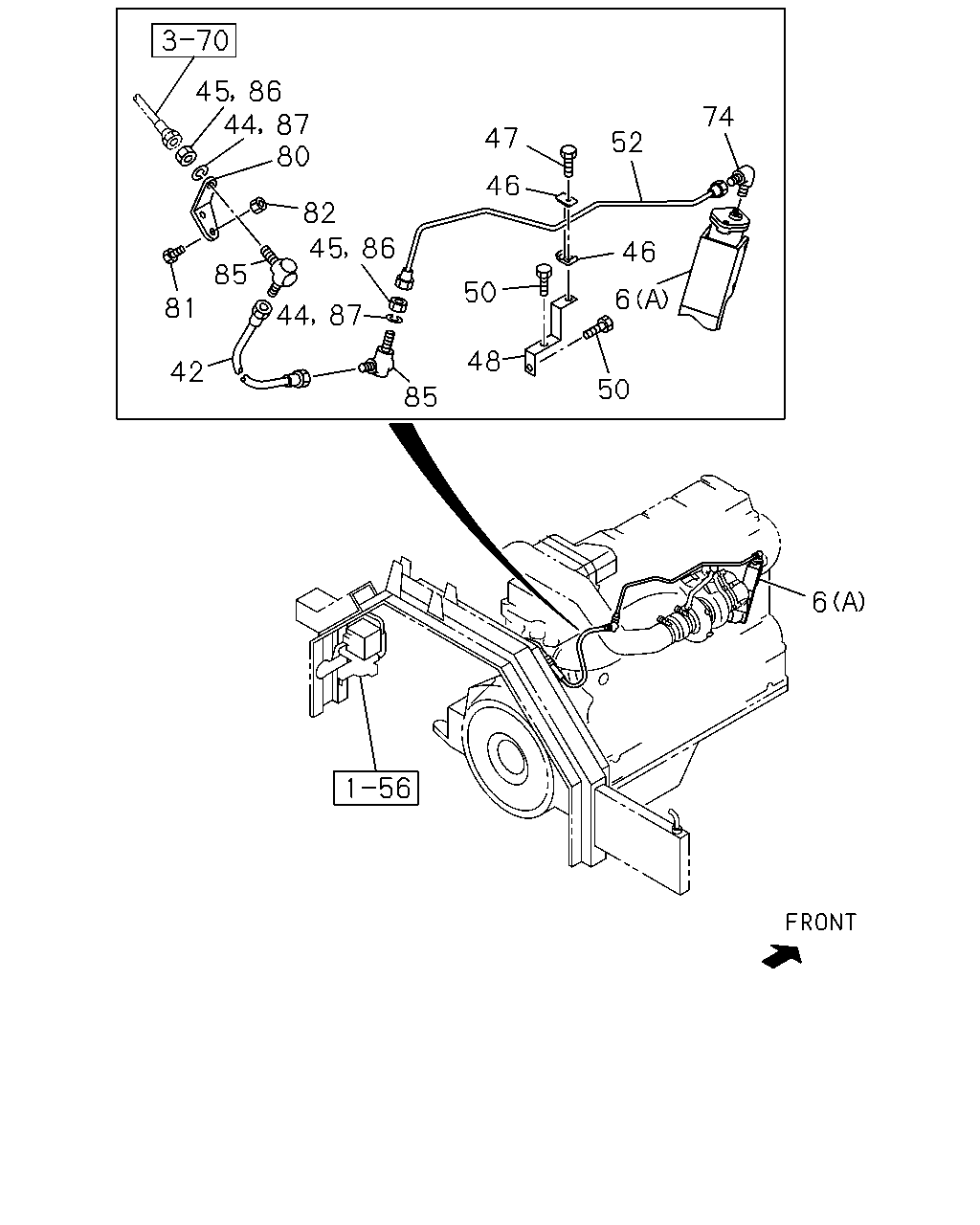

80 74 47 52 46 82 45 86 46 85 50 6 81 44 87 48 42 50 85 6 45 86 44 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (B)	1-22181-158-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE (A)	8-97602-533-1	01	1	0211-		●	●
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	8-94391-043-1	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (A)	8-94390-569-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (B)	8-97600-874-0	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FSS STD CAB(FS*M) FTS STD CAB(FT*M) L=300	1-09363-608-0	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FSS STD CAB(FS*M) FTS STD CAB(FT*M) L=350	1-09363-651-0	01	1	0211-		●	●
42	HOSE; FLEX,EXH BRK FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) L=260	1-09363-609-0	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FSS DOUBLE CAB(FS*W) L=260	1-09363-876-0	01	1	0211-			●
42	HOSE; FLEX,EXH BRK FTS DOUBLE CAB(FT*W) L=240	1-09363-671-0	01	1	0211-		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0005-0210	●
44	WASHER; LK,FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) ID=12.2	9-09150-512-0	02	1	0211-0603		●	●
44	WASHER; LK,FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) ID=12.2	0-91510-512-0	02	1	0604-		●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0005-0210	●
45	NUT; FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M) M12	9-09840-280-0	02	1	0211-		●	●
46	CLIP; AIR PIPE	1-09701-240-0	02	1	0211-		●	●
47	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●	●
47	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	0601-		●	●
48	BRACKET; AIR PIPE	8-97600-122-1	01	1	0211-		●	●
50	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●	●
50	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
52	PIPE ASM; AIR FLEX HOSE	8-97602-396-0	01	1	0211-		●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-		●	●
80	BRACKET; FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-47476-355-0	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-47476-880-1	01	1	0211-		●	●
80	BRACKET; FLEX HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-47477-345-0	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-47479-321-0	01	1	0211-		●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
85	UNION; FLEX HOSE,EXH BRAKE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12 ELBOW	9-09225-206-1	02	1	0211-0607		●	●
85	UNION; FLEX HOSE,EXH BRAKE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12 ELBOW	0-92125-206-0	02	1	0608-		●	●
86	NUT; HOSE UNION FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12	9-09840-280-0	02	1	0211-		●	●
87	WASHER; LK,HOSE UNION FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=12.2	9-09150-512-0	02	1	0211-0603		●	●
87	WASHER; LK,HOSE UNION FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=12.2	0-91510-512-0	02	1	0604-		●	●

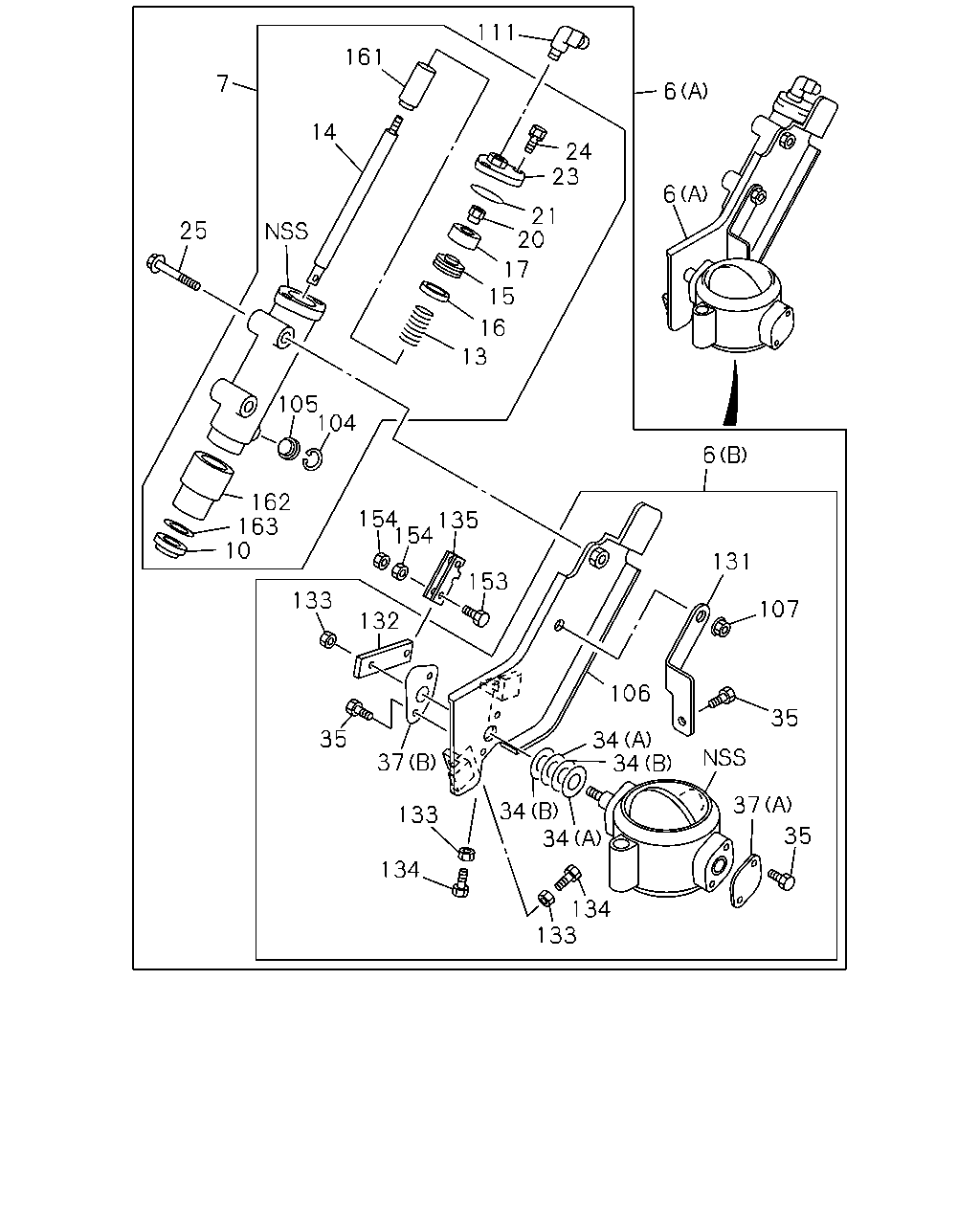

111 161 7 6 14 24 23 6 21 20 25 17 15 16 13 105 104 6 162 163 10 154 135 154 131 153 133 107 132 106 35 35 34 34 37 37 34 34 133 35 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (B)	1-22181-158-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE (A)	8-97602-533-1	01	1	0211-		●	●
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	8-94391-043-1	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (A)	8-94390-569-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (B)	8-97600-874-0	01	1	0005-0210	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0005-0210	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0005-0210	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0005-0210	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0005-0210	●
15	PLATE; CONT CYL FSS STD CAB(FS*M) FTS STD CAB(FT*M)	8-97600-316-0	01	1	0005-0210	●
15	PLATE; CONT CYL FTS STD CAB(FT*M)	1-22199-156-0	01	1	0005-0210	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0005-0210	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0005-0210	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
21	GASKET; COVER	1-22199-072-0	01	1	0005-0210	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0005-0210	●
24	BOLT; COVER FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-22199-174-0	02	1	0005-0210	●
24	BOLT; COVER FTS STD CAB(FT*M)	1-22199-227-0	02	1	0005-0210	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0005-0210	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0005-0210	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0005-0210	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	0005-0210	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0005-0210	●
37	COVER; BODY (A)	9-22189-160-0	01	1	0005-0210	●
104	RING; RET	9-88510-331-0	01	1	0005-0210	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FSS STD CAB(FS*M) FTS STD CAB(FT*M)	8-97600-313-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FTS STD CAB(FT*M)	8-97600-875-0	01	1	0005-0210	●
107	NUT; CONT CYL M10 FLANGE	0-91150-110-0	01	1	0005-0210	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0005-0210	●
131	PLATE; BODY FSS STD CAB(FS*M) FTS STD CAB(FT*M)	8-94391-039-0	01	1	0005-0210	●
131	PLATE; BODY FTS STD CAB(FT*M)	8-97600-872-0	01	1	0005-0210	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0005-0210	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0005-0210	●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	0005-0210	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0005-0210	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0005-0210	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0005-0210	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0005-0210	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0005-0210	●

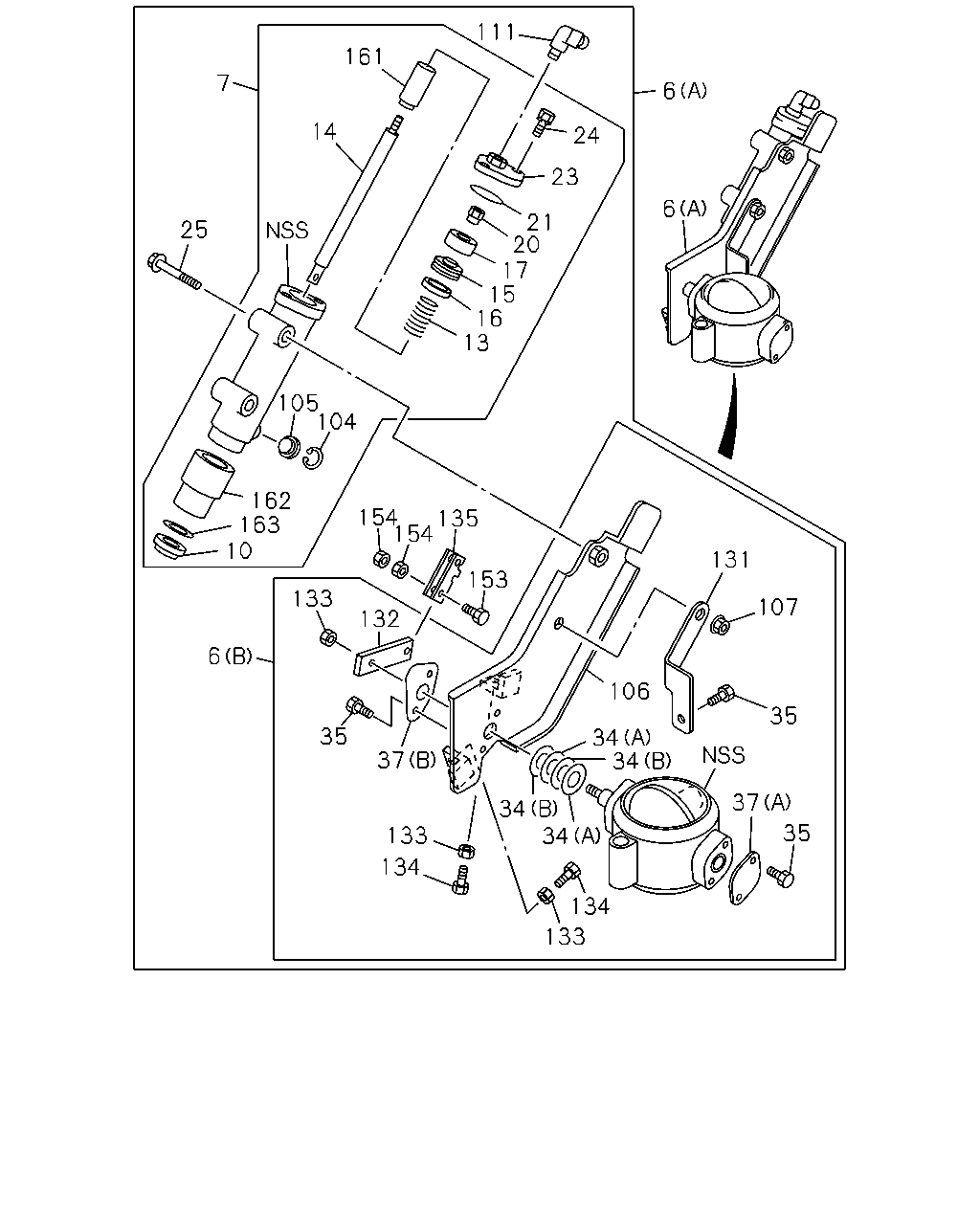

111 161 7 6 14 24 23 6 21 20 17 15 16 13 25 105 104 162 163 10 154 135 154 131 153 133 107 132 6 106 35 35 34 34 37 37 34 34 35 133 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (B)	1-22181-158-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE (A)	8-97602-533-1	01	1	0211-		●	●
6	VALVE; EXH BRAKE FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	8-94391-043-1	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (A)	8-94390-569-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FTS STD CAB(FT*M) (B)	8-97600-874-0	01	1	0005-0210	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0005-0210	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0005-0210	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0005-0210	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0005-0210	●
15	PLATE; CONT CYL FSS STD CAB(FS*M) FTS STD CAB(FT*M)	8-97600-316-0	01	1	0005-0210	●
15	PLATE; CONT CYL FTS STD CAB(FT*M)	1-22199-156-0	01	1	0005-0210	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0005-0210	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0005-0210	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
21	GASKET; COVER	1-22199-072-0	01	1	0005-0210	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0005-0210	●
24	BOLT; COVER FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-22199-174-0	02	1	0005-0210	●
24	BOLT; COVER FTS STD CAB(FT*M)	1-22199-227-0	02	1	0005-0210	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0005-0210	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0005-0210	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0005-0210	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	0005-0210	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0005-0210	●
37	COVER; BODY (A)	9-22189-160-0	01	1	0005-0210	●
104	RING; RET	9-88510-331-0	01	1	0005-0210	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FSS STD CAB(FS*M) FTS STD CAB(FT*M)	8-97600-313-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FTS STD CAB(FT*M)	8-97600-875-0	01	1	0005-0210	●
107	NUT; CONT CYL M10 FLANGE	0-91150-110-0	01	1	0005-0210	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0005-0210	●
131	PLATE; BODY FSS STD CAB(FS*M) FTS STD CAB(FT*M)	8-94391-039-0	01	1	0005-0210	●
131	PLATE; BODY FTS STD CAB(FT*M)	8-97600-872-0	01	1	0005-0210	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0005-0210	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0005-0210	●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	0005-0210	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0005-0210	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0005-0210	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0005-0210	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0005-0210	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0005-0210	●
