◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#8115) — 1217 parça

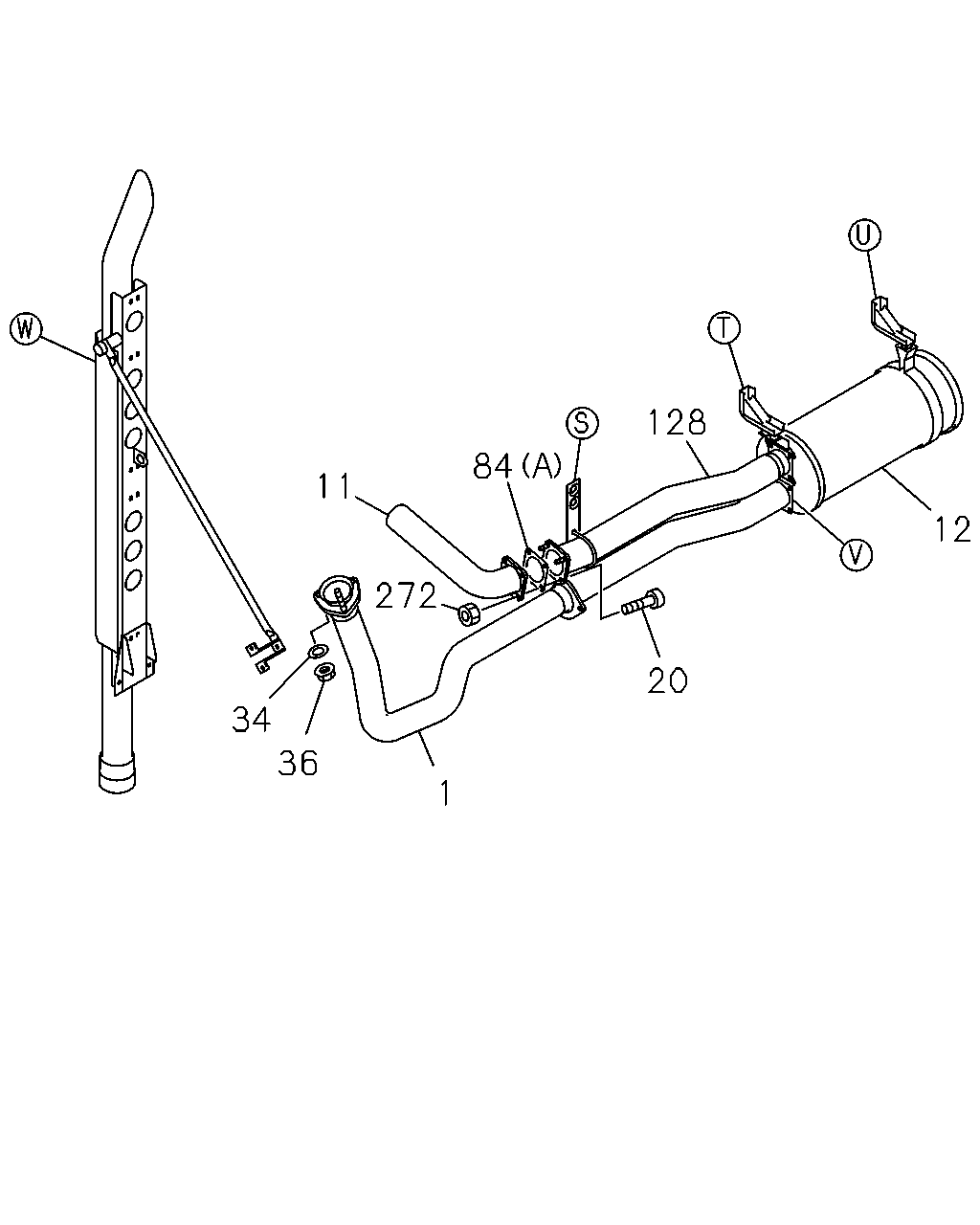

çizim 76436
128 84 11 12 272 20 34 36 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22122-401-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22123-654-2 01 1 0211- ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22122-776-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22123-655-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q) 		1-22122-839-1 01 1 0005-0006 ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-839-1 01 1 0007-0210 ●
1 PIPE; EXH
FTS DOUBLE CAB(FT**W*) 		1-22123-657-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-22123-358-2 01 1 0005-0210 ●
1 PIPE; EXH
FTS STD CAB(FT**M*) 		1-22123-656-2 01 1 0211- ●
11 PIPE; EXH,RR
FSS ALL(FS****) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22123-325-1 01 1 0211- ● ●
11 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) 		1-22123-359-1 01 1 0005-0210 ●
11 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22123-511-0 01 1 0211- ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22140-943-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22140-723-2 01 1 0211- ● ●
20 BOLT; FLANGE,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12X35 FLANGE 		0-28681-235-0 08 1 0211-0512 ● ●
20 BOLT; FLANGE,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0210 ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0211-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0005-0210 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 0211- ● ●
84 GASKET; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) 		1-14145-157-0 01 1 0211- ● ●
84 GASKET; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (B) 		8-94394-391-0 01 1 0211- ● ●
128 PIPE; EXH,RR
FSS ALL(FS****) 		1-22126-321-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FSS STD CAB(FS**M*) 		1-22126-404-1 01 1 0211- ●
128 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) 		1-22126-322-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) 		1-22126-405-1 01 1 0211- ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD6D M/T(X5Q) 		1-22126-181-1 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) 		1-22126-357-0 01 1 0211- ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD7Q M/T(X5K) 		1-22126-312-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) 		1-22126-403-0 01 1 0211- ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q) 		1-22126-158-2 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) 		1-22126-313-0 01 1 0005-0210 ●
272 NUT; FLANGE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12 FLANGE 		0-91150-212-0 08 1 0211-0602 ● ●
272 NUT; FLANGE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●

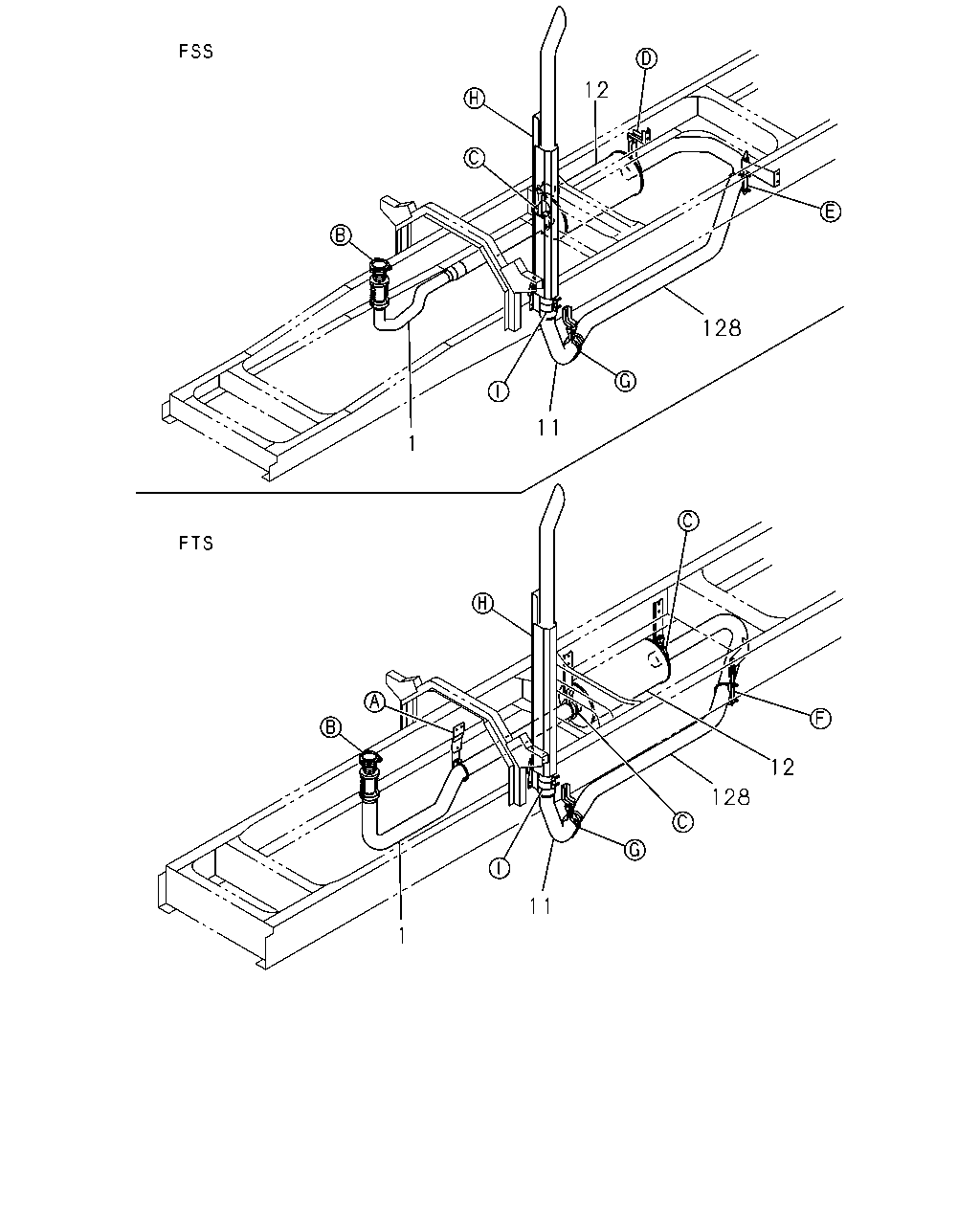

çizim 77388
12 128 11 1 12 128 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22122-401-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22123-654-2 01 1 0211- ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22122-776-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22123-655-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q) 		1-22122-839-1 01 1 0005-0006 ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-839-1 01 1 0007-0210 ●
1 PIPE; EXH
FTS DOUBLE CAB(FT**W*) 		1-22123-657-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-22123-358-2 01 1 0005-0210 ●
1 PIPE; EXH
FTS STD CAB(FT**M*) 		1-22123-656-2 01 1 0211- ●
11 PIPE; EXH,RR
FSS ALL(FS****) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22123-325-1 01 1 0211- ● ●
11 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) 		1-22123-359-1 01 1 0005-0210 ●
11 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22123-511-0 01 1 0211- ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22140-943-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22140-723-2 01 1 0211- ● ●
128 PIPE; EXH,RR
FSS ALL(FS****) 		1-22126-321-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FSS STD CAB(FS**M*) 		1-22126-404-1 01 1 0211- ●
128 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) 		1-22126-322-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) 		1-22126-405-1 01 1 0211- ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD6D M/T(X5Q) 		1-22126-181-1 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) 		1-22126-357-0 01 1 0211- ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD7Q M/T(X5K) 		1-22126-312-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) 		1-22126-403-0 01 1 0211- ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q) 		1-22126-158-2 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) 		1-22126-313-0 01 1 0005-0210 ●

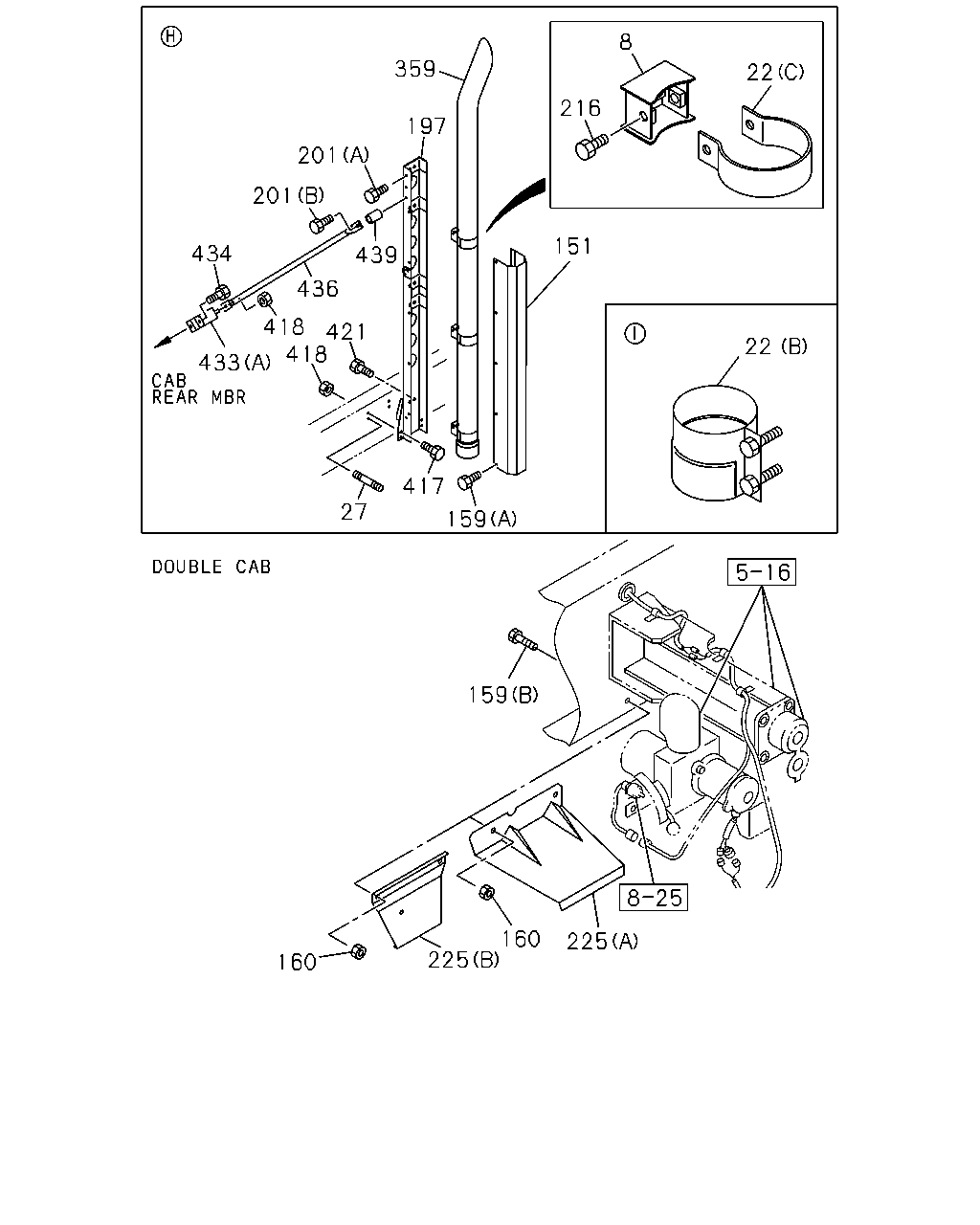

çizim 77424
8 359 22 216 197 201 201 151 434 439 436 418 421 418 22 433 417 27 159 159 160 225 225 160
BalonParca AdiParca NoAdetTipApplied Date A B C
8 BRACKET; EXH PIPE 1-22131-885-0 03 1 0112-0210 ●
8 BRACKET; EXH PIPE 1-22131-885-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
27 STUD; EXH PIPE
M10X28,M10X15 L=50 		5-09300-050-0 02 1 0005-0210 ●
27 STUD; EXH PIPE
M10X28,M10X15 L=50 		5-09300-050-0 02 1 0211-0212 ● ●
27 STUD; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0301- ● ●
151 PROTECTOR; HEAT,EXH PIPE 1-22159-240-1 01 1 0005-0210 ●
151 PROTECTOR; HEAT,EXH PIPE 1-22159-240-1 01 1 0211- ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28080-820-0 10 1 0005-0210 ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28080-820-0 10 1 0211-0512 ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28050-820-0 10 1 0601- ● ●
159 BOLT; HEAT PROTECTOR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
159 BOLT; HEAT PROTECTOR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ●
160 NUT; HEAT PROTECTOR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FSS ALL(FS****) 		1-22131-739-3 01 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FSS DOUBLE CAB(FS**W*) 		1-22131-739-3 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FTS ALL(FT****) 		1-22131-757-2 01 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FTS DOUBLE CAB(FT**W*) 		1-22131-757-2 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FTS STD CAB(FT**M*) 		1-22131-917-1 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FSS STD CAB(FS**M*) 		1-22131-918-0 01 1 0211- ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28081-025-0 01 1 0005-0210 ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0512 ● ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ● ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0005-0210 ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0303 ●
201 BOLT; STAY
FTS STD CAB(FT**M*) (B) M10X50 FLANGE 		0-28081-050-0 02 1 0304-0512 ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0304-0512 ●
201 BOLT; STAY
FTS STD CAB(FT**M*) (B) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 03 1 0211-0303 ●
201 BOLT; STAY
FTS DOUBLE CAB(FT**W*) (B) M10X50 FLANGE 		0-28081-050-0 03 1 0304-0512 ●
201 BOLT; STAY
FTS DOUBLE CAB(FT**W*) (B) M10X50 FLANGE 		0-28051-050-0 03 1 0601- ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 06 1 0112-0210 ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 06 1 0211-0512 ● ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28051-020-0 06 1 0601- ● ●
225 PROTECTOR; HEAT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-53619-096-0 01 1 0005-0210 ●
225 PROTECTOR; HEAT
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) (B) 		1-53458-958-2 01 1 0005-0210 ●
359 PIPE; EXH,VERTICAL 1-22123-348-0 01 1 0005-0210 ●
359 PIPE; EXH,VERTICAL
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22123-348-0 01 1 0211- ● ●
359 PIPE; EXH,VERTICAL
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22123-331-0 01 1 0211- ● ●
417 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
417 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0211-0212 ● ●
417 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0301-0512 ● ●
417 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
418 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91150-210-0 02 1 0301-0602 ● ●
418 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0005-0210 ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0211-0212 ● ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0301-0602 ● ●
418 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
421 BOLT; PIPE BRKT
M10X25 FLANGE 		0-28081-025-0 06 1 0005-0210 ●
421 BOLT; PIPE BRKT
M10X25 FLANGE 		0-28081-025-0 06 1 0211-0512 ● ●
421 BOLT; PIPE BRKT
M10X25 FLANGE 		0-28051-025-0 06 1 0601- ● ●
433 BRACKET; STAY,EXH PIPE
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) 		1-22131-790-1 01 1 0005-0210 ●
433 BRACKET; STAY,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22131-790-1 01 1 0211- ● ●
433 BRACKET; STAY,EXH PIPE
FTS STD CAB(FT**M*) (A) 		1-22131-783-1 01 1 0005-0210 ●
433 BRACKET; STAY,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) 		1-22131-783-1 01 1 0211- ● ●
433 BRACKET; STAY,EXH PIPE
(B) 		1-47479-452-0 01 1 0211-0303 ●
433 BRACKET; STAY,EXH PIPE
FTS DOUBLE CAB(FT**W*) (B) 		1-47479-662-0 01 1 0304- ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28681-030-0 04 1 0301-0512 ● ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
434 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
436 STAY; SUPPORT,EXH 1-22131-698-2 01 1 0005-0210 ●
436 STAY; SUPPORT,EXH
FSS STD CAB(FS**M*) 		1-22131-698-2 01 1 0211-0303 ●
436 STAY; SUPPORT,EXH
FTS STD CAB(FT**M*) 		1-22131-698-2 01 1 0304- ●
436 STAY; SUPPORT,EXH 1-22131-698-2 01 1 0304- ●
436 STAY; SUPPORT,EXH
FTS STD CAB(FT**M*) 		1-22131-989-0 01 1 0211-0303 ●
436 STAY; SUPPORT,EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22131-900-0 01 1 0211-0303 ● ●
436 STAY; SUPPORT,EXH
FTS DOUBLE CAB(FT**W*) 		1-22131-900-0 01 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005-0210 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0211-0303 ●
439 TUBE; DIST,SUPPORT RUBBER
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 03 1 0211-0303 ●
439 TUBE; DIST,SUPPORT RUBBER
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 03 1 0304- ●

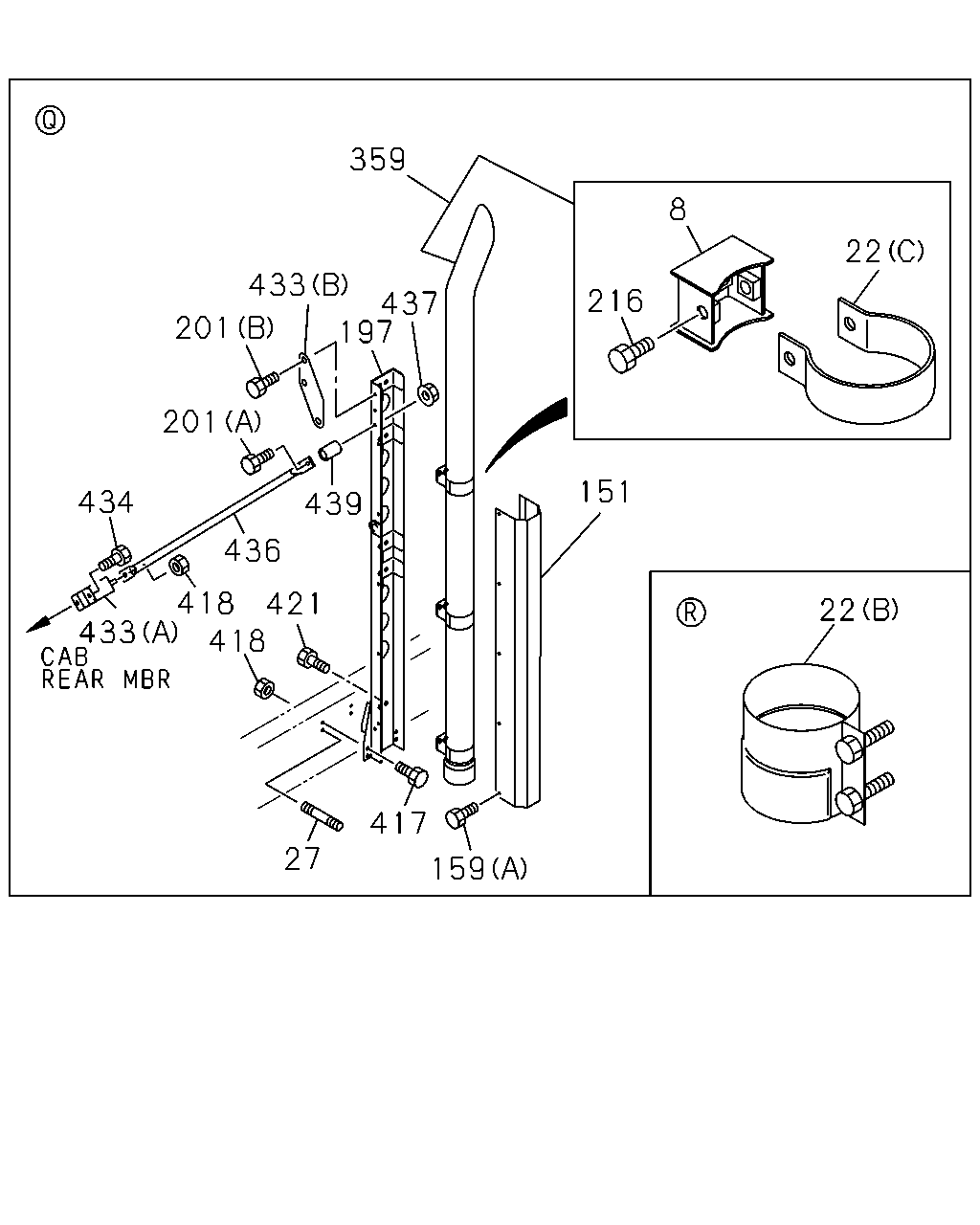

çizim 79090
359 8 22 433 216 437 197 201 201 151 434 439 436 418 433 22 417 27 159
BalonParca AdiParca NoAdetTipApplied Date A B C
8 BRACKET; EXH PIPE 1-22131-885-0 03 1 0112-0210 ●
8 BRACKET; EXH PIPE 1-22131-885-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
27 STUD; EXH PIPE
M10X28,M10X15 L=50 		5-09300-050-0 02 1 0005-0210 ●
27 STUD; EXH PIPE
M10X28,M10X15 L=50 		5-09300-050-0 02 1 0211-0212 ● ●
27 STUD; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0301- ● ●
151 PROTECTOR; HEAT,EXH PIPE 1-22159-240-1 01 1 0005-0210 ●
151 PROTECTOR; HEAT,EXH PIPE 1-22159-240-1 01 1 0211- ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28080-820-0 10 1 0005-0210 ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28080-820-0 10 1 0211-0512 ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28050-820-0 10 1 0601- ● ●
159 BOLT; HEAT PROTECTOR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
159 BOLT; HEAT PROTECTOR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FSS ALL(FS****) 		1-22131-739-3 01 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FSS DOUBLE CAB(FS**W*) 		1-22131-739-3 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FTS ALL(FT****) 		1-22131-757-2 01 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FTS DOUBLE CAB(FT**W*) 		1-22131-757-2 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FTS STD CAB(FT**M*) 		1-22131-917-1 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FSS STD CAB(FS**M*) 		1-22131-918-0 01 1 0211- ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28081-025-0 01 1 0005-0210 ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0512 ● ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ● ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0005-0210 ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0303 ●
201 BOLT; STAY
FTS STD CAB(FT**M*) (B) M10X50 FLANGE 		0-28081-050-0 02 1 0304-0512 ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0304-0512 ●
201 BOLT; STAY
FTS STD CAB(FT**M*) (B) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 03 1 0211-0303 ●
201 BOLT; STAY
FTS DOUBLE CAB(FT**W*) (B) M10X50 FLANGE 		0-28081-050-0 03 1 0304-0512 ●
201 BOLT; STAY
FTS DOUBLE CAB(FT**W*) (B) M10X50 FLANGE 		0-28051-050-0 03 1 0601- ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 06 1 0112-0210 ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 06 1 0211-0512 ● ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28051-020-0 06 1 0601- ● ●
359 PIPE; EXH,VERTICAL 1-22123-348-0 01 1 0005-0210 ●
359 PIPE; EXH,VERTICAL
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22123-348-0 01 1 0211- ● ●
359 PIPE; EXH,VERTICAL
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22123-331-0 01 1 0211- ● ●
417 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
417 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0211-0212 ● ●
417 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0301-0512 ● ●
417 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
418 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91150-210-0 02 1 0301-0602 ● ●
418 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0005-0210 ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0211-0212 ● ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0301-0602 ● ●
418 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
433 BRACKET; STAY,EXH PIPE
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) 		1-22131-790-1 01 1 0005-0210 ●
433 BRACKET; STAY,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22131-790-1 01 1 0211- ● ●
433 BRACKET; STAY,EXH PIPE
FTS STD CAB(FT**M*) (A) 		1-22131-783-1 01 1 0005-0210 ●
433 BRACKET; STAY,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) 		1-22131-783-1 01 1 0211- ● ●
433 BRACKET; STAY,EXH PIPE
(B) 		1-47479-452-0 01 1 0211-0303 ●
433 BRACKET; STAY,EXH PIPE
FTS DOUBLE CAB(FT**W*) (B) 		1-47479-662-0 01 1 0304- ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28681-030-0 04 1 0301-0512 ● ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
434 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
436 STAY; SUPPORT,EXH 1-22131-698-2 01 1 0005-0210 ●
436 STAY; SUPPORT,EXH
FSS STD CAB(FS**M*) 		1-22131-698-2 01 1 0211-0303 ●
436 STAY; SUPPORT,EXH
FTS STD CAB(FT**M*) 		1-22131-698-2 01 1 0304- ●
436 STAY; SUPPORT,EXH 1-22131-698-2 01 1 0304- ●
436 STAY; SUPPORT,EXH
FTS STD CAB(FT**M*) 		1-22131-989-0 01 1 0211-0303 ●
436 STAY; SUPPORT,EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22131-900-0 01 1 0211-0303 ● ●
436 STAY; SUPPORT,EXH
FTS DOUBLE CAB(FT**W*) 		1-22131-900-0 01 1 0304- ●
437 NUT; STAY
FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 01 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005-0210 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0211-0303 ●
439 TUBE; DIST,SUPPORT RUBBER
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 03 1 0211-0303 ●
439 TUBE; DIST,SUPPORT RUBBER
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 03 1 0304- ●

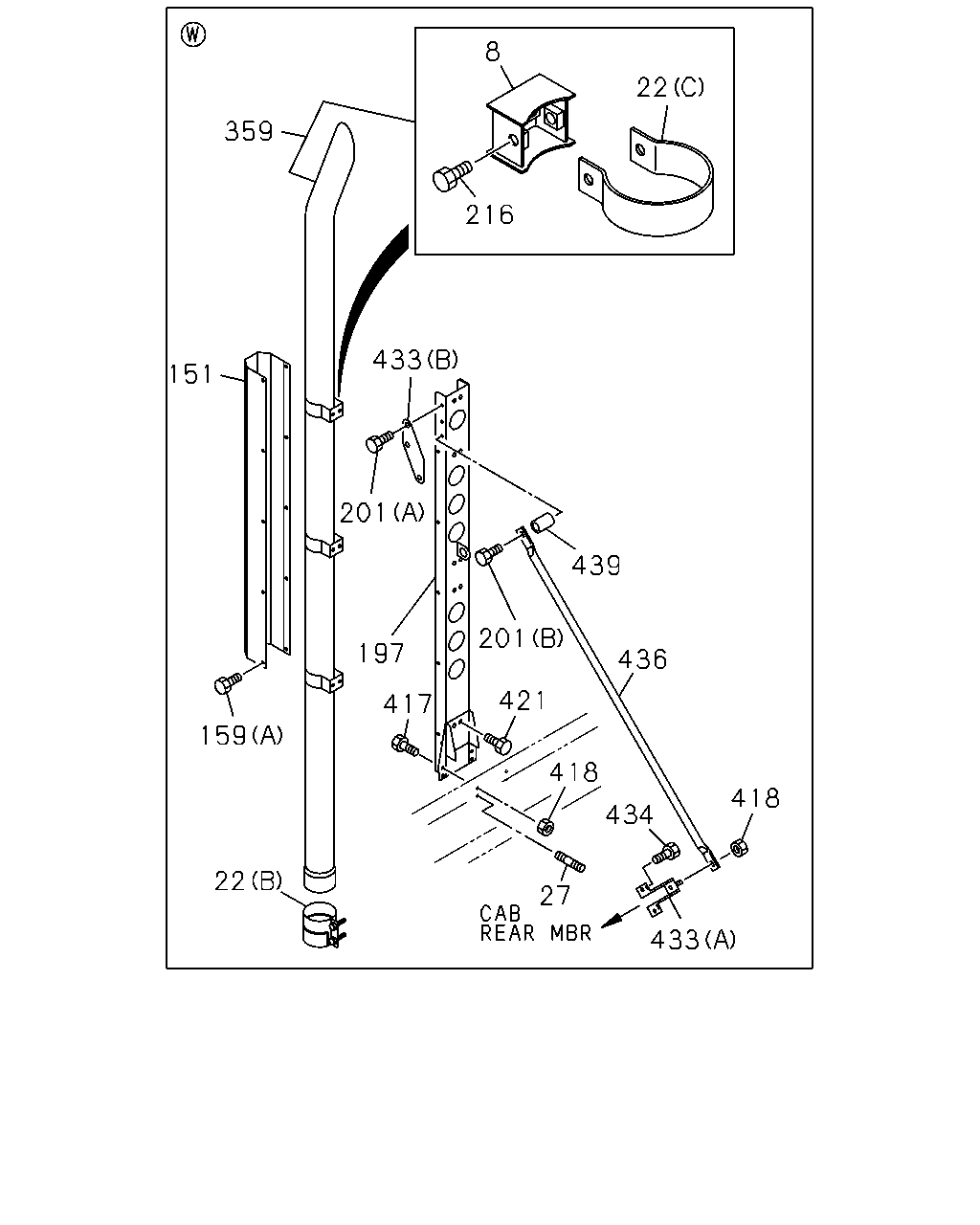

çizim 79157
8 22 359 216 433 151 201 439 201 197 436 421 417 159 418 418 434 22 27 433
BalonParca AdiParca NoAdetTipApplied Date A B C
8 BRACKET; EXH PIPE 1-22131-885-0 03 1 0112-0210 ●
8 BRACKET; EXH PIPE 1-22131-885-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
27 STUD; EXH PIPE
M10X28,M10X15 L=50 		5-09300-050-0 02 1 0005-0210 ●
27 STUD; EXH PIPE
M10X28,M10X15 L=50 		5-09300-050-0 02 1 0211-0212 ● ●
27 STUD; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0301- ● ●
151 PROTECTOR; HEAT,EXH PIPE 1-22159-240-1 01 1 0005-0210 ●
151 PROTECTOR; HEAT,EXH PIPE 1-22159-240-1 01 1 0211- ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28080-820-0 10 1 0005-0210 ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28080-820-0 10 1 0211-0512 ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28050-820-0 10 1 0601- ● ●
159 BOLT; HEAT PROTECTOR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
159 BOLT; HEAT PROTECTOR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FSS ALL(FS****) 		1-22131-739-3 01 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FSS DOUBLE CAB(FS**W*) 		1-22131-739-3 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FTS ALL(FT****) 		1-22131-757-2 01 1 0005-0210 ●
197 BRACKET; EXH PIPE,VERTICAL
FTS DOUBLE CAB(FT**W*) 		1-22131-757-2 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FTS STD CAB(FT**M*) 		1-22131-917-1 01 1 0211- ●
197 BRACKET; EXH PIPE,VERTICAL
FSS STD CAB(FS**M*) 		1-22131-918-0 01 1 0211- ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28081-025-0 01 1 0005-0210 ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0512 ● ●
201 BOLT; STAY
(A) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ● ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0005-0210 ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0303 ●
201 BOLT; STAY
FTS STD CAB(FT**M*) (B) M10X50 FLANGE 		0-28081-050-0 02 1 0304-0512 ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0304-0512 ●
201 BOLT; STAY
FTS STD CAB(FT**M*) (B) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ●
201 BOLT; STAY
(B) M10X50 FLANGE 		0-28081-050-0 03 1 0211-0303 ●
201 BOLT; STAY
FTS DOUBLE CAB(FT**W*) (B) M10X50 FLANGE 		0-28081-050-0 03 1 0304-0512 ●
201 BOLT; STAY
FTS DOUBLE CAB(FT**W*) (B) M10X50 FLANGE 		0-28051-050-0 03 1 0601- ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 06 1 0112-0210 ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 06 1 0211-0512 ● ●
216 BOLT; CLAMP
M10X20 FLANGE 		0-28051-020-0 06 1 0601- ● ●
359 PIPE; EXH,VERTICAL 1-22123-348-0 01 1 0005-0210 ●
359 PIPE; EXH,VERTICAL
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22123-348-0 01 1 0211- ● ●
359 PIPE; EXH,VERTICAL
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22123-331-0 01 1 0211- ● ●
417 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
417 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0211-0212 ● ●
417 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0301-0512 ● ●
417 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
418 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91150-210-0 02 1 0301-0602 ● ●
418 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0005-0210 ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 03 1 0211-0212 ● ●
418 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0301-0602 ● ●
418 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
421 BOLT; PIPE BRKT
M10X25 FLANGE 		0-28081-025-0 06 1 0005-0210 ●
421 BOLT; PIPE BRKT
M10X25 FLANGE 		0-28081-025-0 06 1 0211-0512 ● ●
421 BOLT; PIPE BRKT
M10X25 FLANGE 		0-28051-025-0 06 1 0601- ● ●
433 BRACKET; STAY,EXH PIPE
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) 		1-22131-790-1 01 1 0005-0210 ●
433 BRACKET; STAY,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22131-790-1 01 1 0211- ● ●
433 BRACKET; STAY,EXH PIPE
FTS STD CAB(FT**M*) (A) 		1-22131-783-1 01 1 0005-0210 ●
433 BRACKET; STAY,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) 		1-22131-783-1 01 1 0211- ● ●
433 BRACKET; STAY,EXH PIPE
(B) 		1-47479-452-0 01 1 0211-0303 ●
433 BRACKET; STAY,EXH PIPE
FTS DOUBLE CAB(FT**W*) (B) 		1-47479-662-0 01 1 0304- ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28681-030-0 04 1 0301-0512 ● ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
434 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
436 STAY; SUPPORT,EXH 1-22131-698-2 01 1 0005-0210 ●
436 STAY; SUPPORT,EXH
FSS STD CAB(FS**M*) 		1-22131-698-2 01 1 0211-0303 ●
436 STAY; SUPPORT,EXH
FTS STD CAB(FT**M*) 		1-22131-698-2 01 1 0304- ●
436 STAY; SUPPORT,EXH 1-22131-698-2 01 1 0304- ●
436 STAY; SUPPORT,EXH
FTS STD CAB(FT**M*) 		1-22131-989-0 01 1 0211-0303 ●
436 STAY; SUPPORT,EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22131-900-0 01 1 0211-0303 ● ●
436 STAY; SUPPORT,EXH
FTS DOUBLE CAB(FT**W*) 		1-22131-900-0 01 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005-0210 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0211-0303 ●
439 TUBE; DIST,SUPPORT RUBBER
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0304- ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 03 1 0211-0303 ●
439 TUBE; DIST,SUPPORT RUBBER
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 03 1 0304- ●

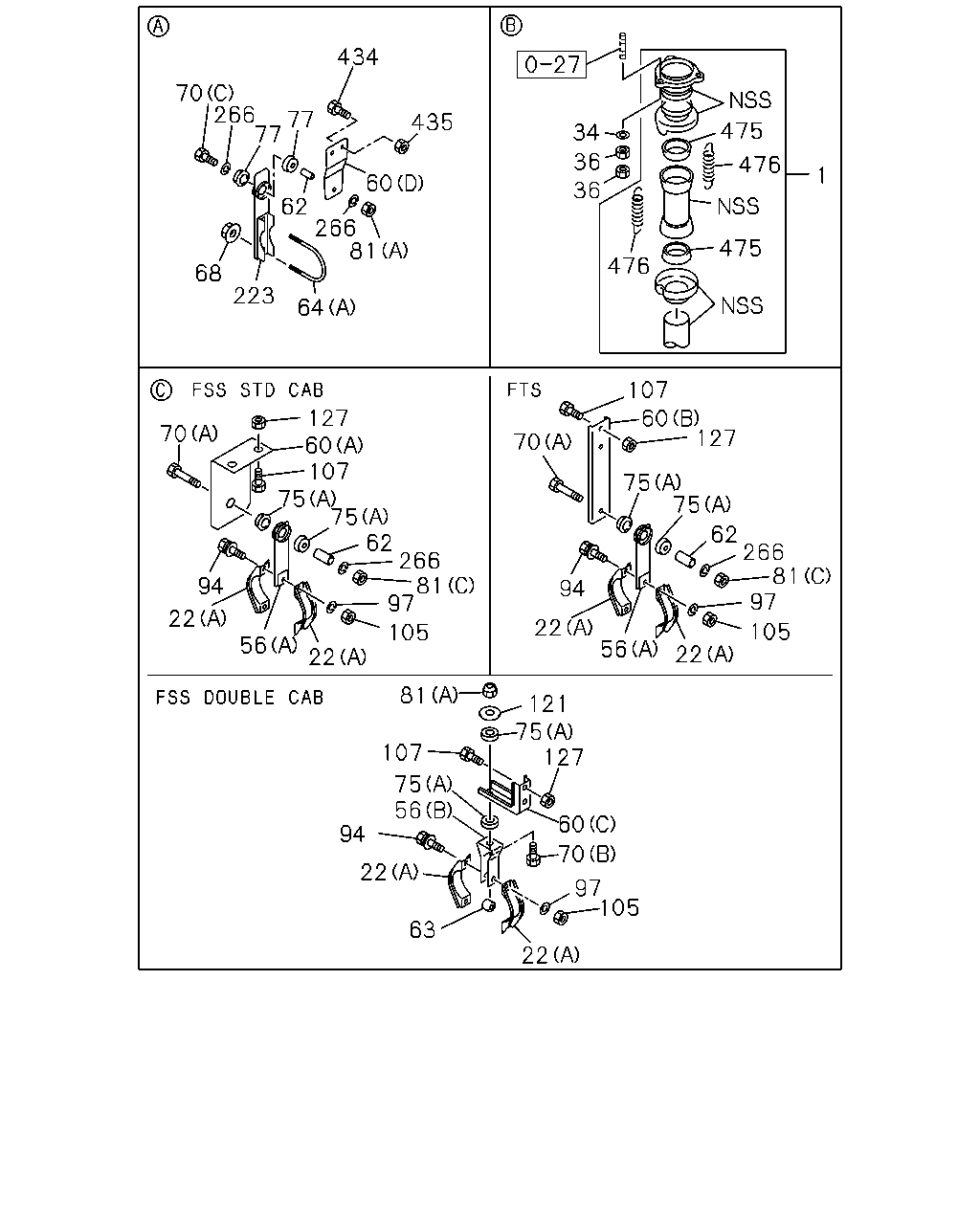

çizim 102921
434 70 266 77 77 435 475 34 36 476 1 60 36 62 266 81 475 476 68 223 64 107 60 127 127 60 107 75 75 62 266 81 97 70 70 75 75 62 266 81 97 94 94 22 22 56 105 105 56 22 22 81 121 75 127 107 75 56 60 94 70 22 97 105 63 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22122-401-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22123-654-2 01 1 0211- ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22122-776-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22123-655-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q) 		1-22122-839-1 01 1 0005-0006 ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-839-1 01 1 0007-0210 ●
1 PIPE; EXH
FTS DOUBLE CAB(FT**W*) 		1-22123-657-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-22123-358-2 01 1 0005-0210 ●
1 PIPE; EXH
FTS STD CAB(FT**M*) 		1-22123-656-2 01 1 0211- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0210 ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0211-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0005-0210 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (C) H=84 		1-22139-042-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (C) H=163 		1-22139-049-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS DOUBLE CAB(FT**W*) (A) L=94 		1-22131-575-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) (A) L=94 		1-22131-575-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (D) 		1-22139-209-0 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (A) L=94 		1-22131-575-0 02 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (C) H=67 		1-22139-041-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) H=67 		1-22139-041-0 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) (G) 		1-22131-768-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (G) 		1-22131-768-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (A) 		1-22131-603-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (J) 		1-22131-911-1 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) MLD6D M/T(X5Q) (F) 		1-22131-770-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (H) 		1-22131-866-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) (B) 		1-22151-689-0 02 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (B) 		1-22151-689-0 02 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (D) 		1-22131-837-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (D) 		1-22131-837-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (E) 		1-22131-838-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS STD CAB(FT**M*) (I) 		1-22151-985-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (D) 		1-22131-988-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 02 1 0211- ●
62 TUBE; DIST,BRKT
FSS ALL(FS****) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FSS STD CAB(FS**M*) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) L=22 		9-22159-024-0 02 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 04 1 0211- ●
63 TUBE; DIST,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) L=11 		1-22139-026-0 01 1 0211- ● ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 02 1 0211- ●
64 U-BOLT; EXH PIPE,RR
FSS ALL(FS****) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22139-033-1 01 1 0211-1105 ● ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22113-101-0 01 1 1106- ● ●
64 U-BOLT; EXH PIPE,RR
(B) 		1-22113-009-0 01 1 0211- ● ●
68 NUT; U BOLT
FSS ALL(FS****) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-208-0 02 1 0211-0602 ● ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91180-208-0 02 1 0603- ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-208-0 04 1 0211-0602 ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-208-0 04 1 0603- ● ●
70 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS STD CAB(FS**M*) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) (A) M10X55 		0-10806-055-0 02 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) (B) M10X50 		0-10806-050-0 02 1 0205-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (C) OD=40 		1-22159-094-0 04 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) (A) OD=40 		1-22159-193-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) OD=40 		1-22159-094-0 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) (A) OD=40 		1-22159-193-0 04 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS DOUBLE CAB(FT**W*) (A) OD=40 		1-22159-193-0 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
FTS STD CAB(FT**M*) (B) OD=30 		1-22159-106-1 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 0211- ●
77 RUBBER; CUSHION,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) OD=40 		1-22159-094-0 02 1 0005-0210 ●
77 RUBBER; CUSHION,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) OD=40 		1-22159-094-0 02 1 0211- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0205-0210 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
FSS ALL(FS****) (B) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (C) M10 		9-09110-510-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (C) M10 		9-09110-510-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 04 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
FTS ALL(FT****) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28081-050-0 01 1 0211-0512 ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28051-050-0 01 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS ALL(FS****) ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS ALL(FS****) ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) ID=10.5 		9-09164-510-0 02 1 0211- ● ●
97 WASHER; PL,CLAMP
FTS ALL(FT****) ID=10.5 		9-09164-510-0 04 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) ID=10.5 		9-09164-510-0 04 1 0211- ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 02 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
FTS ALL(FT****) M10 		9-09110-510-0 04 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 04 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 04 1 0601- ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
FTS ALL(FT****) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0301 ● ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0512 ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
107 BOLT; BRKT
FSS ALL(FS****) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
127 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ●
127 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
127 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
223 BRACKET; EXH PIPE
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-22131-750-0 01 1 0005-0210 ●
223 BRACKET; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22131-750-0 01 1 0211- ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0205-0210 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0205-0210 ●
266 WASHER; LK,BRKT
FTS DOUBLE CAB(FT**W*) ID=10.2 		9-09150-510-0 04 1 0211-0603 ●
266 WASHER; LK,BRKT
FTS DOUBLE CAB(FT**W*) ID=10.2 		0-91510-510-0 04 1 0604- ●
266 WASHER; LK,BRKT
FSS STD CAB(FS**M*) ID=10.2 		9-09150-510-0 01 1 0005-0007 ●
266 WASHER; LK,BRKT
FSS ALL(FS****) ID=10.2 		9-09150-510-0 01 1 0008-0204 ●
266 WASHER; LK,BRKT
FSS STD CAB(FS**M*) ID=10.2 		9-09150-510-0 01 1 0008-0204 ●
266 WASHER; LK,BRKT
FSS ALL(FS****) ID=10.2 		9-09150-510-0 01 1 0205-0210 ●
266 WASHER; LK,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.2 		9-09150-510-0 01 1 0211-0409 ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28681-030-0 04 1 0301-0512 ● ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
434 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
435 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
435 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
435 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0005-0210 ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 0005-0210 ●
çizim 102922
81 121 75 81 70 60 81 107 81 266 75 56 266 62 75 70 60 70 94 75 97 22 68 64 63 22 108 105 70 60 81 266 266 81 60 81 266 62 75 75 108 62 75 64 75 70 266 64 70 108 68 68 81 127 121 75 130 60 75 56 97 70 105 94 63 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (C) H=84 		1-22139-042-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (C) H=163 		1-22139-049-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS DOUBLE CAB(FT**W*) (A) L=94 		1-22131-575-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) (A) L=94 		1-22131-575-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (D) 		1-22139-209-0 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (A) L=94 		1-22131-575-0 02 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (C) H=67 		1-22139-041-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) H=67 		1-22139-041-0 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) (G) 		1-22131-768-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (G) 		1-22131-768-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (A) 		1-22131-603-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (J) 		1-22131-911-1 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) MLD6D M/T(X5Q) (F) 		1-22131-770-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (H) 		1-22131-866-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) (B) 		1-22151-689-0 02 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (B) 		1-22151-689-0 02 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (D) 		1-22131-837-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (D) 		1-22131-837-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (E) 		1-22131-838-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS STD CAB(FT**M*) (I) 		1-22151-985-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (D) 		1-22131-988-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 02 1 0211- ●
62 TUBE; DIST,BRKT
FSS ALL(FS****) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FSS STD CAB(FS**M*) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) L=22 		9-22159-024-0 02 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 04 1 0211- ●
63 TUBE; DIST,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) L=11 		1-22139-026-0 01 1 0211- ● ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 02 1 0211- ●
64 U-BOLT; EXH PIPE,RR
FSS ALL(FS****) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22139-033-1 01 1 0211-1105 ● ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22113-101-0 01 1 1106- ● ●
64 U-BOLT; EXH PIPE,RR
(B) 		1-22113-009-0 01 1 0211- ● ●
68 NUT; U BOLT
FSS ALL(FS****) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-208-0 02 1 0211-0602 ● ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91180-208-0 02 1 0603- ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-208-0 04 1 0211-0602 ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-208-0 04 1 0603- ● ●
70 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS STD CAB(FS**M*) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) (A) M10X55 		0-10806-055-0 02 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) (B) M10X50 		0-10806-050-0 02 1 0205-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (C) OD=40 		1-22159-094-0 04 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) (A) OD=40 		1-22159-193-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) OD=40 		1-22159-094-0 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) (A) OD=40 		1-22159-193-0 04 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS DOUBLE CAB(FT**W*) (A) OD=40 		1-22159-193-0 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
FTS STD CAB(FT**M*) (B) OD=30 		1-22159-106-1 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 0211- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0205-0210 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
FSS ALL(FS****) (B) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (C) M10 		9-09110-510-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (C) M10 		9-09110-510-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 04 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
FTS ALL(FT****) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28081-050-0 01 1 0211-0512 ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28051-050-0 01 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS ALL(FS****) ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS ALL(FS****) ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) ID=10.5 		9-09164-510-0 02 1 0211- ● ●
97 WASHER; PL,CLAMP
FTS ALL(FT****) ID=10.5 		9-09164-510-0 04 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) ID=10.5 		9-09164-510-0 04 1 0211- ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 02 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
FTS ALL(FT****) M10 		9-09110-510-0 04 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 04 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 04 1 0601- ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
FTS ALL(FT****) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0301 ● ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0512 ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
107 BOLT; BRKT
FSS ALL(FS****) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS ALL(FS****) (A) 		1-22131-750-0 01 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22131-750-0 01 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS STD CAB(FS**M*) (C) 		1-22131-969-0 01 1 0211- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FTS STD CAB(FT**M*) (D) 		1-22131-842-1 01 1 0211- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) 		1-22131-865-0 01 1 0211- ● ●
121 WASHER; PL,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
127 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ●
127 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
127 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
130 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
130 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
130 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0205-0210 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0205-0210 ●
266 WASHER; LK,BRKT
FTS DOUBLE CAB(FT**W*) ID=10.2 		9-09150-510-0 04 1 0211-0603 ●
266 WASHER; LK,BRKT
FTS DOUBLE CAB(FT**W*) ID=10.2 		0-91510-510-0 04 1 0604- ●
266 WASHER; LK,BRKT
FSS STD CAB(FS**M*) ID=10.2 		9-09150-510-0 01 1 0005-0007 ●
266 WASHER; LK,BRKT
FSS ALL(FS****) ID=10.2 		9-09150-510-0 01 1 0008-0204 ●
266 WASHER; LK,BRKT
FSS STD CAB(FS**M*) ID=10.2 		9-09150-510-0 01 1 0008-0204 ●
266 WASHER; LK,BRKT
FSS ALL(FS****) ID=10.2 		9-09150-510-0 01 1 0205-0210 ●
266 WASHER; LK,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.2 		9-09150-510-0 01 1 0211-0409 ●
çizim 103449
434 107 60 127 70 266 77 77 70 435 75 75 60 62 62 266 81 81 94 97 68 22 56 105 223 64 22 70 60 70 81 81 81 60 81 266 75 266 266 108 62 75 62 75 70 64 75 266 68 70 64 108 68 81 107 60 127 127 121 70 75 130 60 75 75 75 56 97 62 70 81 94 97 22 56 105 105 94 22 22 22 63 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (C) H=84 		1-22139-042-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (C) H=163 		1-22139-049-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS DOUBLE CAB(FT**W*) (A) L=94 		1-22131-575-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) (A) L=94 		1-22131-575-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (D) 		1-22139-209-0 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (A) L=94 		1-22131-575-0 02 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (C) H=67 		1-22139-041-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) H=67 		1-22139-041-0 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) (G) 		1-22131-768-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (G) 		1-22131-768-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (A) 		1-22131-603-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (J) 		1-22131-911-1 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) MLD6D M/T(X5Q) (F) 		1-22131-770-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (H) 		1-22131-866-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) (B) 		1-22151-689-0 02 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (B) 		1-22151-689-0 02 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (D) 		1-22131-837-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (D) 		1-22131-837-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (E) 		1-22131-838-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS STD CAB(FT**M*) (I) 		1-22151-985-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (D) 		1-22131-988-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 02 1 0211- ●
62 TUBE; DIST,BRKT
FSS ALL(FS****) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FSS STD CAB(FS**M*) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) L=22 		9-22159-024-0 02 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 04 1 0211- ●
63 TUBE; DIST,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 01 1 0005-0210 ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) L=11 		1-22139-026-0 01 1 0211- ● ●
63 TUBE; DIST,BRKT
FSS DOUBLE CAB(FS**W*) L=11 		1-22139-026-0 02 1 0211- ●
64 U-BOLT; EXH PIPE,RR
FSS ALL(FS****) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22139-033-1 01 1 0211-1105 ● ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22113-101-0 01 1 1106- ● ●
64 U-BOLT; EXH PIPE,RR
(B) 		1-22113-009-0 01 1 0211- ● ●
68 NUT; U BOLT
FSS ALL(FS****) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-208-0 02 1 0211-0602 ● ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91180-208-0 02 1 0603- ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-208-0 04 1 0211-0602 ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-208-0 04 1 0603- ● ●
70 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS STD CAB(FS**M*) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) (A) M10X55 		0-10806-055-0 02 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) (B) M10X50 		0-10806-050-0 02 1 0205-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (C) OD=40 		1-22159-094-0 04 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) (A) OD=40 		1-22159-193-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) OD=40 		1-22159-094-0 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) (A) OD=40 		1-22159-193-0 04 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS DOUBLE CAB(FT**W*) (A) OD=40 		1-22159-193-0 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
FTS STD CAB(FT**M*) (B) OD=30 		1-22159-106-1 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 0211- ●
77 RUBBER; CUSHION,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) OD=40 		1-22159-094-0 02 1 0005-0210 ●
77 RUBBER; CUSHION,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) OD=40 		1-22159-094-0 02 1 0211- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0205-0210 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
FSS ALL(FS****) (B) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (C) M10 		9-09110-510-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (C) M10 		9-09110-510-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 04 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
FTS ALL(FT****) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28081-050-0 01 1 0211-0512 ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28051-050-0 01 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS ALL(FS****) ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS ALL(FS****) ID=10.5 		9-09164-510-0 02 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) ID=10.5 		9-09164-510-0 02 1 0211- ● ●
97 WASHER; PL,CLAMP
FTS ALL(FT****) ID=10.5 		9-09164-510-0 04 1 0005-0210 ●
97 WASHER; PL,CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) ID=10.5 		9-09164-510-0 04 1 0211- ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 02 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
FTS ALL(FT****) M10 		9-09110-510-0 04 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 04 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 04 1 0601- ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
FTS ALL(FT****) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0301 ● ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0512 ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
107 BOLT; BRKT
FSS ALL(FS****) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS ALL(FS****) (A) 		1-22131-750-0 01 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22131-750-0 01 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS STD CAB(FS**M*) (C) 		1-22131-969-0 01 1 0211- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FTS STD CAB(FT**M*) (D) 		1-22131-842-1 01 1 0211- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) 		1-22131-865-0 01 1 0211- ● ●
121 WASHER; PL,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
127 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ●
127 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
127 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
130 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
130 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
130 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
223 BRACKET; EXH PIPE
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-22131-750-0 01 1 0005-0210 ●
223 BRACKET; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22131-750-0 01 1 0211- ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0005-0007 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0008-0204 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) ID=10.2 		9-09150-510-0 02 1 0205-0210 ●
266 WASHER; LK,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) ID=10.2 		9-09150-510-0 02 1 0205-0210 ●
266 WASHER; LK,BRKT
FTS DOUBLE CAB(FT**W*) ID=10.2 		9-09150-510-0 04 1 0211-0603 ●
266 WASHER; LK,BRKT
FTS DOUBLE CAB(FT**W*) ID=10.2 		0-91510-510-0 04 1 0604- ●
266 WASHER; LK,BRKT
FSS STD CAB(FS**M*) ID=10.2 		9-09150-510-0 01 1 0005-0007 ●
266 WASHER; LK,BRKT
FSS ALL(FS****) ID=10.2 		9-09150-510-0 01 1 0008-0204 ●
266 WASHER; LK,BRKT
FSS STD CAB(FS**M*) ID=10.2 		9-09150-510-0 01 1 0008-0204 ●
266 WASHER; LK,BRKT
FSS ALL(FS****) ID=10.2 		9-09150-510-0 01 1 0205-0210 ●
266 WASHER; LK,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.2 		9-09150-510-0 01 1 0211-0409 ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28681-030-0 04 1 0301-0512 ● ●
434 BOLT; BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
434 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ●
434 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
435 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
435 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
435 NUT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
çizim 103541
81 62 75 75 70 81 62 75 75 70 68 108 68 108 64 64 81 81 81 81 60 60 75 107 75 107 114 114 75 75 121 121 70 70 81 121 75 60 12 506 81 107 84 75 272 56 94 272 506 105 22 14 20
BalonParca AdiParca NoAdetTipApplied Date A B C
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22140-943-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22140-723-2 01 1 0211- ● ●
14 GASKET; SILENCER TO EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		8-94394-391-0 01 1 0211- ● ●
20 BOLT; FLANGE,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12X35 FLANGE 		0-28681-235-0 08 1 0211-0512 ● ●
20 BOLT; FLANGE,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS ALL(FS****) (A) ID=80-84 		1-22133-233-0 02 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) ID=80-84 		1-22133-233-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0005-0210 ●
22 CLAMP; EXH PIPE
(B) 		1-22133-284-0 01 1 0211- ● ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0112-0210 ●
22 CLAMP; EXH PIPE
(C) 		1-22133-291-0 03 1 0211- ● ●
22 CLAMP; EXH PIPE
FTS ALL(FT****) (A) ID=80-84 		1-22133-233-0 04 1 0005-0210 ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) ID=94-98 		1-22133-237-0 02 1 0211- ● ●
22 CLAMP; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (E) 		1-22133-277-1 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (C) H=84 		1-22139-042-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (C) H=163 		1-22139-049-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS ALL(FS****) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) (B) H=163 		1-22139-049-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS DOUBLE CAB(FT**W*) (A) L=94 		1-22131-575-0 02 1 0211- ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) (A) L=94 		1-22131-575-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (D) 		1-22139-209-0 01 1 0211- ● ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (A) L=94 		1-22131-575-0 02 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FTS ALL(FT****) (C) H=67 		1-22139-041-0 01 1 0005-0210 ●
56 BRACKET; CLAMP,EXH PIPE
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) H=67 		1-22139-041-0 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) (G) 		1-22131-768-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (G) 		1-22131-768-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-433-1 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (A) 		1-22131-603-1 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) (J) 		1-22131-911-1 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS STD CAB(FS**M*) MLD6D M/T(X5Q) (F) 		1-22131-770-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (H) 		1-22131-866-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) (B) 		1-22151-689-0 02 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (B) 		1-22151-689-0 02 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (D) 		1-22131-837-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS DOUBLE CAB(FT**W*) (D) 		1-22131-837-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (E) 		1-22131-838-0 01 1 0005-0210 ●
60 BRACKET; FRAME TO BRKT
FTS STD CAB(FT**M*) (I) 		1-22151-985-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (D) 		1-22131-988-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
FSS DOUBLE CAB(FS**W*) (C) 		1-22151-433-1 02 1 0211- ●
62 TUBE; DIST,BRKT
FSS ALL(FS****) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FSS STD CAB(FS**M*) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) L=22 		9-22159-024-0 01 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS STD CAB(FT**M*) L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0211- ●
62 TUBE; DIST,BRKT
FTS ALL(FT****) L=22 		9-22159-024-0 02 1 0005-0210 ●
62 TUBE; DIST,BRKT
FTS DOUBLE CAB(FT**W*) L=22 		9-22159-024-0 04 1 0211- ●
64 U-BOLT; EXH PIPE,RR
FSS ALL(FS****) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FTS ALL(FT****) MLD7Q M/T(X5K) (A) 		1-22139-033-1 01 1 0005-0210 ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22139-033-1 01 1 0211-1105 ● ●
64 U-BOLT; EXH PIPE,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (A) 		1-22113-101-0 01 1 1106- ● ●
64 U-BOLT; EXH PIPE,RR
(B) 		1-22113-009-0 01 1 0211- ● ●
68 NUT; U BOLT
FSS ALL(FS****) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE 		0-91150-208-0 02 1 0005-0210 ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-208-0 02 1 0211-0602 ● ●
68 NUT; U BOLT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M8 FLANGE 		0-91180-208-0 02 1 0603- ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-208-0 04 1 0211-0602 ● ●
68 NUT; U BOLT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91180-208-0 04 1 0603- ● ●
70 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS STD CAB(FS**M*) (A) M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS ALL(FS****) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD6D M/T(X5Q) (A) M10X55 		0-10806-055-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) (B) M10X50 		0-10806-050-0 01 1 0005-0204 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
FSS ALL(FS****) (B) M10X50 		0-10806-050-0 01 1 0205-0210 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) (A) M10X55 		0-10806-055-0 02 1 0005-0204 ●
70 BOLT; BRKT
FTS ALL(FT****) (B) M10X50 		0-10806-050-0 02 1 0205-0210 ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (C) M10X50 FLANGE 		0-28081-050-0 01 1 0005-0210 ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0512 ● ●
70 BOLT; BRKT
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0601- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (C) OD=40 		1-22159-094-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (C) OD=40 		1-22159-094-0 04 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) (B) OD=30 		1-22159-106-1 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FSS STD CAB(FS**M*) (A) OD=40 		1-22159-193-0 02 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (C) OD=40 		1-22159-094-0 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
FTS ALL(FT****) (A) OD=40 		1-22159-193-0 04 1 0005-0210 ●
75 RUBBER; SUPPORT,BRKT
FTS DOUBLE CAB(FT**W*) (A) OD=40 		1-22159-193-0 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
FTS STD CAB(FT**M*) (B) OD=30 		1-22159-106-1 04 1 0211- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 04 1 0211- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0205-0210 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
FSS ALL(FS****) (B) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
FSS ALL(FS****) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
FTS ALL(FT****) MLD7Q M/T(X5K) (A) M10 FLANGE 		0-91150-210-0 01 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FSS DOUBLE CAB(FS**W*) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0210 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0211-0603 ●
81 NUT; BRKT
FTS STD CAB(FT**M*) (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (C) M10 		9-09110-510-0 01 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (C) M10 		9-09110-510-0 02 1 0005-0204 ●
81 NUT; BRKT
FTS ALL(FT****) (A) M10 FLANGE 		0-91150-210-0 04 1 0205-0210 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
FSS STD CAB(FS**M*) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
84 GASKET; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (A) 		1-14145-157-0 01 1 0211- ● ●
84 GASKET; EXH PIPE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) (B) 		8-94394-391-0 01 1 0211- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS ALL(FS****) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
FTS ALL(FT****) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0210 ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0211-0805 ● ●
94 BOLT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28081-050-0 01 1 0211-0512 ● ●
94 BOLT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10X50 FLANGE 		0-28051-050-0 01 1 0601- ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS ALL(FS****) M10 		9-09110-510-0 02 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 02 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
FTS ALL(FT****) M10 		9-09110-510-0 04 1 0005-0210 ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		9-09110-510-0 04 1 0211-0512 ● ●
105 NUT; CLAMP
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) M10 		0-91110-510-0 04 1 0601- ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ● ●
105 NUT; CLAMP
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
FSS DOUBLE CAB(FS**W*) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
FTS ALL(FT****) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
107 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0301 ● ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0512 ●
107 BOLT; BRKT
FSS STD CAB(FS**M*) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
107 BOLT; BRKT
FSS ALL(FS****) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS ALL(FS****) (A) 		1-22131-750-0 01 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FTS ALL(FT****) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A) 		1-22131-750-0 01 1 0005-0210 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS STD CAB(FS**M*) (C) 		1-22131-969-0 01 1 0211- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FTS STD CAB(FT**M*) (D) 		1-22131-842-1 01 1 0211- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) (B) 		1-22131-865-0 01 1 0211- ● ●
114 BRACKET; EXH SILENCER
FSS STD CAB(FS**M*) 		1-22139-265-0 01 1 0309- ●
114 BRACKET; EXH SILENCER
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22139-136-2 01 1 0211-0308 ● ●
114 BRACKET; EXH SILENCER
FTS STD CAB(FT**M*) 		1-22139-136-2 01 1 0309- ●
121 WASHER; PL,BRKT
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
FSS DOUBLE CAB(FS**W*) ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0210 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 0211-0605 ●
121 WASHER; PL,BRKT
FTS STD CAB(FT**M*) ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
272 NUT; FLANGE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12 FLANGE 		0-91150-212-0 08 1 0211-0602 ● ●
272 NUT; FLANGE
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
506 BRACKET; STUD
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) M12X35 		1-22131-963-0 04 1 0211- ● ●
çizim 103543
12 34 128 36 11 1 12 34 128 11 1 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22122-401-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS STD CAB(FS**M*) 		1-22123-654-2 01 1 0211- ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22122-776-2 01 1 0005-0210 ●
1 PIPE; EXH
FSS DOUBLE CAB(FS**W*) 		1-22123-655-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q) 		1-22122-839-1 01 1 0005-0006 ●
1 PIPE; EXH
FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-839-1 01 1 0007-0210 ●
1 PIPE; EXH
FTS DOUBLE CAB(FT**W*) 		1-22123-657-2 01 1 0211- ●
1 PIPE; EXH
FTS ALL(FT****) MLD7Q M/T(X5K) 		1-22123-358-2 01 1 0005-0210 ●
1 PIPE; EXH
FTS STD CAB(FT**M*) 		1-22123-656-2 01 1 0211- ●
11 PIPE; EXH,RR
FSS ALL(FS****) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD7Q M/T(X5K),MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-22122-648-2 01 1 0005-0210 ●
11 PIPE; EXH,RR
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22123-325-1 01 1 0211- ● ●
11 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) 		1-22123-359-1 01 1 0005-0210 ●
11 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22123-511-0 01 1 0211- ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) 		1-22140-943-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) 		1-22140-723-2 01 1 0211- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0210 ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0211-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0005-0210 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 0211- ● ●
128 PIPE; EXH,RR
FSS ALL(FS****) 		1-22126-321-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FSS STD CAB(FS**M*) 		1-22126-404-1 01 1 0211- ●
128 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) 		1-22126-322-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FSS DOUBLE CAB(FS**W*) 		1-22126-405-1 01 1 0211- ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD6D M/T(X5Q) 		1-22126-181-1 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) 		1-22126-357-0 01 1 0211- ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) MLD7Q M/T(X5K) 		1-22126-312-0 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS STD CAB(FT**M*) 		1-22126-403-0 01 1 0211- ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD6D M/T(X5Q) 		1-22126-158-2 01 1 0005-0210 ●
128 PIPE; EXH,RR
FTS DOUBLE CAB(FT**W*) MLD7Q M/T(X5K) 		1-22126-313-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
