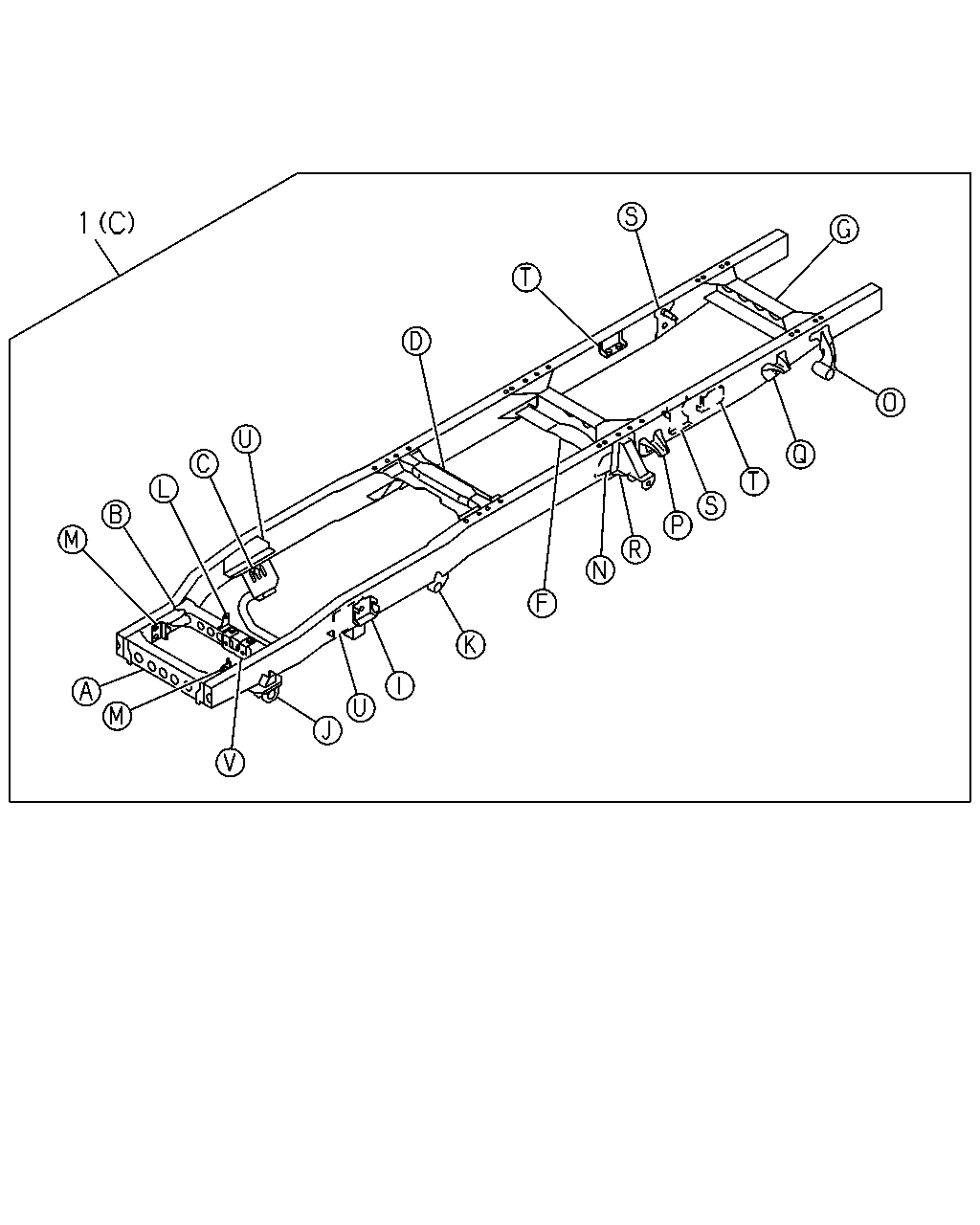

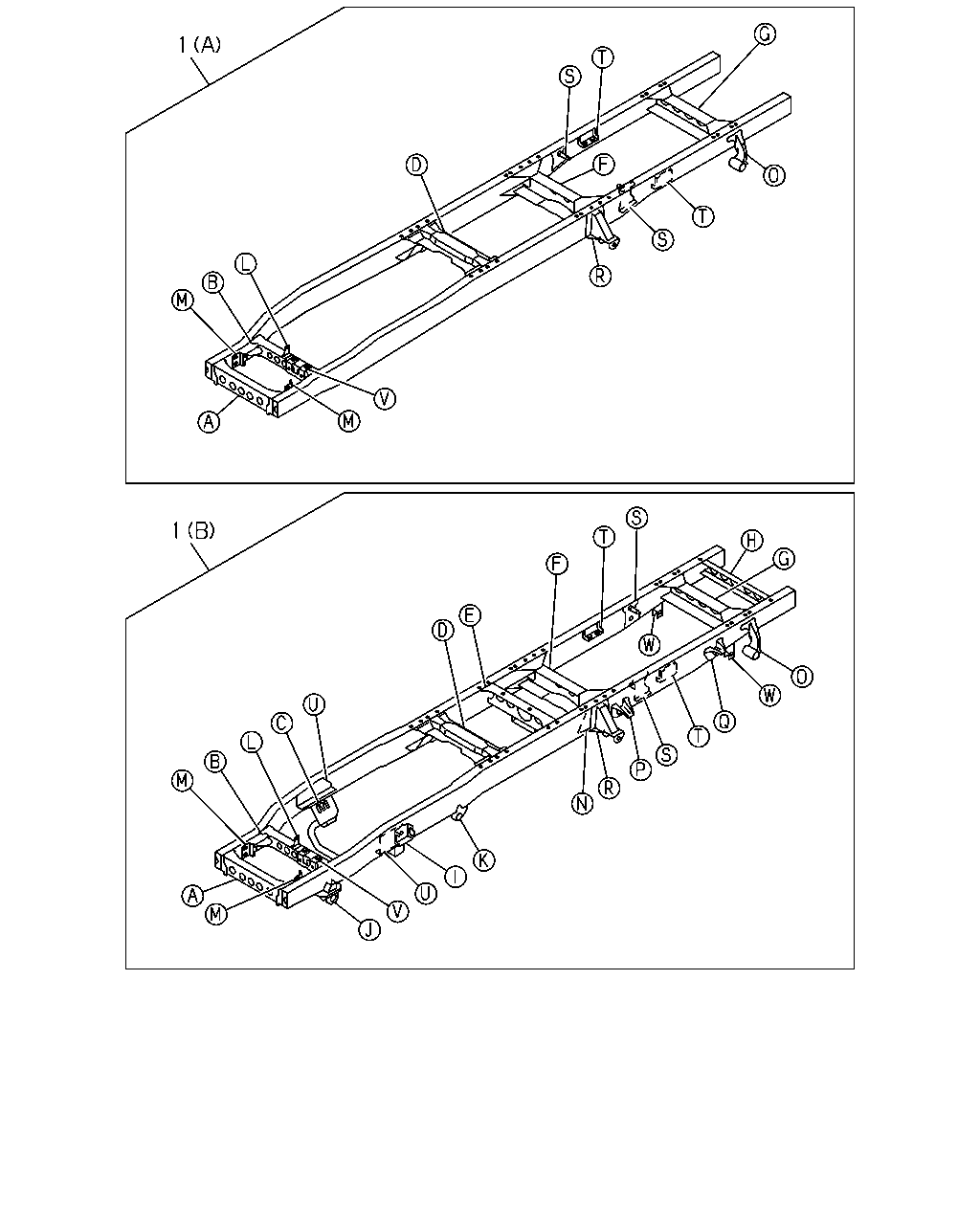

5-01 — FRAME AND OTHER PARTS (#81146) — 276 parça

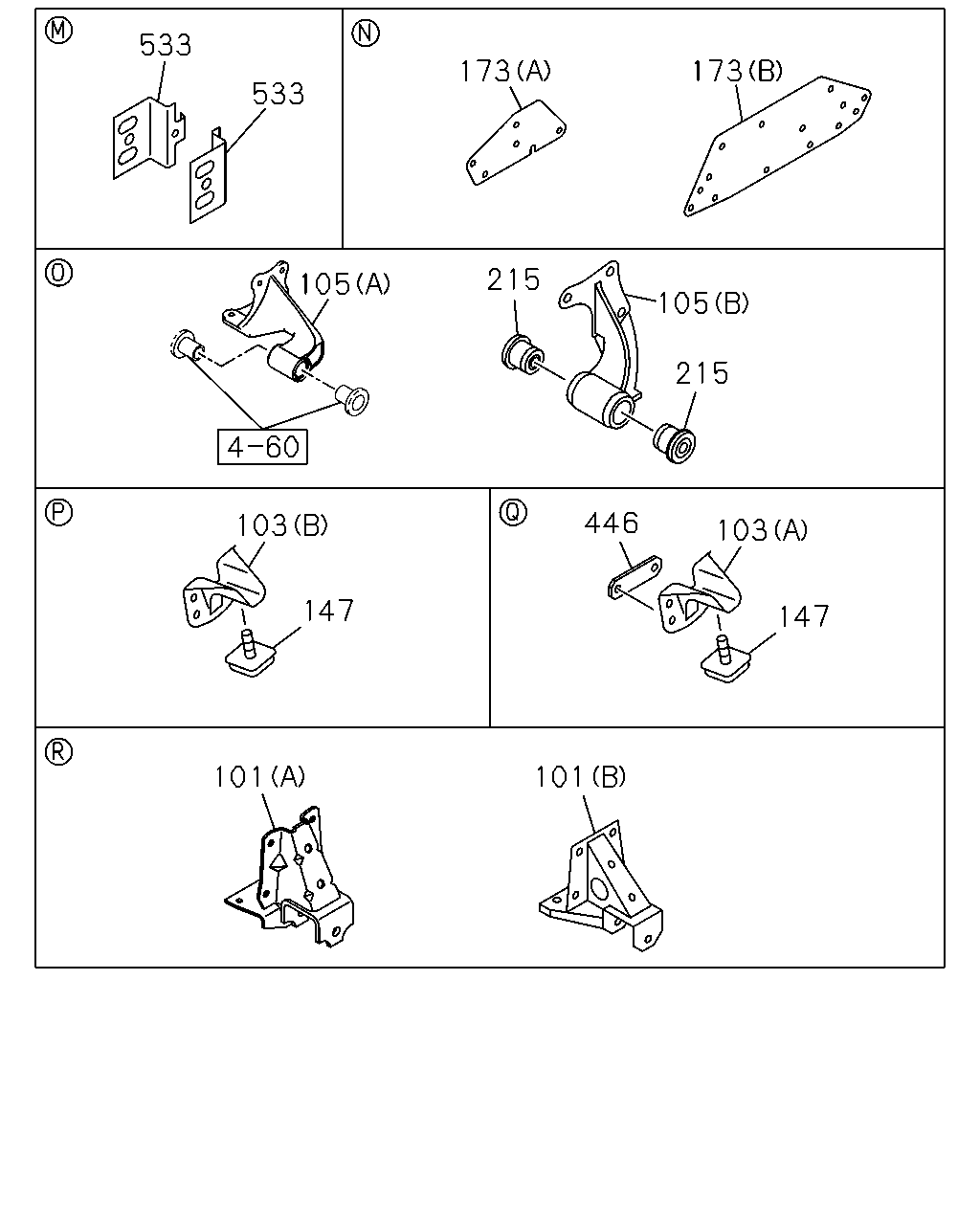

101 101 147 103 446 103 147 215 105 215 105 173 173 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	07.112 BRACKET; RR SPR,FRT HEAVY DUTY FRAME<6WB> (A)	8-98243-604-0	02	1	1310-1405	●
101	07.112 BRACKET; RR SPR,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98243-604-0	02	1	1406-1406	●
101	07.112 BRACKET; RR SPR,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98243-604-0	02	1	1406-1406	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98243-604-0	02	1	1406-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98243-604-0	02	1	1406-	●
101	07.112 BRACKET; RR SPR,FRT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98243-604-0	02	1	1406-	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-98034-042-0	02	1	1103-		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	1103-1309	●
101	07.112 BRACKET; RR SPR,FRT EXC. HEAVY DUTY FRAME<6WB> (A)	8-97034-156-1	02	1	1310-1405	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. MINI BUS CHASSIS VAR.2(6GQ) (A)	8-97034-156-1	02	1	1406-	●
101	07.112 BRACKET; RR SPR,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-97034-156-1	02	1	1406-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	1103-	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-750-0	02	1	1103-	●
105	07.112 BRACKET; RR SPR,RR (A)	8-98031-058-0	01	1	1103-		●
105	07.112 BRACKET; RR SPR,RR (A)	8-98031-059-0	01	1	1103-		●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-488-0	01	1	1103-	●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-489-0	01	1	1103-	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1103-	●
173	07.112 STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	1103-	●
173	07.112 STIFFENER; RR SPRING (A)	8-98012-948-2	02	1	1103-	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1103-	●
446	07.112 STIFFENER; SPRING STOPPER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98060-184-0	01	1	1103-1206	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98060-184-0	01	1	1207-1210	●
446	07.112 STIFFENER; SPRING STOPPER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7),M INI BUS CHASSIS VAR.2(6GQ)	8-98060-184-1	01	1	1211-1309	●
446	07.112 STIFFENER; SPRING STOPPER COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98060-184-1	01	1	1211-1309	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98060-184-1	01	1	1310-1405	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98060-184-1	01	1	1406-	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1103-1108		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	1103-1108	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1109-1210		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	1109-1210	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1211-1309		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	1211-1309	●
533	07.010 STIFFENER; REINFORCEMENT COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98006-680-1	02	1	1211-1309	●
533	07.010 STIFFENER; REINFORCEMENT MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98006-680-1	02	1	1211-1309	●
533	07.010 STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1310-		●
533	07.010 STIFFENER; REINFORCEMENT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1310-		●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98006-680-1	02	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98006-680-1	02	1	1310-	●

140 140 140 217 217 356 356 546 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-174-0	02	1	1103-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1103-	●
140	07.112 BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	1103-	●
196	07.242 BRACKET; STAB TO FRAME WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1>	8-98033-523-0	02	1	1406-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97163-899-1	02	1	1103-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (B)	8-97202-417-0	02	1	1103-	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98062-610-1	01	1	1103-1108	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1109-1210		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98062-610-1	01	1	1109-1210	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1211-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7),M INI BUS CHASSIS VAR.2(6GQ) (A)	8-98062-610-1	01	1	1211-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98062-610-1	01	1	1211-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98062-611-1	01	1	1103-1108	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1109-1210		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98062-611-1	01	1	1109-1210	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	1211-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7),M INI BUS CHASSIS VAR.2(6GQ) (B)	8-98062-611-1	01	1	1211-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98062-611-1	01	1	1211-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-	●
546	03.671 BRACKET; ECM	8-98119-084-0	01	1	1103-	●	●

75 345 75 345 75 75 198 198 139 198 198 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	07.039 GUSSET; 5TH C/MBR (A)	8-98006-124-1	01	1	1103-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-312-1	01	1	1103-		●
75	07.039 GUSSET; 5TH C/MBR (B)	8-98011-863-0	04	1	1103-	●
139	07.012 MEMBER; CROSS,6TH (B)	8-98006-168-1	01	1	1103-		●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1103-	●
198	07.039 GUSSET; 6TH C/MBR (B)	8-98011-865-0	02	1	1103-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1103-	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1103-	●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	1103-	●	●

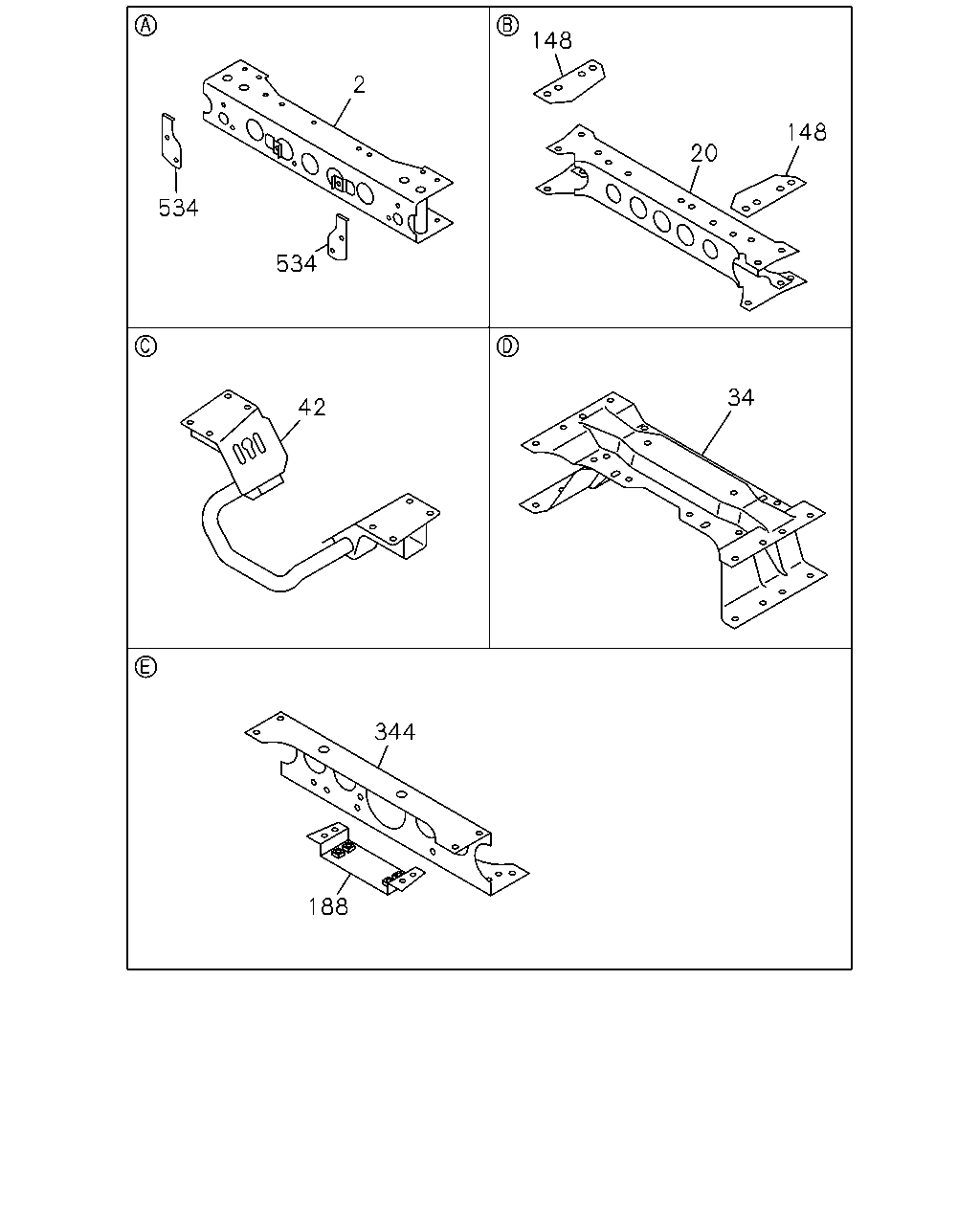

34 148 20 148 2 534 534 42 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1103-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	1103-1108		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1103-1108	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1109-1210		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1109-1210	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1211-1309		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1211-1309	●
20	07.012 MEMBER; CROSS,2ND COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98038-419-2	01	1	1211-1309	●
20	07.012 MEMBER; CROSS,2ND MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98038-419-2	01	1	1211-1309	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1310-1405		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1310-1405	●
20	07.012 MEMBER; CROSS,2ND MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98038-419-2	01	1	1310-1405	●
20	07.012 MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	1406-		●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1406-	●
20	07.012 MEMBER; CROSS,2ND FRAME EQUIPMENT HEAVY DUTY VAR2<F01> MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98038-419-2	01	1	1406-	●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1103-1108	●
20	07.012 MEMBER; CROSS,2ND EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1109-1210		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1109-1210	●
20	07.012 MEMBER; CROSS,2ND EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1211-1309		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7),M INI BUS CHASSIS VAR.2(6GQ)	8-98088-281-1	01	1	1211-1309	●
20	07.012 MEMBER; CROSS,2ND COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98088-281-1	01	1	1211-1309	●
20	07.012 MEMBER; CROSS,2ND EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1310-1405		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98088-281-1	01	1	1310-1405	●
20	07.012 MEMBER; CROSS,2ND EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	1406-		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98088-281-1	01	1	1406-	●
20	07.012 MEMBER; CROSS,2ND HEAVY DUTY FRAME<6WB> MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1406-	●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1103-1108		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	1103-1108	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1109-1210		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	1109-1210	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1211-1309		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	1211-1309	●
34	07.012 MEMBER; CROSS,3RD COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-97384-743-1	01	1	1211-1309	●
34	07.012 MEMBER; CROSS,3RD MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-97384-743-1	01	1	1211-1309	●
34	07.012 MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1310-		●
34	07.012 MEMBER; CROSS,3RD HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1310-		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-959-0	01	1	1103-1108	●
34	07.012 MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1109-1210		●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-959-0	01	1	1109-1210	●
34	07.012 MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1211-1309		●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7),M INI BUS CHASSIS VAR.2(6GQ)	8-98081-959-0	01	1	1211-1309	●
34	07.012 MEMBER; CROSS,3RD COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98081-959-0	01	1	1211-1309	●
34	07.012 MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-98081-959-0	01	1	1310-		●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB>	8-98081-959-0	01	1	1310-	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1103-1108	●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	1109-		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1109-	●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-958-0	04	1	1103-1108	●
148	07.105 SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1109-1210		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-958-0	04	1	1109-1210	●
148	07.105 SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1211-1309		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7),M INI BUS CHASSIS VAR.2(6GQ)	8-98081-958-0	04	1	1211-1309	●
148	07.105 SPACER; C/MBR COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98081-958-0	04	1	1211-1309	●
148	07.105 SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	1103-1206	●
188	07.039 BRACKET; SUPPORT,CTR BRG REAR WIDE TREAD(V4T)	8-97083-157-1	01	1	1207-	●
344	07.012 MEMBER; CROSS,4TH	8-98005-959-1	01	1	1103-1206	●
344	07.012 MEMBER; CROSS,4TH REAR WIDE TREAD(V4T)	8-98005-959-1	01	1	1207-	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1103-	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1103-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 296 176 176 60 40 67 62 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1211-1309	●
40	08.155 BOLT; BRKT TO FRAME COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1211-1309	●
40	08.155 BOLT; BRKT TO FRAME MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1211-1309	●
40	08.155 BOLT; BRKT TO FRAME HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-		●
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1103-1210		●
60	05.601 BOLT; MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 07.039 M10X30	0-20851-030-0	04	1	1103-1210	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1211-	●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1103-1210		●
62	05.601 NUT; MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 04.085 M10 FLANGE	0-91180-210-0	04	1	1103-1210	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1211-	●	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1103-1108	●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	1109-		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1109-	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1103-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B) M10X30 FLANGE	0-28061-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M14X45 FLANGE	0-29261-445-0	08	1	1103-1206	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (A) M14X45 FLANGE	0-29261-445-0	08	1	1207-1210	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1103-1108	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1109-1210		●
176	04.085 BOLT; C/MBR,ENG MTG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1109-1210	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1211-1309		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1211-1309	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1310-		●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
296	07.039 BOLT; 3RD C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M10X30	0-20851-030-0	04	1	1103-1206	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) M10X30	0-20851-030-0	04	1	1207-1210	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME (K) D11X26 TAPER END	9-06751-126-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME 07.006 (M) D12X32 TAPER END	9-06751-232-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME 07.535 (N) D12X34 TAPER END	9-06751-234-0	AR	1	1103-	●	●
376	07.039 RIVET; FRAME 07.428 (O) D12X36 TAPER END	9-06751-236-0	AR	1	1103-	●	●

165 24 51 39 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1103-1108	●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	1109-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1109-	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1103-1108	●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	1109-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1109-	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1103-1108	●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	1109-		●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1109-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1103-1108	●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	1109-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1109-	●
130	07.014 MEMBER; CROSS,END	8-98041-239-0	01	1	1103-1206	●
130	07.014 MEMBER; CROSS,END REAR WIDE TREAD(V4T)	8-98041-239-1	01	1	1207-	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1103-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98274-243-0	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98274-242-0	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98275-793-0	01	1	1406-	●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98254-652-0	01	1	1310-		●
1	07.003 FRAME ASM HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59> (C)	8-98254-650-0	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98254-660-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98254-658-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98255-964-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98255-963-0	01	1	1310-1405	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98255-963-0	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98228-010-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98228-010-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98228-010-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98212-949-0	01	1	1207-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (C)	8-98212-949-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98212-950-0	01	1	1207-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,HEAVY DUTY FRAME<6WB> (C)	8-98212-950-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98212-951-0	01	1	1207-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FRONT STABILIZER SHAFT<F59> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98212-951-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98212-951-0	01	1	1310-	●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98196-648-0	01	1	1109-1309		●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (C)	8-98196-648-0	01	1	1310-		●
1	07.003 FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59> (C)	8-98196-644-0	01	1	1109-1309		●
1	07.003 FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59>,HEAVY DUTY FRAME<6WB> (C)	8-98196-644-0	01	1	1310-		●
1	07.003 FRAME ASM (A)	8-98175-344-1	01	1	1103-1108		●
1	07.003 FRAME ASM FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98175-344-1	01	1	1109-		●
1	07.003 FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98175-345-2	01	1	1103-1206	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98175-345-2	01	1	1207-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98175-345-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-345-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-345-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98175-345-2	01	1	1310-1405	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-345-2	01	1	1310-1405	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98175-345-2	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-345-2	01	1	1406-	●
1	07.003 FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98175-346-2	01	1	1103-1206	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-346-2	01	1	1207-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-346-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7), FRONT STABILIZER SHAFT<F59>,MINI BUS CHASS IS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-346-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-346-2	01	1	1310-	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98274-243-0	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98274-242-0	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98275-793-0	01	1	1406-	●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98254-652-0	01	1	1310-		●
1	07.003 FRAME ASM HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59> (C)	8-98254-650-0	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98254-660-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98254-658-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98255-964-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98255-963-0	01	1	1310-1405	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98255-963-0	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98228-010-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98228-010-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98228-010-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98212-949-0	01	1	1207-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (C)	8-98212-949-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98212-950-0	01	1	1207-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,HEAVY DUTY FRAME<6WB> (C)	8-98212-950-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98212-951-0	01	1	1207-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) FRONT STABILIZER SHAFT<F59> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98212-951-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98212-951-0	01	1	1310-	●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98196-648-0	01	1	1109-1309		●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (C)	8-98196-648-0	01	1	1310-		●
1	07.003 FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59> (C)	8-98196-644-0	01	1	1109-1309		●
1	07.003 FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0), FRONT STABILIZER SHAFT<F59>,HEAVY DUTY FRAME<6WB> (C)	8-98196-644-0	01	1	1310-		●
1	07.003 FRAME ASM (A)	8-98175-344-1	01	1	1103-1108		●
1	07.003 FRAME ASM FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98175-344-1	01	1	1109-		●
1	07.003 FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98175-345-2	01	1	1103-1206	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98175-345-2	01	1	1207-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98175-345-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-345-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-345-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98175-345-2	01	1	1310-1405	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-345-2	01	1	1310-1405	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98175-345-2	01	1	1406-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-345-2	01	1	1406-	●
1	07.003 FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98175-346-2	01	1	1103-1206	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98175-346-2	01	1	1207-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-346-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,COLOMBIA EQUIPMENT(CB7), FRONT STABILIZER SHAFT<F59>,MINI BUS CHASS IS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-346-2	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS VAR.2(6GQ),HEAVY DUTY FRAME<6WB> (B)	8-98175-346-2	01	1	1310-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
