Sayfa 4-80 - Isuzu EPC

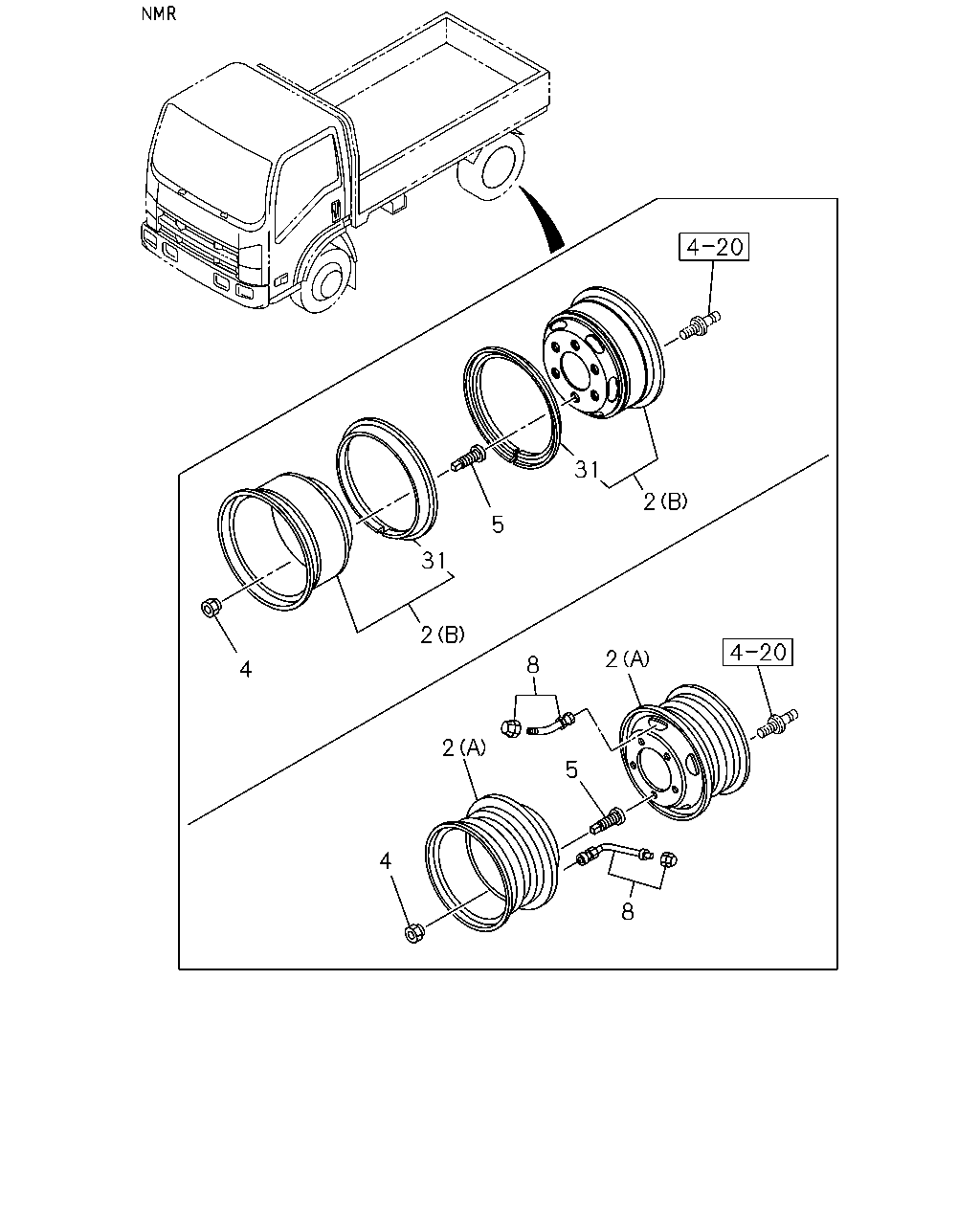

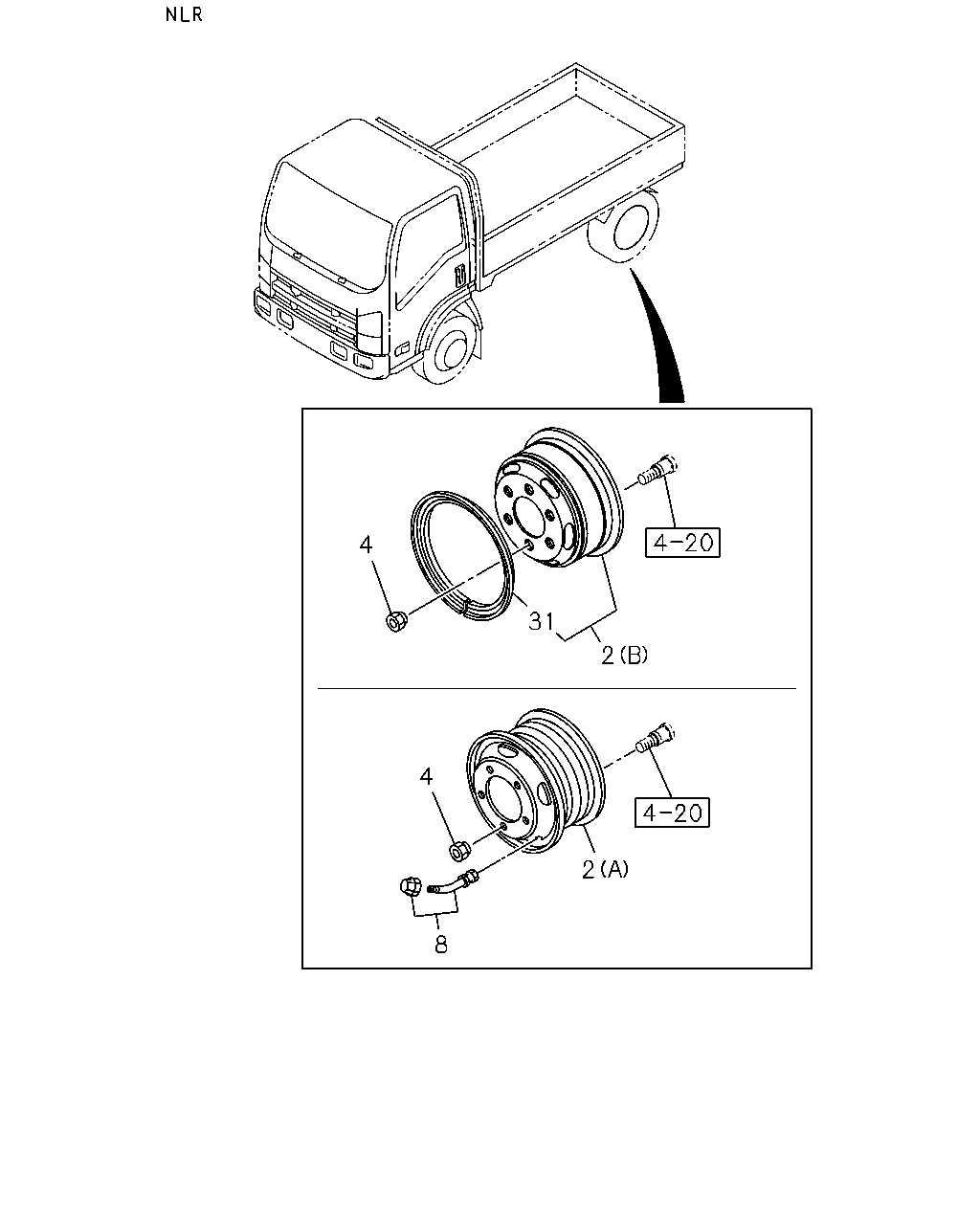

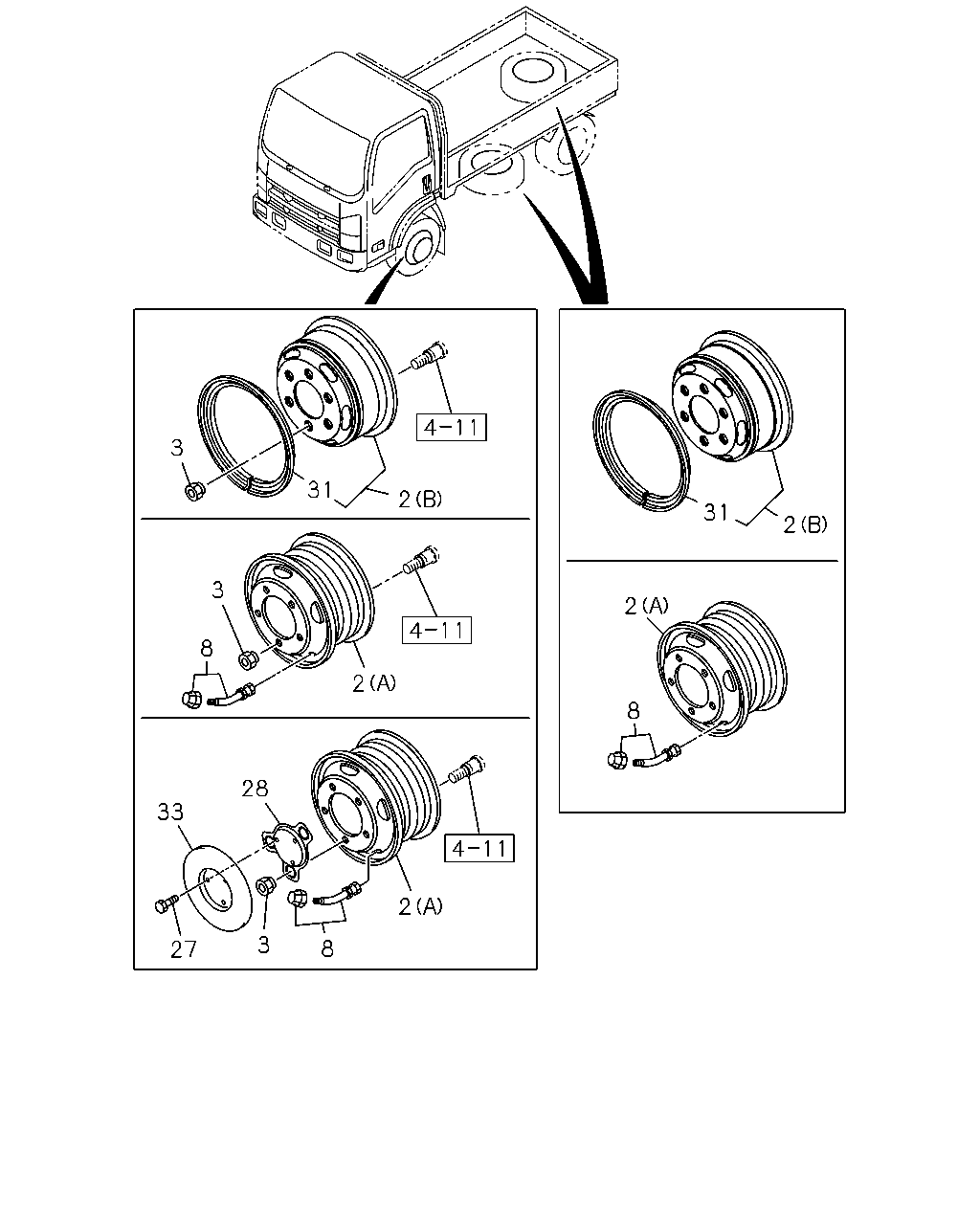

4-80 — ROAD WHEEL (#81145) — 134 parça

3 31 2 3 8 2 28 33 27 3 8 2 8 2 2 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1207-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1207-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1109-		●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1103-1108	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J -85(CQS),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1109-	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1103-1108	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J -85(CQS),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1109-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1103-1108		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16 X5.5J-116.5(CVG) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1109-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1103-1108		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16 X5.5J-116.5(CVG) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1109-		●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	1103-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	1103-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1103-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1103-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR TIRE 205/75R16C DISC 16 X5.5J-85(CVK) FRONT,REAR	8-98221-106-0	04	1	1103-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR TIRE 205/75R16C DISC 16 X5.5J-85(CVK) SPARE	8-98221-106-0	01	1	1103-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG) SPARE	8-98221-106-0	01	1	1103-		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG) FRONT,REAR	8-98221-106-0	06	1	1103-		●
27	05.871 BOLT; COVER RUSSIA EQUIPMENT(B12) EXC. ARGENTINA COUNTRY(CX1) 02.343 M10X20 FLANGE	0-28651-020-0	06	1	1109-		●
28	05.864 BRACKET; COVER RUSSIA EQUIPMENT(B12) EXC. ARGENTINA COUNTRY(CX1)	8-97169-249-0	02	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1207-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1109-1206		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1207-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1207-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1109-		●
33	05.858 COVER; WHEEL RUSSIA EQUIPMENT(B12) EXC. ARGENTINA COUNTRY(CX1)	8-97167-658-0	02	1	1109-		●

4 2 31 5 31 2 2 8 5 2 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1207-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1207-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1109-		●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1103-1108	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J -85(CQS),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1109-	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1103-1108	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J -85(CQS),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1109-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1103-1108		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16 X5.5J-116.5(CVG) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1109-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1103-1108		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16 X5.5J-116.5(CVG) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1109-		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	1103-	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	1103-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1103-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1103-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1103-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1103-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR TIRE 205/75R16C DISC 16 X5.5J-85(CVK) FRONT,REAR	8-98221-106-0	04	1	1103-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR TIRE 205/75R16C DISC 16 X5.5J-85(CVK) SPARE	8-98221-106-0	01	1	1103-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG) SPARE	8-98221-106-0	01	1	1103-		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG) FRONT,REAR	8-98221-106-0	06	1	1103-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1207-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1109-1206		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1207-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1207-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1109-		●

4 31 2 2 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE	8-97210-494-0	04	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1207-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1207-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) (B) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1109-	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV) (A) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHI TE(BQV) (A) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	1109-		●
2	05.803 WHEEL; DISC FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (B) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	1109-		●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1103-1108	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J -85(CQS),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	01	1	1109-	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1103-1108	●
2	05.803 WHEEL; DISC FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J -85(CQS),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE	8-97258-376-0	04	1	1109-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1103-1108		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16 X5.5J-116.5(CVG) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1109-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1103-1108		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16 X5.5J-116.5(CVG) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1109-		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	1103-	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	1103-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1103-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1103-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR TIRE 205/75R16C DISC 16 X5.5J-85(CVK) FRONT,REAR	8-98221-106-0	04	1	1103-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS),FRT&RR TIRE 205/75R16C DISC 16 X5.5J-85(CVK) SPARE	8-98221-106-0	01	1	1103-	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG) SPARE	8-98221-106-0	01	1	1103-		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG) FRONT,REAR	8-98221-106-0	06	1	1103-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1207-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1109-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1109-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1109-1206		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1207-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1207-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	1109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
