◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51354 - NLR/NMR 85(LHD)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#81143) — 14 parça

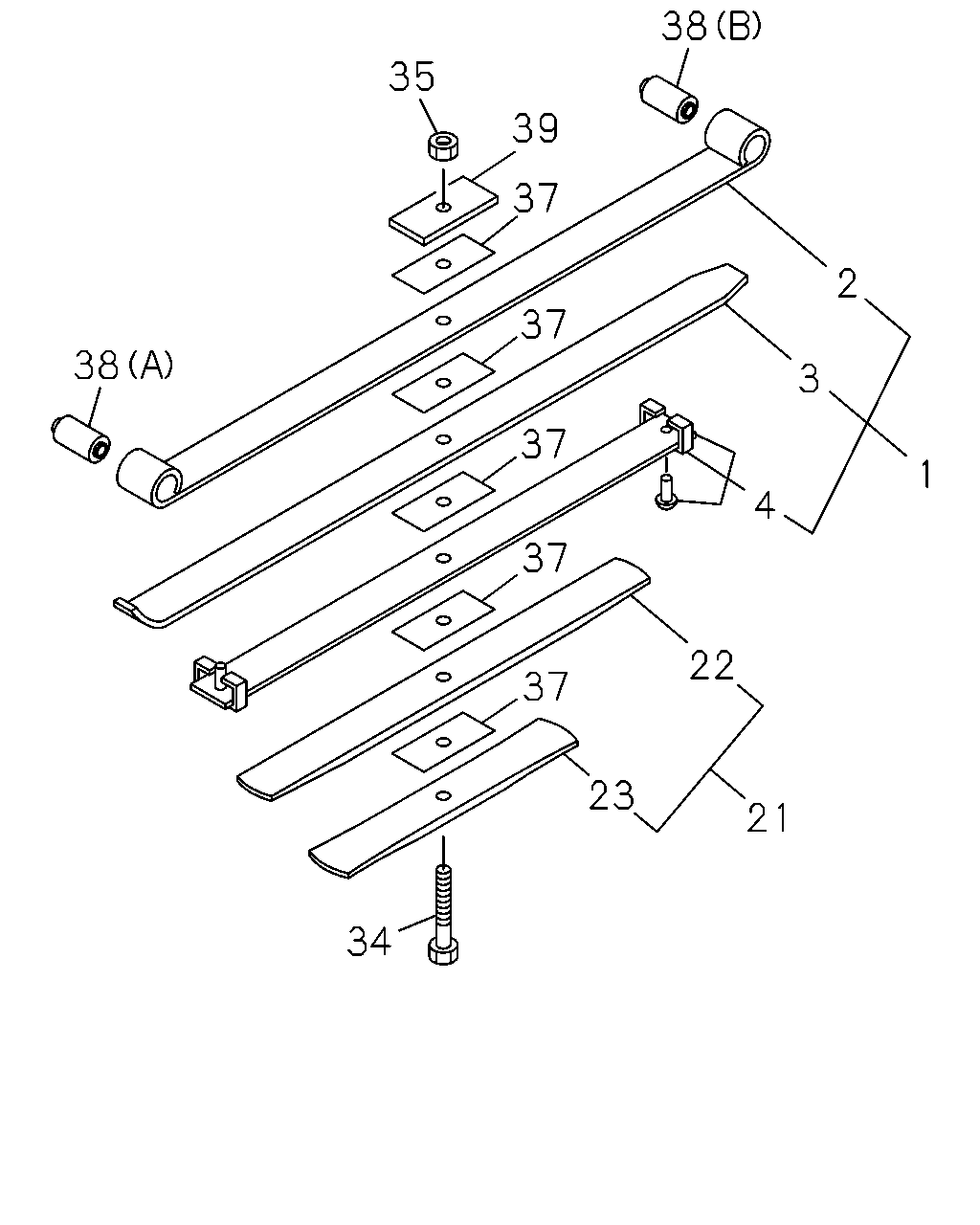

çizim 124911
35 38 39 37 37 37 37 37 23 21 22 4 3 2 1 38 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-838-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-839-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-840-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-841-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-842-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-843-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98001-551-1, 98001551 		8-98040-844-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=100 ASM PART: A = 8-98001-551-1, 98001551 		8-98037-586-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98001-551-1, 98001551 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98001-551-1, 98001551 		8-94448-734-0 05 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98001-551-1, 98001551 		5-87610-162-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.105, (A) ASM PART: A = 8-98001-551-1, 98001551 		8-94130-354-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=85.2 ASM PART: A = 8-98001-551-1, 98001551 		8-97034-380-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-98001-551-1, 98001551 		8-94407-146-0 01 1 -
