4-61 — SHOCK ABSORBER; REAR SUSPENSION (#81141) — 70 parça

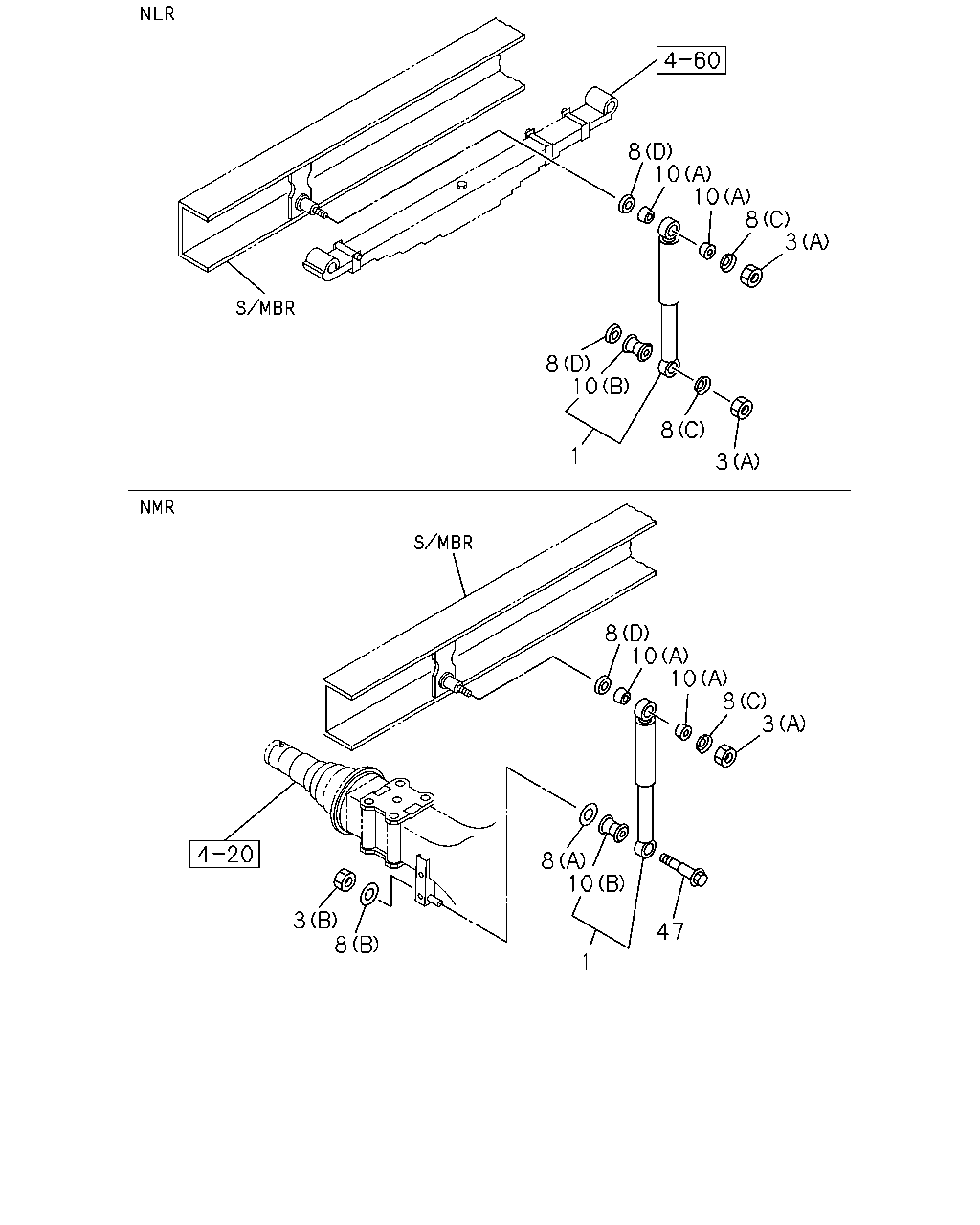

çizim 124934
8 10 10 8 3 8 10 1 8 3 8 10 10 8 3 47 8 10 1 8 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.395 ABSORBER ASM; SHOCK,RR 8-98018-780-0 02 1 1103-1108 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98018-780-1 02 1 1109-1206 ●
1 07.395 ABSORBER ASM; SHOCK,RR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98018-780-1 02 1 1109-1206 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98018-780-1 02 1 1207-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-98018-780-1 02 1 1207-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98018-780-1 02 1 1207-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98316-232-0 02 1 1507-1510 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-98316-232-0 02 1 1507-1510 ●
1 07.395 ABSORBER ASM; SHOCK,RR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98316-232-0 02 1 1507-1510 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98316-232-0 02 1 1511- ●
1 07.395 ABSORBER ASM; SHOCK,RR
PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98316-232-0 02 1 1511- ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-98316-232-0 02 1 1511- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 1103-1108 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-97253-651-2 02 1 1109-1206 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1207-1210 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1211-1410 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1211-1410 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1411-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1411-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-97253-651-2 02 1 1411-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1108 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) BEST VALUE PARTS 		5-87610-132-0 02 1 1109-1206 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1207-1210 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1211-1410 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1211-1410 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1411-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1411-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-132-0 02 1 1411-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1507-1510 ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1507-1510 ●
1 07.395 ABSORBER ASM; SHOCK,RR
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1507-1510 ●
1 07.395 ABSORBER ASM; SHOCK,RR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1511- ●
1 07.395 ABSORBER ASM; SHOCK,RR
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1511- ●
1 07.395 ABSORBER ASM; SHOCK,RR
AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-98316-233-0 02 1 1511- ●
3 07.347 NUT; S/ABS
05.002 (A) M12 		0-91110-512-0 04 1 1103- ●
3 07.347 NUT; S/ABS
07.833 (A) M14 		0-91110-514-0 02 1 1103- ●
3 07.347 NUT; S/ABS
00.785 (B) M16 		0-91111-516-0 02 1 1103-1206 ●
3 07.347 NUT; S/ABS
REAR WIDE TREAD(V4T) 00.785 (B) M16 		0-91111-516-0 02 1 1207- ●
8 07.347 WASHER; S/ABS
(D) ID=16.5 		9-51679-021-0 04 1 1103- ●
8 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 04 1 1103- ●
8 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 1103- ●
8 07.347 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 1103- ●
8 07.347 WASHER; S/ABS
07.516 (A) ID=16.4 		8-97360-118-0 02 1 1103-1206 ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.516 (A) ID=16.4 		8-97360-118-0 02 1 1207- ●
8 07.347 WASHER; S/ABS
07.427 (B) ID=16.5 		8-98011-489-0 02 1 1103-1206 ●
8 07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T) 07.427 (B) ID=16.5 		8-98011-489-0 02 1 1207- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (A) KYB 		8-94132-727-1 04 1 1103- ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 (B) TOKICO 		8-94224-694-0 02 1 1103-1108 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1109-1206 ●
10 07.388 BUSHING; RUBBER,S/ABS
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1109-1206 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1207-1510 ●
10 07.388 BUSHING; RUBBER,S/ABS
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1207-1510 ●
10 07.388 BUSHING; RUBBER,S/ABS
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1207-1510 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1511- ●
10 07.388 BUSHING; RUBBER,S/ABS
PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1511- ●
10 07.388 BUSHING; RUBBER,S/ABS
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 07.347 (B) TOKICO 		8-94224-694-0 02 1 1511- ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1103-1108 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) TOKICO 		8-94382-149-0 02 1 1109-1206 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1207-1210 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1211-1410 ●
10 07.388 BUSHING; RUBBER,S/ABS
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1211-1410 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1411-1510 ●
10 07.388 BUSHING; RUBBER,S/ABS
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1411-1510 ●
10 07.388 BUSHING; RUBBER,S/ABS
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1411-1510 ●
10 07.388 BUSHING; RUBBER,S/ABS
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1511- ●
10 07.388 BUSHING; RUBBER,S/ABS
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1511- ●
10 07.388 BUSHING; RUBBER,S/ABS
AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) (B) TOKICO 		8-94382-149-0 02 1 1511- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1103- ●
47 07.347 PIN; S/ABS SETTING 8-97316-972-0 02 1 1103-1206 ●
47 07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97316-972-0 02 1 1207- ●
