4-60 — REAR SUSPENSION (#81140) — 172 parça
çizim 124674
227 230 225 4 502 1 155 5 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF 		8-98273-764-0 02 1 1406- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-98001-551-1 02 1 1109-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-98001-551-1 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-1 02 1 1103-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 3-LEAF 		8-98001-543-1 02 1 1109-1206 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 3-LEAF 		8-98001-543-1 02 1 1207- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 3-LEAF 		8-98001-543-1 02 1 1207- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-98022-373-0 02 1 1103-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 10-LEAF 		8-98022-373-0 02 1 1109-1206 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 1207-1210 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 1211-1402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 1211-1402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1403-1405 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1403-1405 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1406-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1406-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1406-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1511- ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) L=245 		8-94127-921-3 04 1 1109-1405 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) L=245 		8-94127-921-3 04 1 1406-1510 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) L=245 		8-94127-921-3 04 1 1406-1510 ●
4 07.516 U-BOLT; RR SPR
PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) L=245 		8-94127-921-3 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) L=245 		8-94127-921-3 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
L=205 		8-94127-917-3 04 1 1103-1108 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) L=205 		8-94127-917-3 04 1 1109-1206 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) L=205 		8-94127-917-3 04 1 1207- ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) L=205 		8-94127-917-3 04 1 1207- ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 1103-1108 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) L=265 		8-94127-923-3 04 1 1109-1206 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1207-1210 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1211-1405 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1211-1405 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1406-1410 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1406-1410 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1406-1410 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) L=265 		8-94127-923-3 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 1511- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1103- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1103- ● ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 1103- ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 1103- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98002-085-1 02 1 1103-1108 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98002-085-1 02 1 1109-1206 ●
225 07.535 RUBBER; CUSHION,RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98002-085-1 02 1 1109-1206 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98002-085-1 02 1 1207-1510 ●
225 07.535 RUBBER; CUSHION,RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-98002-085-1 02 1 1207-1510 ●
225 07.535 RUBBER; CUSHION,RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98002-085-1 02 1 1207-1510 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 		8-98002-085-1 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR
PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 		8-98002-085-1 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-98002-085-1 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1103-1108 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98021-554-0 02 1 1109-1206 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1207-1210 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1211-1410 ●
225 07.535 RUBBER; CUSHION,RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1211-1410 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1411-1510 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1411-1510 ●
225 07.535 RUBBER; CUSHION,RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1411-1510 ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 1511- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1103- ● ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 4.0-4.5TON(RPR) 		8-97136-853-0 02 1 1109- ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 1103-1206 ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 1207- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1103-1206 ● ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1207- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1207- ●

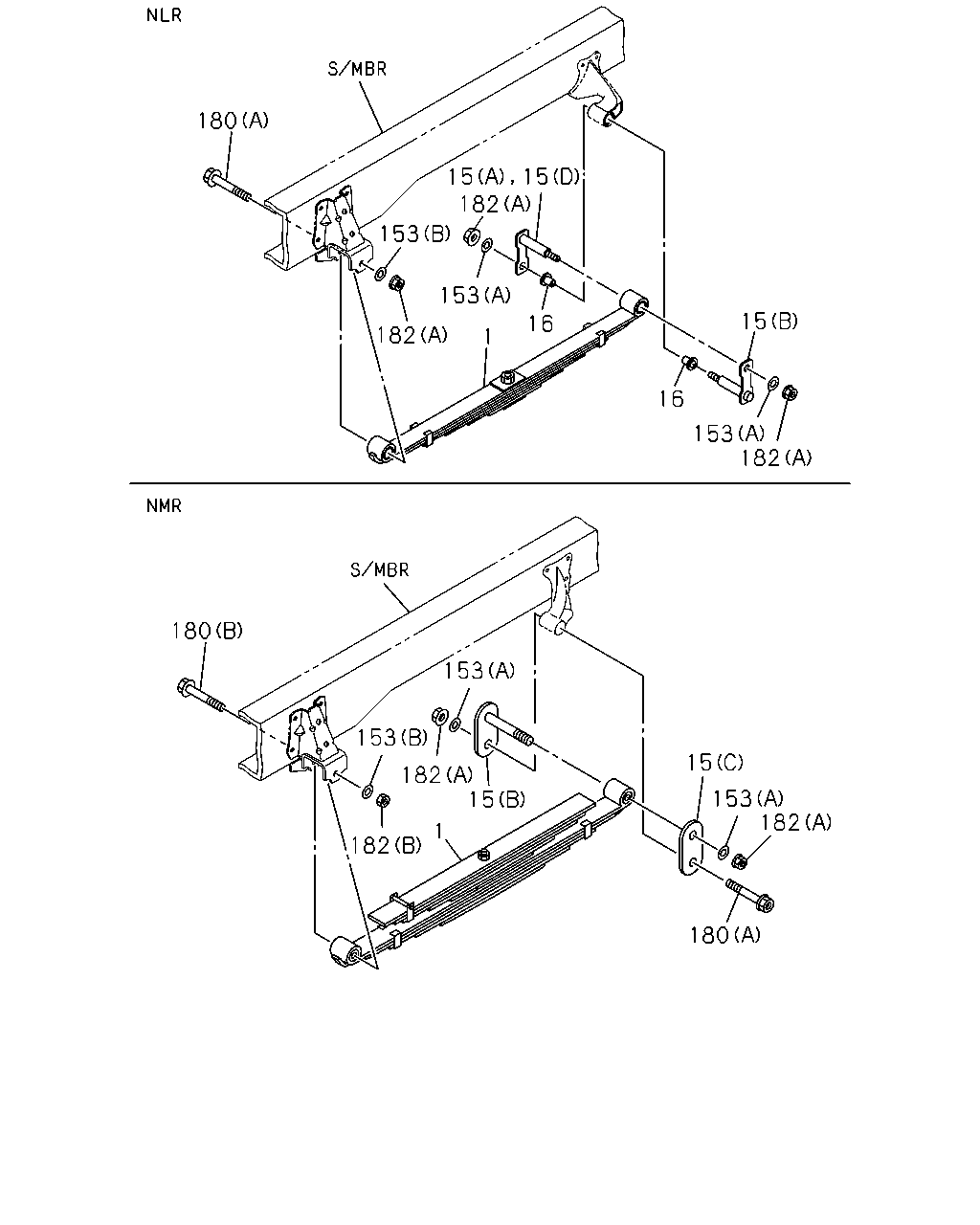

çizim 124864
180 15 15 182 153 153 182 16 1 16 15 153 182 180 153 153 182 15 1 182 15 153 182 180
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) 6-LEAF 		8-98273-764-0 02 1 1406- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-98001-551-1 02 1 1109-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PHILIPPINE ISLANDS EQUIPMENT(B15),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-98001-551-1 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-98001-543-1 02 1 1103-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 3-LEAF 		8-98001-543-1 02 1 1109-1206 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) G.V.W. 3.5-4.0TON(RPQ) 3-LEAF 		8-98001-543-1 02 1 1207- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 3-LEAF 		8-98001-543-1 02 1 1207- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-98022-373-0 02 1 1103-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 10-LEAF 		8-98022-373-0 02 1 1109-1206 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 1207-1210 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 1211-1402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 1211-1402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1403-1405 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1403-1405 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1406-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1406-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1406-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 10-LEAF 		8-98022-373-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98022-373-0 02 1 1511- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 4.0-4.5TON(RPR) (D) 		8-97033-966-1 02 1 1109- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94113-322-3 02 1 1103-1108 ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94113-322-3 02 1 1103-1108 ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94113-322-3 02 1 1109-1206 ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.5-4.0TON(RPQ) (A) 		8-94113-322-3 02 1 1109-1206 ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94113-322-3 02 1 1207- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) (A) 		8-94113-322-3 02 1 1207- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 1103- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1103- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 1103-1108 ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 1103-1108 ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 1109-1206 ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.5-4.0TON(RPQ) 		8-94113-323-2 04 1 1109-1206 ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 1207- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) 		8-94113-323-2 04 1 1207- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 1103-1108 ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 1103-1108 ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 1109-1206 ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.5-4.0TON(RPQ) BEST VALUE PARTS 		5-87610-160-0 04 1 1109-1206 ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 1207- ●
16 07.524 BUSHING; SHACKLE,RR SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) BEST VALUE PARTS 		5-87610-160-0 04 1 1207- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 02 1 1109- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 1109- ● ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 1103- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1109- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1109- ●
180 07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1103-1108 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1109- ● ●
180 07.529 PIN; RR SPR
(B) M18X130 FLANGE 		8-97360-112-0 02 1 1103-1108 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1109- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 02 1 1109- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 1109- ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 1103-1108 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 1109- ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1103-1108 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1109- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1103- ●
çizim 417159
435 318 317 429 25 527 527 526 285 527 285 297 274 387 330 62
BalonParca AdiParca NoAdetTipApplied Date A B
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 		8-97043-370-1 01 1 1403- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 		8-97239-911-0 02 1 1403-1510 ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1511- ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 		8-94433-867-0 02 1 1403-1510 ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94433-867-0 02 1 1511- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) LOWER L=18 		8-97089-556-0 02 1 1403-1510 ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 1511- ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) UPPER L=29 		8-97089-557-0 02 1 1403-1510 ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 1511- ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 		8-94178-430-2 02 1 1403-1510 ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1511- ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 		8-97239-907-0 02 1 1403-1510 ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1511- ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) M14X70 FLANGE 		0-28851-470-0 02 1 1403-1510 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1511- ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) M12 LOCK NUT 		0-91370-012-0 02 1 1403-1510 ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1511- ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1403-1510 ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1511- ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 06.174 M14 FLANGE 		8-97360-124-0 02 1 1403-1510 ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1511- ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1403-1510 ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1511- ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 07.242 		8-97360-120-0 02 1 1403-1510 ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1511- ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1403-1510 ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1511- ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> REAR WIDE TREAD(V4T) (B) ID=12.5 		8-97360-055-0 04 1 1403-1510 ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5 		8-97360-055-0 04 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
