4-55 — FRONT LEAF SPRING (#81139) — 137 parça

16 20 19 17 17 15 6 5 4 3 2 19 1 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-519-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-525-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-335-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-248-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98094-367-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98094-369-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-336-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-249-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98094-368-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98094-370-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98282-552-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98282-555-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-337-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-908-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-914-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-250-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98282-553-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98282-556-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-522-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-528-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-338-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-909-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-915-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-251-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-523-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-529-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-339-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-910-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-916-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-252-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-340-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-911-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-917-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-253-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-301-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-98041-353-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-98063-131-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881, C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887, E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881, C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887, E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-327-0	04	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-94478-008-1	02	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-94478-008-1	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-94478-008-1	06	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-98040-316-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-316-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-98041-369-0	01	1	-

17 17 1 2 3 4 5 6 20 15 16 20 19 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-519-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-525-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-335-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-248-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98094-367-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98094-369-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-336-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-249-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98094-368-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98094-370-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98282-552-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98282-555-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-337-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-908-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-914-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-250-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98282-553-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98282-556-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-522-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-528-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-338-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-909-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-915-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-251-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-523-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-529-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-339-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-910-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-916-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-252-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-340-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-911-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-917-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-253-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-301-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-98041-353-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-98063-131-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881, C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887, E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881, C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887, E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-327-0	04	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-94478-008-1	02	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-94478-008-1	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-94478-008-1	06	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-98040-316-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-316-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-98041-369-0	01	1	-

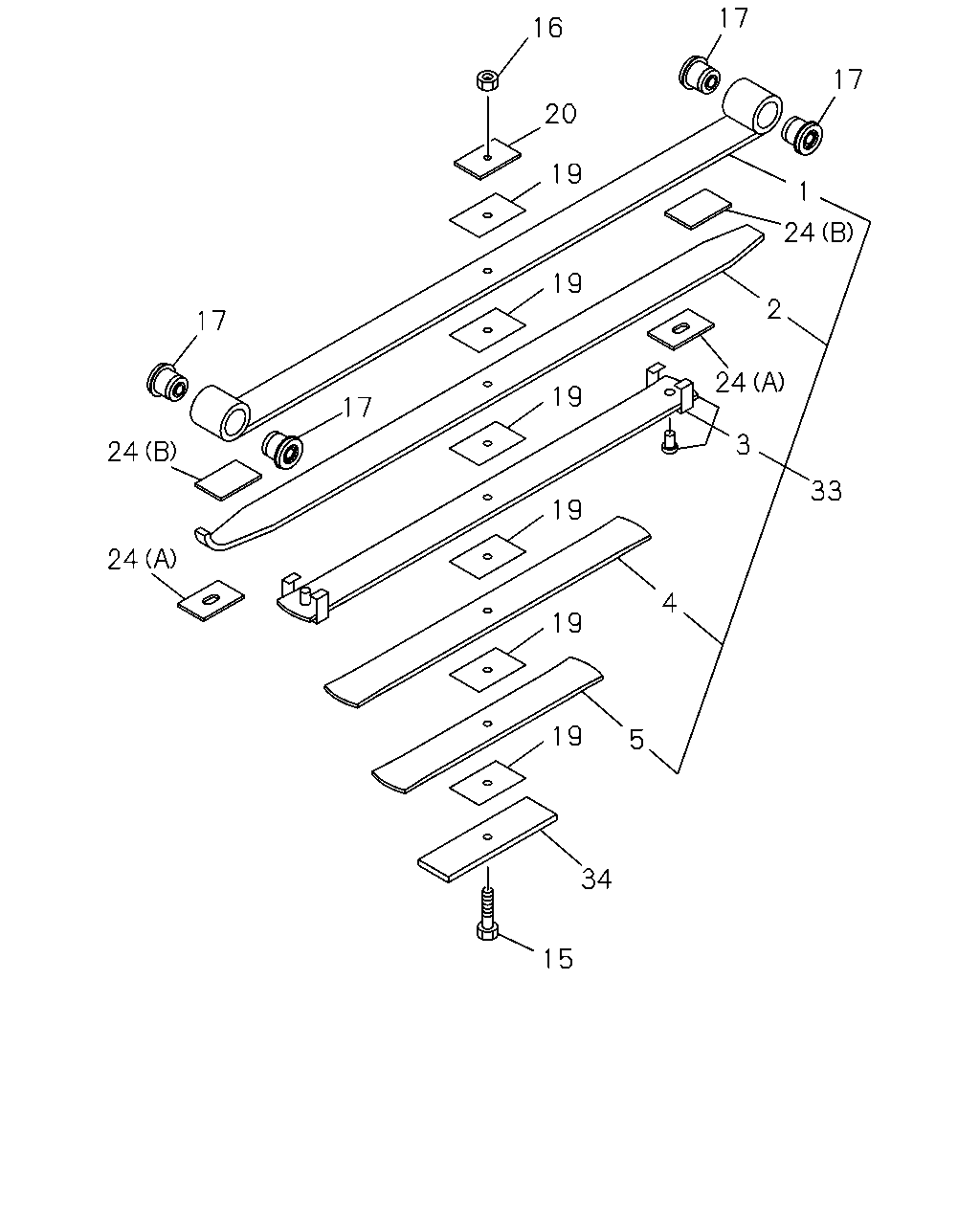

16 17 17 20 19 17 17 24 24 19 19 3 24 2 24 1 33 4 19 19 5 34 15 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-519-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-525-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-335-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-248-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98094-367-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98094-369-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-336-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-249-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98094-368-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98094-370-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98282-552-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98282-555-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-337-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-908-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-914-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-250-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98282-553-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98282-556-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-522-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-528-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-338-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-909-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-915-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-251-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: E = 8-98273-762-0, 98273762	8-98022-523-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: F = 8-98273-763-0, 98273763	8-98022-529-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98001-533-0, 98001533	8-98042-339-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98079-885-0, 98079885	8-98063-910-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98079-887-0, 98079887	8-98063-916-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-881-0, 98079881	8-98090-252-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-301-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-98041-353-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-98063-131-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881, C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887, E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881, C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887, E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-327-0	04	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-94478-008-1	02	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-94478-008-1	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-94478-008-1	06	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: C = 8-98079-885-0, 98079885, D = 8-98079-887-0, 98079887	8-98040-316-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98040-316-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: A = 8-98001-533-0, 98001533, B = 8-98079-881-0, 98079881	8-98041-369-0	01	1	-
24	07.436 LINER; LEAF SPR,FWD FRT (A) ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98168-488-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT (B) ASM PART: E = 8-98273-762-0, 98273762, F = 8-98273-763-0, 98273763	8-98282-563-0	02	1	-
33	07.415 SPRING ASM; LEAF,FRT MAIN ASM PART: E = 8-98273-762-0, 98273762	8-98282-551-0	01	1	-
33	07.415 SPRING ASM; LEAF,FRT MAIN ASM PART: F = 8-98273-763-0, 98273763	8-98282-554-0	01	1	-
34	07.505 SPRING; LEAF,NO 1,FRT SUB ASM PART: E = 8-98273-762-0, 98273762	8-98022-524-0	01	1	-
34	07.505 SPRING; LEAF,NO 1,FRT SUB ASM PART: F = 8-98273-763-0, 98273763	8-98022-530-0	01	1	-
