Sayfa 4-35 - Isuzu EPC

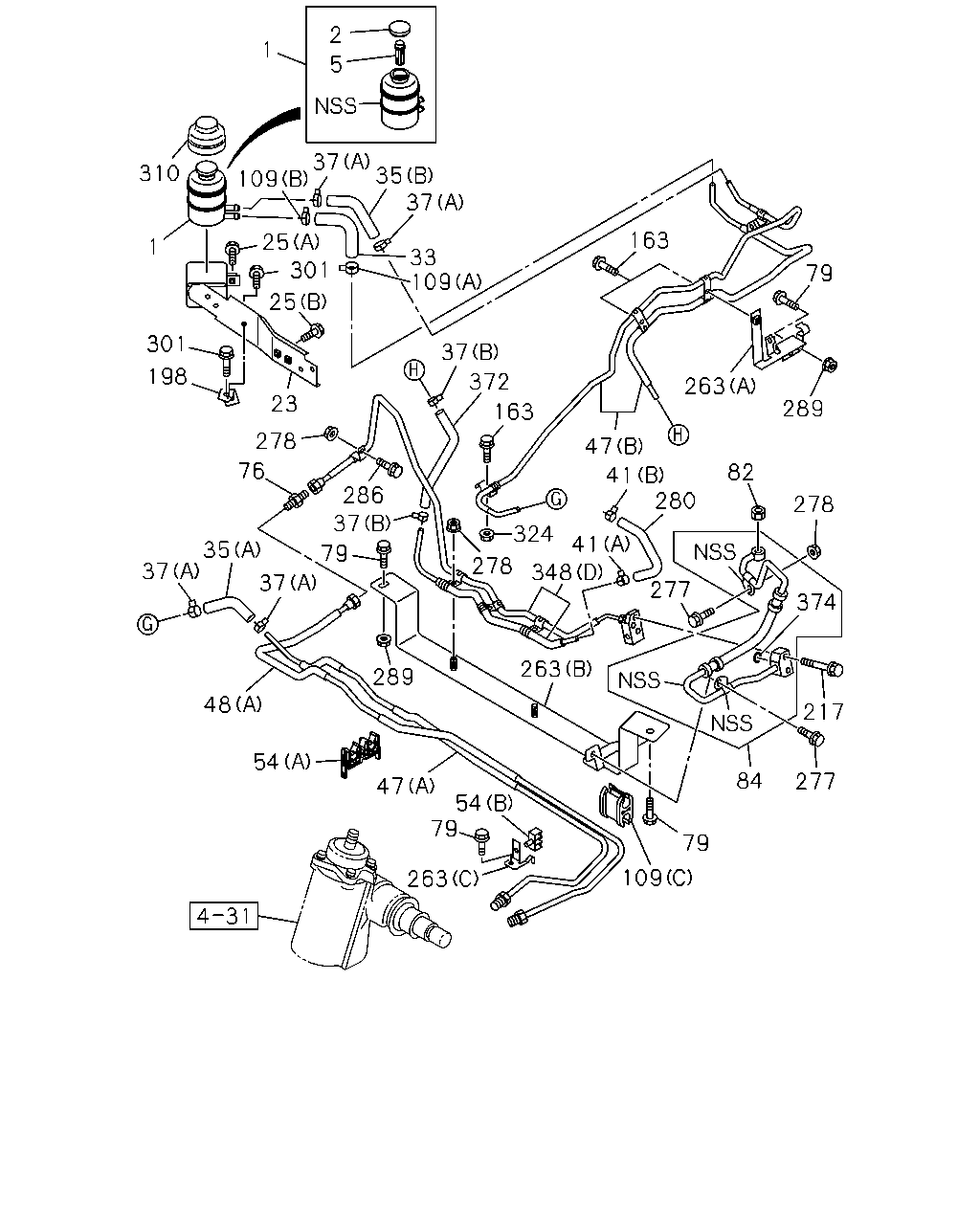

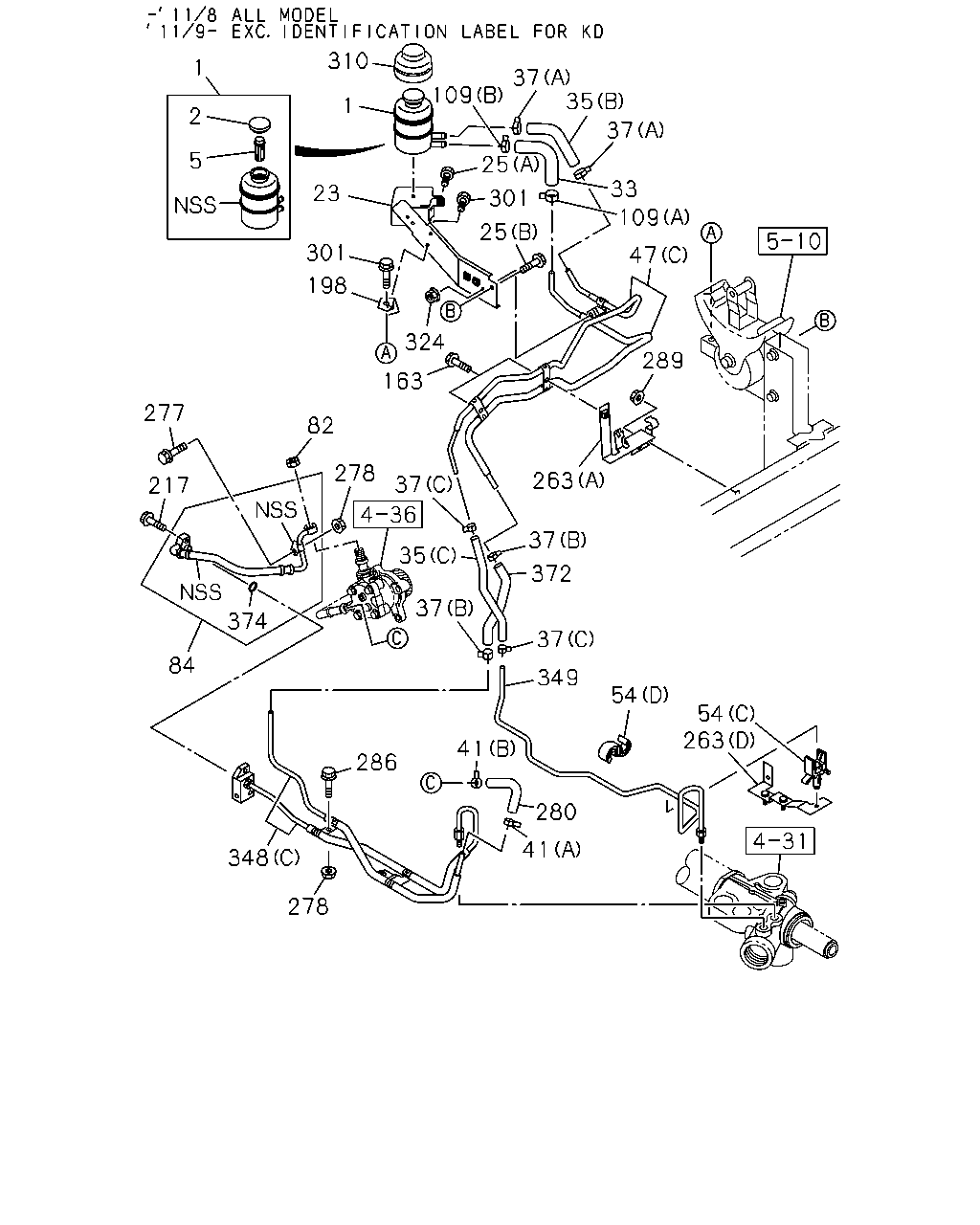

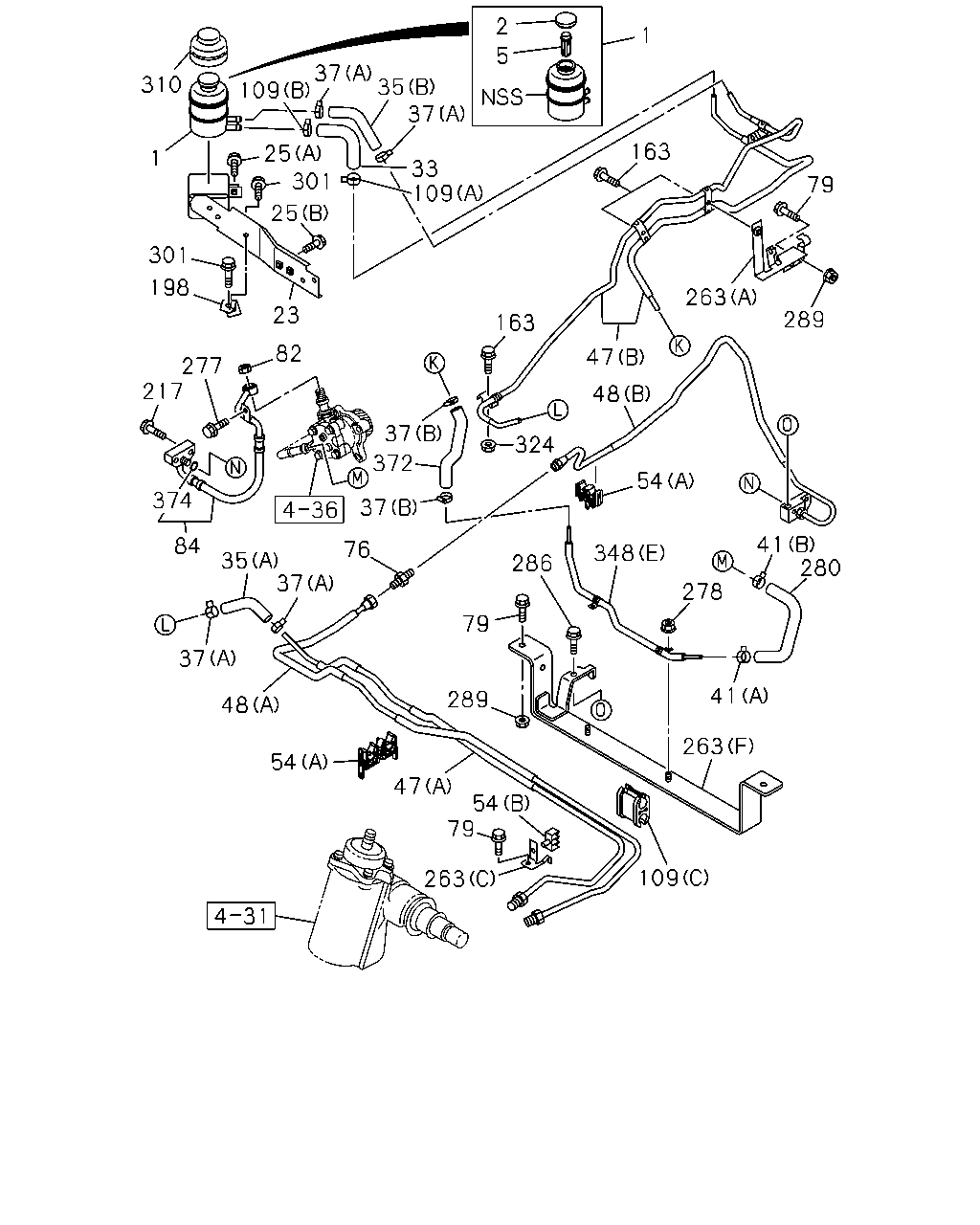

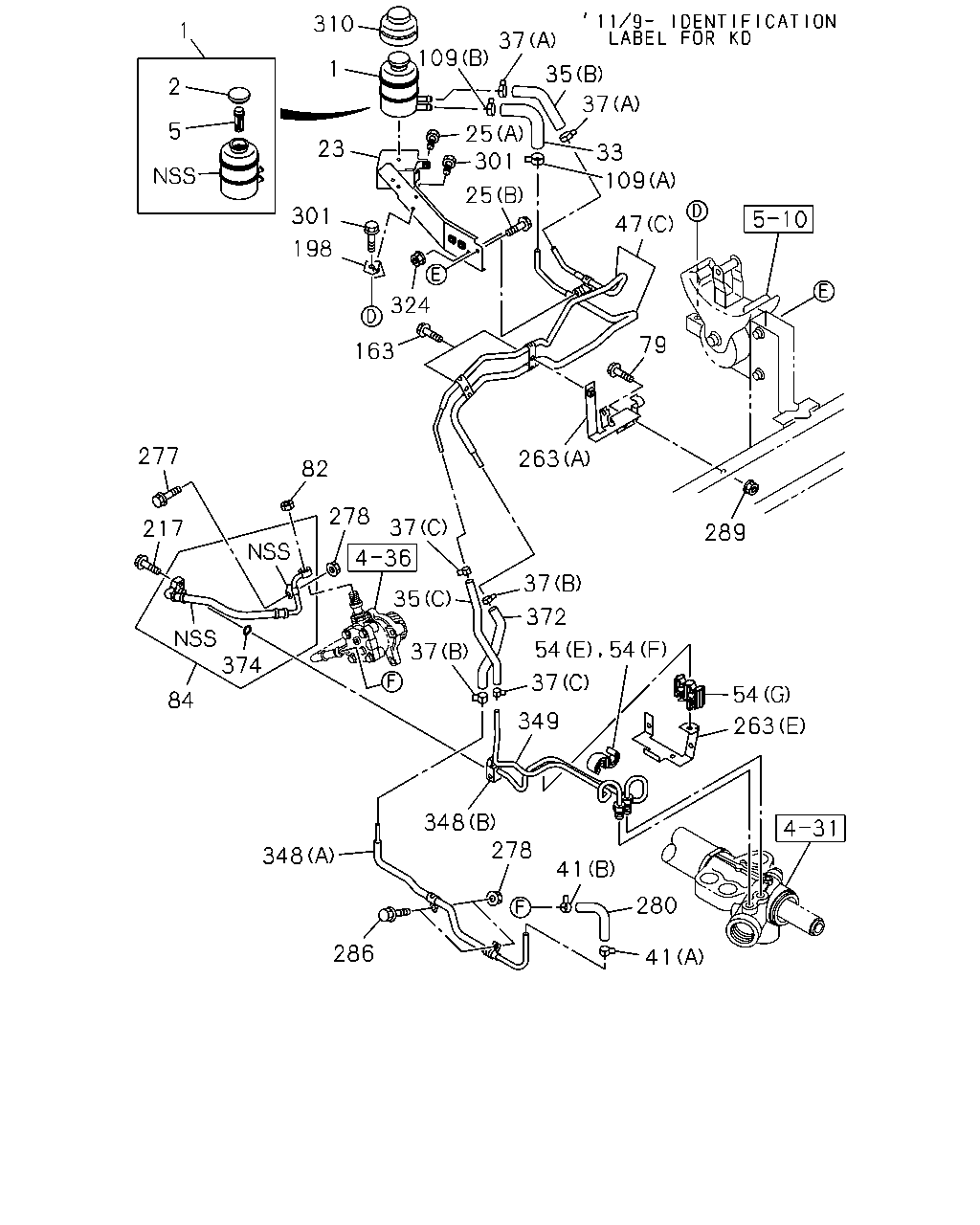

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#81133) — 539 parça

310 1 109 37 35 37 33 109 47 79 25 301 25 23 301 198 324 163 263 289 54 263 349 37 54 372 37 37 278 35 37 374 84 348 286 348 278 41 280 41 82 217 277 1 2 5 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1103-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1103-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1103-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98117-895-0	01	1	1103-1108	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1103-1108		●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1109-		●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1103-1108	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1103-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-		●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1103-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1103-	●	●
47	06.671 PIPE; RETURN (C)	8-98173-324-0	01	1	1103-1108	●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1109-		●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1109-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1109-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (F) ID=10 & 10	1-09709-277-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE (D) ID=10 & 15	1-09709-279-1	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-		●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1103-1108		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1103-	●	●
84	06.670 HOSE; FLEX,P/S	8-98148-204-0	01	1	1103-1108	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1109-	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1103-1108		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1109-1312	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1109-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1103-1108		●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. RUSSIA EQUIPMENT(B12)	8-98011-885-1	01	1	1109-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1103-1108	●	●
198	06.672 STAY; OIL TANK,POWER STEERING RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1109-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (D)	8-98138-713-1	01	1	1103-1108	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1109-		●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1109-1312	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1109-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	06.672 BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98089-499-0	01	1	1103-1108	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1103-1108		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1109-		●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1103-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1103-1108		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1103-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (C)	8-98156-813-0	01	1	1103-1108	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1103-1108		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1109-1312	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1109-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	06.671 PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	1109-	●
349	06.671 PIPE; OIL,P/S RETURN	8-98148-146-0	01	1	1103-1108	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	1109-	●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1103-1312	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1103-	●	●

278 348 41 280 41 286 263 54 54 349 37 372 37 263 289 47 109 33 37 35 37 109 310 1 23 301 198 324 163 82 277 217 84 374 37 35 5 2 1 25 301 25 278 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1103-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1103-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1103-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98117-895-0	01	1	1103-1108	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1103-1108		●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1109-		●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1103-1108	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1103-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-		●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1103-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1103-	●	●
47	06.671 PIPE; RETURN (C)	8-98173-324-0	01	1	1103-1108	●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1109-		●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1109-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1109-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (F) ID=10 & 10	1-09709-277-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE (D) ID=10 & 15	1-09709-279-1	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1103-	●	●
84	06.670 HOSE; FLEX,P/S	8-98148-204-0	01	1	1103-1108	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1109-	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1103-1108		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1109-1312	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1109-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1103-1108		●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. RUSSIA EQUIPMENT(B12)	8-98011-885-1	01	1	1109-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1103-1108	●	●
198	06.672 STAY; OIL TANK,POWER STEERING RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1109-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (D)	8-98138-713-1	01	1	1103-1108	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1109-		●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1109-1312	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1109-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	06.672 BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98089-499-0	01	1	1103-1108	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1103-1108		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1109-		●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1103-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1103-1108		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1103-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (C)	8-98156-813-0	01	1	1103-1108	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1103-1108		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1109-1312	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1109-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	06.671 PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	1109-	●
349	06.671 PIPE; OIL,P/S RETURN	8-98148-146-0	01	1	1103-1108	●
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	1109-	●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1103-1312	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1103-	●	●

1 2 5 310 1 109 37 25 25 301 301 198 23 35 33 109 278 76 35 37 37 48 54 289 79 37 286 47 79 263 54 109 84 79 277 217 374 278 263 277 348 278 163 372 37 47 280 41 324 263 163 79 289 82 41 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1103-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1103-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1103-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98117-895-0	01	1	1103-1108	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1103-1108		●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1109-		●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1103-1108	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1103-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-		●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1103-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1103-	●	●
47	06.671 PIPE; RETURN (C)	8-98173-324-0	01	1	1103-1108	●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1109-		●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1109-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1109-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1103-1108		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	1109-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1109-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1401-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (F) ID=10 & 10	1-09709-277-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE (D) ID=10 & 15	1-09709-279-1	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-		●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1108		●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1109-	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1109-		●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1103-1108		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1103-	●	●
84	06.670 HOSE; FLEX,P/S	8-98148-204-0	01	1	1103-1108	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1109-	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1103-1108		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1109-1312	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1109-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1103-1108		●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. RUSSIA EQUIPMENT(B12)	8-98011-885-1	01	1	1109-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1103-1108	●	●
198	06.672 STAY; OIL TANK,POWER STEERING RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1109-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (D)	8-98138-713-1	01	1	1103-1108	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1109-		●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1109-1312	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1109-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	06.672 BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98089-499-0	01	1	1103-1108	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1103-1108		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1109-		●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1103-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1103-1108		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1103-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (C)	8-98156-813-0	01	1	1103-1108	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1103-1108		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1109-1312	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1109-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	06.671 PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1103-1312	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1103-	●	●

310 109 37 35 37 2 5 1 163 33 25 1 301 25 301 198 23 82 277 217 163 263 289 79 37 372 37 35 84 374 37 37 48 54 76 47 48 324 54 41 280 348 286 79 289 47 54 79 263 278 41 263 109 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1103-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1103-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1103-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1103-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98117-895-0	01	1	1103-1108	●
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1103-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1103-1108		●
35	06.671 HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	1109-	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1109-		●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1103-1108	●
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1103-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1108		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●	●
37	01.762 CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1109-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-		●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1103-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1103-	●	●
47	06.671 PIPE; RETURN (C)	8-98173-324-0	01	1	1103-1108	●
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	1109-	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1109-		●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1103-1108		●
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1109-	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1109-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1103-1108		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	1109-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1109-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1401-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-		●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.866 (F) ID=10 & 10	1-09709-277-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 04.930 (G) ID=10X2 H=37.5	8-97018-546-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE (D) ID=10 & 15	1-09709-279-1	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 15	1-09709-279-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1103-1108	●
54	06.672 CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.930 (C) ID=10 H=40	8-94462-219-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-		●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1103-1108		●
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-		●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1108		●
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1109-	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1109-		●
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
79	06.672 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1103-1108		●
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-		●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1103-	●	●
84	06.670 HOSE; FLEX,P/S	8-98148-204-0	01	1	1103-1108	●
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	1109-	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1103-1108		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	1109-1312	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1109-1312		●
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1103-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1103-1108		●
109	06.672 CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1103-1108		●
163	06.671 BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. RUSSIA EQUIPMENT(B12)	8-98011-885-1	01	1	1109-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1103-1108	●	●
198	06.672 STAY; OIL TANK,POWER STEERING RUSSIA EQUIPMENT(B12)	8-98082-763-0	01	1	1109-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98045-688-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (D)	8-98138-713-1	01	1	1103-1108	●
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98138-713-1	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1103-	●	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	1109-	●
263	06.672 BRACKET; P/S PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98063-136-0	01	1	1109-		●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1103-1108		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	1109-1312	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1109-1312		●
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-	●
263	06.672 BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108		●
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1312		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98089-499-0	01	1	1103-1108	●
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1103-1108		●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1109-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1109-		●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1103-1108	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1103-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
289	06.673 NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1103-1108		●
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1103-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (C)	8-98156-813-0	01	1	1103-1108	●
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1109-	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1103-1108		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1109-1312	●
348	06.671 PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1109-1312		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-	●
348	06.671 PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-		●
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1103-1312	●	●
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
