1 |

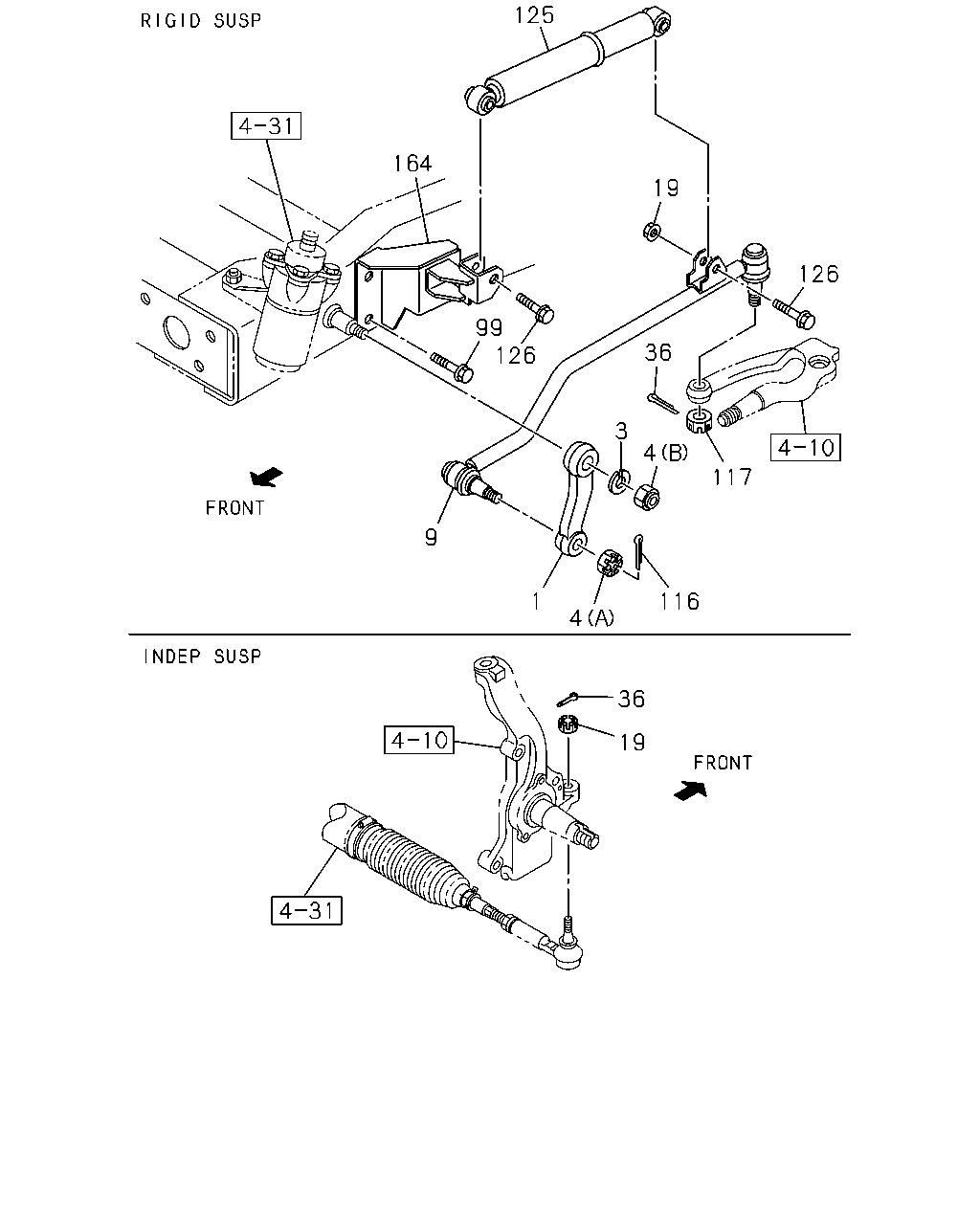

06.859 ARM; PITMAN,STRG
|
8-97109-289-1 |
01 |
1 |
1103-1108 |
● |
|
| |
1 |
06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-97109-289-1 |
01 |
1 |
1109- |
|
● |
| |
1 |
06.859 ARM; PITMAN,STRG
|
8-97109-289-1 |
01 |
1 |
1109- |
● |
|
| |
3 |
06.861 WASHER; LK,PITMAN ARM
ID=22.5
|
0-91510-622-0 |
01 |
1 |
1103-1108 |
● |
|
| |
3 |
06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0)
ID=22.5
|
0-91510-622-0 |
01 |
1 |
1109- |
|
● |
| |
3 |
06.861 WASHER; LK,PITMAN ARM
ID=22.5
|
0-91510-622-0 |
01 |
1 |
1109- |
● |
|
| |
4 |
06.861 NUT; PITMAN ARM
(B)
M22
|
0-91111-522-0 |
01 |
1 |
1103-1108 |
● |
|
| |
4 |
06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(B)
M22
|
0-91111-522-0 |
01 |
1 |
1109- |
|
● |
| |
4 |
06.861 NUT; PITMAN ARM
(B)
M22
|
0-91111-522-0 |
01 |
1 |
1109- |
● |
|
| |
4 |
06.861 NUT; PITMAN ARM
06.174
(A)
M18 SLOTTED
|
8-97245-632-0 |
01 |
1 |
1103-1108 |
● |
|
| |
4 |
06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0)
06.174
(A)
M18 SLOTTED
|
8-97245-632-0 |
01 |
1 |
1109- |
|
● |
| |
4 |
06.861 NUT; PITMAN ARM
06.174
(A)
M18 SLOTTED
|
8-97245-632-0 |
01 |
1 |
1109- |
● |
|
| |
9 |
06.870 LINK; DRAG
|
8-98022-072-1 |
01 |
1 |
1103-1108 |
● |
|
| |
9 |
06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98022-072-1 |
01 |
1 |
1109- |
|
● |
| |
9 |
06.870 LINK; DRAG
|
8-98022-072-1 |
01 |
1 |
1109- |
● |
|
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
M16 SLOTTED
|
8-97387-863-0 |
02 |
1 |
1103-1108 |
|
● |
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(FF0)
M16 SLOTTED
|
8-97387-863-0 |
02 |
1 |
1109- |
|
● |
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
04.085
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1103-1108 |
● |
|
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
EXC. FRT INDEPENDENT SUSPENSION(FF0)
04.085
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1109-1203 |
|
● |
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
04.085
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1109-1203 |
● |
|
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
EXC. FRT INDEPENDENT SUSPENSION(FF0)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1204- |
|
● |
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1204- |
● |
|
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
L=19
|
8-98098-024-0 |
02 |
1 |
1103-1108 |
|
● |
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(FF0)
L=19
|
8-98098-024-0 |
02 |
1 |
1109- |
|
● |
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
L=19
|
8-98098-024-0 |
01 |
1 |
1103-1108 |
● |
|
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
L=19
|
8-98098-024-0 |
01 |
1 |
1109- |
|
● |
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
L=19
|
8-98098-024-0 |
01 |
1 |
1109- |
● |
|
| |
99 |
06.896 BOLT; BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1103-1108 |
● |
|
| |
99 |
06.896 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1109- |
|
● |
| |
99 |
06.896 BOLT; BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1109- |
● |
|
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881
L=19
|
8-97349-766-0 |
01 |
1 |
1103-1108 |
● |
|
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
EXC. FRT INDEPENDENT SUSPENSION(FF0)
06.881
L=19
|
8-97349-766-0 |
01 |
1 |
1109- |
|
● |
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881
L=19
|
8-97349-766-0 |
01 |
1 |
1109- |
● |
|
| |
117 |
06.233 NUT; DRAG LINK
06.174
M18 SLOTTED
|
8-97245-632-0 |
01 |
1 |
1103-1108 |
● |
|
| |
117 |
06.233 NUT; DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(FF0)
06.174
M18 SLOTTED
|
8-97245-632-0 |
01 |
1 |
1109- |
|
● |
| |
117 |
06.233 NUT; DRAG LINK
06.174
M18 SLOTTED
|
8-97245-632-0 |
01 |
1 |
1109- |
● |
|
| |
125 |
06.865 DAMPER; STEERING
|
8-98046-741-2 |
01 |
1 |
1103-1108 |
● |
|
| |
125 |
06.865 DAMPER; STEERING
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98046-741-2 |
01 |
1 |
1109- |
|
● |
| |
125 |
06.865 DAMPER; STEERING
|
8-98046-741-2 |
01 |
1 |
1109- |
● |
|
| |
126 |
06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685
M10X45 FLANGE
|
0-28051-045-0 |
02 |
1 |
1103-1108 |
● |
|
| |
126 |
06.865 BOLT; STRG DAMPER TO RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(FF0)
00.685
M10X45 FLANGE
|
0-28051-045-0 |
02 |
1 |
1109- |
|
● |
| |
126 |
06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685
M10X45 FLANGE
|
0-28051-045-0 |
02 |
1 |
1109- |
● |
|
| |
164 |
06.896 BRACKET; STEERING DAMPER
|
8-98072-797-0 |
01 |
1 |
1103-1108 |
● |
|
| |
164 |
06.896 BRACKET; STEERING DAMPER
EXC. FRT INDEPENDENT SUSPENSION(FF0)
|
8-98072-797-0 |
01 |
1 |
1109- |
|
● |
| |
164 |
06.896 BRACKET; STEERING DAMPER
|
8-98072-797-0 |
01 |
1 |
1109- |
● |
|
