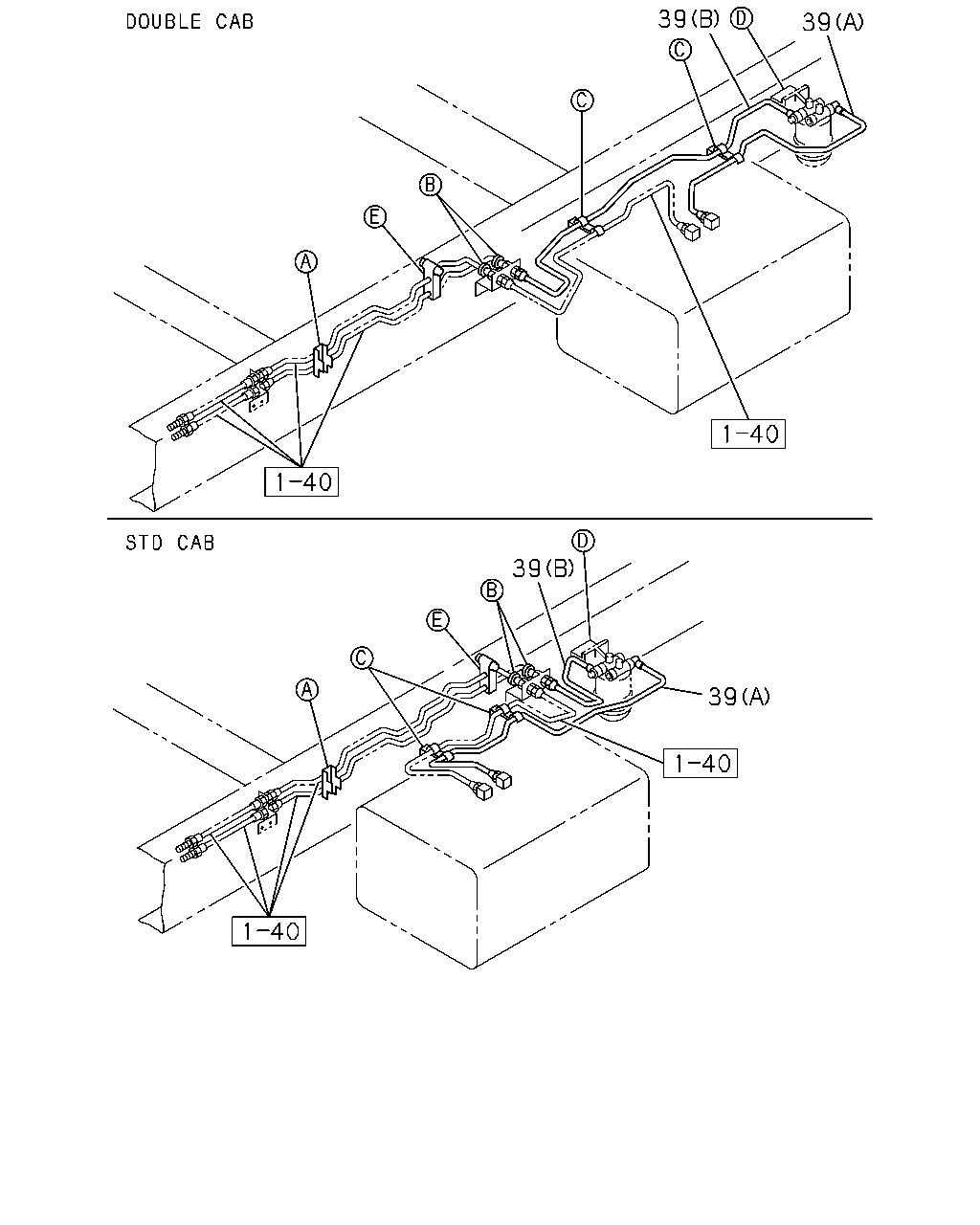

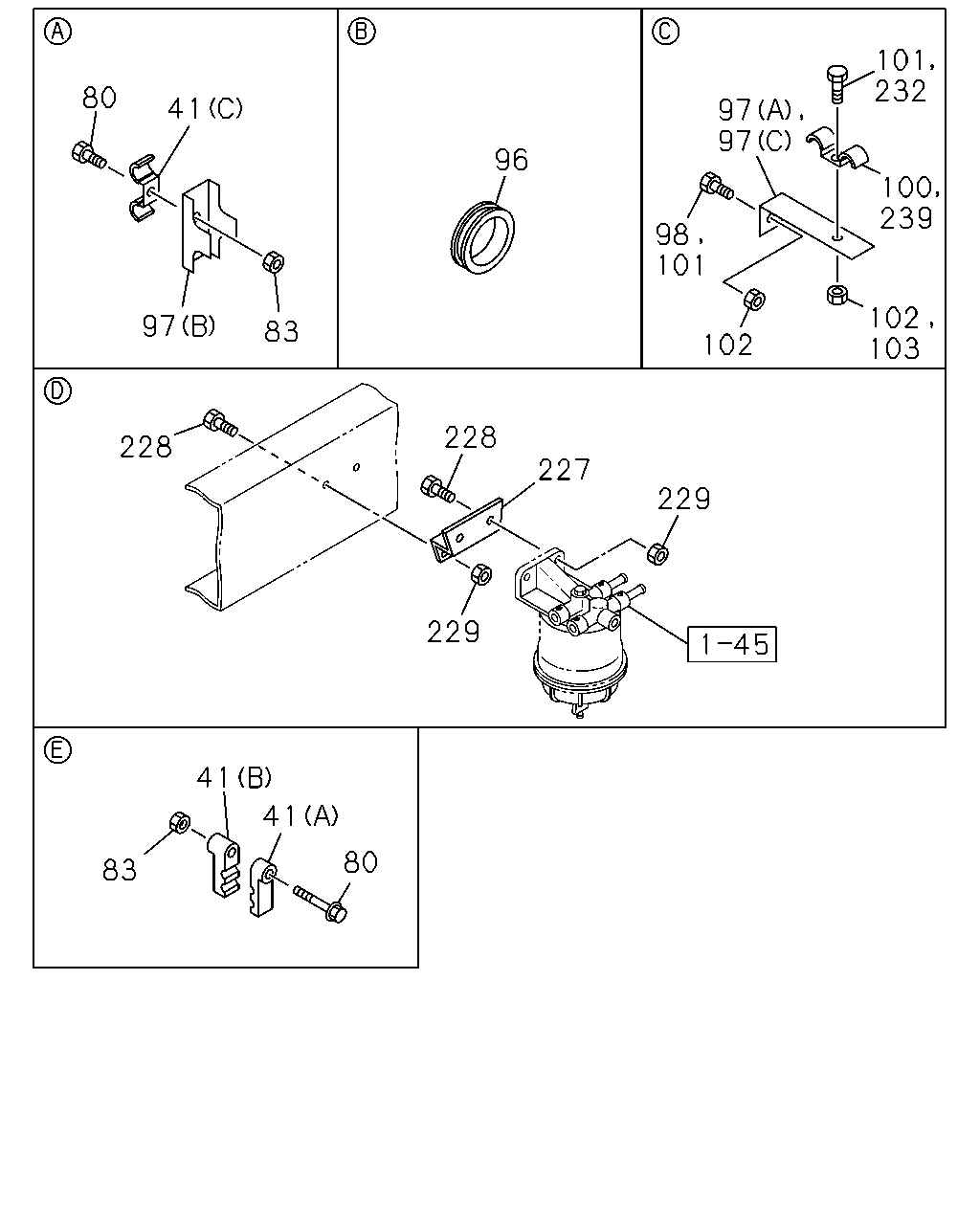

1-41 — FUEL PIPING; CHASSIS (#8113) — 96 parça

101 232 80 41 97 97 96 100 239 98 101 102 103 97 83 102 228 228 227 229 229 41 41 80 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; FUEL PIPE,FUEL TANK FSS STD CAB(FS*M) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0210	●
41	CLIP; FUEL PIPE,FUEL TANK FSS STD CAB(FS*M) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK FSS DOUBLE CAB(FS*W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0005-0210	●
41	CLIP; FUEL PIPE,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0005-0210	●
41	CLIP; FUEL PIPE,FUEL TANK FSS DOUBLE CAB(FS*W) FTS ALL(FT****) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0211-		●	●
41	CLIP; FUEL PIPE,FUEL TANK FTS ALL(FT****) MLD6D M/T(X5Q) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0005-0210	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=17.1	8-94122-679-0	04	1	0211-		●	●
41	CLIP; FUEL PIPE,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) (A) ID=10 & 10	1-09709-241-0	01	1	0005-0210	●
41	CLIP; FUEL PIPE,FUEL TANK FTS ALL(FT****) (A) ID=10 & 10	1-09709-241-0	01	1	0211-			●
41	CLIP; FUEL PIPE,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) (B) ID=10 & 10	1-09709-243-0	01	1	0005-0210	●
41	CLIP; FUEL PIPE,FUEL TANK FTS ALL(FT****) (B) ID=10 & 10	1-09709-243-0	01	1	0211-			●
80	BOLT; CLIP,FUEL TANK FSS STD CAB(FS*M) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210	●
80	BOLT; CLIP,FUEL TANK FSS STD CAB(FS*M) M8X40 FLANGE	0-28680-840-0	01	1	0211-0512		●
80	BOLT; CLIP,FUEL TANK FSS STD CAB(FS*M) M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
80	BOLT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) M8X40 FLANGE	0-28680-840-0	02	1	0005-0210	●
80	BOLT; CLIP,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) M8X40 FLANGE	0-28680-840-0	02	1	0005-0210	●
80	BOLT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) FTS ALL(FT****) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512		●	●
80	BOLT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) FTS ALL(FT****) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●	●
80	BOLT; CLIP,FUEL TANK FTS ALL(FT****) MLD6D M/T(X5Q) M8X40 FLANGE	0-28680-840-0	03	1	0005-0210	●
80	BOLT; CLIP,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) M8X50 FLANGE	0-28080-850-0	01	1	0005-0210	●
80	BOLT; CLIP,FUEL TANK FTS ALL(FT****) M8X50 FLANGE	0-28080-850-0	01	1	0211-0512			●
80	BOLT; CLIP,FUEL TANK FTS ALL(FT****) M8X50 FLANGE	0-28050-850-0	01	1	0601-			●
83	NUT; CLIP,FUEL TANK FSS STD CAB(FS*M) M8 FLANGE	0-91150-108-0	01	1	0005-0007	●
83	NUT; CLIP,FUEL TANK FSS STD CAB(FS*M) M8 FLANGE	0-91150-108-0	01	1	0008-0210	●
83	NUT; CLIP,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	01	1	0008-0210	●
83	NUT; CLIP,FUEL TANK FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8 FLANGE	0-91150-108-0	01	1	0211-0602		●	●
83	NUT; CLIP,FUEL TANK FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
83	NUT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) M8 FLANGE	0-91150-108-0	02	1	0005-0007	●
83	NUT; CLIP,FUEL TANK FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	02	1	0005-0007	●
83	NUT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) M8 FLANGE	0-91150-108-0	02	1	0008-0210	●
83	NUT; CLIP,FUEL TANK FTS DOUBLE CAB(FT*W) MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	02	1	0008-0210	●
83	NUT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
83	NUT; CLIP,FUEL TANK FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
83	NUT; CLIP,FUEL TANK FTS ALL(FT****) MLD6D M/T(X5Q) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	02	1	0005-0210	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0211-		●	●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	02	1	0005-0210	●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	02	1	0211-		●	●
97	BRACKET; CLIP FSS STD CAB(FS*M) (B)	1-47475-427-1	01	1	0005-0210	●
97	BRACKET; CLIP FSS STD CAB(FS*M) (B)	1-47475-427-1	01	1	0211-		●
97	BRACKET; CLIP FSS DOUBLE CAB(FS*W) (B)	1-47475-427-1	02	1	0005-0210	●
97	BRACKET; CLIP FTS ALL(FT****) MLD7Q M/T(X5K) (B)	1-47475-427-1	02	1	0005-0210	●
97	BRACKET; CLIP FSS DOUBLE CAB(FS*W) FTS ALL(FT****) (B)	1-47475-427-1	02	1	0211-		●	●
97	BRACKET; CLIP FTS ALL(FT****) MLD6D M/T(X5Q) (B)	1-47475-427-1	03	1	0005-0210	●
97	BRACKET; CLIP FTS ALL(FT****) MLD7Q M/T(X5K) (C)	1-23335-352-0	01	1	0005-0210	●
97	BRACKET; CLIP FTS ALL(FT****) (C) L=95	1-82699-085-0	01	1	0211-			●
98	BOLT; BRKT,FUEL PIPE FTS ALL(FT****) MLD7Q M/T(X5K) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210	●
98	BOLT; BRKT,FUEL PIPE FTS ALL(FT****) M8X40 FLANGE	0-28680-840-0	01	1	0211-0512			●
98	BOLT; BRKT,FUEL PIPE FTS ALL(FT****) M8X40 FLANGE	0-28650-840-0	01	1	0601-			●
100	CLIP; FUEL PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0005-0210	●
100	CLIP; FUEL PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0211-		●	●
101	BOLT; CLIP,FUEL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
101	BOLT; CLIP,FUEL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●	●
101	BOLT; CLIP,FUEL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0211-0602		●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
103	NUT; BRKT FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
103	NUT; BRKT FTS ALL(FT****) M8 FLANGE	0-91150-108-0	01	1	0211-0602			●
103	NUT; BRKT FTS ALL(FT****) M8 FLANGE	0-91180-108-0	01	1	0603-			●
227	BRACKET; FUEL SEDIMENTER	1-22518-156-0	01	1	0005-0210	●
227	BRACKET; FUEL SEDIMENTER	1-22518-156-0	01	1	0211-		●	●
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28681-030-0	02	1	0005-0008	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0005-0008	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0009-0210	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0009-0210	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	04	1	0211-0602		●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	04	1	0603-		●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0512		●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
239	CLIP; FUEL PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0211-		●	●

39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	PIPE; FUEL FSS STD CAB(FS*M) (B)	1-22511-817-2	01	1	0005-0210	●
39	PIPE; FUEL FSS STD CAB(FS*M) (B)	1-22511-905-0	01	1	0211-		●
39	PIPE; FUEL FSS STD CAB(FS*M) (A)	1-22511-854-0	01	1	0005-0105	●
39	PIPE; FUEL FSS STD CAB(FS*M) (A)	1-22511-873-0	01	1	0106-0210	●
39	PIPE; FUEL FSS ALL(FS****) (A)	1-22511-899-0	01	1	0211-		●
39	PIPE; FUEL FSS DOUBLE CAB(FS*W) (A)	1-22511-855-0	01	1	0005-0105	●
39	PIPE; FUEL FSS DOUBLE CAB(FS*W) (A)	1-22511-874-0	01	1	0106-0210	●
39	PIPE; FUEL FSS DOUBLE CAB(FS*W) (B)	1-22511-900-0	01	1	0211-		●
39	PIPE; FUEL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-22511-822-2	01	1	0005-0210	●
39	PIPE; FUEL FTS DOUBLE CAB(FT*W) (B)	1-22511-822-2	01	1	0211-			●
39	PIPE; FUEL FTS STD CAB(FT*M) (B)	1-22511-819-2	01	1	0005-0210	●
39	PIPE; FUEL FTS STD CAB(FT*M) (B)	1-22511-819-2	01	1	0211-			●
39	PIPE; FUEL FTS STD CAB(FT*M) (A)	1-22511-820-2	01	1	0005-0105	●
39	PIPE; FUEL FTS STD CAB(FT*M) (A)	1-22511-869-0	01	1	0106-0210	●
39	PIPE; FUEL FTS STD CAB(FT*M) (A)	1-22511-869-0	01	1	0211-			●
39	PIPE; FUEL FTS DOUBLE CAB(FT*W) (A)	1-22511-823-2	01	1	0005-0105	●
39	PIPE; FUEL FTS DOUBLE CAB(FT*W) (A)	1-22511-870-0	01	1	0106-0210	●
39	PIPE; FUEL FTS DOUBLE CAB(FT*W) (A)	1-22511-870-0	01	1	0211-			●
