Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#81128) — 240 parça

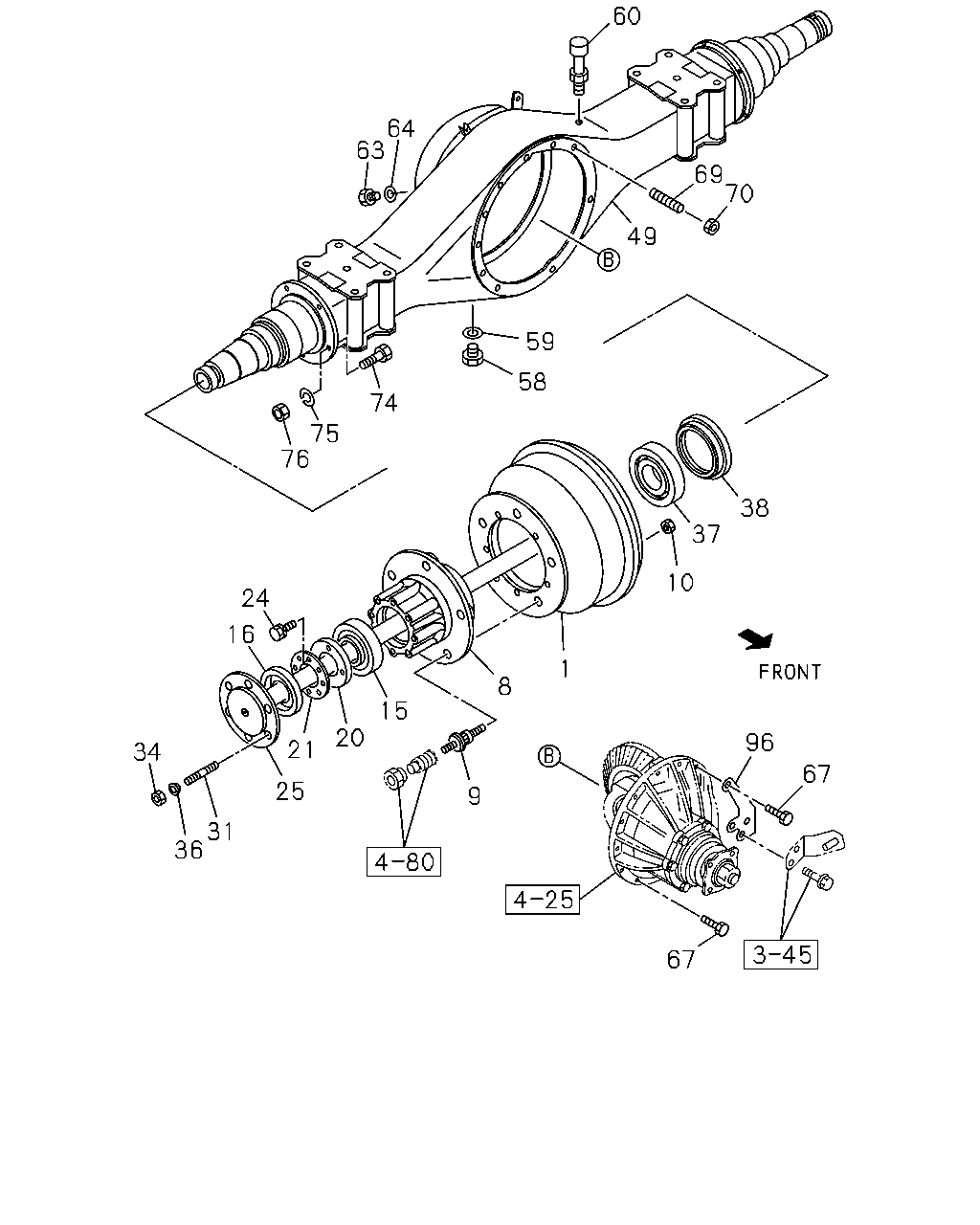

69 70 60 49 59 58 37 38 10 96 67 8 1 15 9 20 21 25 31 36 34 16 24 76 75 74 63 64 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-367-1	02	1	1211-1402	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-367-1	02	1	1403-	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-367-1	02	1	1403-	●
1	05.809 DRUM; BRK,RR FINAL GEAR RATIO 43/9(S2J) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-94455-285-2	02	1	1109-1206		●
1	05.809 DRUM; BRK,RR EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-94455-285-2	02	1	1207-		●
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94382-884-4	02	1	1109-1210	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94382-884-4	02	1	1211-1410	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94382-884-4	02	1	1411-	●
1	05.809 DRUM; BRK,RR	8-97366-736-0	02	1	1103-1108		●
1	05.809 DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0)	8-97366-736-0	02	1	1109-1308		●
1	05.809 DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0)	8-98248-899-0	02	1	1309-		●
1	05.809 DRUM; BRK,RR	8-97034-770-3	02	1	1103-1108	●
1	05.809 DRUM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-770-3	02	1	1109-1210	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-770-3	02	1	1211-1310	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-770-3	02	1	1211-1310	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98248-900-0	02	1	1311-1402	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98248-900-0	02	1	1311-1402	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-98248-900-0	02	1	1403-1507	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-98248-900-0	02	1	1403-1507	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98248-900-0	02	1	1403-1507	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-98248-900-0	02	1	1508-	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-98248-900-0	02	1	1508-	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98248-900-0	02	1	1508-	●
8	05.809 HUB; RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97173-549-0	02	1	1211-1402	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97173-549-0	02	1	1403-	●
8	05.809 HUB; RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97173-549-0	02	1	1403-	●
8	05.809 HUB; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94335-927-4	02	1	1109-		●
8	05.809 HUB; RR AXLE FINAL GEAR RATIO 43/9(S2J) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	5-42311-009-3	02	1	1109-1206		●
8	05.809 HUB; RR AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	5-42311-009-3	02	1	1207-		●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1109-	●
8	05.809 HUB; RR AXLE	8-97240-323-1	02	1	1103-1108		●
8	05.809 HUB; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97240-323-1	02	1	1109-		●
8	05.809 HUB; RR AXLE	8-97034-406-4	02	1	1103-1108	●
8	05.809 HUB; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1109-1210	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1211-1402	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-97034-406-4	02	1	1403-	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97034-406-4	02	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	1103-		●
9	05.812 PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	1103-		●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1103-1210	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1103-1210	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
10	05.813 NUT; WHEEL PIN,RR AXLE 05.812 M20	0-91110-520-0	10	1	1103-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1103-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1103-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1103-1207	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1103-1106	●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1103-1303	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1103-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1103-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1103-		●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1103-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1103-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1103-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1103-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1103-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1103-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1103-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1103-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1103-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1103-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1103-	●	●
49	05.387 CASE; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98061-921-0	01	1	1109-		●
49	05.387 CASE; RR AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98061-921-0	01	1	1109-		●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-861-5	01	1	1109-	●
49	05.387 CASE; RR AXLE	8-97240-329-3	01	1	1103-1108		●
49	05.387 CASE; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97240-329-3	01	1	1109-		●
49	05.387 CASE; RR AXLE	8-97251-368-3	01	1	1103-1108	●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97251-368-3	01	1	1109-	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1103-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1103-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1103-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1103-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1103-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1103-	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1103-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1103-	●	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1103-		●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1103-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1103-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1103-	●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1103-		●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1103-	●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-957-0	01	1	1508-	●
96	04.730 BRACKET; LSPV,AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-956-0	01	1	1109-		●
96	04.730 BRACKET; LSPV,AXLE CASE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98030-956-0	01	1	1109-		●

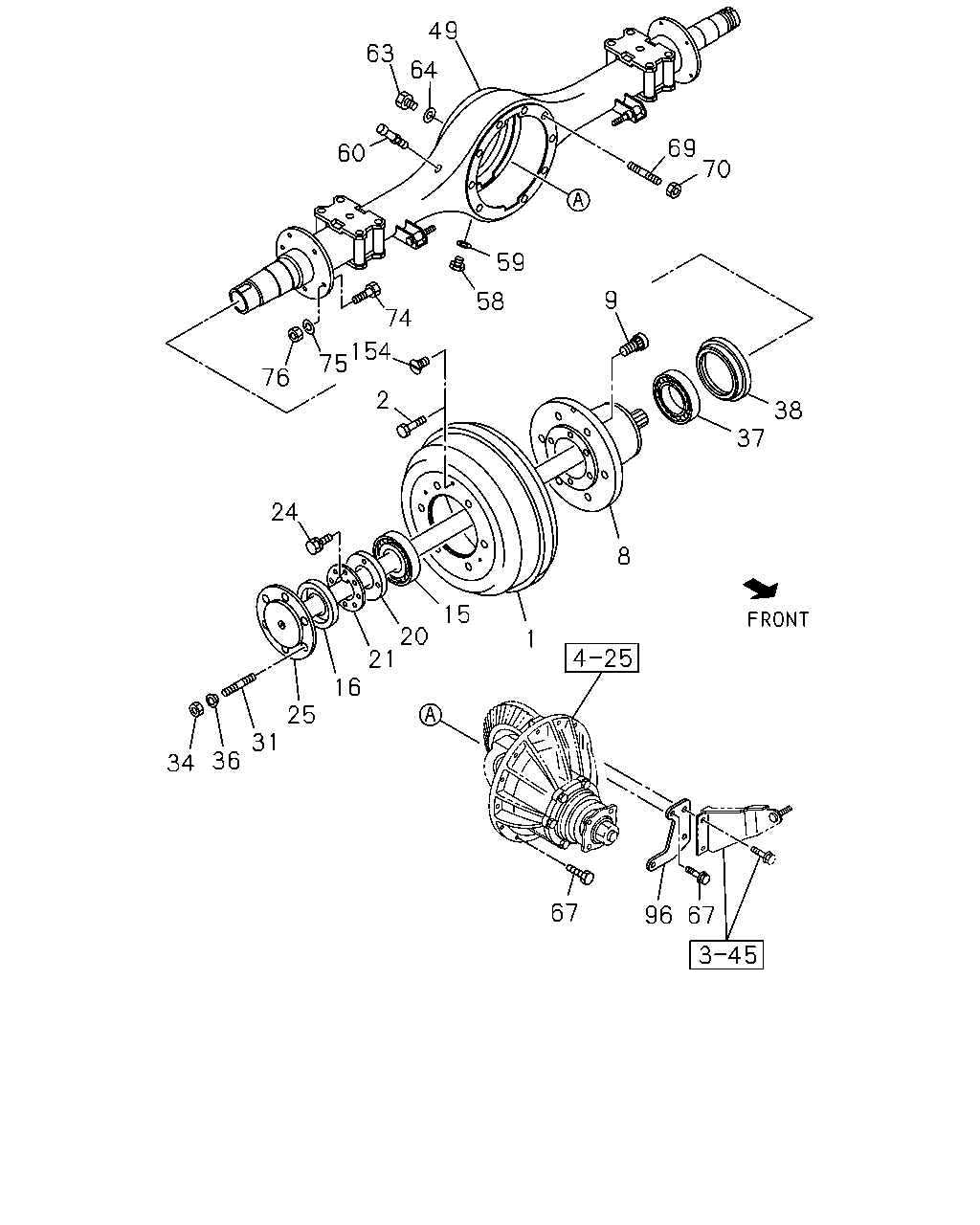

69 70 38 37 8 1 15 20 21 16 25 31 36 34 24 2 154 75 76 74 58 59 9 49 64 63 60 96 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-367-1	02	1	1211-1402	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-367-1	02	1	1403-	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97036-367-1	02	1	1403-	●
1	05.809 DRUM; BRK,RR FINAL GEAR RATIO 43/9(S2J) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-94455-285-2	02	1	1109-1206		●
1	05.809 DRUM; BRK,RR EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-94455-285-2	02	1	1207-		●
1	05.809 DRUM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94382-884-4	02	1	1109-1210	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94382-884-4	02	1	1211-1410	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94382-884-4	02	1	1411-	●
1	05.809 DRUM; BRK,RR	8-97366-736-0	02	1	1103-1108		●
1	05.809 DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0)	8-97366-736-0	02	1	1109-1308		●
1	05.809 DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0)	8-98248-899-0	02	1	1309-		●
1	05.809 DRUM; BRK,RR	8-97034-770-3	02	1	1103-1108	●
1	05.809 DRUM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-770-3	02	1	1109-1210	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-770-3	02	1	1211-1310	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-770-3	02	1	1211-1310	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98248-900-0	02	1	1311-1402	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98248-900-0	02	1	1311-1402	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-98248-900-0	02	1	1403-1507	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-98248-900-0	02	1	1403-1507	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98248-900-0	02	1	1403-1507	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-98248-900-0	02	1	1508-	●
1	05.809 DRUM; BRK,RR G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-98248-900-0	02	1	1508-	●
1	05.809 DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ)	8-98248-900-0	02	1	1508-	●
2	05.812 BOLT; BRK DRUM FINAL GEAR RATIO 43/9(S2J) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 04.012 M6X18	0-20800-618-0	02	1	1109-1206		●
2	05.812 BOLT; BRK DRUM EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5> 04.012 M6X18	0-20800-618-0	02	1	1207-		●
8	05.809 HUB; RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97173-549-0	02	1	1211-1402	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97173-549-0	02	1	1403-	●
8	05.809 HUB; RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97173-549-0	02	1	1403-	●
8	05.809 HUB; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94335-927-4	02	1	1109-		●
8	05.809 HUB; RR AXLE FINAL GEAR RATIO 43/9(S2J) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	5-42311-009-3	02	1	1109-1206		●
8	05.809 HUB; RR AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	5-42311-009-3	02	1	1207-		●
8	05.809 HUB; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97026-139-3	02	1	1109-	●
8	05.809 HUB; RR AXLE	8-97240-323-1	02	1	1103-1108		●
8	05.809 HUB; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97240-323-1	02	1	1109-		●
8	05.809 HUB; RR AXLE	8-97034-406-4	02	1	1103-1108	●
8	05.809 HUB; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1109-1210	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97034-406-4	02	1	1211-1402	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12)	8-97034-406-4	02	1	1403-	●
8	05.809 HUB; RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ)	8-97034-406-4	02	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X55 RH THREAD	8-97017-043-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) RUSSIA EQUIPMENT(B12) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	05	1	1403-	●
9	05.812 PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	1103-		●
9	05.812 PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	1103-		●
9	05.812 PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1103-1210	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1103-1210	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1211-1402	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1410	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1411-1507	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) MINI BUS CHASSIS VAR.2(6GQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1103-	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1103-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1103-1207	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1103-1106	●	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1103-1303	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1103-	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1103-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1103-		●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1103-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1103-		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1103-	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1103-		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1103-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1103-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1103-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1103-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1103-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1103-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1103-	●	●
49	05.387 CASE; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98061-921-0	01	1	1109-		●
49	05.387 CASE; RR AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98061-921-0	01	1	1109-		●
49	05.387 CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97032-861-5	01	1	1109-	●
49	05.387 CASE; RR AXLE	8-97240-329-3	01	1	1103-1108		●
49	05.387 CASE; RR AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97240-329-3	01	1	1109-		●
49	05.387 CASE; RR AXLE	8-97251-368-3	01	1	1103-1108	●
49	05.387 CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97251-368-3	01	1	1109-	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1103-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1103-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1103-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1103-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1103-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1103-	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1103-	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1103-	●	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1103-		●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1103-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1103-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1103-	●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1103-		●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1103-	●
96	04.730 BRACKET; LSPV,AXLE CASE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-957-0	01	1	1508-	●
96	04.730 BRACKET; LSPV,AXLE CASE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98030-956-0	01	1	1109-		●
96	04.730 BRACKET; LSPV,AXLE CASE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98030-956-0	01	1	1109-		●
154	04.665 SCREW; SLOTTED 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1103-1108		●
154	04.665 SCREW; SLOTTED FRT INDEPENDENT SUSPENSION(FF0) 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1109-1402		●
154	04.665 SCREW; SLOTTED FRT INDEPENDENT SUSPENSION(FF0) 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1409-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
