Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#81127) — 189 parça

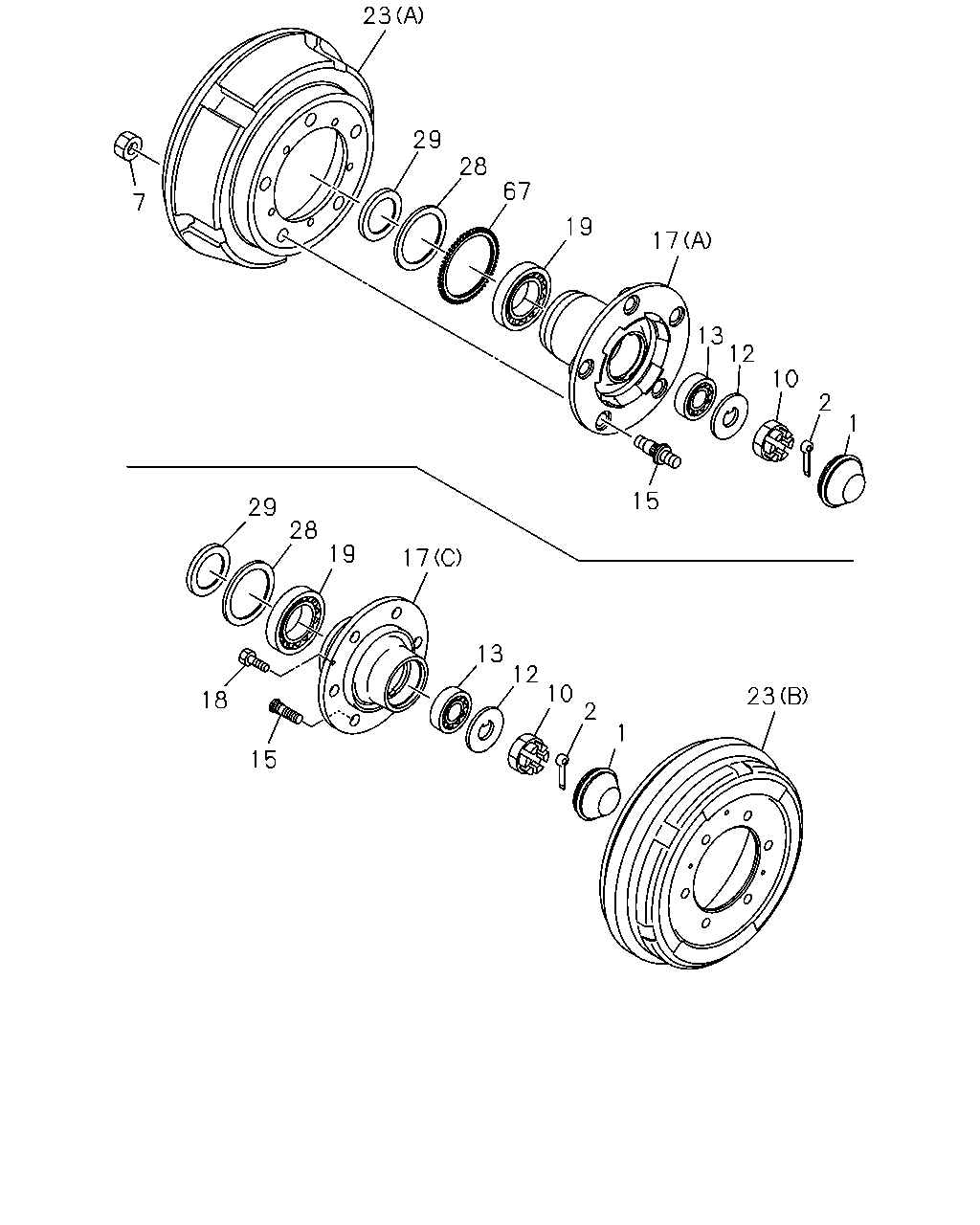

23 1 2 10 12 13 17 19 28 29 15 18 15 1 2 10 12 13 17 19 67 28 29 23 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98276-604-0	02	1	1407-1407	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1103-1406	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-101-0	02	1	1407-1407	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1407-1407		●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1103-	●	●
7	05.812 NUT; FRT HUB G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) M20	0-91110-520-0	10	1	1508-		●
7	05.812 NUT; FRT HUB G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> M20	0-91110-520-0	10	1	1508-		●
7	05.812 NUT; FRT HUB M20	0-91110-520-0	10	1	1103-1402		●
7	05.812 NUT; FRT HUB EXC. DISC BRAKE FRT<J52> M20	0-91110-520-0	10	1	1403-1507		●
7	05.812 NUT; FRT HUB G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> M20	0-91110-520-0	20	1	1508-		●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1103-	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1103-1108		●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94247-356-1	02	1	1109-1502	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1109-1502		●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812	8-98282-435-0	02	1	1503-	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-		●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1103-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1103-	●	●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 RH THREAD	8-98028-532-1	05	1	1403-		●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 LH THREAD	8-98028-533-1	05	1	1403-		●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X50 RH THREAD	9-42331-605-5	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X50 LH THREAD	9-42332-605-5	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE M14X39 RH THREAD	8-97126-490-1	06	1	1103-1108	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M14X39 RH THREAD	8-97126-490-1	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE M14X39 LH THREAD	8-97126-491-1	06	1	1103-1108	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M14X39 LH THREAD	8-97126-491-1	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1103-1402		●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1507		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	10	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1103-1402		●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1507		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	10	1	1508-		●
17	06.307 HUB; FRT AXLE DISC BRAKE FRT<J52> (D)	8-97035-160-0	02	1	1403-		●
17	06.307 HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-94420-597-1	02	1	1109-	●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94365-459-0	02	1	1109-1402		●
17	06.307 HUB; FRT AXLE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A)	8-94365-459-0	02	1	1403-1410		●
17	06.307 HUB; FRT AXLE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A)	8-94365-459-0	02	1	1411-1507		●
17	06.307 HUB; FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> (A)	8-94365-459-0	04	1	1508-		●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ) (A)	8-94365-459-0	02	1	1508-1510		●
17	06.307 HUB; FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) (A)	8-94365-459-0	02	1	1511-		●
17	06.307 HUB; FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> (A)	8-94365-459-0	02	1	1511-		●
17	06.307 HUB; FRT AXLE (B)	8-98049-154-0	02	1	1103-1108	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98049-154-0	02	1	1109-	●
17	06.307 HUB; FRT AXLE (A)	8-97140-126-0	02	1	1103-1108		●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97140-126-0	02	1	1109-1210		●
17	06.307 HUB; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97140-126-0	02	1	1211-1402		●
17	06.307 HUB; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97140-126-0	02	1	1403-		●
18	06.022 BOLT; DRUM TO HUB EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.012 M6X18	0-20800-618-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 06.313 NTN	8-98008-156-1	02	1	1206-	●
19	06.311 BEARING; HUB INNER,FRT AXLE NSK	8-94336-289-0	02	1	1103-1108	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) NSK	8-94336-289-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1103-1108		●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1109-		●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1103-1108		●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1109-		●
23	05.809 DRUM; BRK,FRT G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> (A)	8-97036-366-2	02	1	1508-		●
23	05.809 DRUM; BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97085-071-2	02	1	1109-1306	●
23	05.809 DRUM; BRK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98242-348-0	02	1	1307-	●
23	05.809 DRUM; BRK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97094-434-2	02	1	1109-1210		●
23	05.809 DRUM; BRK,FRT COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT) (A)	8-97094-434-2	02	1	1211-1410		●
23	05.809 DRUM; BRK,FRT CHILE EQUIPMENT(KE1) (A)	8-97094-434-2	02	1	1211-1410		●
23	05.809 DRUM; BRK,FRT COLOMBIA EQUIPMENT(CB7) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (A)	8-97094-434-2	02	1	1411-1510		●
23	05.809 DRUM; BRK,FRT AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-97094-434-2	02	1	1411-1510		●
23	05.809 DRUM; BRK,FRT EXC. DISC BRAKE FRT<J52> (A)	8-97094-434-2	02	1	1511-		●
23	05.809 DRUM; BRK,FRT (A)	8-94385-650-3	02	1	1103-1108		●
23	05.809 DRUM; BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94385-650-3	02	1	1109-1210		●
23	05.809 DRUM; BRK,FRT COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) (A)	8-94385-650-3	02	1	1211-1402		●
23	05.809 DRUM; BRK,FRT RUSSIA EQUIPMENT(B12) (A)	8-94385-650-3	02	1	1211-1402		●
23	05.809 DRUM; BRK,FRT RUSSIA EQUIPMENT(B12) EXC. DISC BRAKE FRT<J52> (A)	8-94385-650-3	02	1	1403-1507		●
23	05.809 DRUM; BRK,FRT G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A)	8-94385-650-3	02	1	1403-1507		●
23	05.809 DRUM; BRK,FRT RUSSIA EQUIPMENT(B12) EXC. DISC BRAKE FRT<J52> (A)	8-94385-650-3	02	1	1508-		●
23	05.809 DRUM; BRK,FRT G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) (A)	8-94385-650-3	02	1	1508-		●
28	06.326 SEAL; OIL,FRT HUB	8-97211-082-0	02	1	1103-1108	●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1109-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1103-1108		●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1109-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1109-		●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1103-1108		●
29	06.326 DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN	8-97234-513-0	02	1	1109-	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1109-		●
67	05.811 ROTOR; SENSOR DISC BRAKE FRT<J52>	8-97387-159-0	02	1	1403-		●
67	05.811 ROTOR; SENSOR	8-97387-157-1	02	1	1103-1108	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-157-1	02	1	1109-	●
67	05.811 ROTOR; SENSOR	8-97387-158-0	02	1	1103-1108		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-158-0	02	1	1109-1210		●
67	05.811 ROTOR; SENSOR RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-158-0	02	1	1211-1402		●
67	05.811 ROTOR; SENSOR RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97387-158-0	02	1	1403-		●

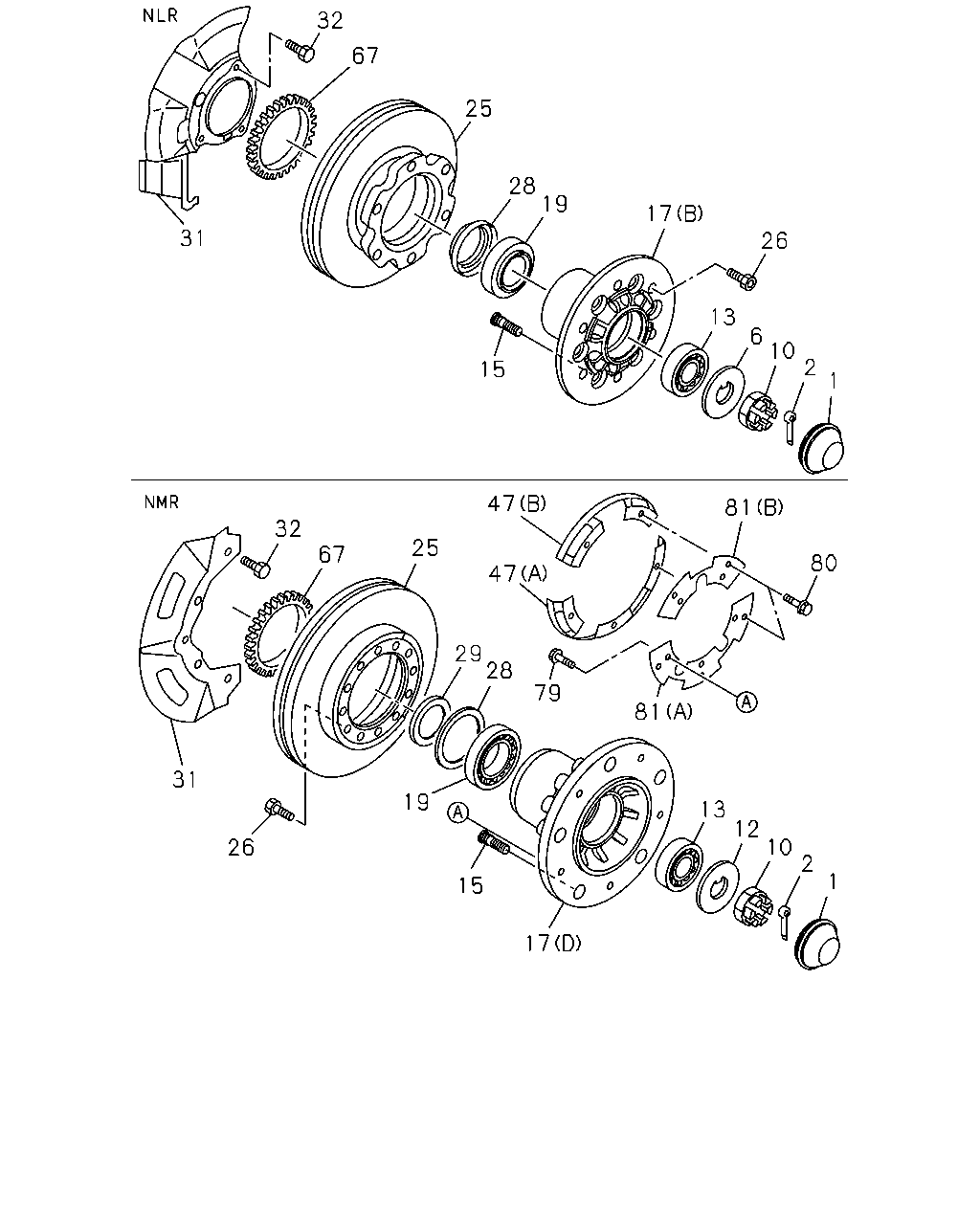

32 67 25 28 19 15 17 26 13 6 10 2 1 31 32 67 25 47 47 81 80 81 79 28 29 19 26 31 15 17 13 12 10 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-98276-604-0	02	1	1407-1407	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1103-1406	●	●
1	06.330 CAP; HUB,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-101-0	02	1	1407-1407	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1407-1407		●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1103-	●	●
6	05.812 WASHER; LK,FRT HUB 06.321	8-94247-356-1	02	1	1103-1108	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) 06.321	8-94247-356-1	02	1	1109-1502	●
6	05.812 WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-98282-435-0	02	1	1503-	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1103-	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1103-1108		●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94247-356-1	02	1	1109-1502	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1109-1502		●
12	06.321 WASHER; LK,FRT HUB BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812	8-98282-435-0	02	1	1503-	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-		●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1103-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1103-	●	●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 RH THREAD	8-98028-532-1	05	1	1403-		●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 LH THREAD	8-98028-533-1	05	1	1403-		●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X50 RH THREAD	9-42331-605-5	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X50 LH THREAD	9-42332-605-5	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE M14X39 RH THREAD	8-97126-490-1	06	1	1103-1108	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M14X39 RH THREAD	8-97126-490-1	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE M14X39 LH THREAD	8-97126-491-1	06	1	1103-1108	●
15	05.812 PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) M14X39 LH THREAD	8-97126-491-1	06	1	1109-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1103-1402		●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1403-1507		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	10	1	1508-		●
15	05.812 PIN; WHEEL,FRT AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1103-1402		●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1403-1507		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	10	1	1508-		●
17	06.307 HUB; FRT AXLE DISC BRAKE FRT<J52> (D)	8-97035-160-0	02	1	1403-		●
17	06.307 HUB; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-94420-597-1	02	1	1109-	●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94365-459-0	02	1	1109-1402		●
17	06.307 HUB; FRT AXLE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A)	8-94365-459-0	02	1	1403-1410		●
17	06.307 HUB; FRT AXLE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A)	8-94365-459-0	02	1	1411-1507		●
17	06.307 HUB; FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52> (A)	8-94365-459-0	04	1	1508-		●
17	06.307 HUB; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ) (A)	8-94365-459-0	02	1	1508-1510		●
17	06.307 HUB; FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ) (A)	8-94365-459-0	02	1	1511-		●
17	06.307 HUB; FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> (A)	8-94365-459-0	02	1	1511-		●
17	06.307 HUB; FRT AXLE (B)	8-98049-154-0	02	1	1103-1108	●
17	06.307 HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98049-154-0	02	1	1109-	●
17	06.307 HUB; FRT AXLE (A)	8-97140-126-0	02	1	1103-1108		●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97140-126-0	02	1	1109-1210		●
17	06.307 HUB; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97140-126-0	02	1	1211-1402		●
17	06.307 HUB; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (A)	8-97140-126-0	02	1	1403-		●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 06.313 NTN	8-98008-156-1	02	1	1206-	●
19	06.311 BEARING; HUB INNER,FRT AXLE NSK	8-94336-289-0	02	1	1103-1108	●
19	06.311 BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) NSK	8-94336-289-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1103-1108		●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT	8-98171-254-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1109-		●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1103-1108		●
19	06.311 BEARING; HUB INNER,FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	1-87610-134-0	02	1	1109-	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1109-		●
25	05.809 ROTOR; DISC BRK,FRT DISC BRAKE FRT<J52>	8-97387-229-0	02	1	1403-		●
25	05.809 ROTOR; DISC BRK,FRT	8-98001-342-0	02	1	1103-1108	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-342-0	02	1	1109-1308	●
25	05.809 ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98248-893-0	02	1	1309-	●
26	05.812 BOLT; BRK,DISC TO HUB DISC BRAKE FRT<J52>	8-94474-923-0	24	1	1403-		●
26	05.812 BOLT; BRK,DISC TO HUB	8-98021-780-0	12	1	1103-1108	●
26	05.812 BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0)	8-98021-780-0	12	1	1109-	●
28	06.326 SEAL; OIL,FRT HUB	8-97211-082-0	02	1	1103-1108	●
28	06.326 SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0)	8-97211-082-0	02	1	1109-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1103-1108		●
28	06.326 SEAL; OIL,FRT HUB EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94248-117-1	02	1	1109-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1109-		●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1103-1108		●
29	06.326 DISTANCE PIECE; HUB BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN	8-97234-513-0	02	1	1109-	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1109-		●
31	04.665 COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52>	8-98037-377-0	02	1	1403-		●
31	04.665 COVER; DUST,FRT BRAKE	8-97353-960-1	01	1	1103-1108	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0)	8-97353-960-1	01	1	1109-	●
31	04.665 COVER; DUST,FRT BRAKE	8-97353-961-1	01	1	1103-1108	●
31	04.665 COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0)	8-97353-961-1	01	1	1109-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1403-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98029-928-0	06	1	1103-1108	●
32	04.665 BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER	8-98029-928-0	06	1	1109-	●
47	06.308 HOLDER; TIRE VALVE,FRT HUB FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97228-399-0	02	1	1403-		●
47	06.308 HOLDER; TIRE VALVE,FRT HUB FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97228-400-0	02	1	1403-		●
67	05.811 ROTOR; SENSOR DISC BRAKE FRT<J52>	8-97387-159-0	02	1	1403-		●
67	05.811 ROTOR; SENSOR	8-97387-157-1	02	1	1103-1108	●
67	05.811 ROTOR; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-157-1	02	1	1109-	●
67	05.811 ROTOR; SENSOR	8-97387-158-0	02	1	1103-1108		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-158-0	02	1	1109-1210		●
67	05.811 ROTOR; SENSOR RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-158-0	02	1	1211-1402		●
67	05.811 ROTOR; SENSOR RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97387-158-0	02	1	1403-		●
79	04.665 BOLT; BRKT FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	10	1	1403-		●
80	05.812 BOLT; VALVE HOLDER FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1403-		●
81	05.812 BRACKET; VALVE HOLDER FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97214-248-0	02	1	1403-		●
81	05.812 BRACKET; VALVE HOLDER FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97214-249-0	02	1	1403-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
