Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#81126) — 226 parça

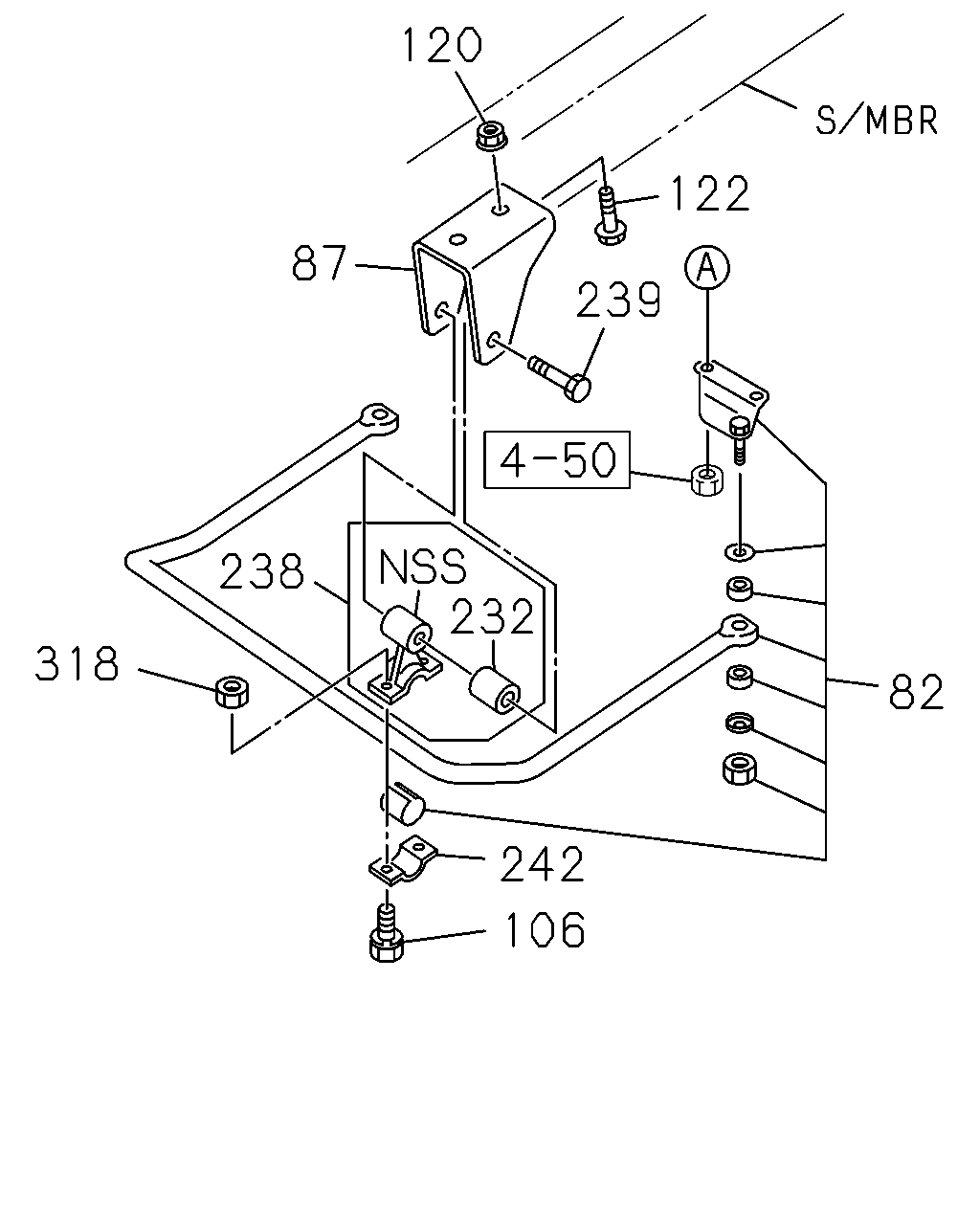

82 106 242 318 238 232 239 122 120 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-084-2	01	1	1109-1206	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-084-2	01	1	1207-	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98002-084-2	01	1	1207-		●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98051-506-0	01	1	1109-1206	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98051-506-0	01	1	1207-	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-98051-506-0	01	1	1207-		●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98051-507-0	01	1	1109-1206	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98051-507-0	01	1	1207-	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-98051-507-0	01	1	1207-		●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1109-1206	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1207-	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1207-		●
120	06.308 NUT; STAB BAR BRKT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE	0-91180-212-0	04	1	1109-1206	●
120	06.308 NUT; STAB BAR BRKT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE	0-91180-212-0	04	1	1207-	●
120	06.308 NUT; STAB BAR BRKT FRONT STABILIZER SHAFT<F59> 05.816 M12 FLANGE	0-91180-212-0	04	1	1207-		●
122	07.242 BOLT; BRKT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE	0-28661-230-0	04	1	1109-1206	●
122	07.242 BOLT; BRKT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.509 M12X30 FLANGE	0-28661-230-0	04	1	1207-	●
122	07.242 BOLT; BRKT FRONT STABILIZER SHAFT<F59> 06.509 M12X30 FLANGE	0-28661-230-0	04	1	1207-		●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97239-911-0	02	1	1109-1206	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97239-911-0	02	1	1207-	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	1207-		●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97239-908-0	02	1	1109-1206	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97239-908-0	02	1	1207-	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-908-0	02	1	1207-		●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X70 FLANGE	0-28851-470-0	02	1	1109-1206	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) M14X70 FLANGE	0-28851-470-0	02	1	1207-	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	1207-		●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94178-430-2	02	1	1109-1206	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94178-430-2	02	1	1207-	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	1207-		●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	04	1	1109-1206	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-	●
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE	0-91180-110-0	04	1	1207-		●

2 132 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-549-2	01	1	1403-1507		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-549-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52>	8-97261-549-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-550-2	01	1	1403-1507		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-550-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52>	8-97261-550-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-545-2	01	1	1109-1507	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-545-2	01	1	1109-1507		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-545-2	01	1	1508-1510	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ)	8-97261-545-2	01	1	1508-1510		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-545-2	01	1	1511-	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ)	8-97261-545-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>	8-97261-545-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-546-2	01	1	1109-1507	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-546-2	01	1	1109-1507		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-546-2	01	1	1508-1510	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ)	8-97261-546-2	01	1	1508-1510		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-546-2	01	1	1511-	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ)	8-97261-546-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>	8-97261-546-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-156-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-157-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE	8-98001-154-0	01	1	1103-1108	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-154-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE	8-98001-155-0	01	1	1103-1108	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-155-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE	8-98009-776-0	01	1	1103-1108		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-776-0	01	1	1109-1210		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-776-1	01	1	1211-1402		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98009-776-1	01	1	1403-		●
2	06.020 KNUCKLE; FRT AXLE	8-98009-778-0	01	1	1103-1108		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-778-0	01	1	1109-1210		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-778-1	01	1	1211-1402		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98009-778-1	01	1	1403-		●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT	8-98088-329-0	02	1	1103-1108	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98088-329-0	02	1	1109-	●
132	07.436 COLLAR; TORSION BAR 06.234 M24	0-91111-524-0	02	1	1103-1108	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(FF0) 06.234 M24	0-91111-524-0	02	1	1109-	●

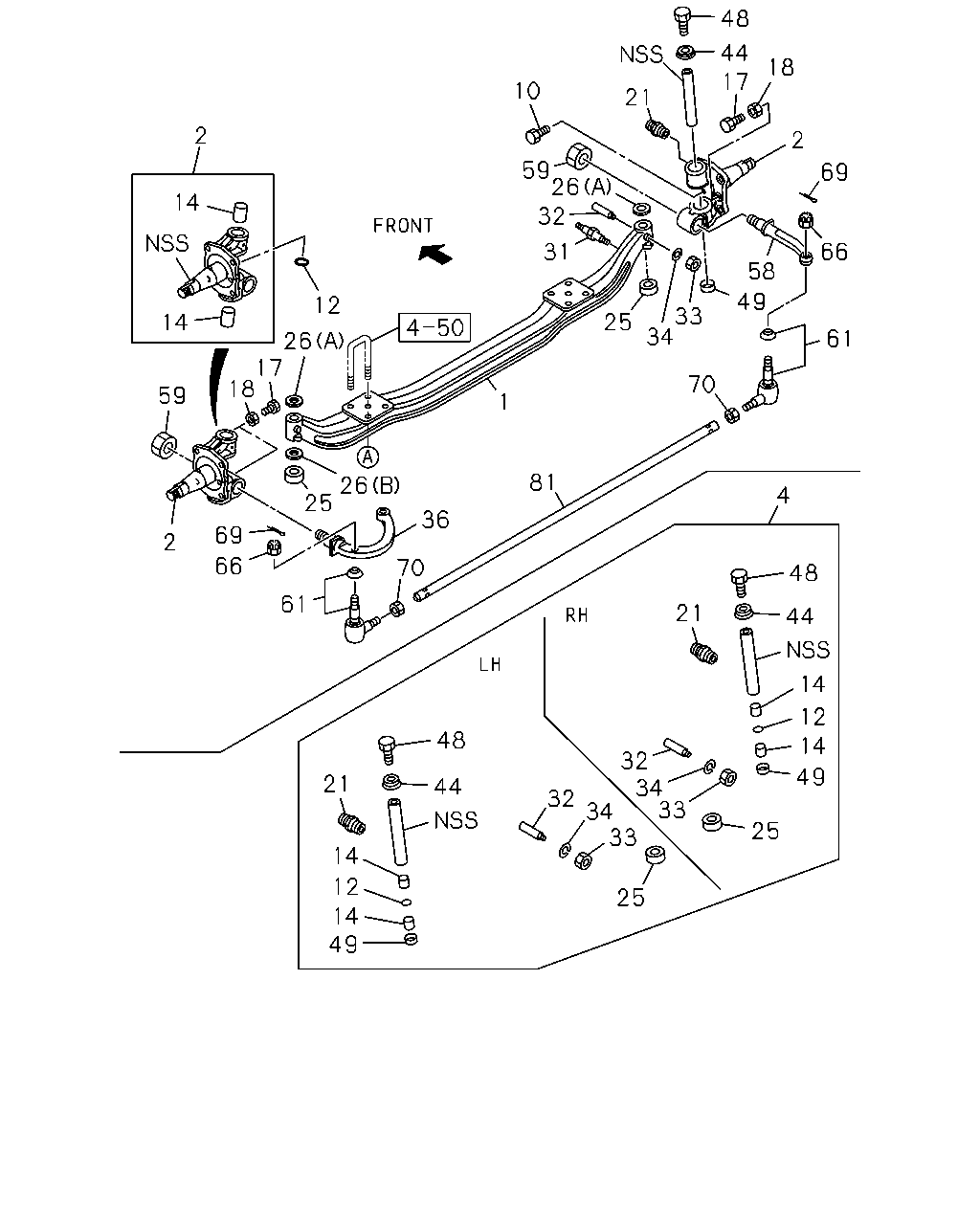

61 70 4 48 44 21 14 12 14 49 25 33 34 32 25 33 34 32 44 48 21 14 12 14 49 70 36 81 1 34 33 49 58 66 69 2 18 17 44 48 21 10 59 26 32 31 25 12 2 14 14 26 17 18 59 2 69 66 61 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.008 AXLE; FRT	8-97262-000-2	01	1	1103-1108		●
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97262-000-4	01	1	1109-	●
1	06.008 AXLE; FRT	8-97262-000-4	01	1	1109-		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-549-2	01	1	1403-1507		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-549-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52>	8-97261-549-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-550-2	01	1	1403-1507		●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97261-550-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS VAR.2(6GQ) EXC. DISC BRAKE FRT<J52>	8-97261-550-2	01	1	1508-		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-545-2	01	1	1109-1507	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-545-2	01	1	1109-1507		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-545-2	01	1	1508-1510	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ)	8-97261-545-2	01	1	1508-1510		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-545-2	01	1	1511-	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ)	8-97261-545-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>	8-97261-545-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-546-2	01	1	1109-1507	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97261-546-2	01	1	1109-1507		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-546-2	01	1	1508-1510	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS VAR.2(6GQ)	8-97261-546-2	01	1	1508-1510		●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-546-2	01	1	1511-	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSISVAR.2(6GQ)	8-97261-546-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>	8-97261-546-2	01	1	1511-		●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-156-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-157-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE	8-98001-154-0	01	1	1103-1108	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-154-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE	8-98001-155-0	01	1	1103-1108	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98001-155-0	01	1	1109-	●
2	06.020 KNUCKLE; FRT AXLE	8-98009-776-0	01	1	1103-1108		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-776-0	01	1	1109-1210		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-776-1	01	1	1211-1402		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98009-776-1	01	1	1403-		●
2	06.020 KNUCKLE; FRT AXLE	8-98009-778-0	01	1	1103-1108		●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-778-0	01	1	1109-1210		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98009-778-1	01	1	1211-1402		●
2	06.020 KNUCKLE; FRT AXLE RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98009-778-1	01	1	1403-		●
4	06.203 KING PIN KIT	5-87832-220-1	01	1	1103-1108		●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(FF0)	5-87832-220-2	01	1	1109-	●
4	06.203 KING PIN KIT	5-87832-220-2	01	1	1109-		●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	1103-1108		●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-117-0	01	1	1109-	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	1109-		●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	1103-1108		●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98084-500-0	02	1	1109-	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	1109-		●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	1103-1108		●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) DAIDO WO/NOTCH	8-94107-672-3	04	1	1109-	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	1109-		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X27.5	8-98016-968-0	03	1	1109-1206	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X27.5	8-98016-968-0	03	1	1207-1402	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X27.5	8-98016-968-0	03	1	1207-1402		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X27.5	8-98016-968-0	03	1	1403-	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) M12X27.5	8-98016-968-0	03	1	1403-		●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	1103-1108		●
17	06.009 BOLT; STOPPER KNUCKLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT	8-97360-059-0	03	1	1109-1206	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	1109-1206		●
17	06.009 BOLT; STOPPER KNUCKLE FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT	8-97360-059-0	03	1	1207-1402	●
17	06.009 BOLT; STOPPER KNUCKLE 4 WHEEL ANTI LOCK BRAKE<JE5> M12X24 EYE-BOLT	8-97360-059-0	03	1	1207-1402		●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-15-8 5 .5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X24 EYE-BOLT	8-97360-059-0	03	1	1207-1402		●
17	06.009 BOLT; STOPPER KNUCKLE FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT	8-97360-059-0	03	1	1403-	●
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 195/85R16 DISC16-5.5J-116.5(CSA),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5(CVG),FRT&RR 7R-15-8 5 .5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M12X24 EYE-BOLT	8-97360-059-0	03	1	1403-		●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	1103-1108		●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12	0-91111-512-0	03	1	1109-	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	1109-		●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1103-1108		●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1109-	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	1109-		●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	01	1	1103-1108		●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-3	01	1	1109-	●
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-3	01	1	1109-		●
25	06.210 BEARING; THRUST,KING PIN OD=51.6 ID=30.5 T=15.6	8-97141-943-0	01	1	1103-1108		●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	1109-	●
25	06.210 BEARING; THRUST,KING PIN OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.50	8-94162-574-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.55	8-94162-575-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.60	8-94162-576-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.65	8-94162-577-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	1109-		●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.460 (B) T=1.95	8-94168-490-0	01	1	1109-	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.70	8-94174-352-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.80	8-94174-354-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	1109-		●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	1103-1108		●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.90	8-94174-356-0	AR	1	1109-	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	1109-		●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	1103-1108		●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-944-0	02	1	1109-	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	1109-		●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	1103-1108		●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97141-945-2	02	1	1109-	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	1109-		●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	1103-1108		●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.833 M10	0-91110-510-0	02	1	1109-	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	1109-		●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	1103-1108		●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.606 ID=10.2	0-91510-510-0	02	1	1109-	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	1109-		●
36	06.103 ARM; KNUCKLE	8-97168-291-4	01	1	1103-1108		●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-291-5	01	1	1109-	●
36	06.103 ARM; KNUCKLE	8-97168-291-5	01	1	1109-		●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	1103-1108		●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=36	8-97360-023-0	02	1	1109-	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	1109-		●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	1103-1108		●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X12 FLANGE	0-28051-012-0	02	1	1109-	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	1109-		●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	1103-1108		●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-024-0	02	1	1109-	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	1109-		●
58	06.103 ARM; TIE ROD	8-97168-292-0	01	1	1103-1108		●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97168-292-1	01	1	1109-	●
58	06.103 ARM; TIE ROD	8-97168-292-1	01	1	1109-		●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	1103-1108		●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97360-123-0	02	1	1109-	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	1109-		●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	1103-1108		●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-100-1	01	1	1109-1309	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	1109-1309		●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97107-348-2	01	1	1310-	●
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	1310-		●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	1103-1108		●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-101-1	01	1	1109-1309	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	1109-1309		●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97107-349-2	01	1	1310-	●
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	1310-		●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	1103-1108		●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED	0-91116-516-0	02	1	1109-1204	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	1109-1204		●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-	●
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-		●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	1103-1108		●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=20	0-81124-020-0	02	1	1109-	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	1109-		●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	1103-1108		●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 LH THREAD	8-94254-726-0	01	1	1109-	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	1109-		●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	1103-1108		●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 RH THREAD	8-98043-530-0	01	1	1109-	●
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	1109-		●
81	06.230 ROD; TIE	8-97142-024-0	01	1	1103-1108		●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97142-024-0	01	1	1109-	●
81	06.230 ROD; TIE	8-97142-024-0	01	1	1109-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
