4-01 — PROPELLER SHAFT (#81125) — 89 parça

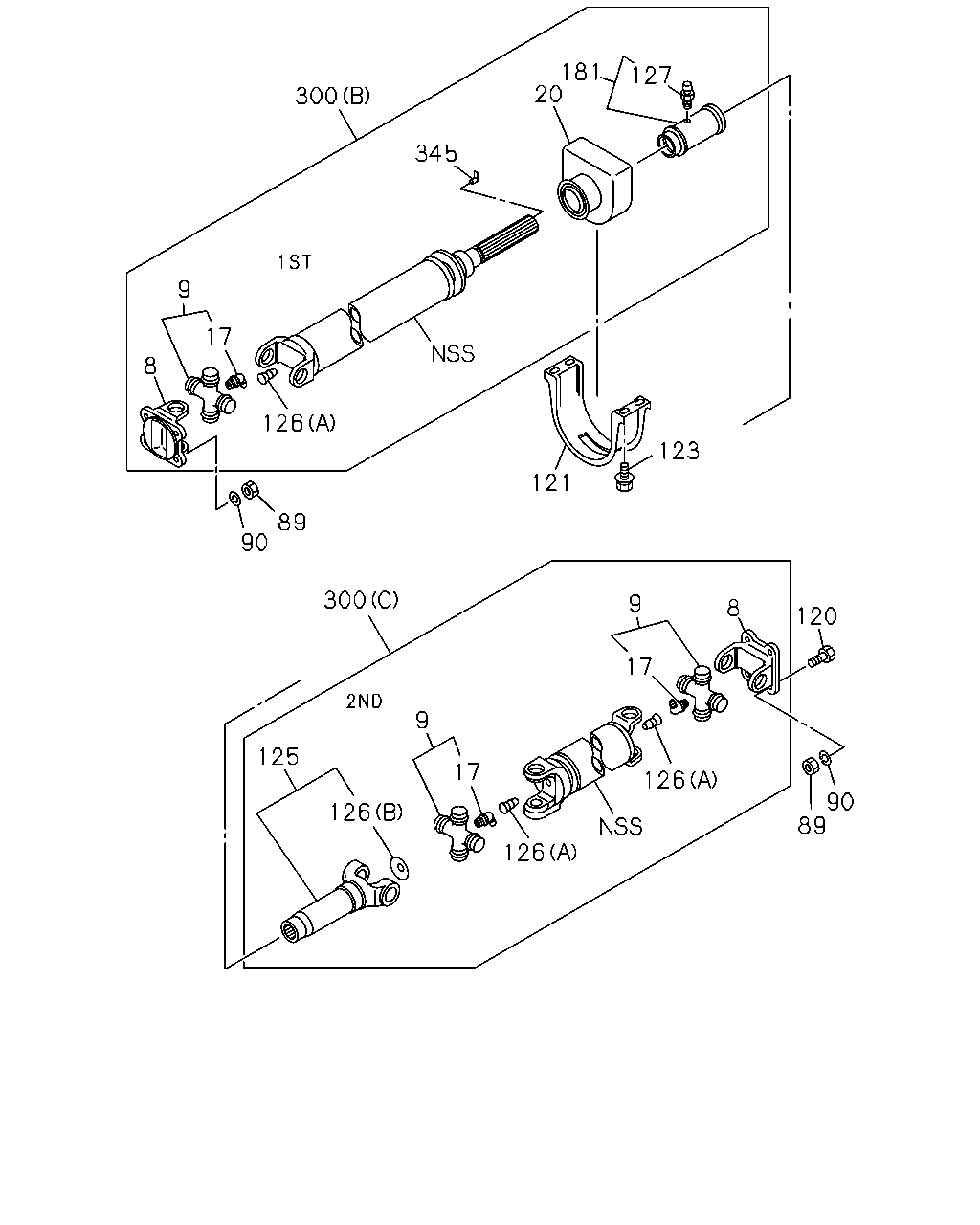

90 89 126 126 126 125 9 17 17 9 8 120 123 121 300 89 90 8 17 126 9 300 345 20 181 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1103-1206	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1207-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1207-		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1103-1206		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1103-1206		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1207-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1207-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1103-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	01	1	1103-1206		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1207-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 PT1/8 ELBOW	0-90301-610-0	02	1	1103-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 PT1/8 ELBOW	0-90301-610-0	01	1	1103-1206		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 PT1/8 ELBOW	0-90301-610-0	01	1	1207-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	1103-1206		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1207-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1103-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1103-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1103-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1103-1206		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1207-		●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1103-1206		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1207-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1103-1206	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1207-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1207-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1103-1206		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1207-		●
126	05.556 PLUG; SPLINED YOKE M/T MYY5M(RNV) (A)	1-09600-023-0	01	1	1103-1206	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1207-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1103-	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1103-1206		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1207-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1103-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
181	05.586 COVER; BRG,PROP SHAFT	8-98046-526-0	01	1	1103-1206		●
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 2400MM(24W) (A) L=919	8-97383-844-2	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=775	8-98039-657-1	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=969	8-98001-994-2	01	1	1103-1206	●
300	05.544 SHAFT ASM; PROP,RR (A) L=969	8-98001-994-2	01	1	1207-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5M(RNV) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR (C) L=1076	8-97383-854-4	01	1	1103-1206		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR (B) L=830	8-98039-644-1	01	1	1103-1206		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5M(RNV) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1207-		●
345	05.600 PLUG; PROP SHAFT	8-98042-692-0	01	1	1103-1206		●
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1207-		●

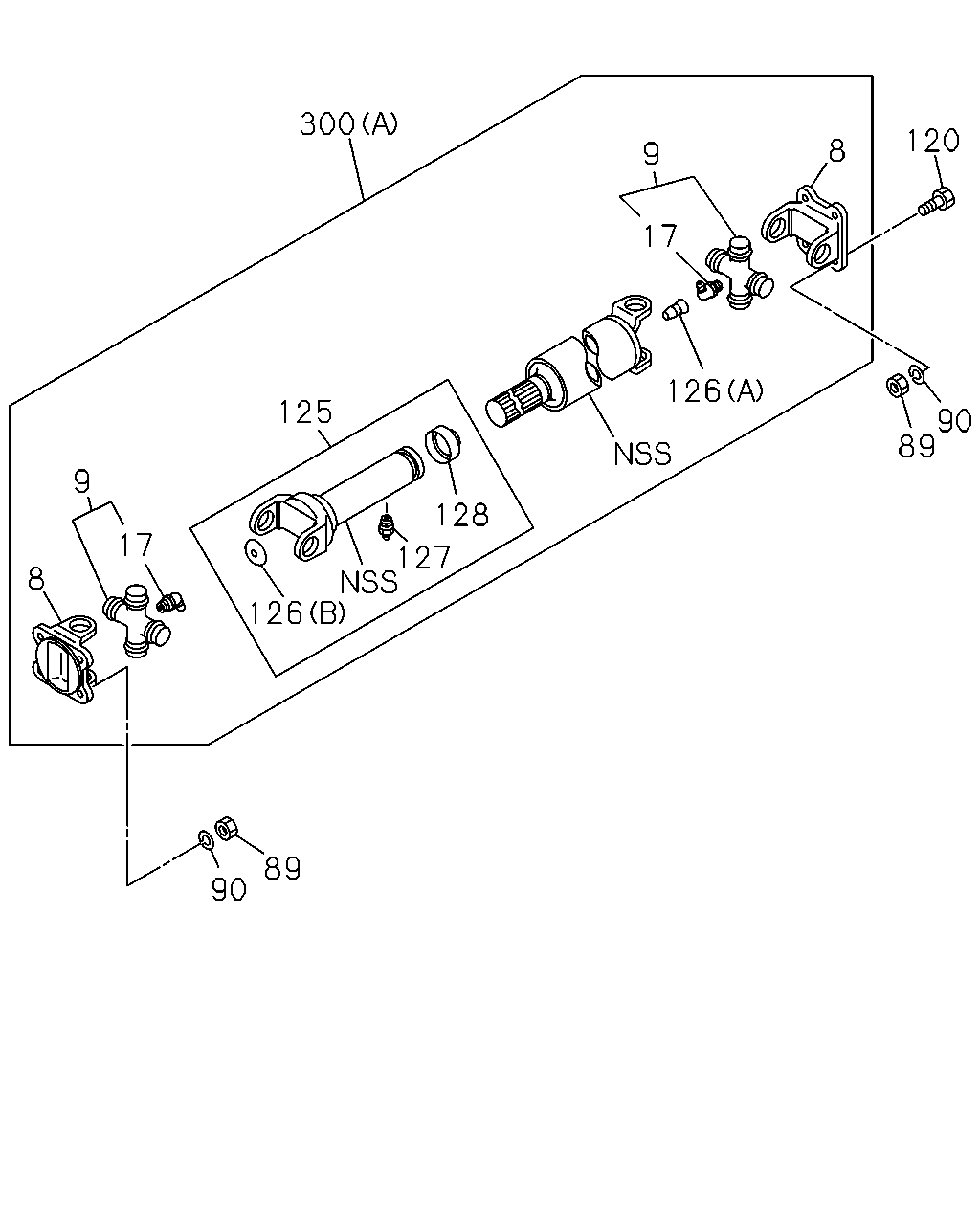

90 89 120 8 9 17 126 128 127 126 89 90 125 300 17 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1103-1206	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	02	1	1207-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1207-		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1103-1206		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1103-1206		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1207-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1207-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1103-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-0	01	1	1103-1206		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1207-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 PT1/8 ELBOW	0-90301-610-0	02	1	1103-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 PT1/8 ELBOW	0-90301-610-0	01	1	1103-1206		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 PT1/8 ELBOW	0-90301-610-0	01	1	1207-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1103-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1103-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1103-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1103-1206	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	1207-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1207-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1103-1206		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1207-		●
126	05.556 PLUG; SPLINED YOKE M/T MYY5M(RNV) (A)	1-09600-023-0	01	1	1103-1206	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1207-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1103-	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1103-1206		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1207-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1103-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1103-1206	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1207-	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W)	8-97145-746-0	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 2400MM(24W) (A) L=919	8-97383-844-2	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=775	8-98039-657-1	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=969	8-98001-994-2	01	1	1103-1206	●
300	05.544 SHAFT ASM; PROP,RR (A) L=969	8-98001-994-2	01	1	1207-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5M(RNV) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR (C) L=1076	8-97383-854-4	01	1	1103-1206		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1207-		●
300	05.544 SHAFT ASM; PROP,RR (B) L=830	8-98039-644-1	01	1	1103-1206		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5M(RNV) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1207-		●
