Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#81124) — 260 parça

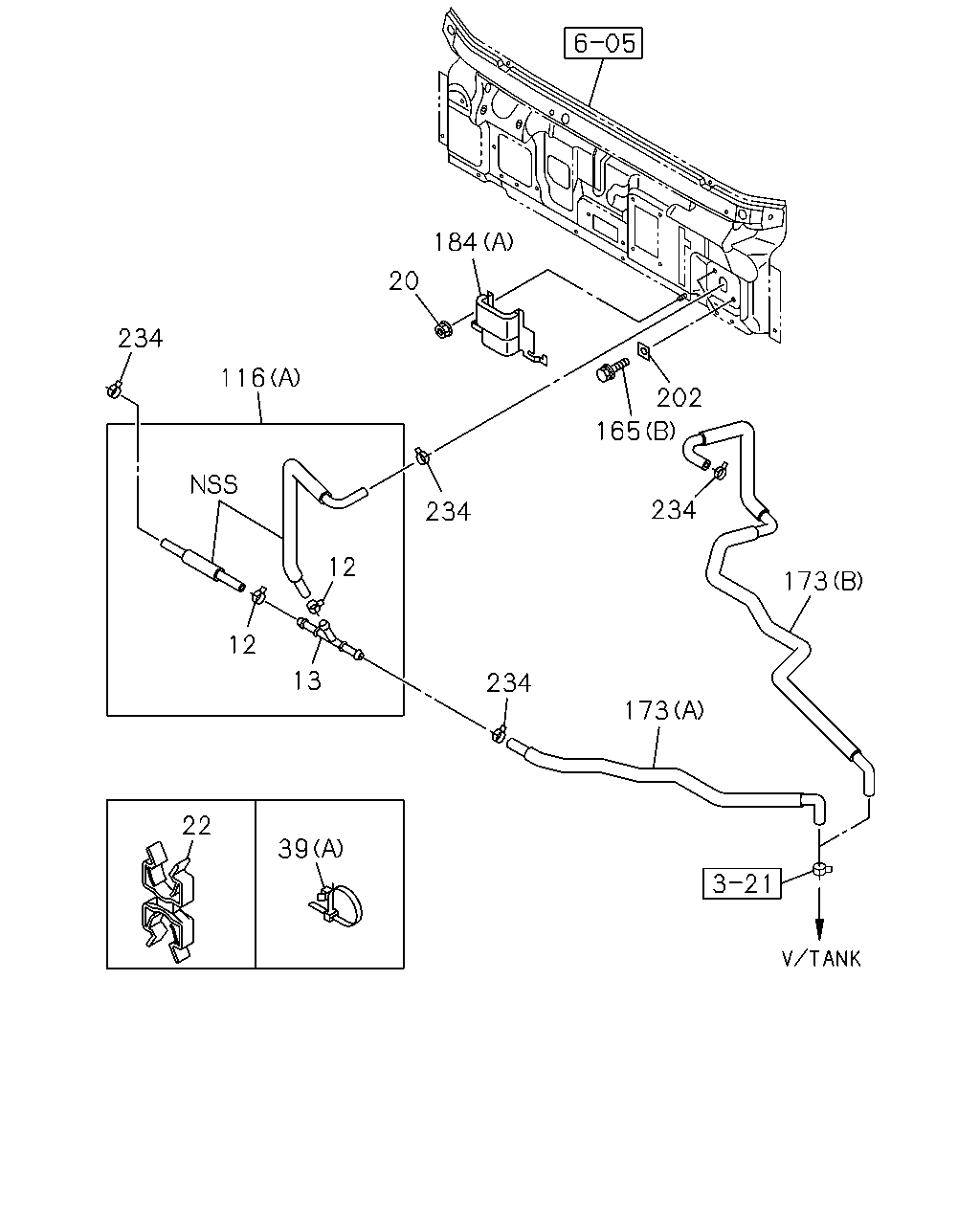

184 20 116 234 202 165 234 173 234 12 12 13 173 234 39 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	08	1	1103-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1103-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1103-	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
22	04.681 CLIP; HOSE,VAC TANK 01.166 ID=22 & 22	8-94464-837-0	01	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1103-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1103-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1103-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1103-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1103-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-468-1	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-526-0	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-469-1	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1103-1108	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1109-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-466-1	01	1	1103-1108	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-466-1	01	1	1109-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-537-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1103-1204	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1103-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1103-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1103-	●	●

184 184 184 39 165 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1103-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1103-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1103-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1103-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-468-1	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-526-0	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-469-1	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1103-1108	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1109-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-466-1	01	1	1103-1108	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-466-1	01	1	1109-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-537-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1103-1204	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●

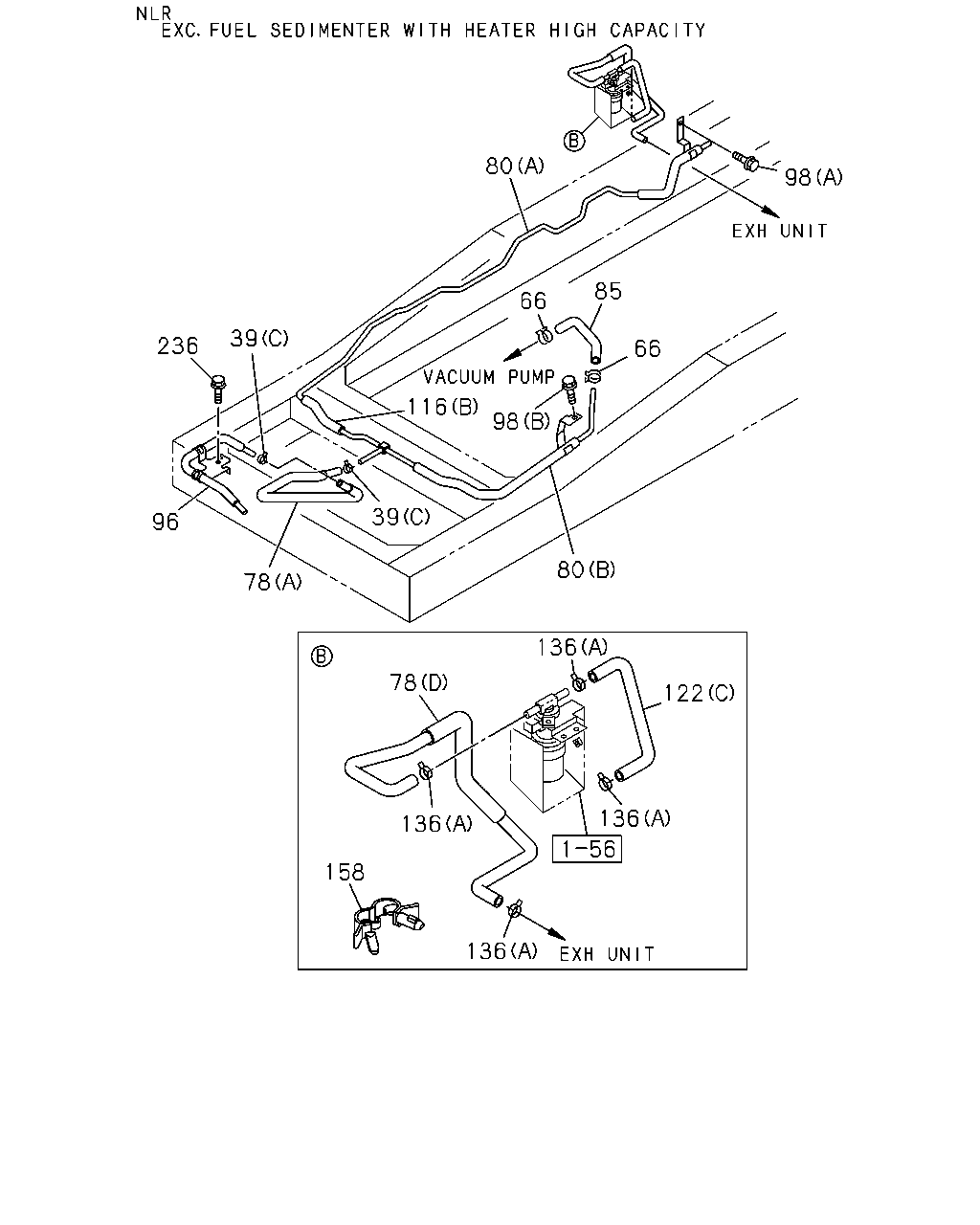

98 80 85 66 66 98 116 39 236 39 80 78 96 122 136 78 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1103-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1103-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98042-690-1	01	1	1103-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	1103-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-223-0	01	1	1105-1206	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-223-0	01	1	1105-1206		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-223-0	01	1	1207-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-223-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98042-691-2	01	1	1103-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	1103-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-224-0	01	1	1105-1206	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-224-0	01	1	1105-1206		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-224-0	01	1	1207-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-224-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98175-336-1	01	1	1103-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98098-174-0	01	1	1103-1206	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98098-174-0	01	1	1207-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98098-174-0	01	1	1207-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1205-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1103-1108	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1103-1108		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1109-1210		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-		●
80	04.930 PIPE; VAC,ENG SIDE FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1103-1204	●	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1205-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98065-063-2	01	1	1103-1108		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A)	8-98065-063-2	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98065-063-2	01	1	1109-1210		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A)	8-98065-063-2	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-		●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1205-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1103-1204	●	●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1205-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1103-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1103-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98042-689-2	01	1	1103-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	1103-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98189-222-0	01	1	1105-1206	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98189-222-0	01	1	1105-1206		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98189-222-0	01	1	1207-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98189-222-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98089-657-0	01	1	1103-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	1103-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-226-0	01	1	1105-1206	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98189-226-0	01	1	1105-1206		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-226-0	01	1	1207-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-226-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98076-068-1	01	1	1103-1206	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98076-068-1	01	1	1207-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98076-068-1	01	1	1207-		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1103-1206	●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1103-1206		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1207-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1207-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1207-		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1206	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1206		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	02	1	1207-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	02	1	1207-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1207-		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1103-	●	●
158	04.681 CLIP; HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1103-1206	●
158	04.681 CLIP; HOSE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1207-	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> ID=18-24 L=14.5	1-09709-298-0	01	1	1207-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1103-	●	●

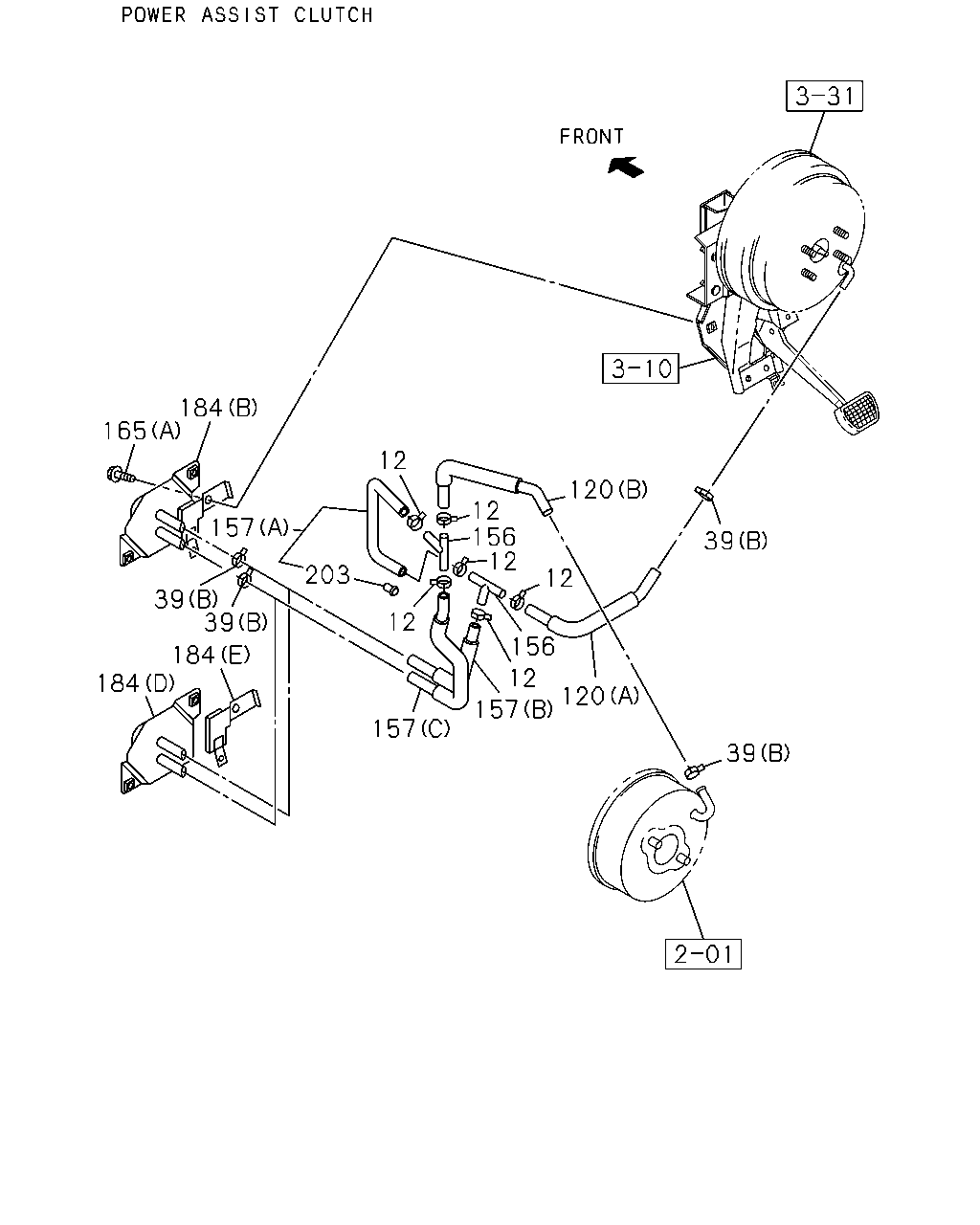

39 120 12 12 156 12 12 156 12 157 120 39 12 203 157 184 165 157 39 39 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	08	1	1103-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1103-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1103-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1103-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1103-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1103-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1103-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1103-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1103-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1103-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (D)	8-98183-468-1	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-526-0	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-469-1	01	1	1109-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1103-1108	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1109-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98183-466-1	01	1	1103-1108	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-466-1	01	1	1109-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-537-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1103-1204	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1103-	●	●

98 80 66 85 66 98 80 116 39 78 39 236 96 136 136 136 78 122 136 136 44 136 78 136 228 136 122 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1103-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1103-	●	●
44	04.930 PIPE; VAC,MAG VLV FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK>	8-98042-654-0	01	1	1103-1206	●
44	04.930 PIPE; VAC,MAG VLV	8-98042-654-0	01	1	1103-1206		●
44	04.930 PIPE; VAC,MAG VLV FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK>	8-98042-654-0	01	1	1207-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK>	8-98042-654-0	01	1	1207-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	1207-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1103-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98042-690-1	01	1	1103-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	1103-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-223-0	01	1	1105-1206	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-223-0	01	1	1105-1206		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-223-0	01	1	1207-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98189-223-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (C)	8-98042-691-2	01	1	1103-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	1103-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-224-0	01	1	1105-1206	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-224-0	01	1	1105-1206		●
78	04.931 HOSE; VAC,PIPE TO PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-224-0	01	1	1207-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-224-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1207-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98175-336-1	01	1	1103-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98098-174-0	01	1	1103-1206	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98098-174-0	01	1	1207-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (D)	8-98098-174-0	01	1	1207-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1205-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1103-1108	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1103-1108		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1109-1210		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98056-002-2	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> ,HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-		●
80	04.930 PIPE; VAC,ENG SIDE FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, HEAVY DUTY FRAME<6WB> (A)	8-98056-002-2	01	1	1310-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1103-1204	●	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1205-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98065-063-2	01	1	1103-1108		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A)	8-98065-063-2	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98065-063-2	01	1	1109-1210		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) (A)	8-98065-063-2	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUT Y VAR2<F01>,HEAVY DUTY FRAME<6WB> (A)	8-98065-063-2	01	1	1310-		●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1205-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1103-1204	●	●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1205-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1103-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1103-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1103-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98042-689-2	01	1	1103-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	1103-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98189-222-0	01	1	1105-1206	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98189-222-0	01	1	1105-1206		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98189-222-0	01	1	1207-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98189-222-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (A)	8-98089-657-0	01	1	1103-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	1103-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-226-0	01	1	1105-1206	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98189-226-0	01	1	1105-1206		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-226-0	01	1	1207-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> (B)	8-98189-226-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1207-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98076-068-1	01	1	1103-1206	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98076-068-1	01	1	1207-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C)	8-98076-068-1	01	1	1207-		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1103-1206	●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	1103-1206		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1207-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (B) L=140	5-09707-031-1	01	1	1207-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1207-		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1206	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	1103-1206		●
136	04.681 CLIP; VAC HOSE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	02	1	1207-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 03.162 (A) ID=16	8-98008-098-0	02	1	1207-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1207-		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1103-	●	●
228	04.930 NUT; PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1206	●
228	04.930 NUT; PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1206		●
228	04.930 NUT; PIPE FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-		●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE	0-91180-106-0	01	1	1207-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
